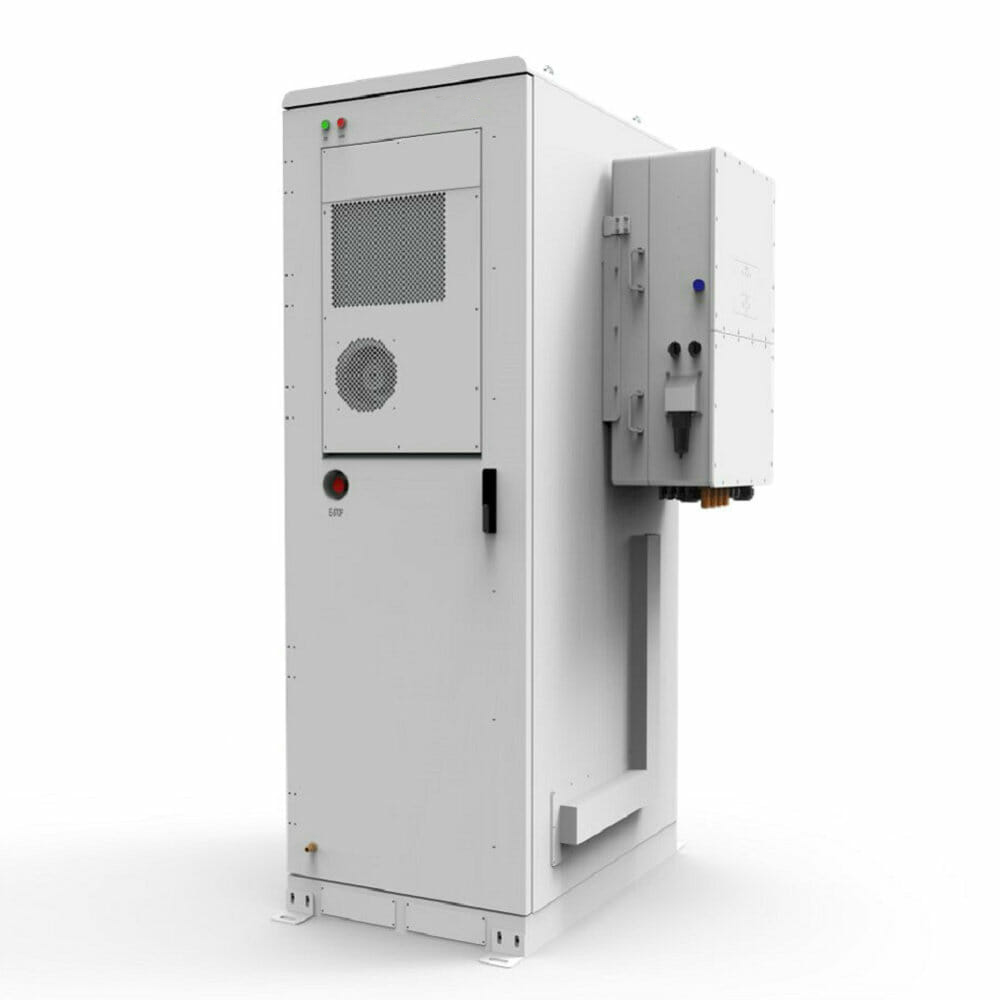

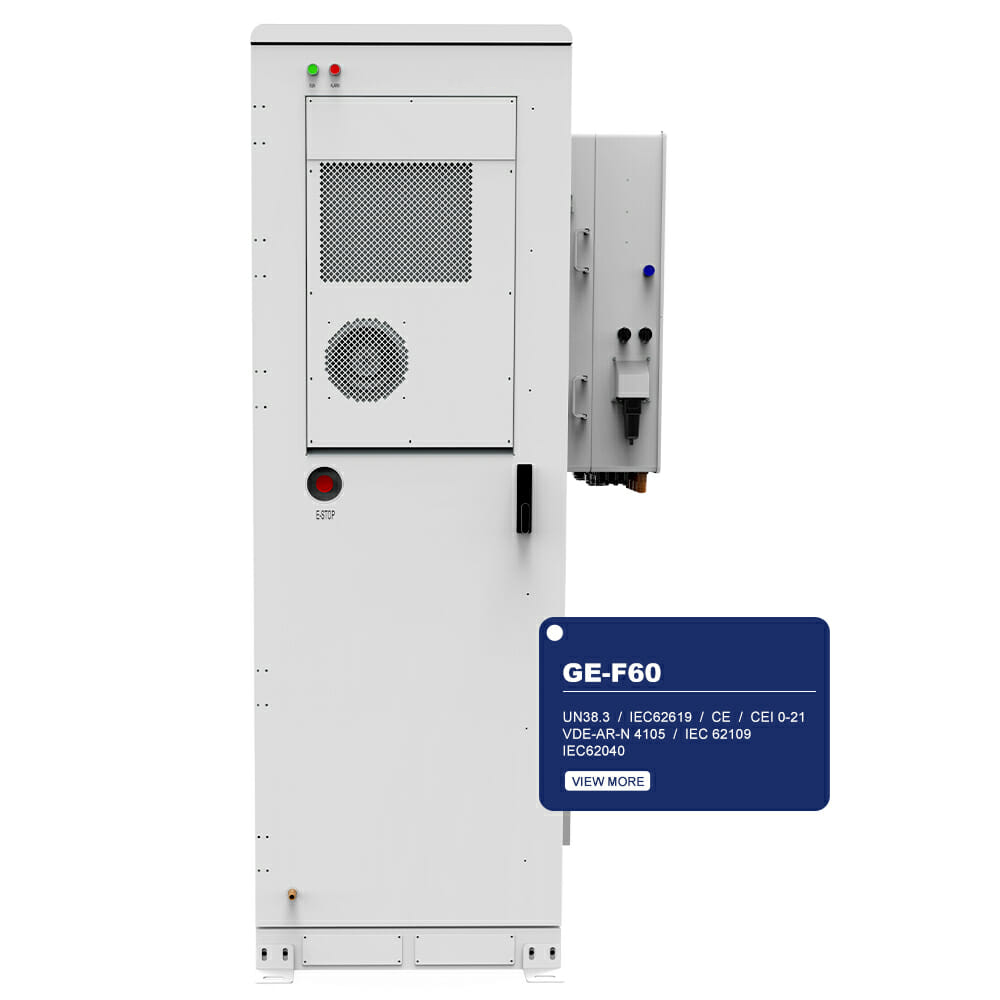

50kW/60KWh High Voltage All-in-one Hybrid Battery Energy Storage System

System Specification

Model

GE-F60-V1

AC Output Frequency and Voltage

50/60Hz; 3L/N/PE 220/380, 230/400Vac

Grid Type

Three phase

Energy Configuration (kWh)

61.4

Dimension (W x D x H, mm)

735x1050x2250（no contain inverter）

Weight Appr. (kg)

950（battery）+80（inverter）

AC Output Rated Current (A)

75.8

Battery Operating Voltage (V)

500 ~ 700

Max. charging/discharging efficiency

91%

Battery Chemistry

LiFePO4

IP Rating of Enclosure

IP55

Installation Style

Floor-Mounted

Warranty

10 years

Inverter Technical Specification

Max. PV Input Power (W)

65000

Max. PV Input Current (A)

36+36+36+36

Rated PV Input Voltage (Vdc)

600

Start-Up DC Voltage (Vdc)

180

MPPT Voltage Range (Vdc)

150-850

Max. PV Short-circuit Current (A)

55+55+55+55

Number of MPPT

4

Peak Power (off-grid)

1.5 time of rated power, 10s

Power Factor

0.8 leading to 0.8 lagging

THE

<3%

DC injection current (mA)

<0.5%ln

Display

LCD

Operating Temperature Range (℃)

-40~60( >45℃ derating)

Relative Humidity

15% ~ 85% (No Condensing)

Dimension (W x D x H, mm)

527x294x894

Inverter Communication

CAN,RS485,WIFI,ETH

Max. Efficiency

97.6%

MPPT Efficiency

99.9%

Battery Technical Specification

Battery Module Nominal Voltage (V)

51.2

Battery Module Energy (kWh)

5.12

BMS Communication

CAN

Battery Module Dimension(W*D*H mm)

440x570x133

Battery Module Weight (kg)

44

Operating Temperature Range

Charge: 0～55℃ / Discharge: -20℃～55℃

Cycle Life

≥6000(@25℃±2℃,0.5C/0.5C,70%EOL)

Battery Module Certification

CE, IEC62619, IEC62040, UN38.3
