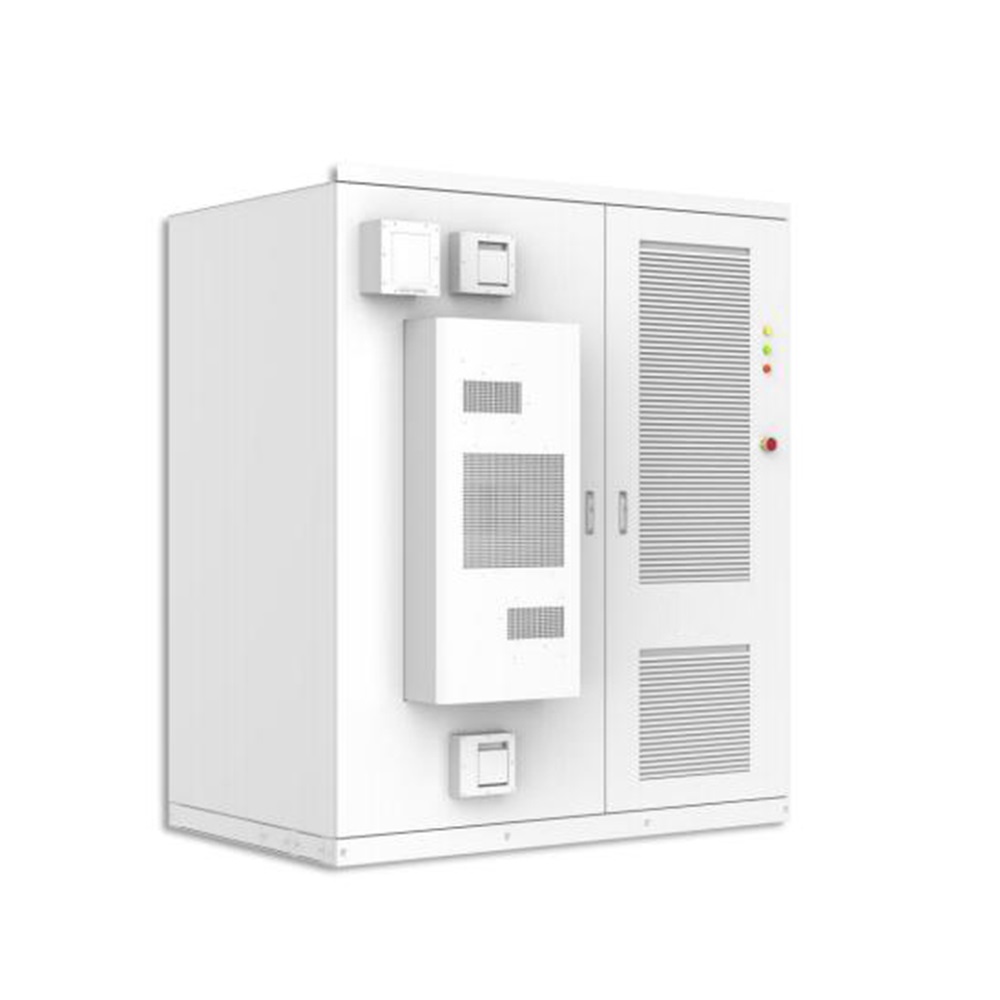

90KW/266KWH All-in-one Fully integrated Outdoor Cabinet BESS

90KW/266KWH All-in-one Outdoor Cabinet BESS produced by catl

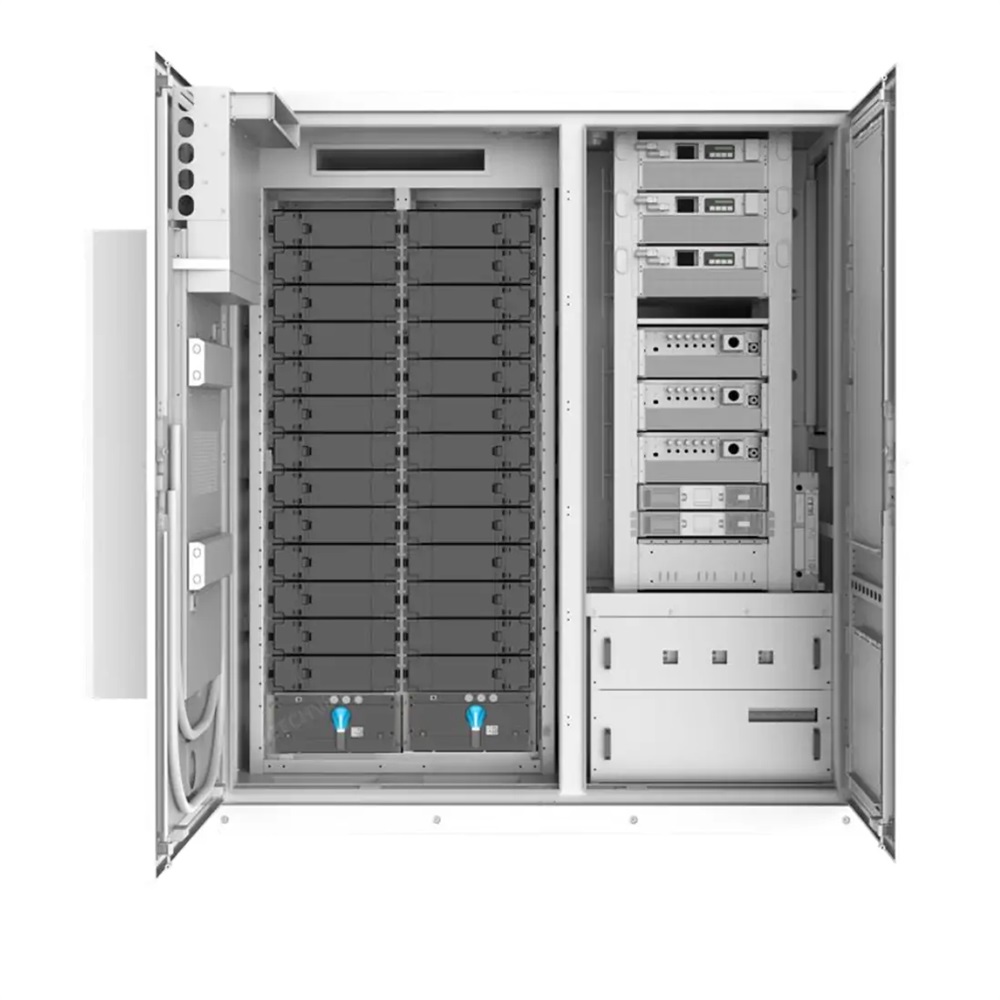

All-in-one design


·  Fully Integrated with battery rack, PCS, PV inverters, EMS and power

·  distribution unit; (3*PWS2-30P-NA, 3*PDS1-60K)

·  Modular design, flexible function configuration:30kW133kWh,60kW133kWh

·  Support peak shaving, off-grid, Solar-Storage-Diesel mode;

·  Wide voltage range: 150V~750V, capacity configurable;

·  STS can be added to achieve seamless switching;


Features


Flexible

All-in-one design and highly integrated

Modular design with different optional parts

Easy-to-install

NEMA 3R / IP54 rated

Parallel installation side-by-side or back-to-back

Compatible

Compatible with different module series,150~750Vdc

Grid-tied and Off-grid

480Vac 3P4W & 240Vac 2P

Optional PV input

Optional backup module

Compliance

Global grid certified & listed PCS

Compliance with global safety standards


Specification



DC Side

Charging and Discharging voltage range

150V-750V(350V-750V  @full load)

Rated Power

30kW*n(1~3)

Maximum Charging and

Discharging Current

90A*n(1~3)

DC Bus Side (Optional)

PV Voltage Range

250V-830V

Maximum Input Current

65A*n(1~3)

AC Side

Rated Output Power

30kVA*n(1~3)

Maximum Apparent Power

33kVA*n(1~3)

Maximum Active Power

30kW*n(1~3)



AC Voltage Grid-tied



400V(- 15%~15%)  3P4W+PE /480V(- 15%~15%)  3P3W+PE

AC Voltage Off-grid

400V(-20%~20%)  3P3W+PE /480V(-5%~5%) 3P3W+PE

AC Frequency

50Hz/60Hz(-2.5Hz~2.5Hz)

THDi

<3%

General Specification

Dimension(W*H*D)

2100*2450*1300mm

Cooling

Forced air cooling for power electronics

5kW Air-conditioned for battery system (pre-installed)

Enclosure

NEMA 3R/IP54

Weight

3800kg

Operation Altitude

3000m(>2000m  derating)

Operation Temperature

-20℃~55℃(De- rating over 45°C)

Operation Humidity

0-95%(No condensing)

Noise

70 dB



Power Converter Compatibility



Model

PWS2-30M- EX

PWS2-30P- EX/NA

Max PCS units

3





AC power range



30kW (400 or 480Vac & 350-750Vdc)*n  units (n=1,2,3) 15kW (400 or 480Vac & 150-350Vdc)*n  units (n=1,2,3)

DCDC Charger Compatibility

Model

PDS1-45K

Max DCDC units

3

PV Input Power

45kW *n units (n=1,2,3)

PV Input Voltage Range

200V-810V

Battery Compatibility

Manufacture

CALL

Cell Type/Module Energy

LFP 100Ah/10.24kWh(2P16S)

Battery Configuration

2P16S*13S*2P

Nominal Energy

266.24kWh

Nominal Voltage

665.6V

Voltage Range

582.4V~748.8V

Auto-switching Compatibility

Model

PWD- 100K

Switching Time

Active Switching: Seamless

Passive Switching: 30ms

Communication

Communication Port

CAN/RS485/Ethernet

Communication Protocol

Modbus TCP/RTU, IEC104

BMS Access

Support

Optional Components

Fire Fighting System

Sensor tube, with the agent of NOVEC 1230 or FM200 or water

Built-in transformer

400V/400Vac  or 480V/480Vac,  100kVA

Built-in gateway

For peak shaving, demand charge management, or back--

up power supply.

Aux power

220V single phase built-in, up to 5kw transformer 120V built-in, up to 3kW

Salt spray prevention

Optional Salt spray prevention version with special coating and filter

Compliance

UL9540



Appearance

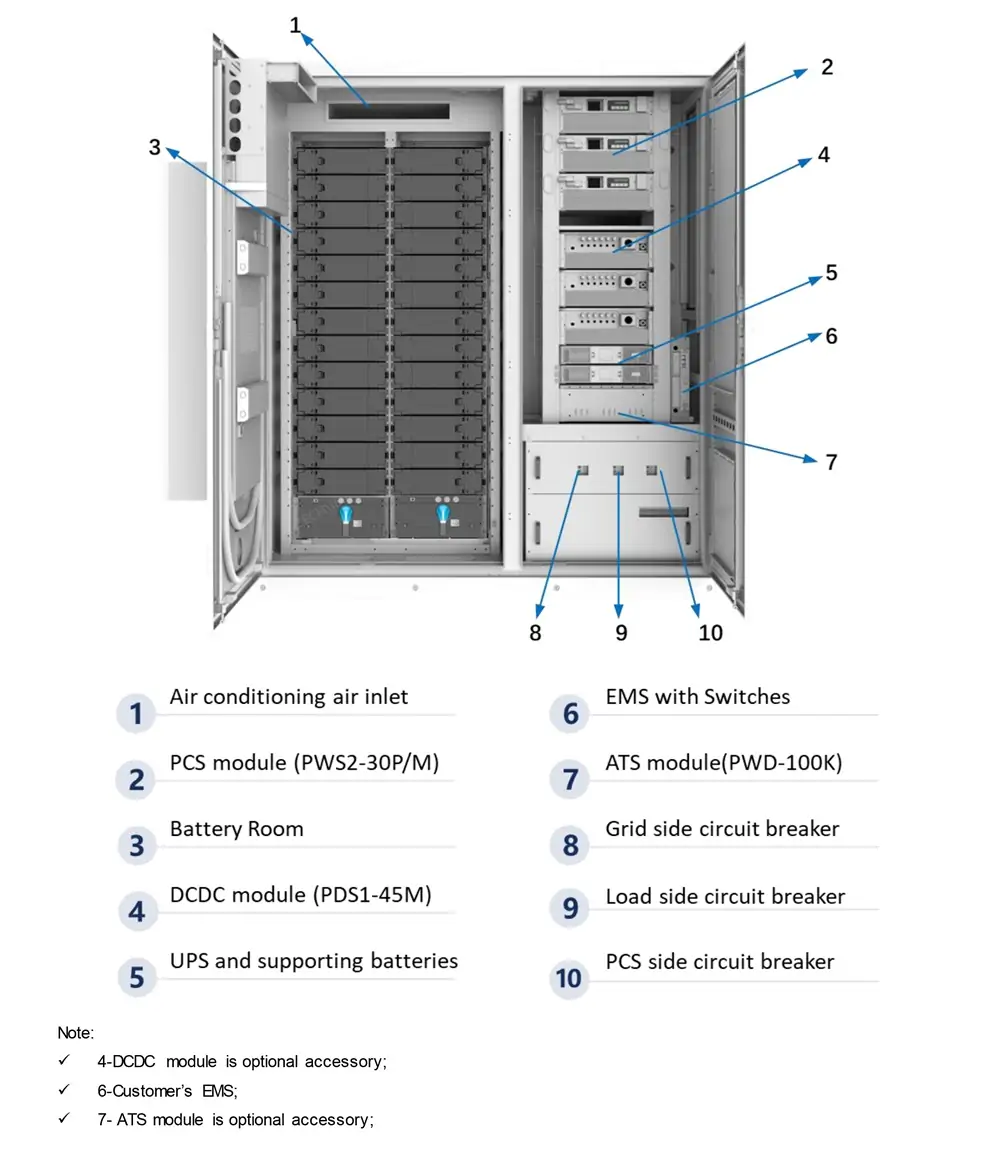

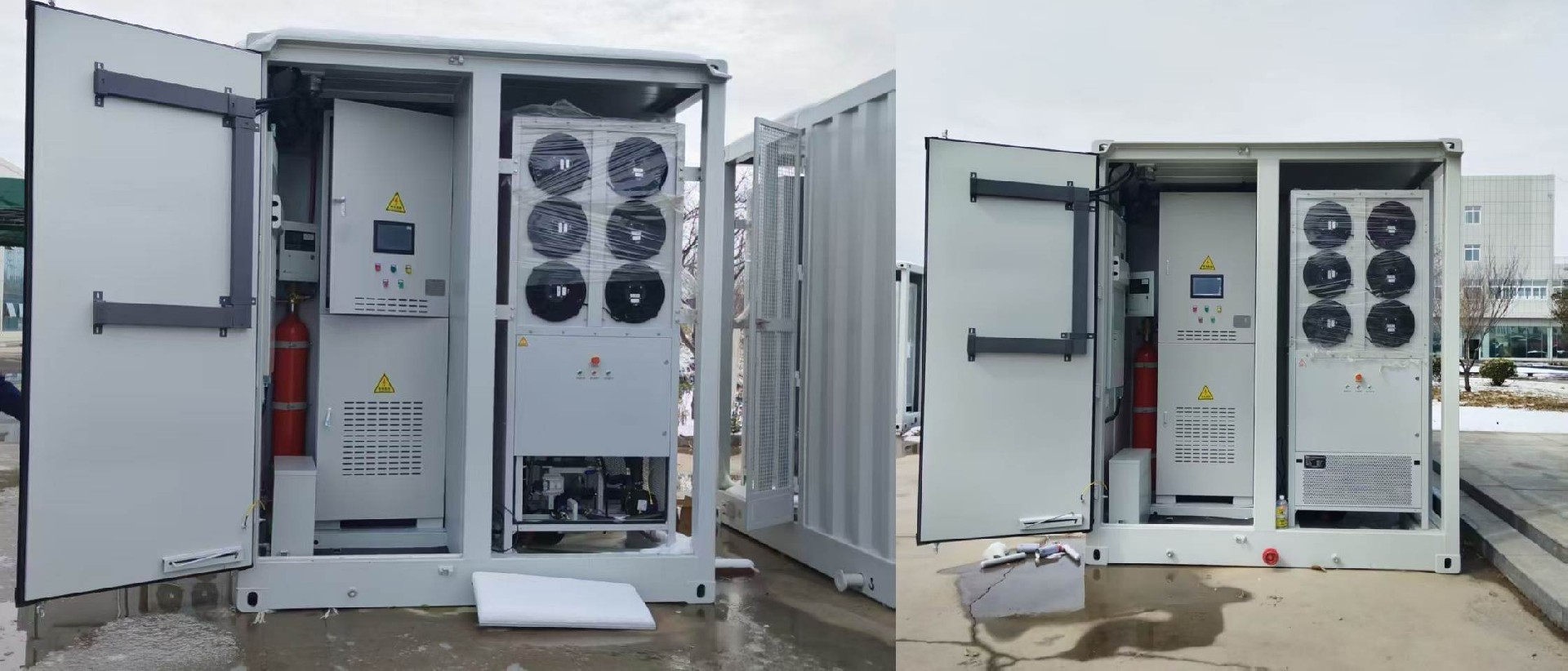

detail-1

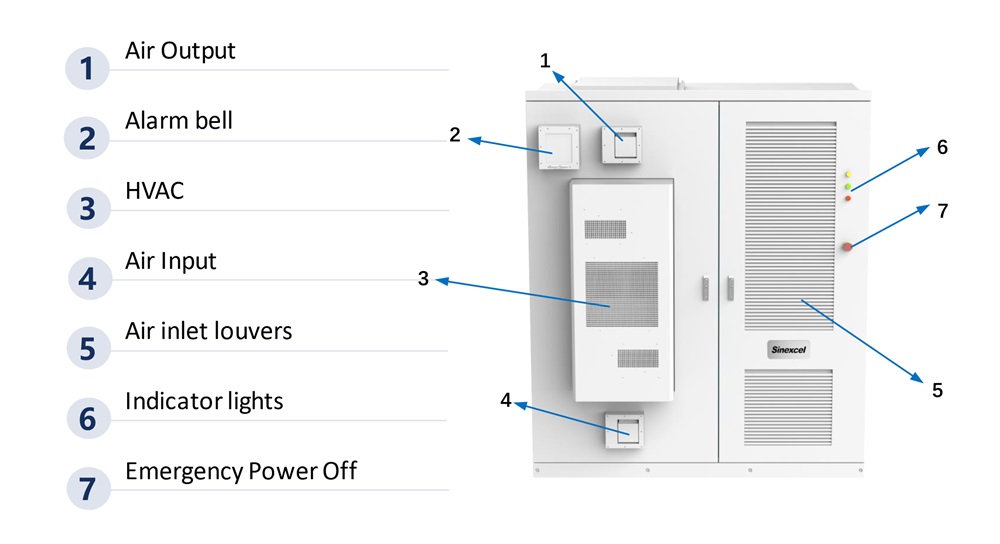

detail-2
