100KW/215KWh All-in-One Outdoor Lithium Inverter Battery Energy Storage System

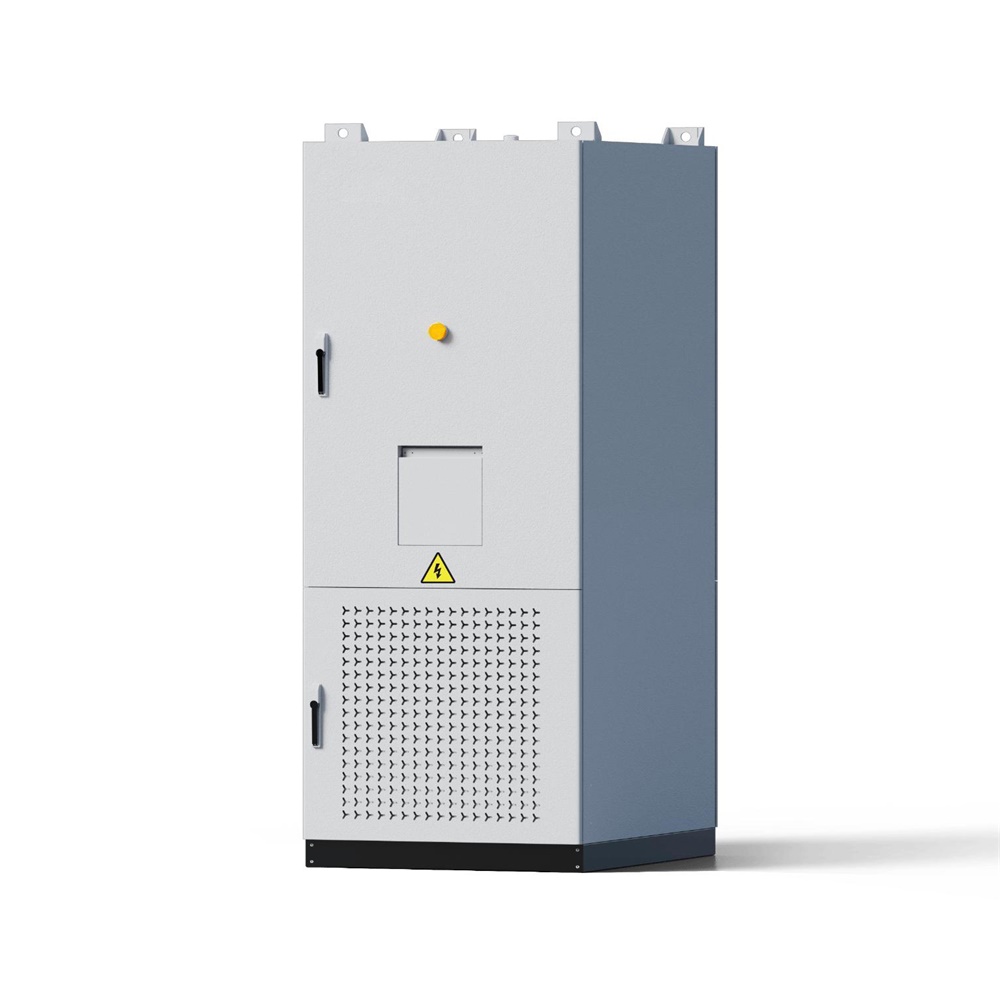

All-in-One Integration 100KW/215KWh Outdoor Liquid-cooling Battery Energy Storage Cabinet

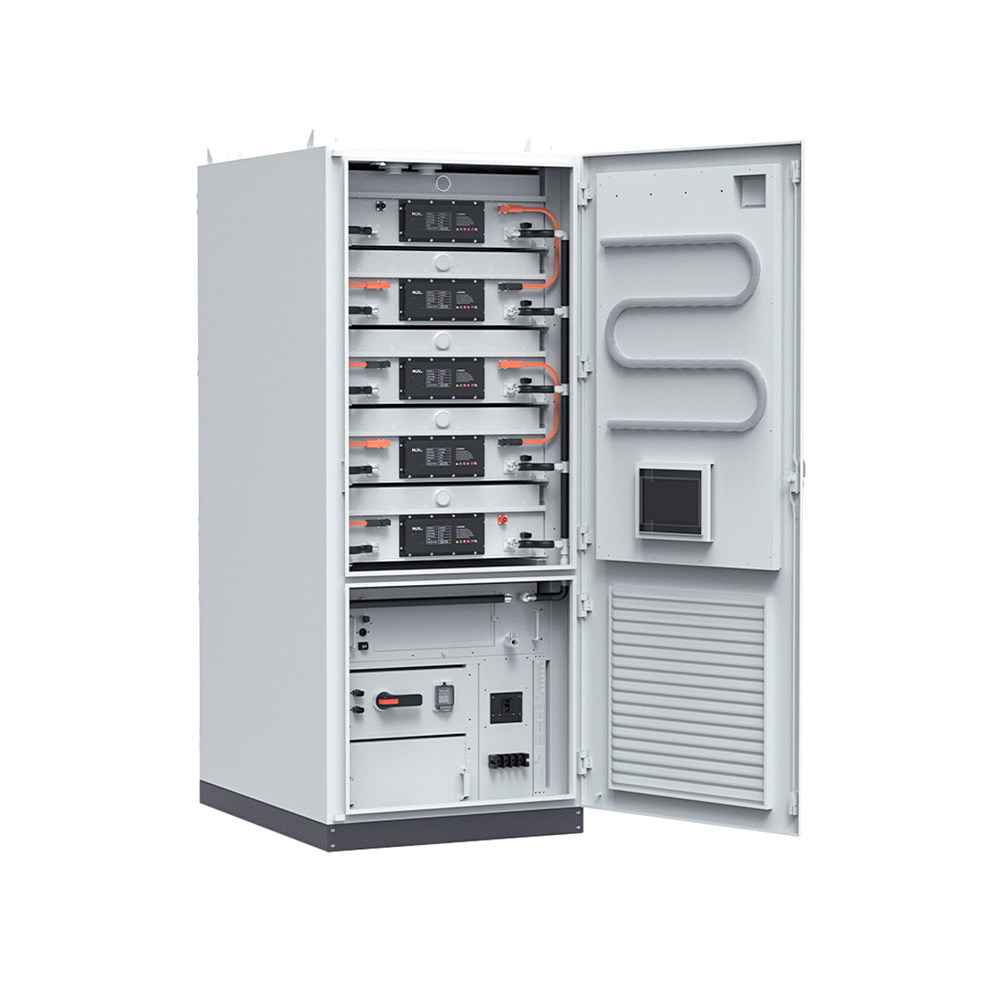

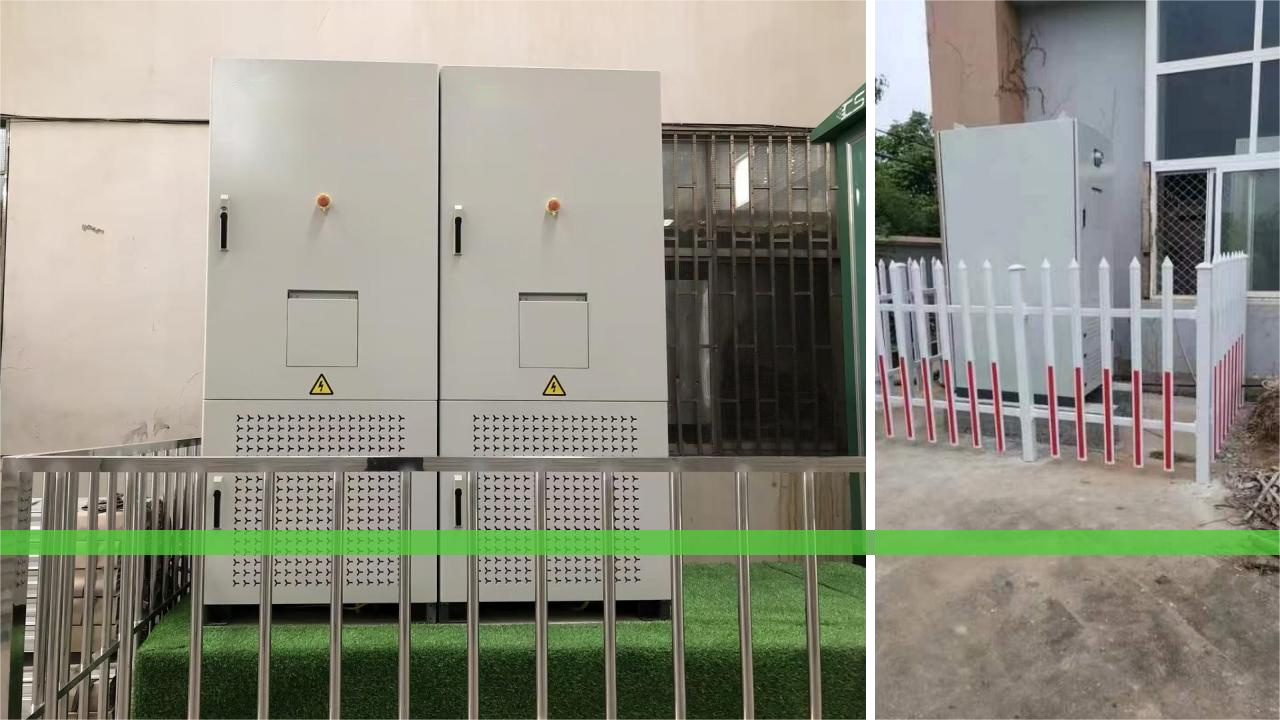

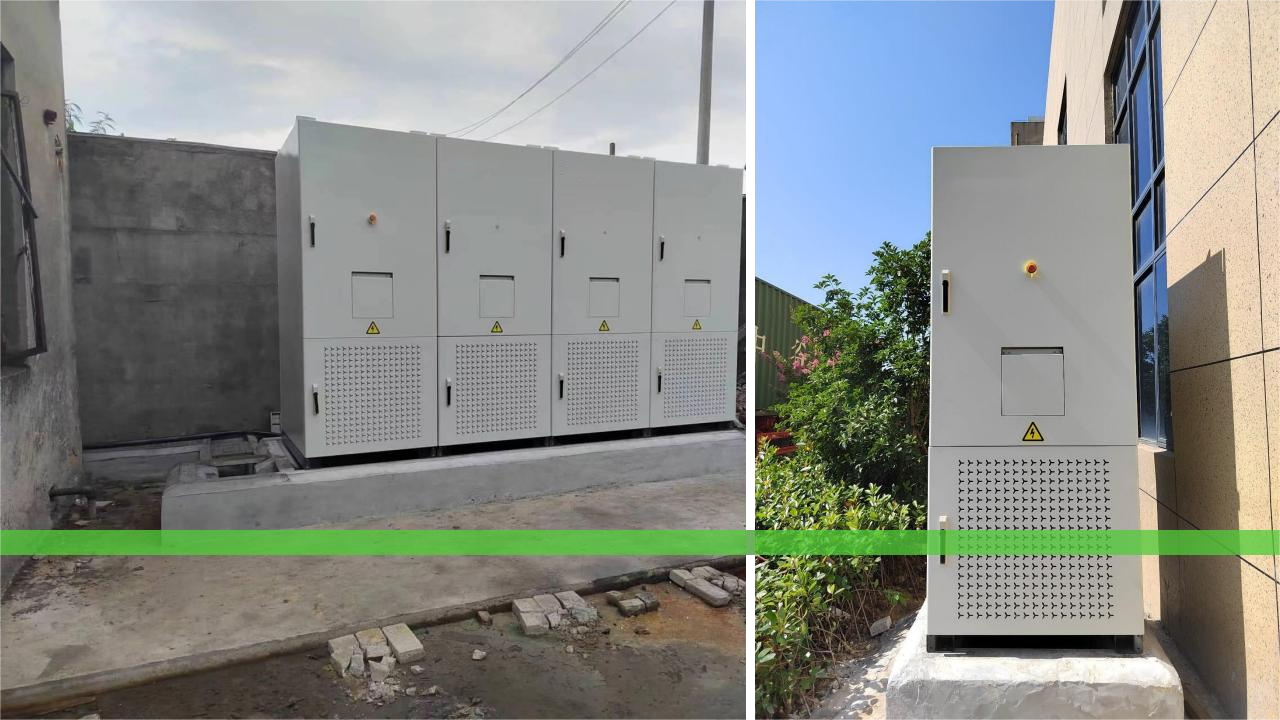

The All-in-One liquid-cooled energy storage terminal adopts the design concept of 'ALL in one,' integrating high-security, long-life liquid-cooled batteries, modular liquid-cooled PCS, intelligent energy management system, battery management system, efficient liquid-cooled thermal management system, fire safety system, all within a single standardized outdoor cabinet. It helps customers establish distributed energy storage capabilities.

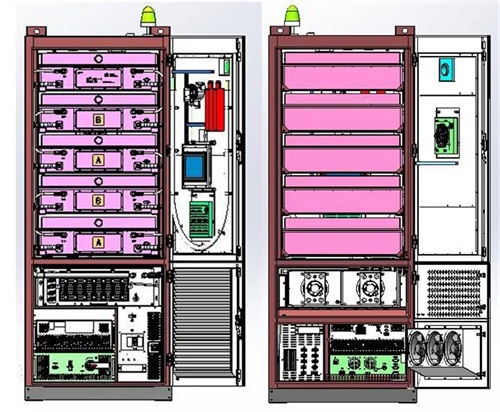

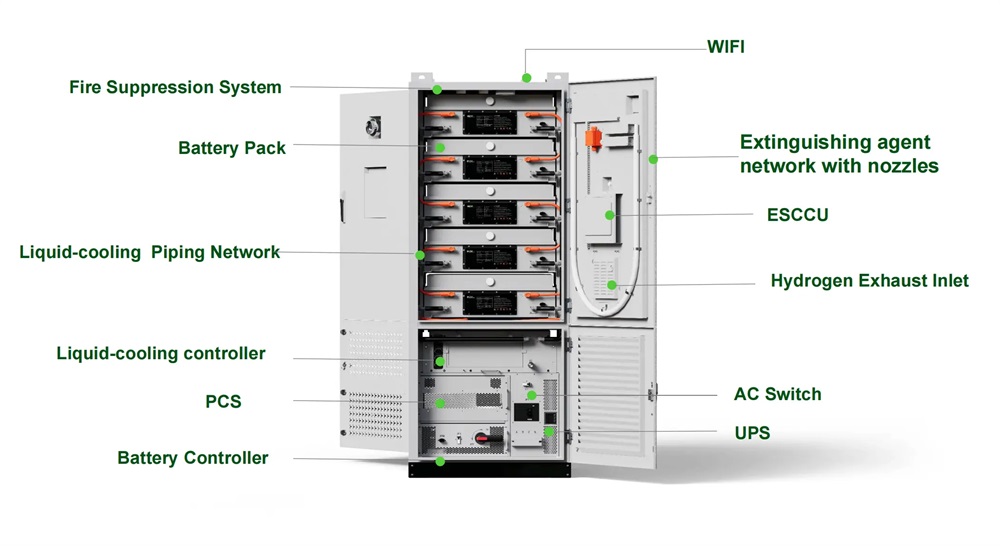

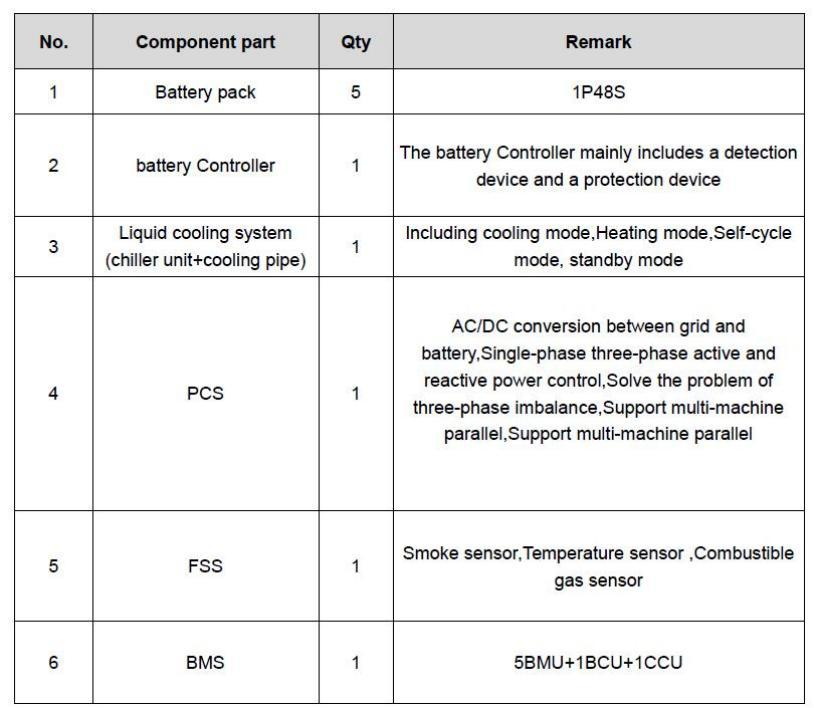

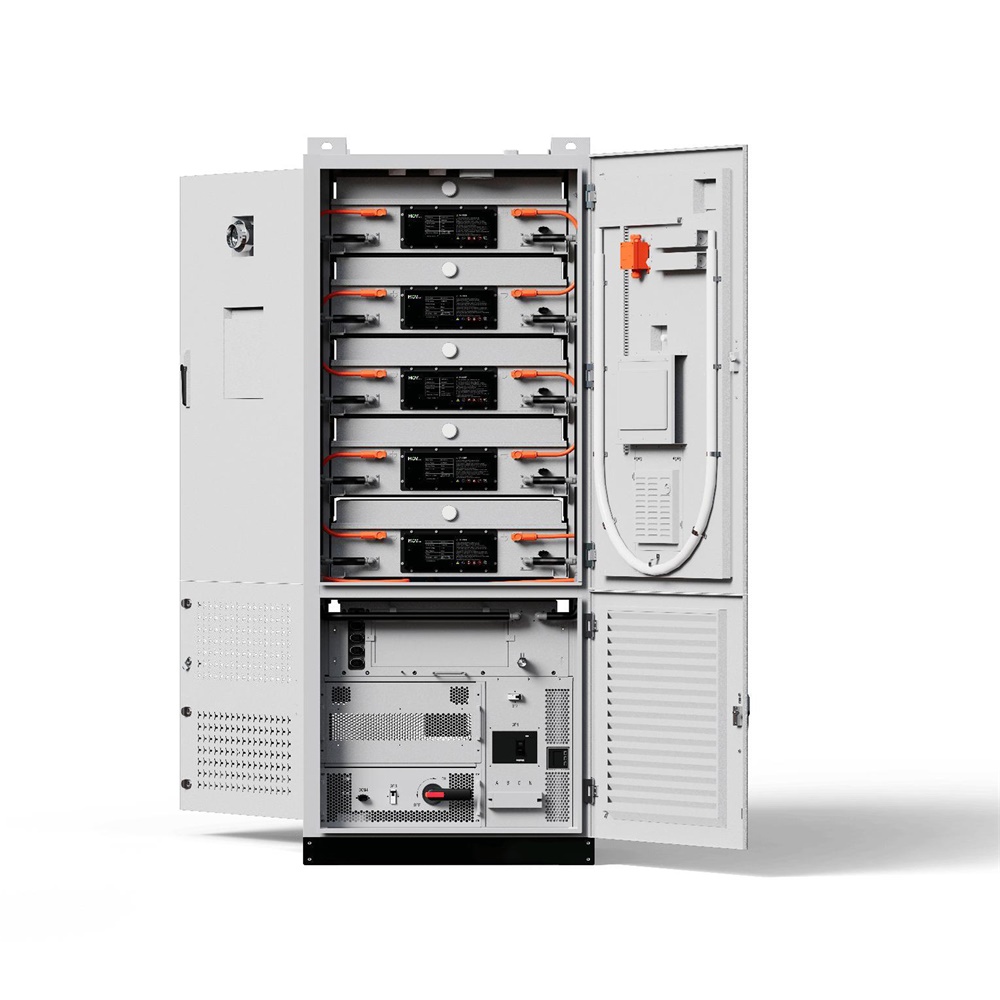

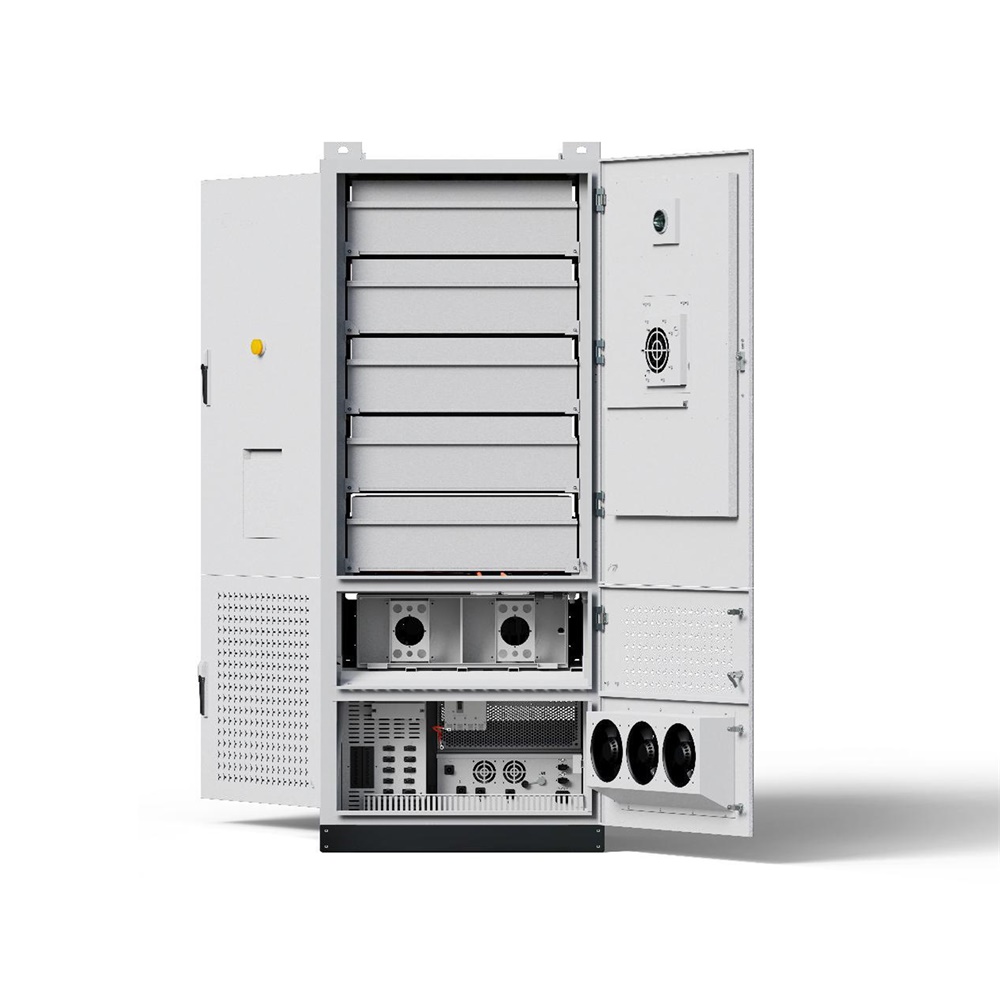

Component Part

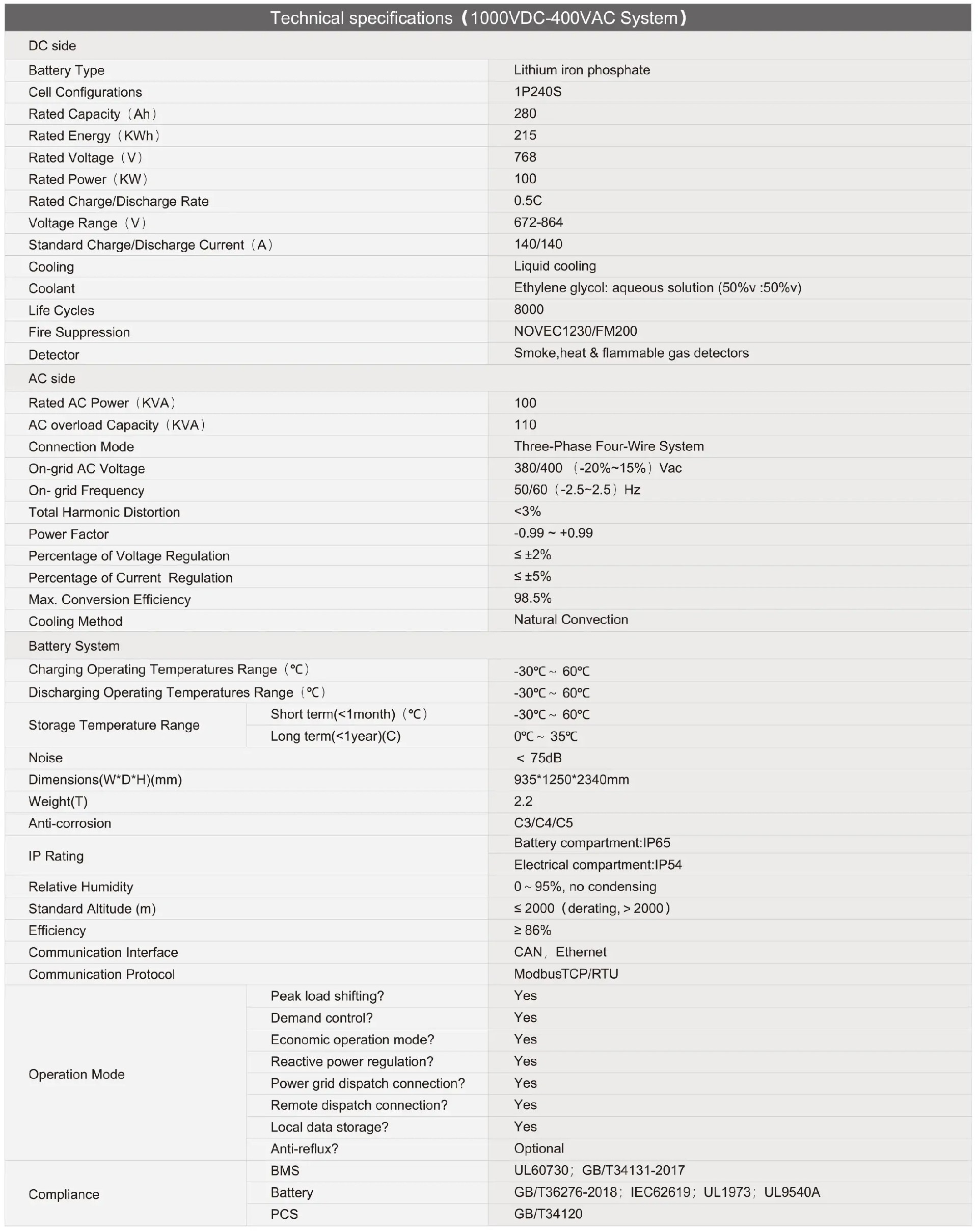

Specifications

apecifications

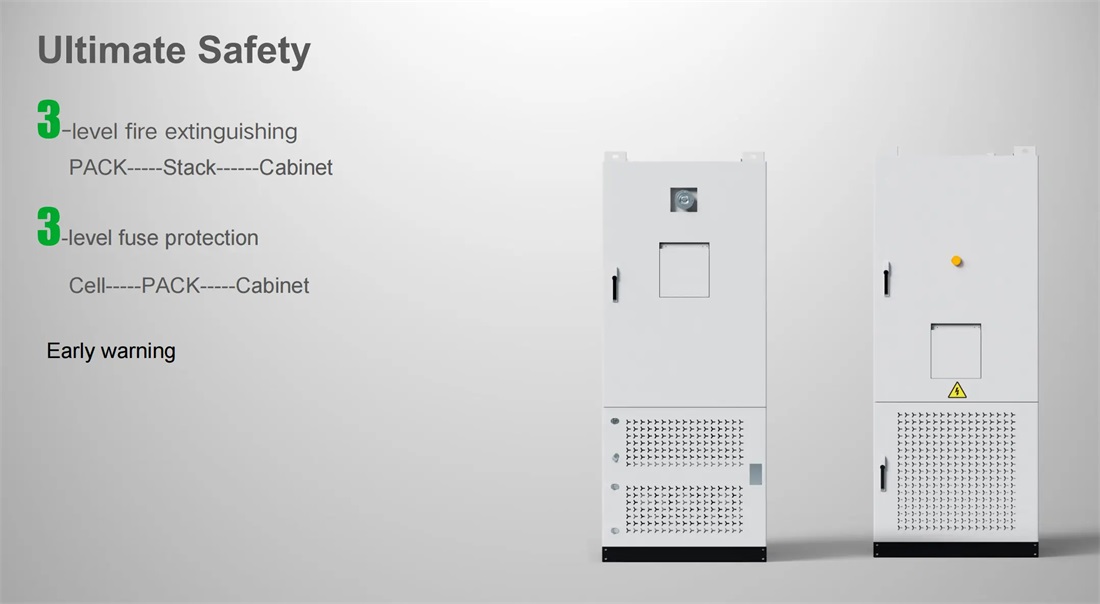

All-in-One liquid-cooled ultimat safe

Electrical compartment separation in the battery compartment effectively prevents potential hazards caused by the accumulation of flammable gases.

Electrical compartment separation


Advantage

1. Cost-Effective and High-Performance

Our solution is an all-in-one package: Battery packs, charge controller, BMS, EMS, and PcS, all integrated into a single unit with a highly efficient

 three-level topology to optimize system efficiency. It features a unique single-group and series design that eliminates parallel capacity loss.

2. Safety and Dependability

Our standard cabinet comes with fire system isolation, state-of-the-art liquid-cooling technology, combustible gas detection, and an FM200 fire

 extinguishing system, ensuring the safety and controllability of the system.

3. Smart and User-Friendly

Our system is versatile, compatible with 400V grid systems, and supports a range of applications including peak-shaving, demand control, backup

power, and frequency regulation. It also offers monitoring and fault-recording capabilities. Operational data can be accessed via WiFi, 5G, LAN,

and other interfaces, facilitating remote operation.

4. Simple Installation

Our solution is a plug-and-play, turnkey system that can be easily scaled to meet any energy requirements.

5. Economical

Highly efficient thermal stability, 20% increase for life cycle DC Round trip Rate up to 91%;

Seamless parallel operation without capacity loss;

Supports mixed usage of new and old battery cells.

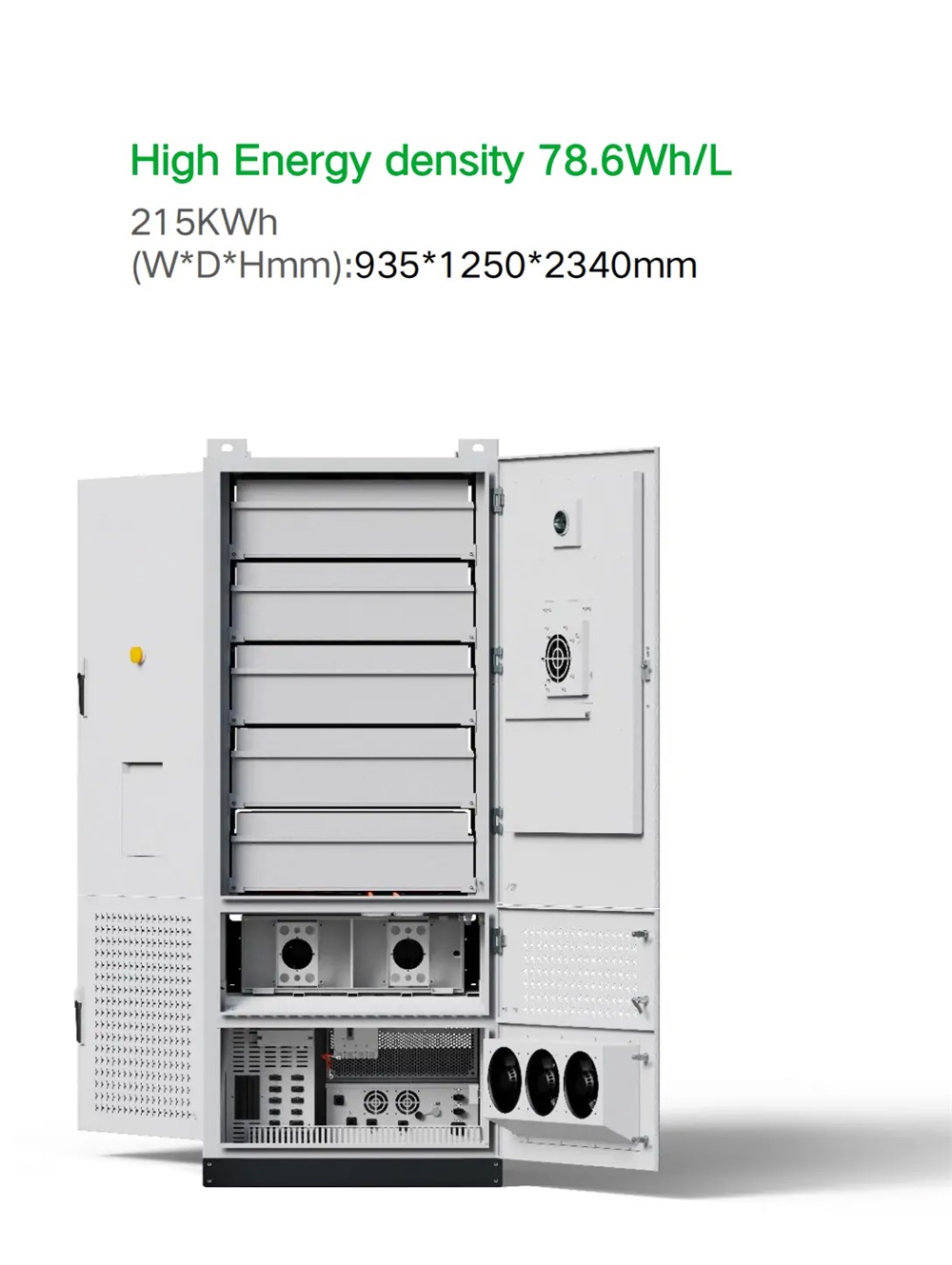

dimension

Economical

Highly efficient thermal stability, 20% increase for life cycle DC Round trip Rate up to 91%;

Seamless parallel operation without capacity loss

Supports mixed usage of new and old battery cells

Smart and Flexible

1. Modular design, Scalable up to 10 cabinets in Parallel

2. Play -and –Plug on site

3. Automatic on & off-grid switch in s/ms

4. Easy installation, High availability

5. Supports multiple communication protocols such as Modbus

6. TCP/RTU, MQTT, IEC 104, etc., for a more user-friendly

7. Centralized control






All-in-One Integration 100KW/215KWh


Management System



Management System

Home page include following info:



• Multiple Stack System Status

• Power Curve

• Stack topology

• Warning Info

 homepage

 Home Page

Rack Info

Rack Info

Pack Info
Pack info

Cell Info
Cell Info

Application Data
Application Data

Active Warning
Active Warning


Total power control mode


(1)Total power control mode:

The power is evenly distributed when multiple stacks are paralleled.
• When the power input a positive value, it is set to discharge.
• When it input a negative value, it is set to charge.
• After setting is completed, click “Confirm” to issue the power control to PCS.

Branch control mode

(2)Branch control mode:

This step is not required for single cabinet system, but it is required for multiple cabinets.
• Individual rack can be configured to charge or discharge. When the power is set to a positive value, it is set to discharge.
• When it is set to a negative value, it is set to charge.
• After setting is completed, click “Confirm” to issue the power control to PCS.

Schedule control mode

(3)Schedule control mode

Set the required charging and discharging power according to the time period and plan.
• It is suitable for long-term fixed charging and discharging requirements.
