Cabient Energy Storage System Solutions

Call C& Cabinet Energy Storage System product introduction of cell, module, high voltage box, outdoor battery cabinet, Outdoor Combiner cabinet.

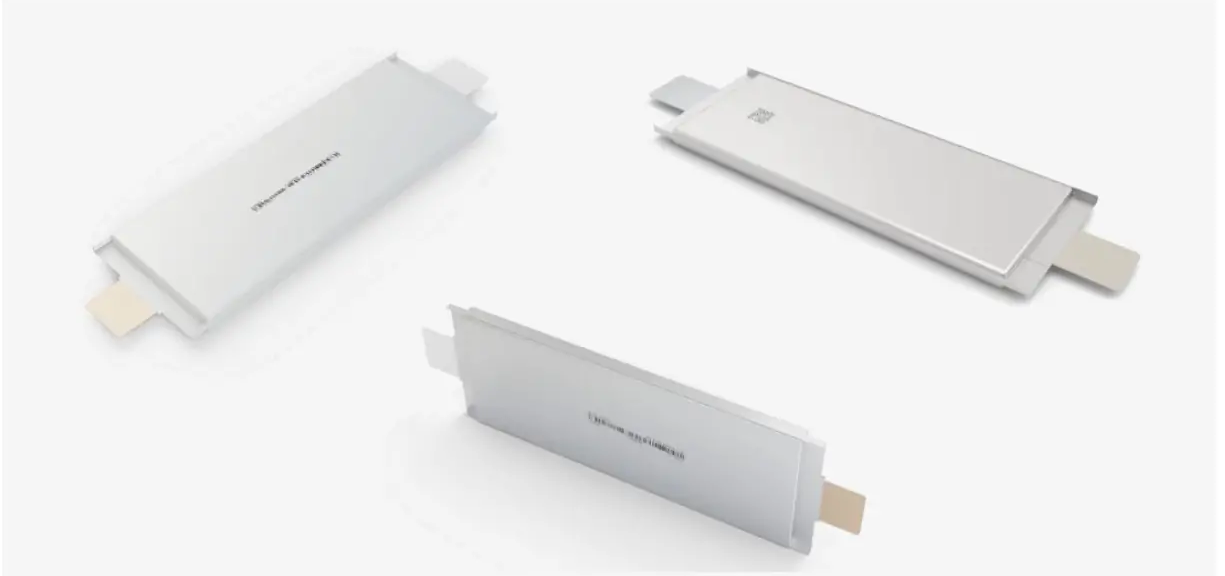

C&I Products – 3.2V 100AH M1C24A LiFePO4 Pouch Cell


 3.2V 100AH M1C24A




items

Parameters

Battery Type

LiFePO4 Pouch Cell

Rated Capacity (Ah@0.5CP)

100

Rated Energy (Wh@0.5CP)

320

Rated voltage(V)

3.2

Rated charge and discharge power (W)

160W (0.5CP)


Maximum continuous charge

and discharge power (W)

320W(1.0CP)

Operating temperature (℃)

Charge:-10~55;

Discharge:-20~55

Size(mm)

T22.5*W122.7*L360.5mm

Weight(g)

1890

RTE (0.5CP/0.5CP)

≥94%


Cycle life(@0.5C)

6000@80%SOH

Design life (years)

10


Authenticate

GBT36276/UL9540A/IEC62619

 /UL1973/UN38.3

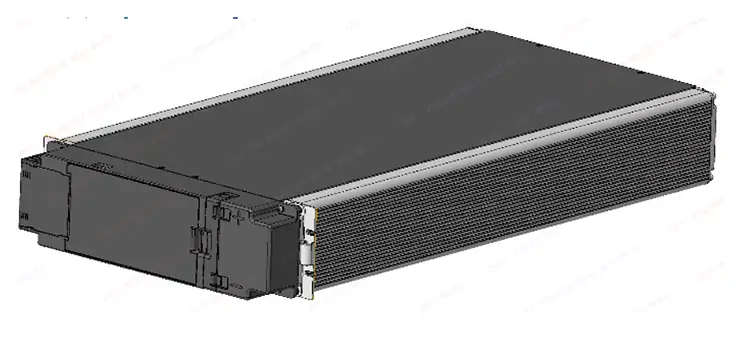

C&I Products – 51.2V 200AH LiFePO4 Battery Module


51.2V 200AH LiFePO451.2V 200AH LiFePO4


Security Design

Connection detection

Module short circuit protection


Maintenance Convenience Design

Pre-maintenance interface, first-level BMS, and Fuse maintenance, without tools


Concise Interface Design

Hidden wiring harness design


Compatibility Design

Module 3U, suitable for 19-inch cabinet

Electrical selection compatible with 1000-1500V



items

Specifications

Cell Type

LFP, 100Ah

Connection

2 parallel 16 series (2P16S)

Total Capacity/ Energy

200Ah/10.24kWh

Usable/Capacity/Energy

196Ah/10kWh

Nominal Voltage

51.2V

Output Voltage Range

44.8~57.6V

Max. Charge/Discharge Power

5.12kW (0.5CP)

Room Temperature Cycle Life (25℃±2℃)

6000cycles @70%SOH

Module Safety Certification

IEC62619 /UL1973/UL9540A;

GBT36276/RCM/CE EMC /FCC

UN Transportation Test Standard

UN38.3

Ingress Protection

IP20

Operating ambient temperature

-10℃~50℃

Optimal operating temperature

15℃~30℃

Operating ambient humidity

5%~95%, No condensation

Storage conditions

30% SOC; 7days @( -30~-20℃)

@(45~60℃)5%~95RH;

6 months @ -20~45℃,5%~95RH

Dimensions

W445*D913.2*H129 mm(without bracket)

Altitude

≤3000m

Weight

80kg

Installation

Rack-mounted installation

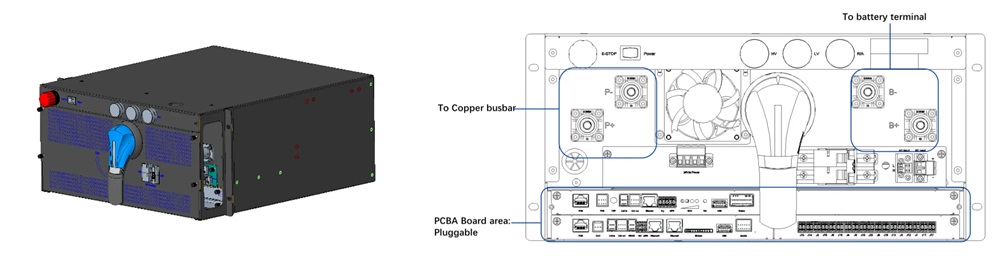

C&I Products – BMS High Voltage Box

BMS High Voltage Box


integrated Design

HVB (BMS Control Box) includes BCU, and IVU, can support expandable BAMS, and ESU, and also adds 24VDC, which can support black start.


Maintenance Convenience Design

Modular PCBA design with convenient expansion for levels 2 and 3 (BAMS/ESU).

Hot-plug design, PCBA convenience maintenance.


Safety/Reliability Design

Electronics/electrical components are easy to replace, 24VDC dual power backup, improving system reliability.

Insulation detection, loose connection detection.


Compatibility Design

Module 3U, suitable for 19-inch cabinet

Electrical selection compatible with 1000-1500V



Items

Parameters

Model

C-H1500100SA1

Max. Operating Voltage Range

Max. 1500V DC

Max. Input / Output current

120A

Optimal operating temperature

15℃~30℃

Environment temperature range

-10℃~50℃


Communication between

HV-BOX and PCS or DC/DC

CAN & RS485 & Ethernet (three ports)

Max. Module Serial Connect

26S

Dimensions

W442*D500*H217.2 mm

Weight

26kg

Ingress Protection

IP20

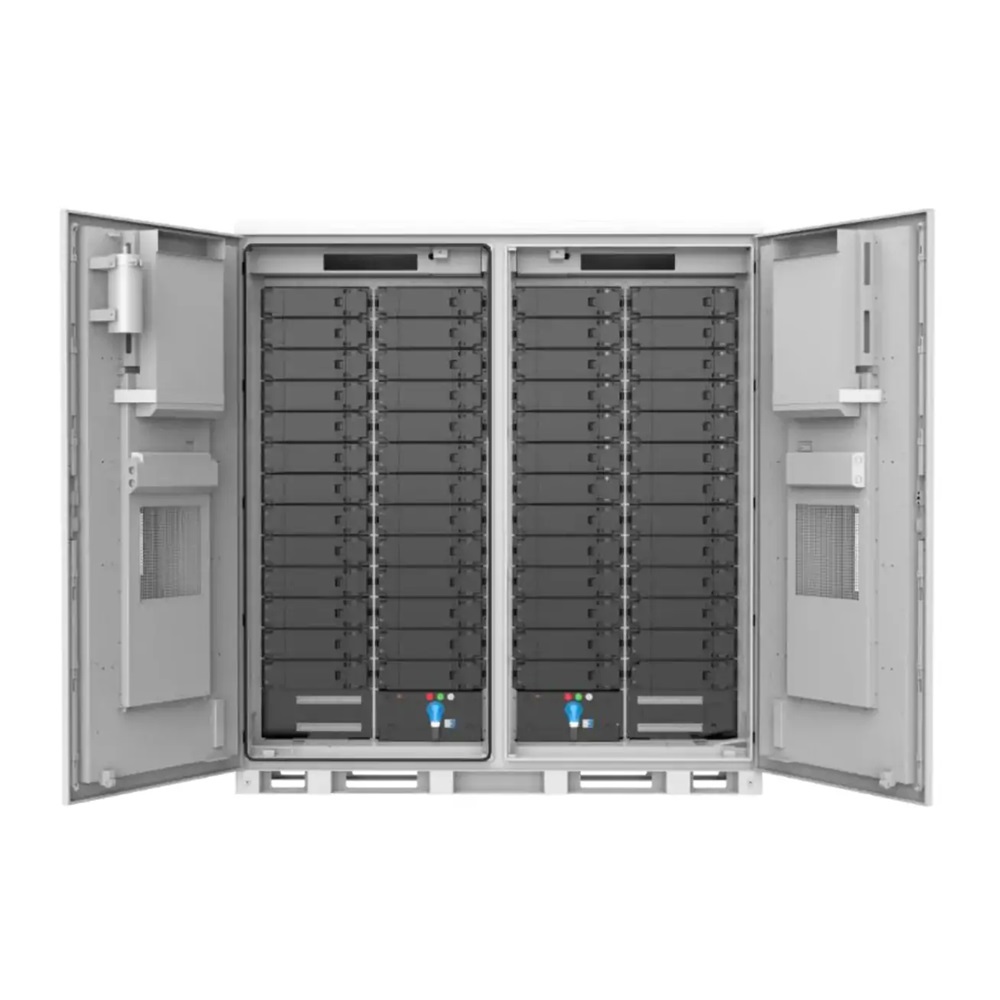

C&I Products – Outdoor Battery cabinet - 1500V 532KWh


 Outdoor Battery cabinet 1500V 532KWh


1. Each battery cabinet contains 2 sets of battery packs, and each battery pack can contain up to 26 serially connected battery cells.

2. Each battery cabinet is equipped with 2 HVACs and 1 set of aerosol fire suppression systems (FFS).

3. 025CP is equipped with a 3kW air conditioner, while 05CP is equipped with a 5kW air conditioner.




Items

Parameters

Total capacity

400Ah

Usable capacity

392Ah

Total energy

532.4kWh

Usable energy

521.8kWh

Nominal voltage

1331.2V


Operating voltage range

1164.8~1497.6 V


Max. Charge/Discharge power

266.2kW (0.5CP)

Room Temperature Cycle Life

(25℃±2℃)

6000cycles@70%SOH

Room Temperature Calendar Life

(25°C±2℃)

10years

Operating ambient temperature

-30℃~55℃

Optimal operating temperature

15℃~30℃


Operating ambient humidity

5%~95%, No condensation

RTE

≥94% for fresh battery

Discharge rate of Module

≤2%/month/@25℃

Module Series connection/Module

26S

Rack Parallel connection/Rack

Max. 16 units in parallel (025CP)


Ingress Protection rate

IP54/NEMA 3R


Cooling

HVAC

Dimension

W2200mm*H2443mm*D1400mm

Weight

5800kg

Altitude

≤3000m

Communication between

PCS and battery system

CAN & RS485 & Ethernet (three ports)

Regulation compliance

IEC62619 /UL1973/GB;

T 36276/RCM/CE EMC/FCC

EMC standard

EN61000-6-1&EN61000-6-3

UN Transportation Test Standard

UN3841/Battery cabinet,UN38.3/PACK

Environment protection standard

RoHS, REACH, TSCA, battery directive

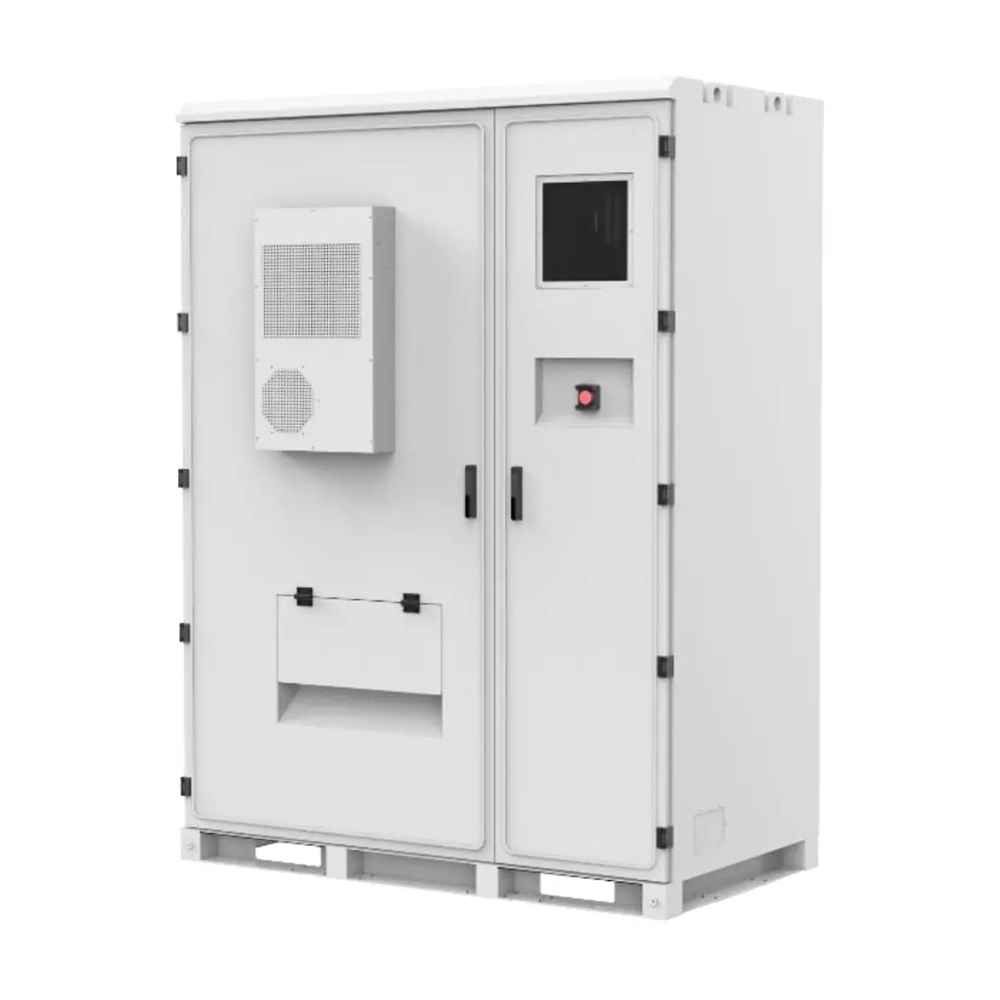

C&I Products – Outdoor Battery cabinet - 1500V  2MW


Outdoor Battery cabinet 1500V  2MW



1. DC bus: Collect the main circuits of multiple battery cabinets and connect to the PCS.

2. Auxiliary power supply: Provides power supply for air conditioning and BMS.

3. Reserved for upper-level communication: Reserved Ethernet switch position to support communication between PCS and EMS



Items

Parameters

Rated voltage

1500V


Max. current (@25℃)

2*800A

Peak current (@25℃)

2*944A@5s

Number of connected battery cabinets

Max. 16 battery cabinets for 0.25CP;

8 battery cabinets for 0.5CP;

Communication port

Ethernet( Eight ports)

Power interfaced to PCS

2 positive and 2 negative ports,6*Φ13

Power interfaced to battery cabinets

2 positive and 2 negative ports,4*Φ8

Distribution port from the grid

80A,480VAC(Configurable),3P+N

Distribution port to battery cabinets

6*25A, 220VAC,For HVAC,P+N 6*25A,

220VAC,P+N

2*10A, 220VAC,For BMS,P+N /BMS,

2*10A,220VAC,P+N

Dimensions (W*H*D)

1800*2450*1000mm

Weight

1400kg

Operating ambient temperature

-30℃~55℃

Operating ambient humidity

5%~95%

Ingress Protection rate

IP55

Cooling

Air forced cooling

Altitude

≤3000m

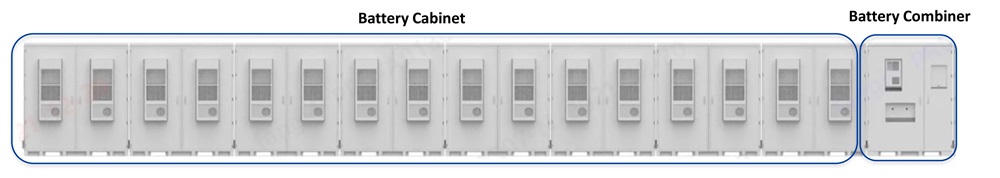

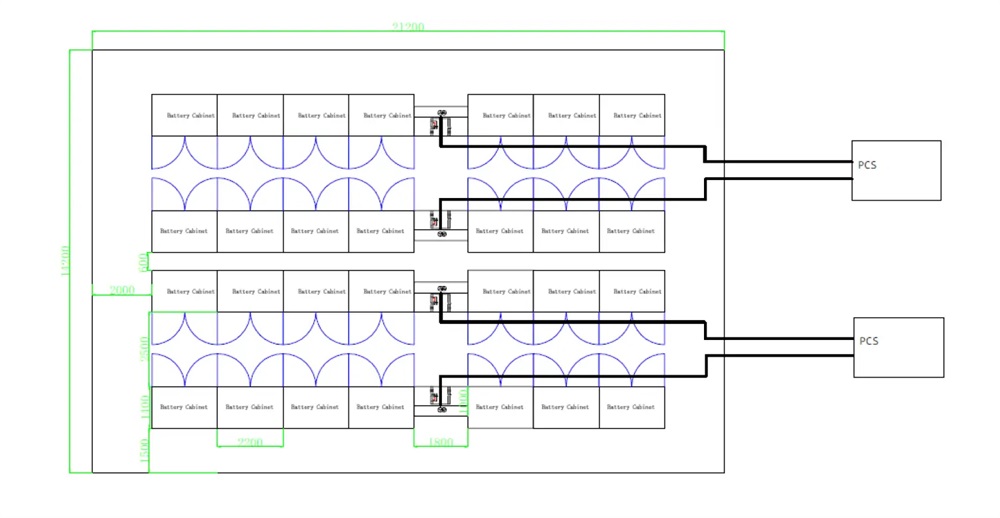

Cabinet installation(0.5CP)


Cabinet installation

Cabinet installation



Advantages of Battery Grouping


1. Save on shipping costs, and transport with batteries: Cabinets can be shipped with batteries, including power connection lines with safe transportation voltage.

2. Save space, flexible placement: Supports the back-to-back installation, and side output, and does not require pre-installed cable ducts/cable racks for battery cabinet            installation, saving on-site costs.

3. Save on labor, easy installation: Single cabinet installation is simple, and cabinet installation is convenient, quickly supporting grid connection and saving on labor costs.
