20Fts 40Fts Containerized Energy Storage System

20ft and 40 fts battery container energy storage system

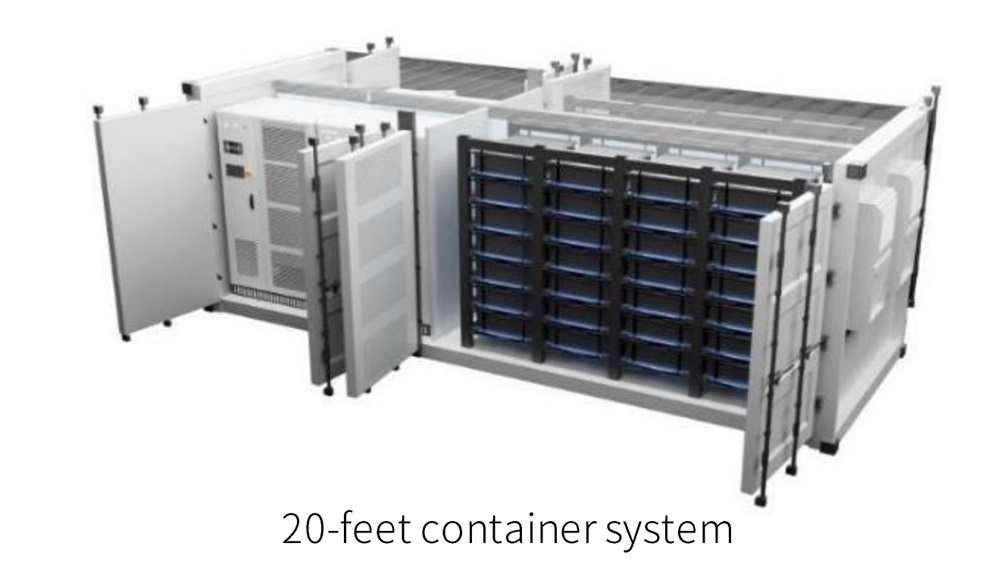

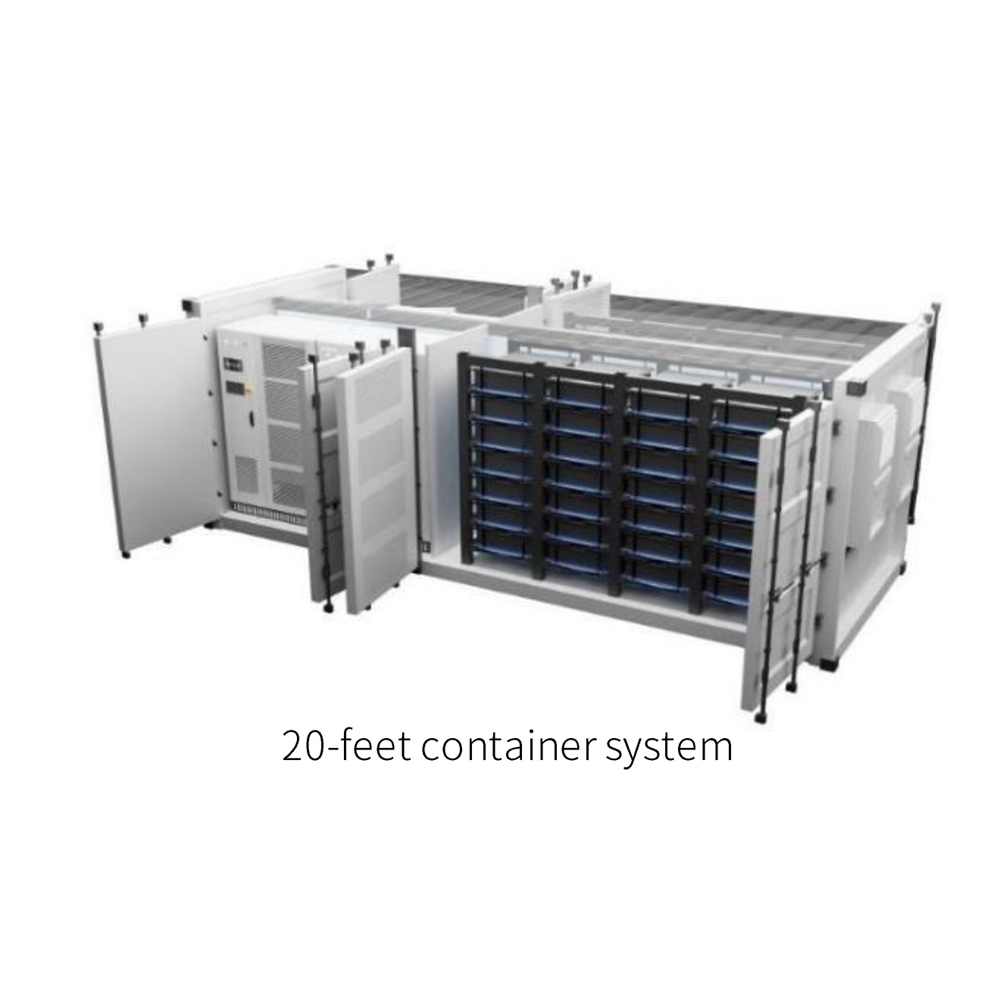

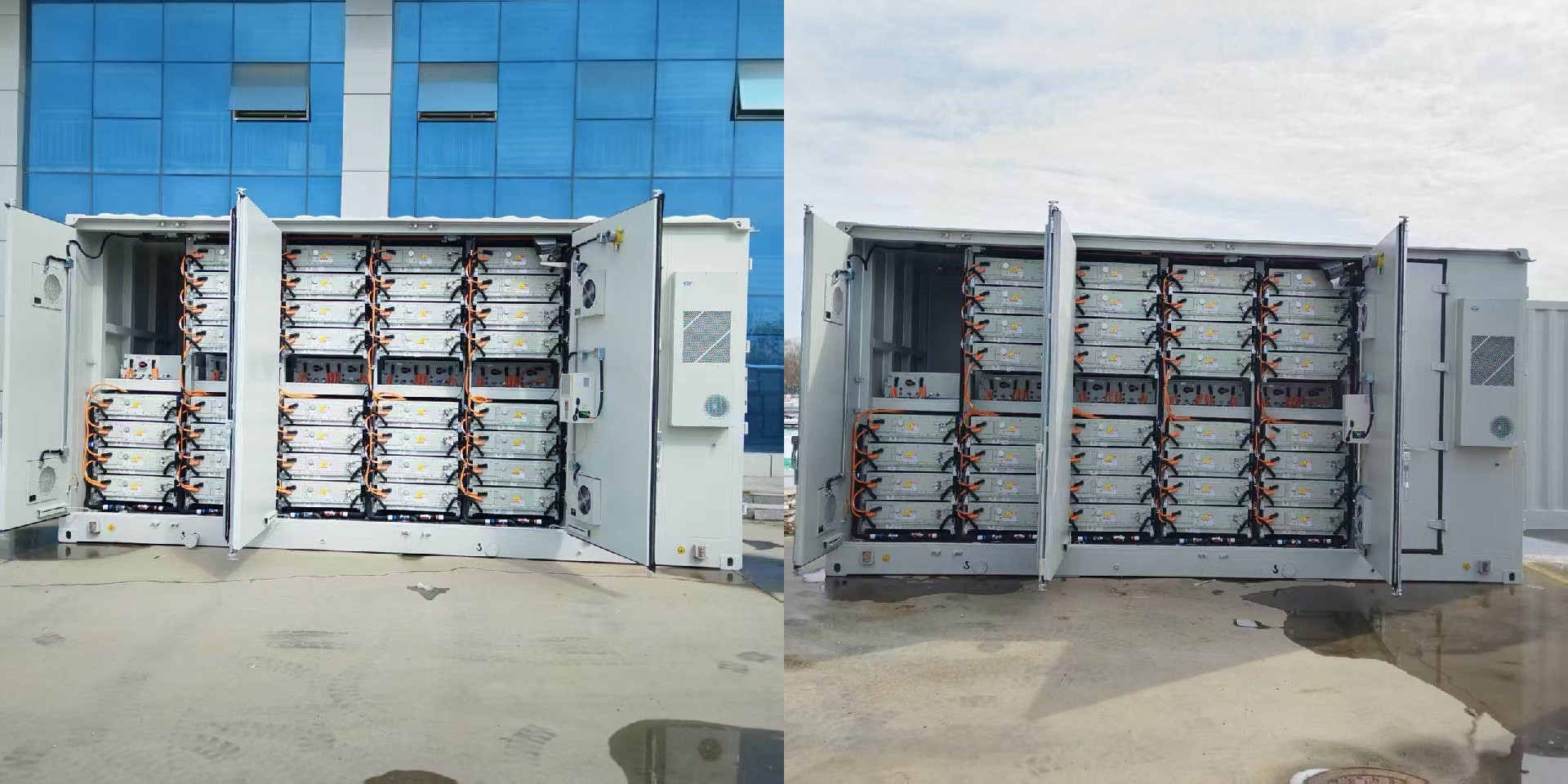

20fts container Battery Energy Storage System containerized battery storage



20fts container system


Items

Specifications

Battery side

*Total capacity

2800Ah

*Total energy

2MWh

Nominal voltage

716.8V

Operating voltage range

627.2~806.4V

*Room Temperature Cycle Life (25℃±2℃)



8000cycles@60%SOH

Room Temperature Calendar Life (25℃±2℃)

15 years

Operating ambient humidity

5%~95%, No condensation

*RTE

≥94% for fresh battery

Ingress Protection rate

IP54

Anti-corrosively Category

C3

Cooling

Air cooling with HAVC

Altitude

≤3000m

Operating ambient temperature

-30℃~45℃

Optimal operating temperature

15℃~30℃

System

SIZE

L 6058*W 2438*H 2896mm

Weight

~25t

BMS external communication

Ethernet/Modbus TCP

PCS external communication

Ethernet/Modbus TCP

AC Side

AC voltage

400V at AC interface

AC connection

3-phase 3-wire

Maximum Power

1MW

DC side

DC voltage

600~900V

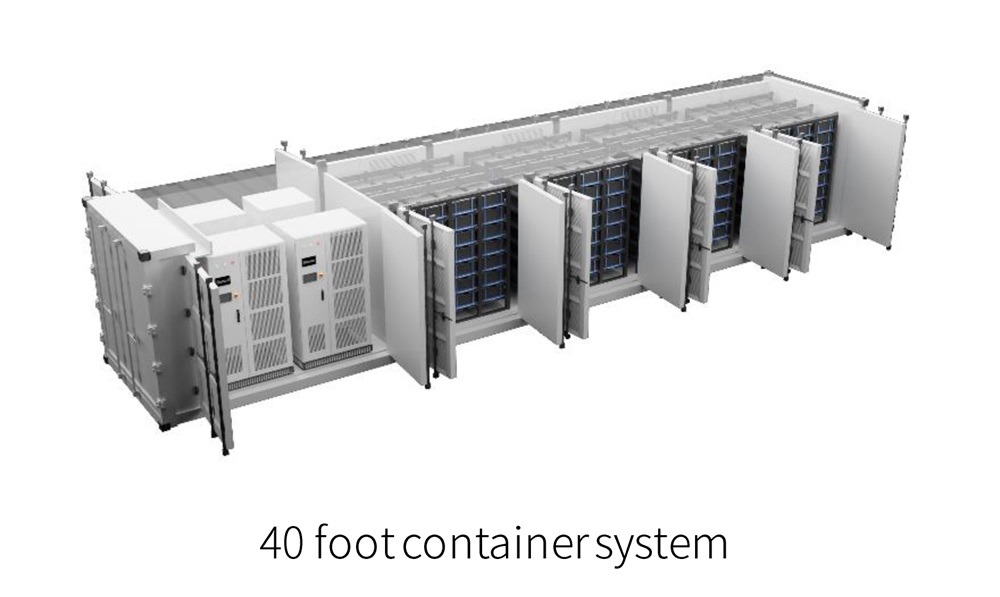

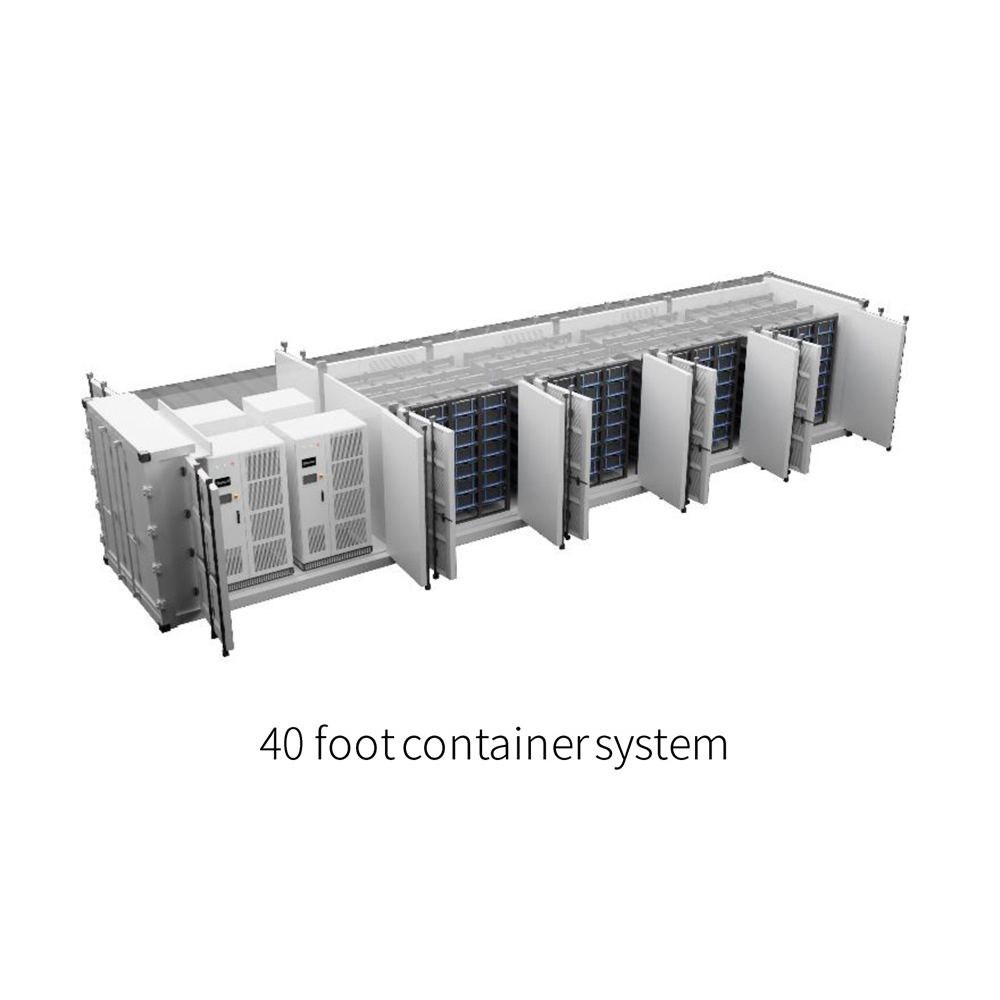

40fts container Battery Energy Storage System


40fts container system



Items

Specifications

*Total capacity

6400Ah

*Total energy

4.58MWh

*Usable energy

4.36MWh

Nominal voltage

716.8V

Operating voltage range

627.2~806.4V

Max. Charge/Discharge power

2MW

*Room Temperature Cycle Life (25℃±2℃)



8000cycles@60%SOH

Room Temperature Calendar Life (25℃±2℃)

15 years

Operating ambient humidity

5%~95%, No condensation

*RTE

≥94% for fresh battery

Ingress Protection rate

IP54

Anti-corrosively Category

C4

Cooling

HAVC, cooling capacity

Altitude

≤3000m

Operating ambient temperature

-30℃~45℃

Optimal operating temperature

15℃~30℃

Dimension

L12192mm*W2438*H2591mm

Communication between PCS and battery system

Ethernet




Battery Cooling mode

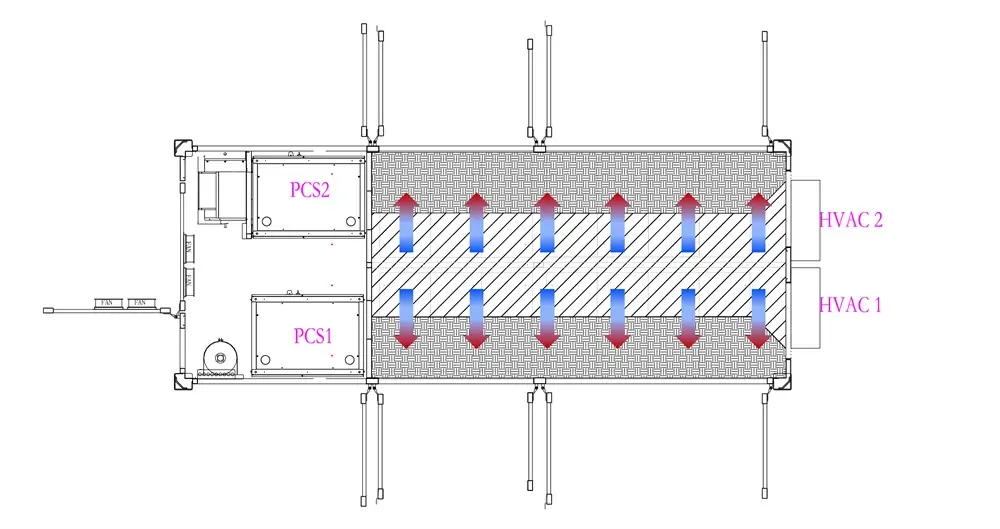

The container system is equipped with 2 HVACs the middle area is the cold zone, and the two side areas near the door are the hot zone.

PCS cabin is equipped with a ventilation fan for cooling.


battery cooling mode




Battery container Layout

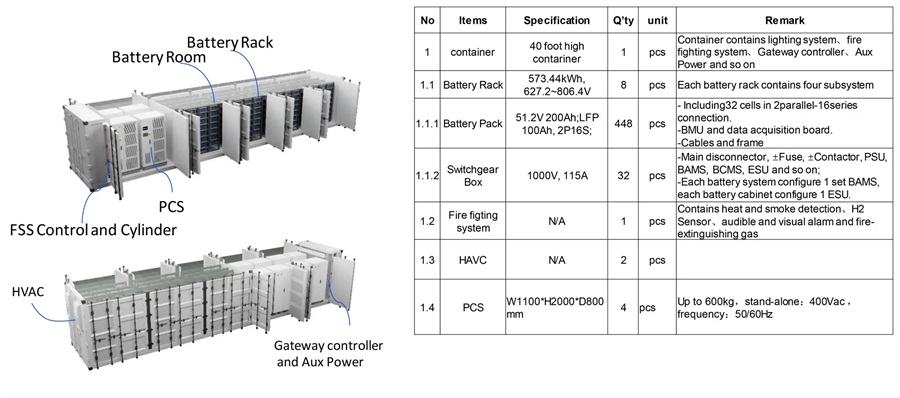

40 foot Container can Installed 2MW/4.58MWh We will configure a total of 8 battery racks and 4 transformers with 500kW per transformer each transformer will be provisioned with 2 battery racks Please refer to the 40-foot container battery system specification as follows:


battery layout container
