EnerOne 372.7KWh Liquid Cooling battery System and EnerC 3.72MWH Containerized Liquid Cooling Battery System
EnerOne 372.7KWh Liquid Cooling battery energy storage battery and EnerC 3.72MWH Containerized Liquid Cooling Battery System
Since energy storage is a key part of energy transition and power transformation, It has always been committed to providing first-class energy storage solutions to the world. It has developed a safe, efficient, and economical electrochemical energy storage system that is widely adaptive to the fields of power generation, power transmission and distribution, and power consumption, helping to optimize the energy structure, enhance the safety of the power system, and reduce the cost of energy use.

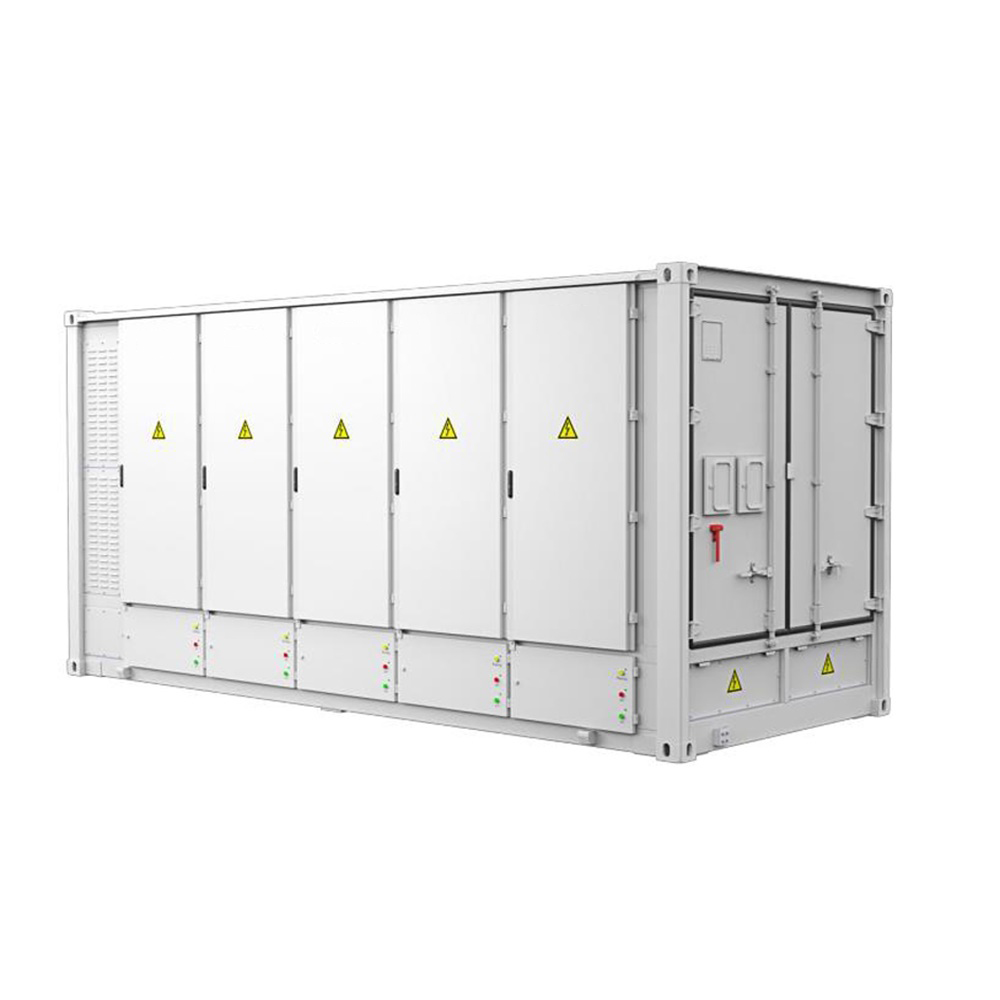

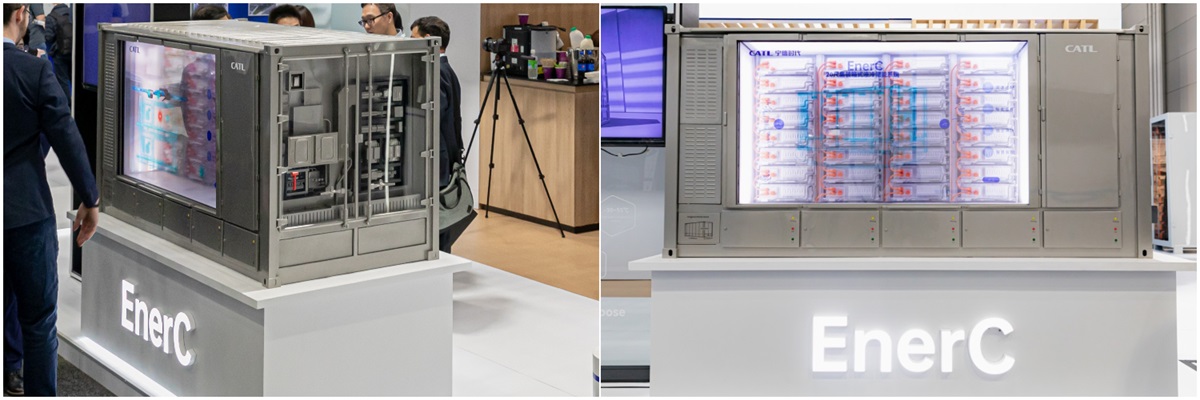

EnerC 3.72Mwh containerized Liquid Cooling Battery System
High level of safety
·LFP batteries with high thermal stability
·Protection level of IP55 to meet the requirements of outdoor applications
·Resistance up to C5 corrosion level, with 20-year reliability
·Prevention-oriented fire protection strategy, with a separate fire protection system
Long service life
·Available for integration with advanced technologies (e.g. optional cell with super-long cycling up to12,000 cycles)
·Resistance up to C5 corrosion level, with 20-year reliability
·Prevention-oriented fire protection strategy, with a separate fire protection system
·Integrated high-efficiency liquid-cooling system, with the temperature difference in the container limited to 5℃
High integration
·Modular design for the 1,500V system
·Separate arrangement of electrical room and battery room for convenient maintenance
·Non-walk-in/modular design with high integration, saving the floor space by 35%
·Prefabricated installation, reducing on-site installation costs and commissioning time
Basic Parameters
| Basic Parameters | |
| Configuration | 10P416S |
| Cell capacity [Ah] | 280 |
| Rated voltage [V] | 1331.2 |
| Rated energy [MWh] | 3.72 |
| IP Rating | IP55 |
| Product weight [T] | 35 |
| Dimensions [L*W*H][mm] | 6058*2462*2896 |

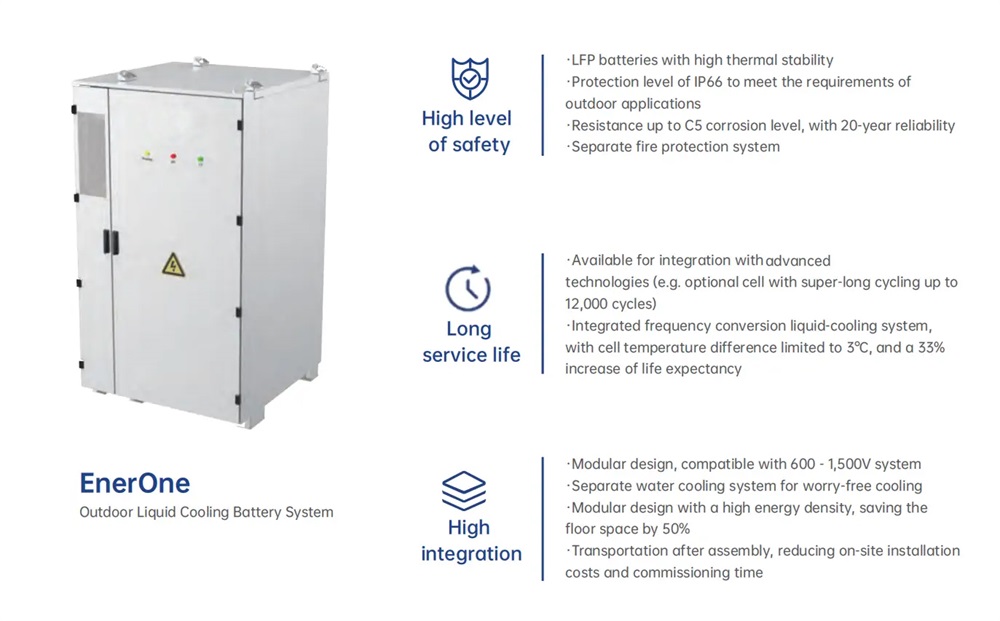

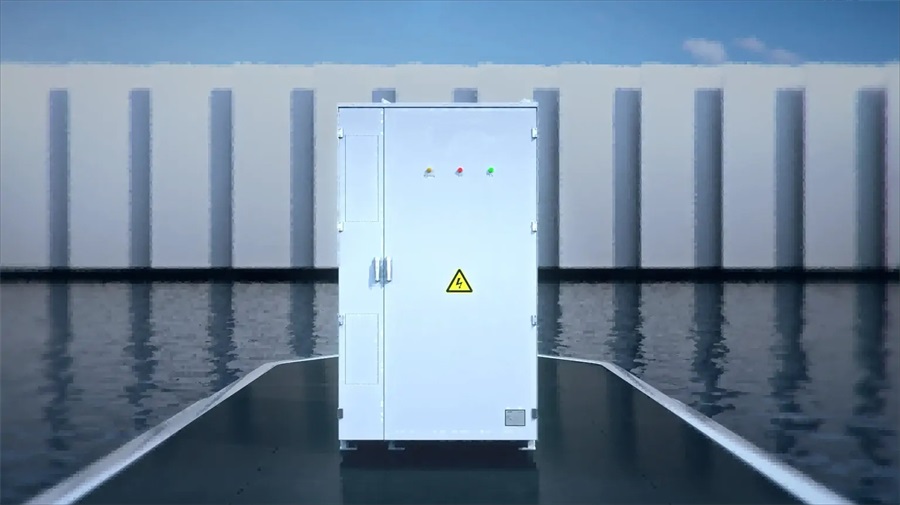

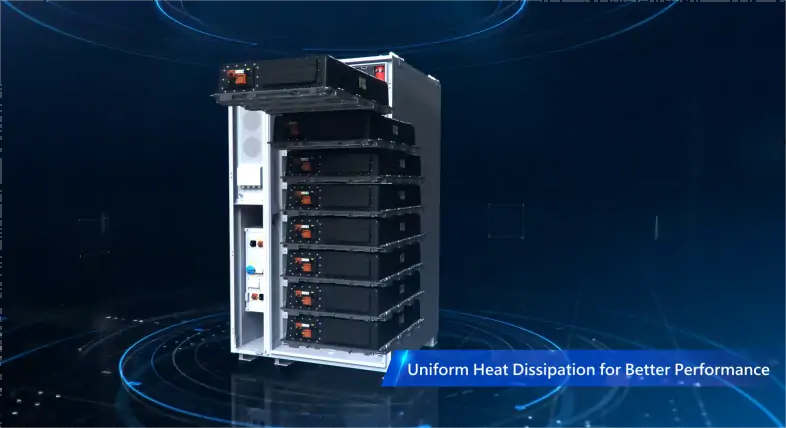

With the support of long-life cell technology and liquid-cooling cell-to-pack (CTP) technology, it rolled out LFP-based EnerOne in 2020, which features a long service life, high integration, and a high level of safety. The cells with a capacity of 280 Ah have a discharge rate of 1C and a cycle life of up to 10,000 cycles. The integrated frequency conversion liquid cooling system helps limit the temperature difference among cells within 3 ℃, which also contributes to its long service life.

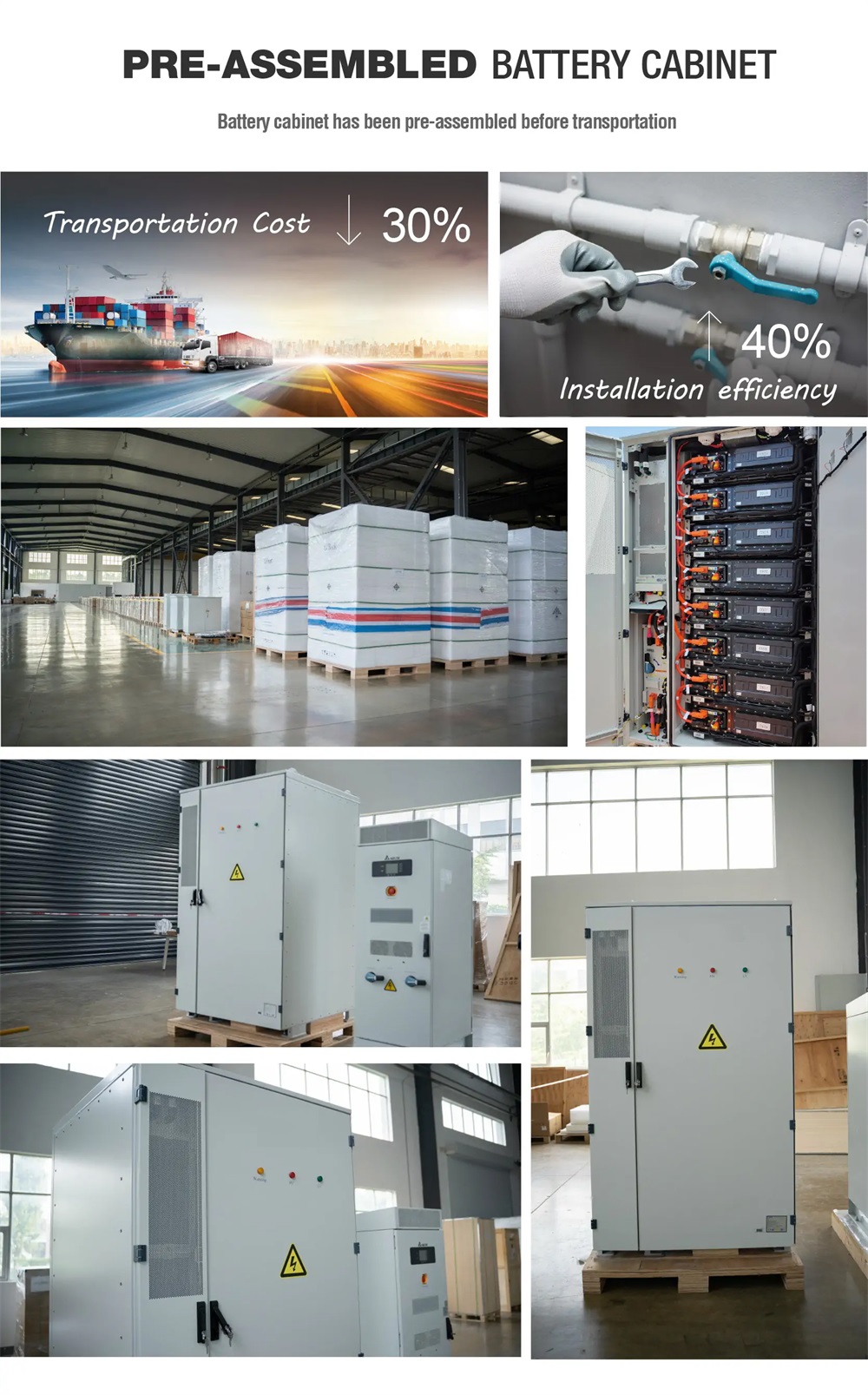

It has a nominal capacity of 372.7 kWh with a floor space of just 1.69 square meters. The system is suitable for inverters with operating voltages ranging from 600 to 1500 volts. EnerOne can be efficiently shipped as a complete product, which greatly reduces on-site installation costs and commissioning time.
EnerOne can be used flexibly in outdoor applications, thanks to the protection level IP 66 of the main components and the adaptability to an ambient temperature range of -30 to +55 ℃. It has passed various critical tests on the cell, module, and rack levels.
Basic Parameters
| Basic Parameters | |
| Configuration | 1P416S |
| Cell capacity [Ah] | 280 |
| Rated voltage [V] | 1331.2 |
| Rated energy [kWh] | 372.7 |
| IP Rating | IP66 |
| Product weight [kg] | 3500 |
| Dimensions [L*W*H][mm] | 1300*1300*2280 |

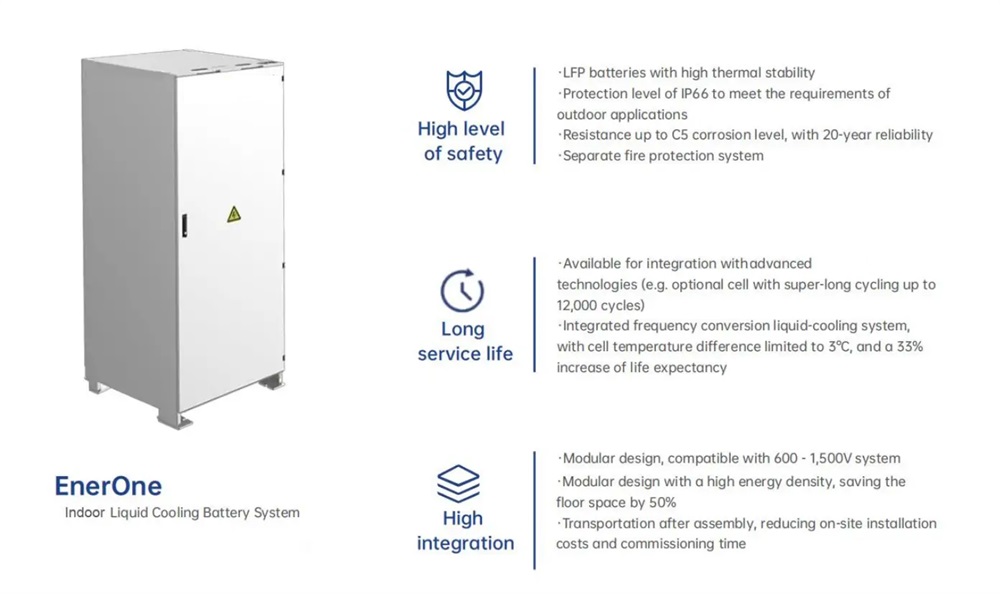

Basic Parameters
| Basic Parameters | |
| Configuration | 1P416S |
| Cell capacity [Ah] | 280 |
| Rated voltage [V] | 1331.2 |
| Rated energy [kWh] | 372.7 |
| IP Rating | IP20 |
| Product weight [kg] | 3100 |
| Dimensions [L*W*H][mm] | 924*1185*2329 |
Testing and certification

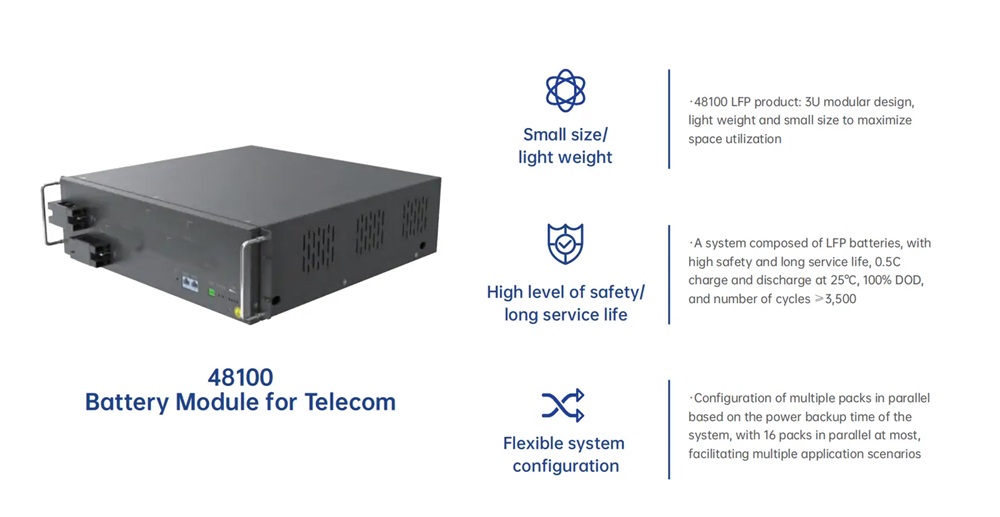

Telecom Backup Battery Solution
