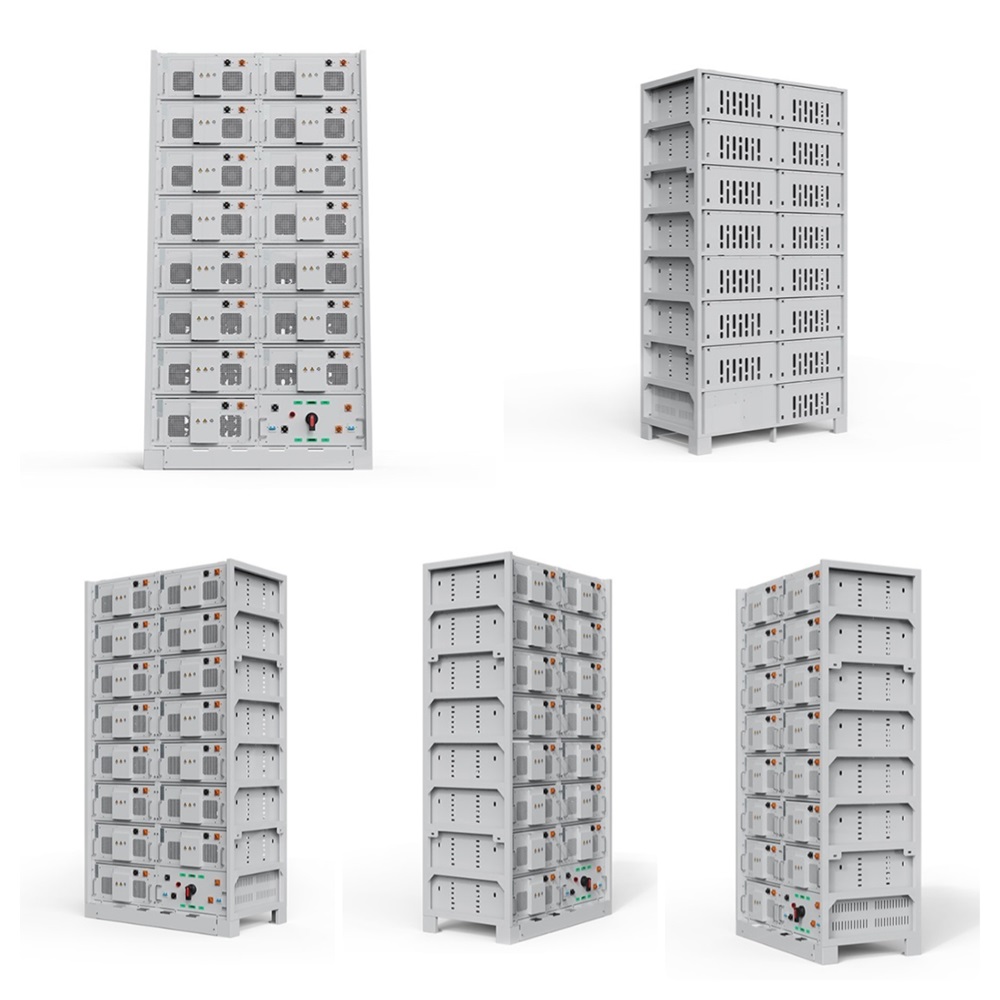

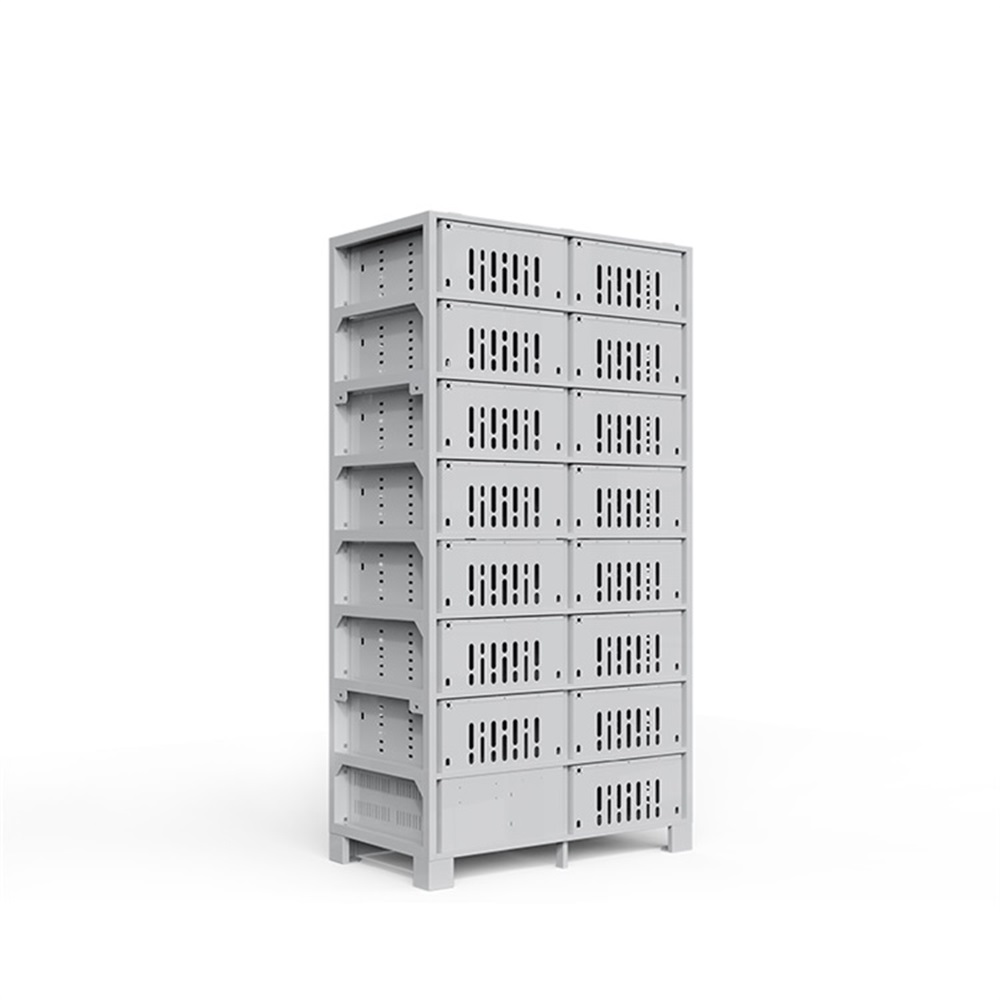

BR-15-720/280-F Air-cooling 720V 280Ah Energy Storage Battery System

Air-cooling 720V 280Ah Energy Storage Battery System with performance of Modular design, good compatibility, flexible configurations of system capacity

Modular design, good compatibility, flexible configurations of system capacity


Air-cooling 720V 280Ah Energy Storage Battery System


Features


PACK+BMU

Functions: temperature acquisition, voltage acquisition, battery balancing

Current Combiner cabinet+ BAMS

Functions: DC confluence, acquisition, storage, processing, battery information display, communication with PCS and EMS

BMS

Monitor, view, and set PCS, battery system, air conditioner, fire hydrant, and other operation data and fault data, record system charging and discharging data, process data, and generate reports


Parameters



Items

Parameters

Model

BR-15-720/280-F

Cooling mode

Air cooling

Battery packing mode

1P225S

Nominal voltage

720V

Nominal capacity

280Ah

Voltage range

630V~810V

Standard Charging Current

140A

Standard Discharging Current

140A

IP level

IP20

Operating temperature

Charging: 0℃~55℃

Discharging: -20℃~55℃

Recommended service temperature

20℃~30℃

Dimensions

W1170*D655*H2240mm

Weight

Around 1800kg



Applications

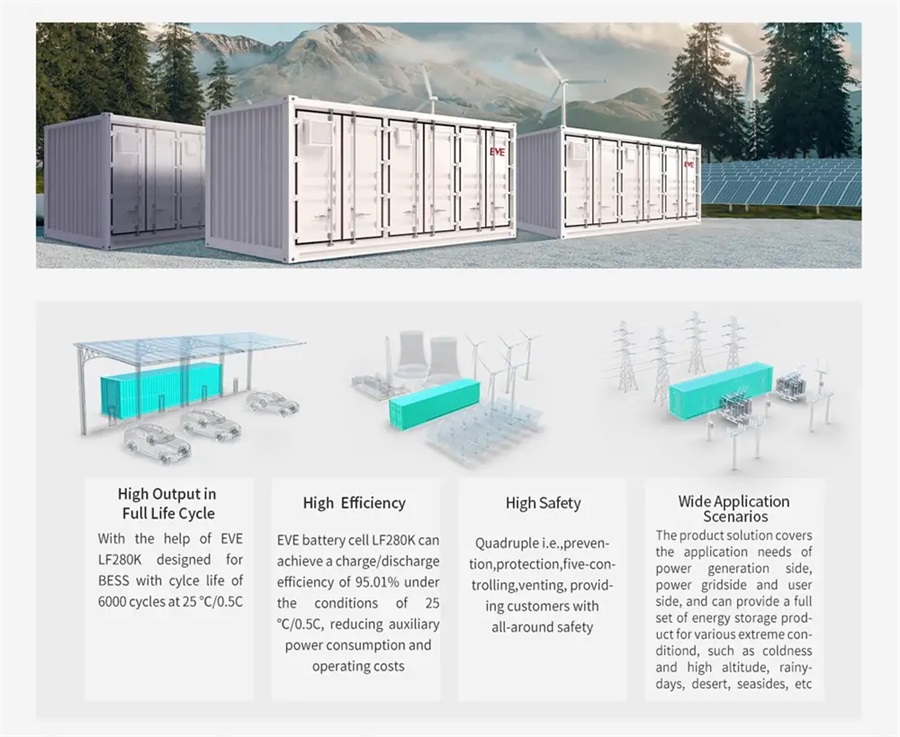

It provides energy storage solutions with high security and high cost-effectiveness under the comprehensive scenario of power generation side, grid side and user side.


applications of 720v 280ah lifepo4 battery module

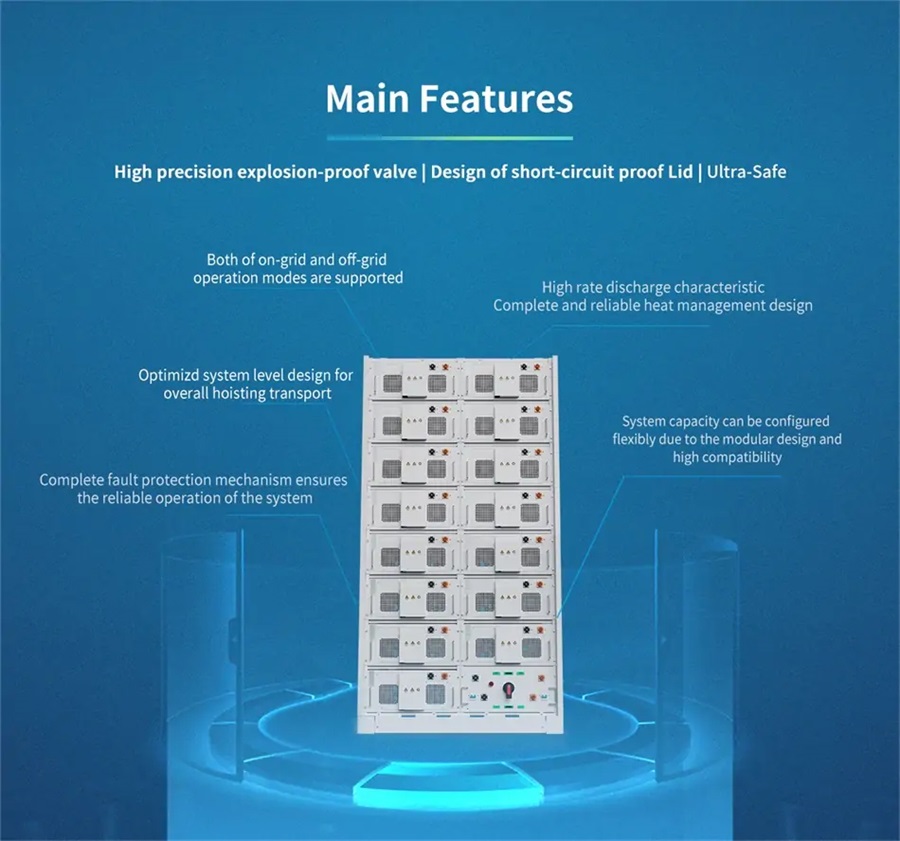

main features
