512V 100Ah high voltage lifepo4 ups
High voltage LiFePO4 512V100Ah is a short-time backup ups, it has a long cycle life, is lightweight, has high power, wide temperature range, has high safety, no memory effect.
- Category: Energy storage system
- Tag: Energy storage system
Features of LiFePO4 Battery
1. Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce the total cost of ownership.
2. Lighter Weight: About 40% of the weight of a comparable lead acid battery, A ” drop-in” replacement for a lead acid battery.
3. Higher Power: Delivers twice the power of lead acid battery, even high discharge rate, while maintain high energy capacity.
4. Wider Temperature Range: -20℃~60℃.
5. Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.
6. No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization.
Functions of LiFePO4 UPS Battery
1. OVP, UVP, OTP, OCP, SCP.
2. Self-management on charging and discharging, single cell balancing function.
3. Supports communication with equipment over RS485.
4. Intelligent design, supports battery upgrade over RS232.
5. Colorful LCD, displays battery information

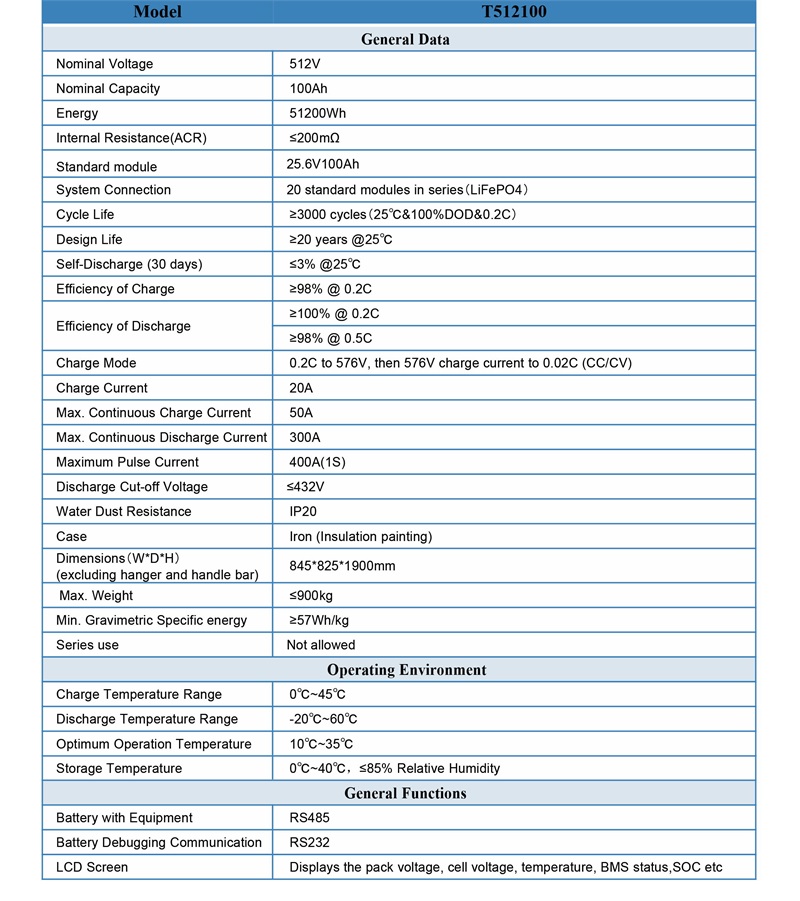

Technical Specifications of Battery

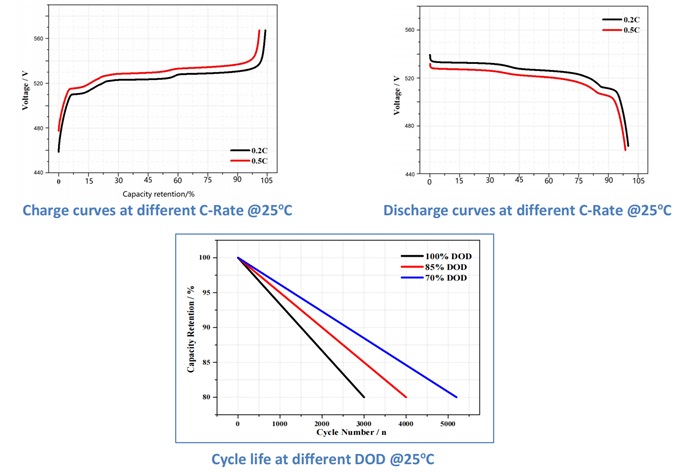

Curve Graph
Qualifications
1. 20 years of professional experience in lithium-ion battery power designing, manufacturing, sales
2. Passed ISO9001, ISO14001, ISO45001, UL1642, CE, ROHS, IEC62619, IEC62620, UN38.3
3. Battery cell cost advantage
