LiFePO4 480V68Ah Short-time backup UPS

Features of LiFePO4 Battery Product

1. Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery, helping to minimize replacement cost and reduce total cost of ownership.

2. Lighter Weight: About 40% of the weight of a comparable lead acid battery,A ” drop-in” replacement for lead acid battery.

3. Higher Power: Delivers twice the power of the lead acid battery, even high discharge rate, while maintaining high energy capacity.

4. Wider Temperature Range: -20℃~60℃.

5. Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging or short circuit situation.

6. No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization.

Functions of Battery

1. OVP, UVP, OTP, OCP, SCP

2. Self-management on charging and discharging, single cell balancing function.

3. Supports communication with equipment over RS485.

4. Intelligent design, supports battery upgrade over RS232.

5. Colorful LCD, displays battery information

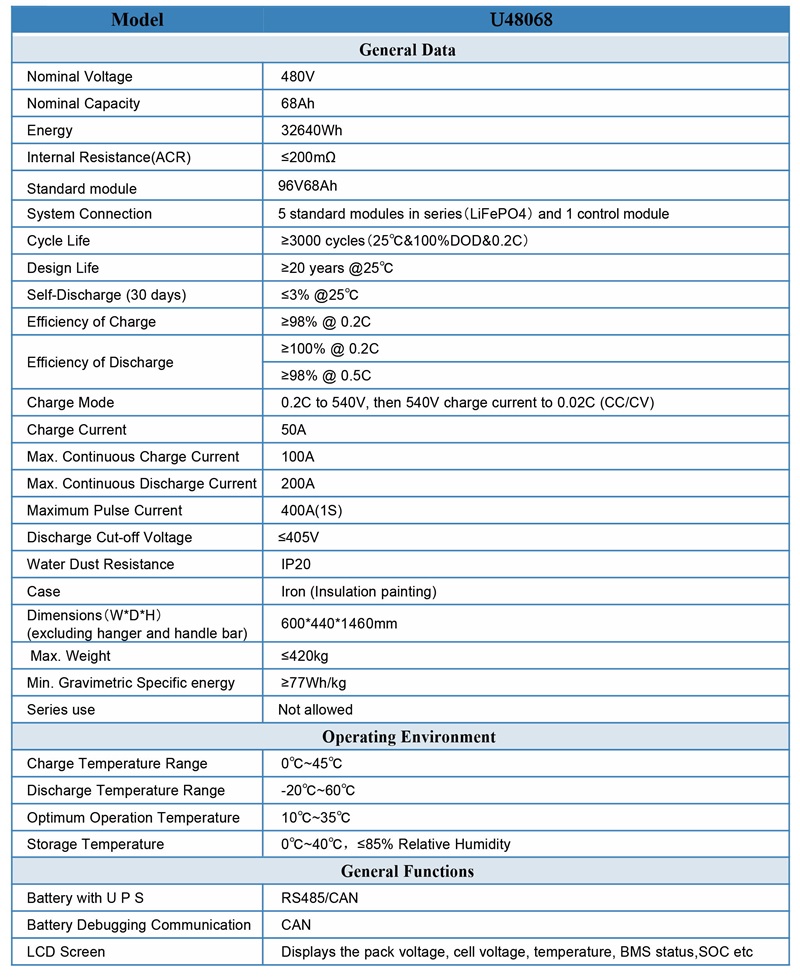

Technical Specifications of Battery

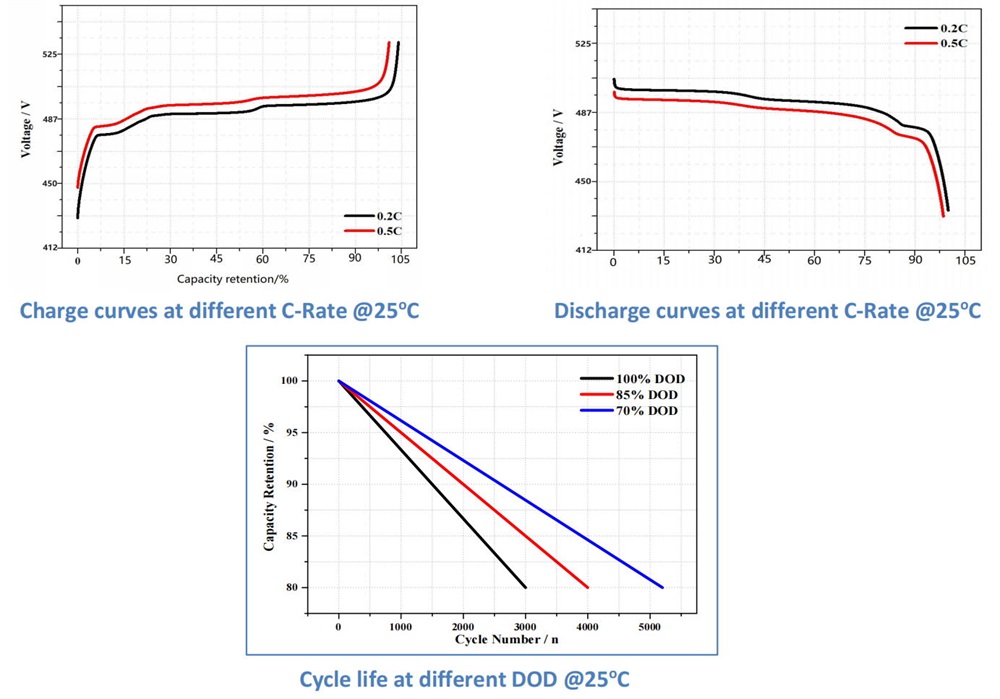

Curve Graph

Qualifications

1. 20 years of professional experience in lithium-ion battery power designing, manufacturing, sales

2. Passed lS09001，1S014001，IS045001，UL1642.CEROHS, IEC62619,IEC62620,UN38.3

3. Battery cell cost advantage
