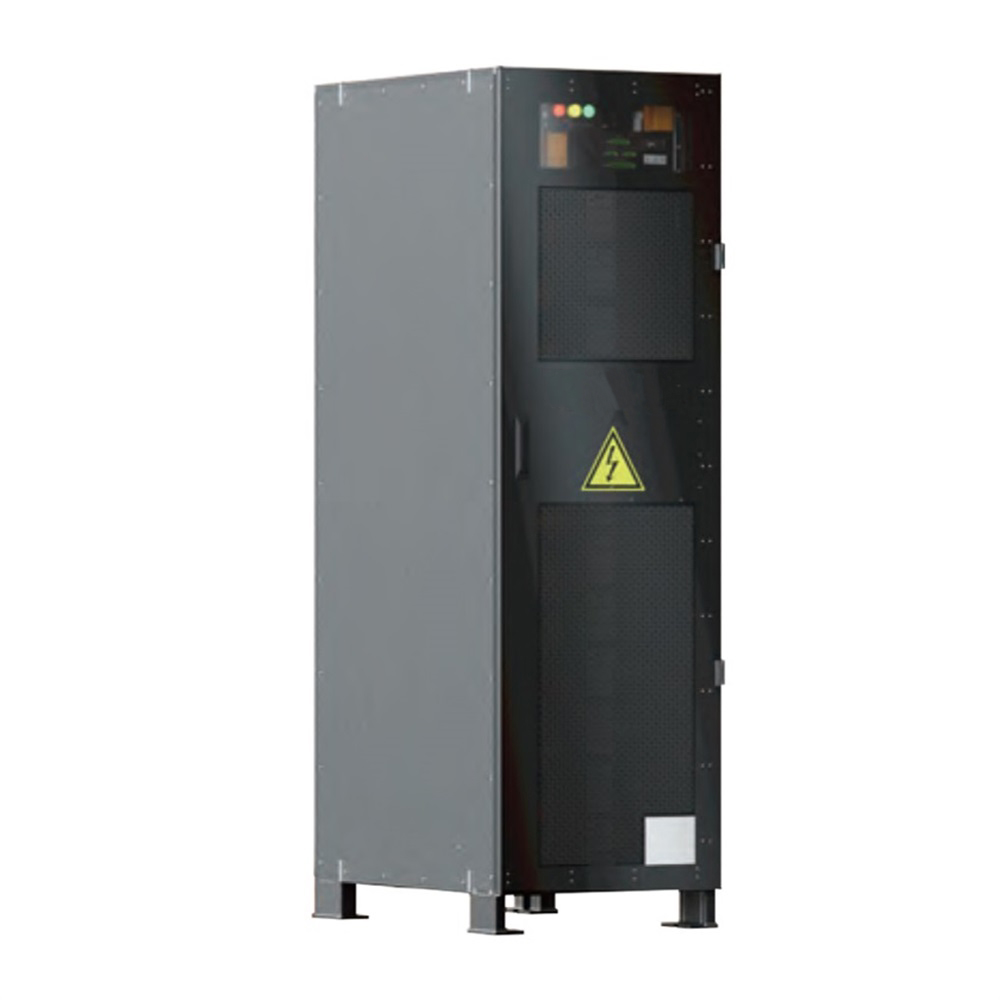

UPS Lithium-ion LiFePO4 Backup Battery Rack

UPS Lithium-ion LiFePO4 Battery Rack with performance of High level of safety, High reliability and Super flexibility

UPS Backup Battery Solution


Cell safety

·LFP batteries with high thermal stability


System Safety

·Dual redundancy for BMS control and protection: shunt trip by contactor control and molded case circuit breakers

·Dual redundancy for short circuit protection: magnetic trip by fuse protection and molded case circuit breakers


Self-powered DC/DC auxiliary power supply

·Dual redundancy of auxiliary power to reduce the risk in case of AC power interruption

·Black start in case of power outrage in the grid


Individual rack exit

·Exit of the faulty cabinet only to improve system availability


Low-temperature rise

·A temperature rise of about 20℃ at the highest discharging rate, with only natural cooling needed to meet the use requirements

·Simple and reliable system


Flexible wiring system

·Available for three-wire and two-wire UPS systems


Flexible configuration

·Available for a wide voltage range configuration of 320 - 691V, compatible with UPS of high and low-voltage platforms

·Available for a wide energy range configuration of 32.768-49.152kWh for individual racks, reducing excessive configuration


Flexible transportation mode

·Available for whole rack transportation, reducing packaging materials, transportation costs, and on-site installation and commissioning costs and time

·Available for bulk transportation, with flexible shipment of the rack body and spare parts


 lifepo4 solution

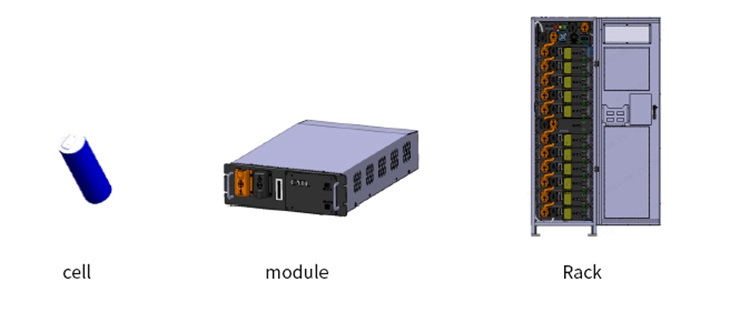

Basic Parameters

Item

Cell

Module

Rack (8/10/12 Modules)

Configuration

/

4P16S

4P128S

4P160S

4P192S

Dimensions[mm]

46*165[D*L]

430*750*130[W*D*H]


600*900*2000[W*D*H]

Weight[kg)]

0.53

50

600

700

800

Rated Voltage[V]

3.2

51.2

410

512

614

Voltage range [V]

2.5~3.6

40~57.6

320~461

400~576

480~691

Rated capacity [Ah]

20

80

80

Rated energy [kWh]

0.064

4.096

32.768

40.960

49.152

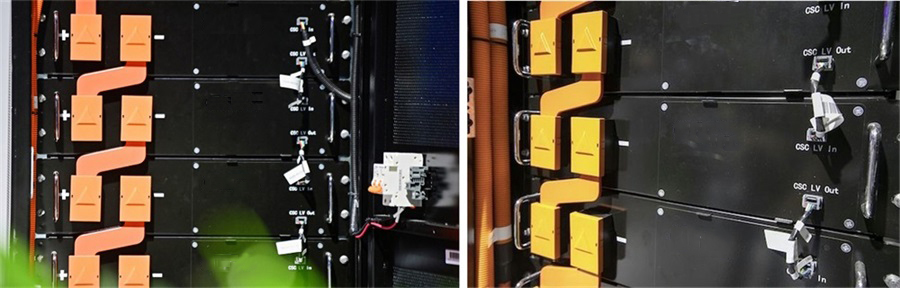

details of ups lifepo4 battery module
