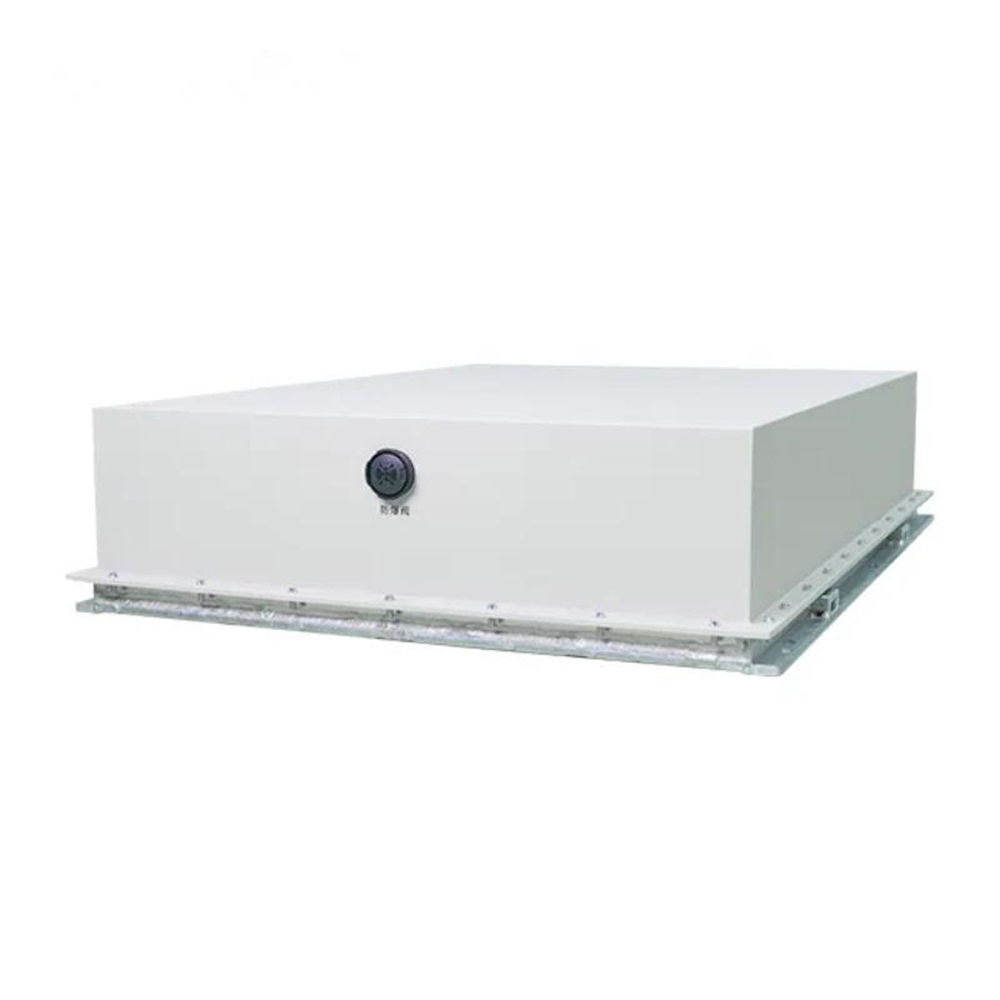

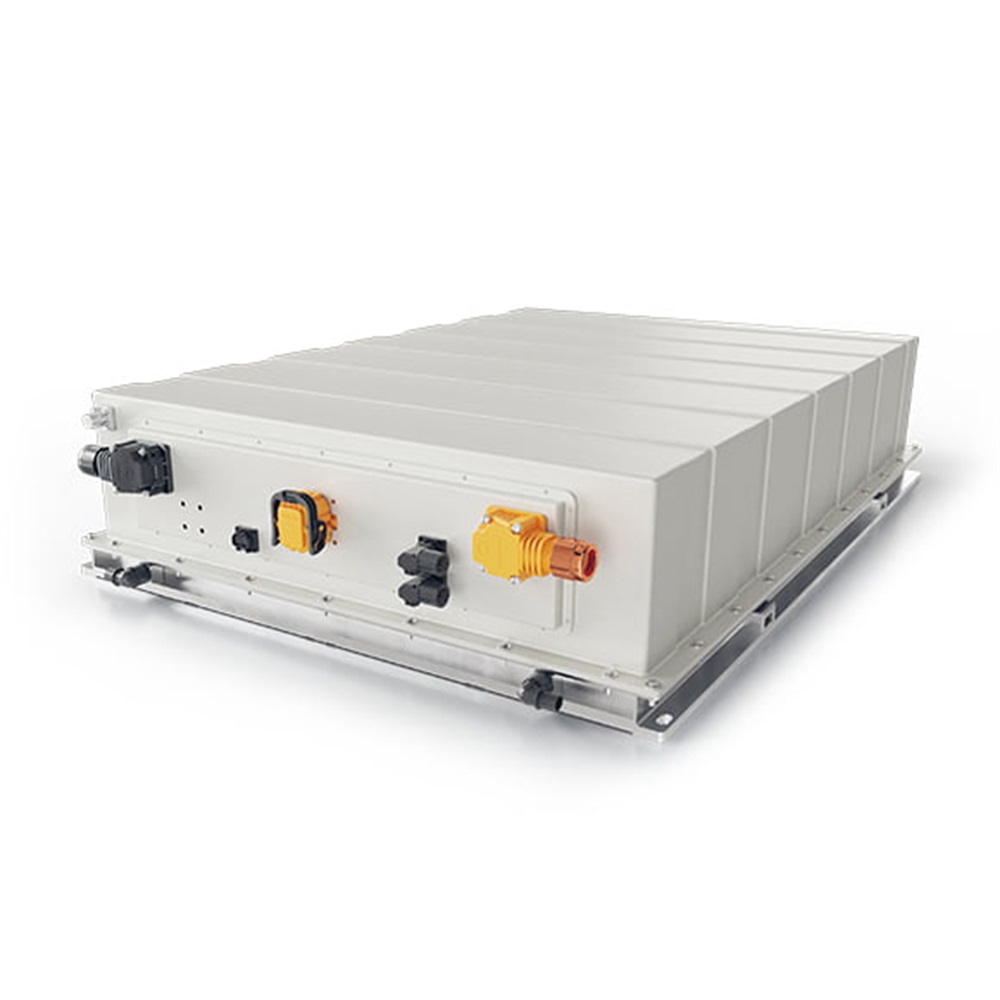

PF173-280A-P46L 1P52S 166.4V 280Ah Liquid cooling battery module
PF173-280A-P46L 1P52S 166.4V 280Ah Liquid cooling battery module for Grid ESS/Commercial and Industrial ESS
- Category: Energy storage system
- Tag: liquid cooling battery module
● Single-cell voltage monitoring
● Single-cell temperature acquisition
● Pole temperature monitoring
● Efficient and balanced
Basic Parameters
Product Name | Liquid Cooling Battery Module |
Product Specifications | PF173-280A-P46L |
Configuration | 1P52S |
Rated Capacity(Ah) | 280Ah |
Rated Voltage(V) | 166.4V |
Rated Energy(kWh) | 46.592kWh |
Energy Efficiency | ≥94% |
Charge/Discharge Rate(P) | 0.5 |
Cooling | Liquid Cooling |

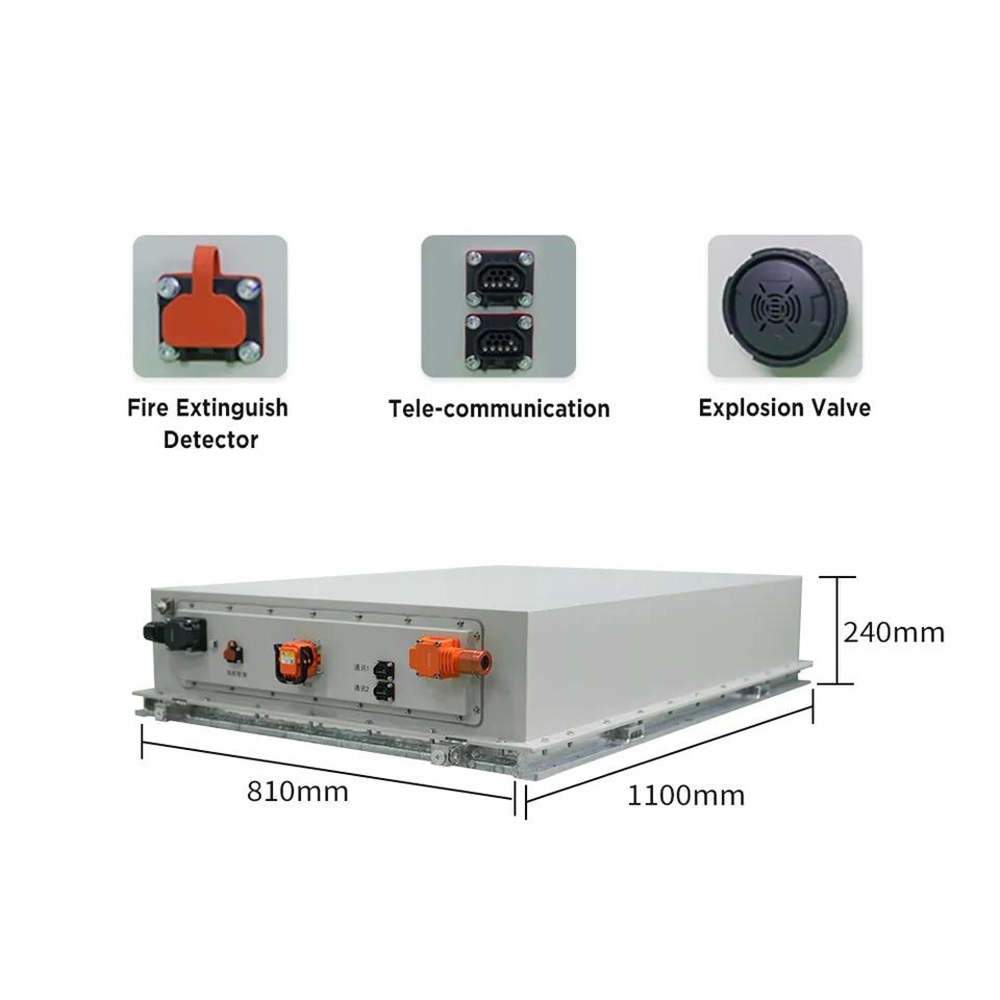

Dimensions(W*L*H mm) | 810*1100*240mm |
Weight(kg) | 330kg |
Application Fields | Grid ESS/Commercial and Industrial ESS |
