51.2V/1331.2V 280Ah LiFepO4 Battery Module/Cluster System

1p16S 51.2V 280ah lifepo4 battery module and 1p416S 1331.2 V 280ah lifepo4 battery cluster for energy storage system

SAFE & RELIABLE

- Two-level short-circuit protection, graded fast current limiting

- Fool-proof, anti-reverse connection design, safer installation and maintenance

- Patented air duct and intelligent air cooling design, temperature difference < 3℃

- Meet global high-standard authoritative certification requirements


INTELLIGENT & FRIENDLY

- 40-foot container can hold 4.4MWh, compatible downwards

-  Online estimation of SOC & SOH based on scenes and big data

- Support cloud platform, remote real-time monitoring and fault identification


EFFICIENT & HIGH YIELD

- 20-year service life, 8000+ times system-level cycle life

- Support 1500V system, reduce AC side loss by 60%

- Deep charge & discharge design, initial investment saves more than 5%

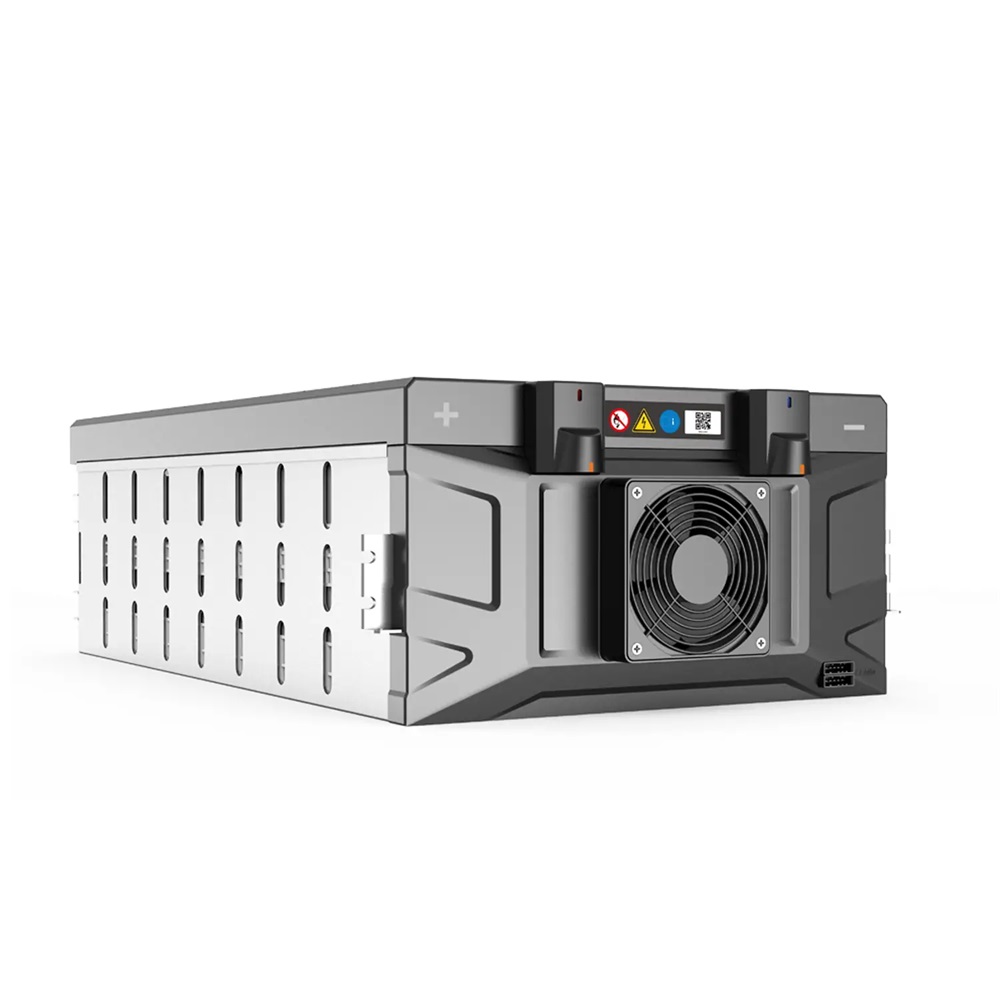

1P16S 51.2V 280Ah LiFePO4 Battery Module


Cell type

LFP 280Ah

Configuration

1P16S

Capacity

280 Ah

Nominal voltage

51.2 V

Nominal energy

14.3 kWh

Charging & discharging power

≤14.3 kW

Charge & discharge rate

≤ 1C

Operating voltage range

43.2 V–58.4 V

Dimensions (W*H*D)

455*230*760mm

Weight

105 kg

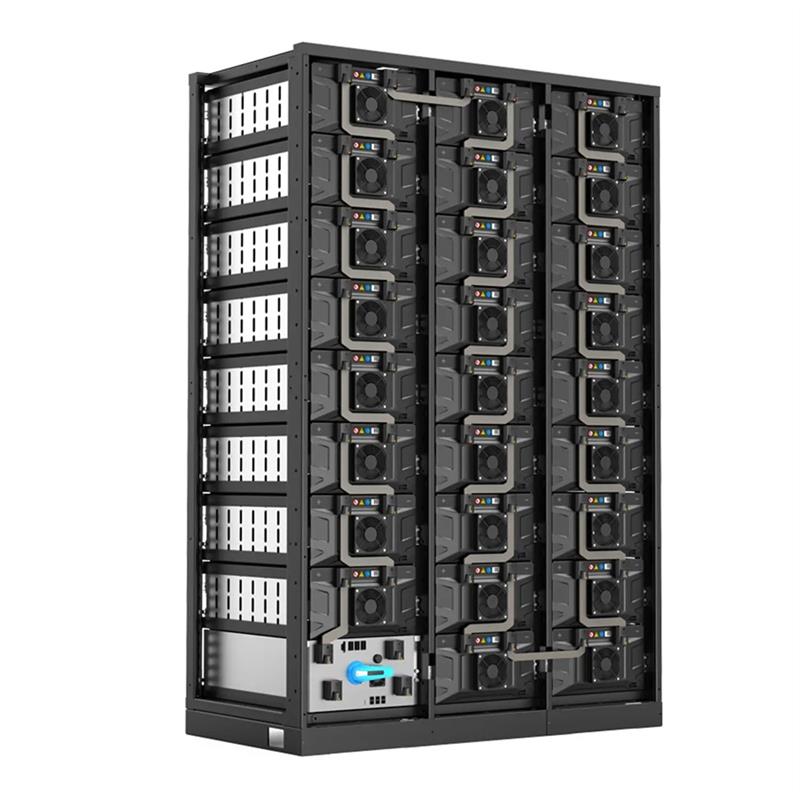

1P416S 51.2V 280Ah LiFePO4 Battery Module


Cell type

LFP 280Ah

Configuration

1P416S

Key component

PACK*26+SG*1

Capacity

280 Ah

Nominal voltage

1331.2 V

Nominal energy

372,7 kWh

Charging & discharging power

≤372,7 kW

Charge & discharge rate

≤ 1C

Operating voltage range

1123.2V–1497.6 V

Dimensions (W*H*D)

1500*2285*760 mm
