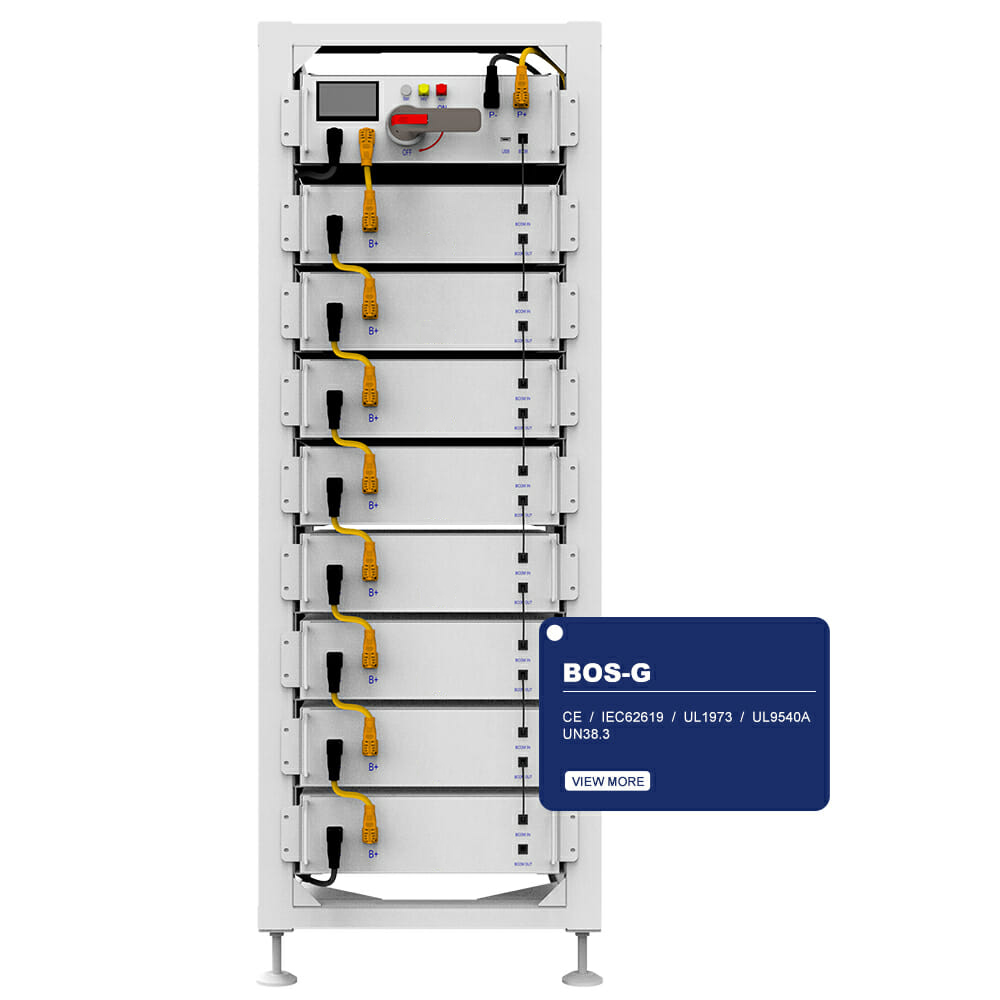

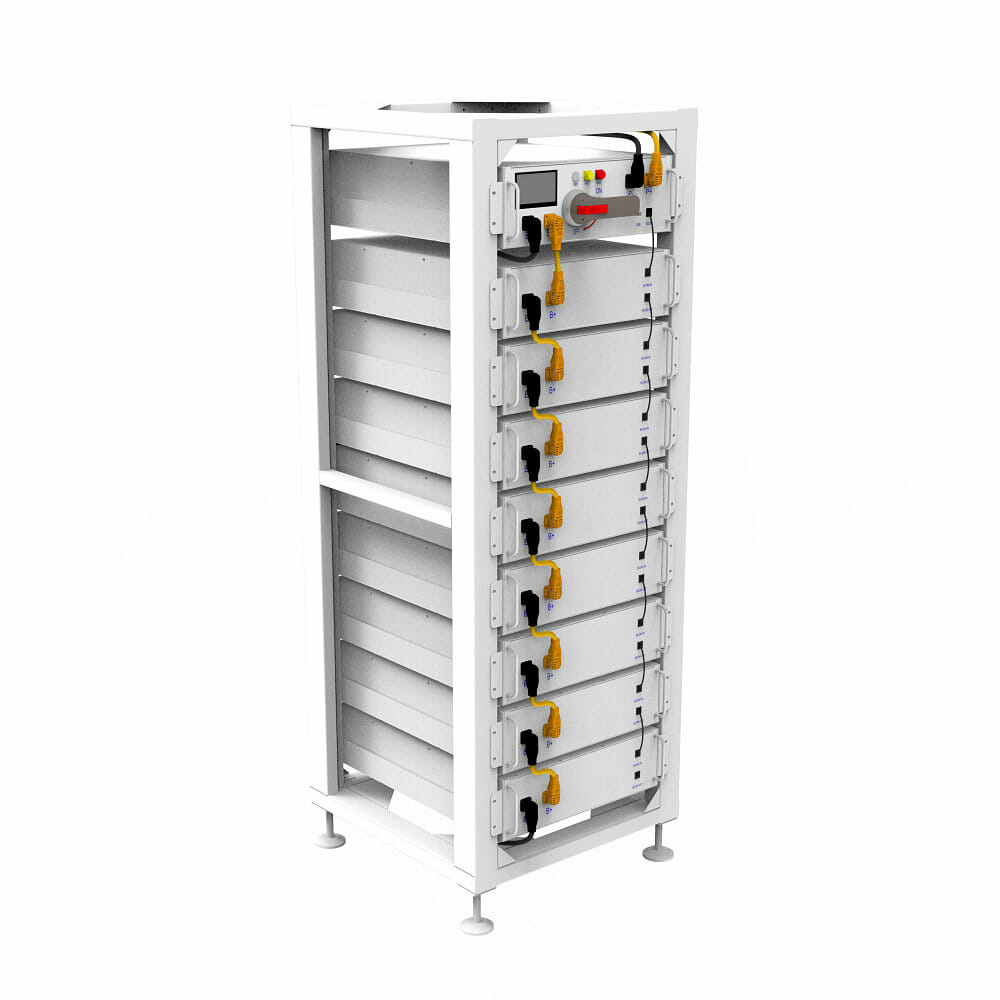

15.36kw/40.96kw/61.44kw high voltage Rack mount ESS Battery Racks
15.36kw/40.96kw/61.44kw high voltage ess battery racks
- Category: Energy storage system
- Tag: high voltage Rack mount ESS Battery Racks
Specifications
Model | BOS-G | ||
Main Parameter | |||
Cell Chemistry | LiFePO4 | ||
Module Energy(kWh) | 5.12 | ||
Module Nominal Voltage(V) | 51.2 | ||
Module Capacity(Ah) | 100 | ||
Battery Module Qty in series.(Optional) | 3(Min) | 8 (Standard US Cluster) | 12 (Standard EU Cluster) |
System Nominal Voltage (V) | 153.6 | 409.6 | 614.4 |
System Operating Voltage(V) | 124.8~175.2 | 332.8~467.2 | 499.2~700 |
System Energy(kWh) | 15.36 | 40.96 | 61.44 |
System Usable Energy (kWh) | 13.8 | 36.86 | 55.29 |
Charge/Discharge Current (A) | Recommend 50 | ||
Nominal 100 | |||
Peak Discharge (2 mins, 25°C) | |||
Working Temperature(°C) | Charge: 0~55/Discharge:-20~55 | ||
Status Indicator | Yellow: Battery High Voltage Power On Red: Battery System Alarm | ||
Communication Port | CAN2.0/RS485 | ||
Humidity | 5~85%RH | ||
Altitude | ≤2000m | ||
IP Rating of Enclosure | IP20 | ||
Dimension(W/D/H,mm) | 589*590*1640 | 589*590*2240 | |
Weight Approximate(kg) | 258 | 434 | 628 |
Installation Location | Rack Mounting | ||
Storage Temperature(°C) | 0~35 | ||
Recommend Depth of Discharge | 90% | ||
Cycle Life | 25±2°C, 0.5C/0.5C,EOL70%≥6000 | ||
Warranty | 10years | ||
Certification | CE/IEC62619/UL1973/UL9540A/UN38.3 | ||
Convenient
The quick installation standard of a 19-inch embedded module is comfortable for installation and maintenance.
Safe and reliable
The cathode material is made from LiFePO4 with safety performance and long cycle life, The module has less self-discharge, up to 6 months without charging it on the shelf, no memory effect, and excellent performance of shallow charge and discharge.
Intelligent BMS
It has protection functions including over-discharge, over-charge, over-current, and over-high or low temperature. The system can automatically manage the charge and discharge state and balance the current and voltage of each cell.
Eco-friendly
The whole module is non-toxic, non-polluting, and environmentally friendly.
Flexible configuration
Multiple battery modules can be in parallel for expanding capacity and power. Support USB upgrade, wifi upgrade(optional), remote upgrade (Compatible with Deye inverter).
Wide temperature
Working temperature range is from -20°C to 55°C, with excellent discharge performance and cycle life

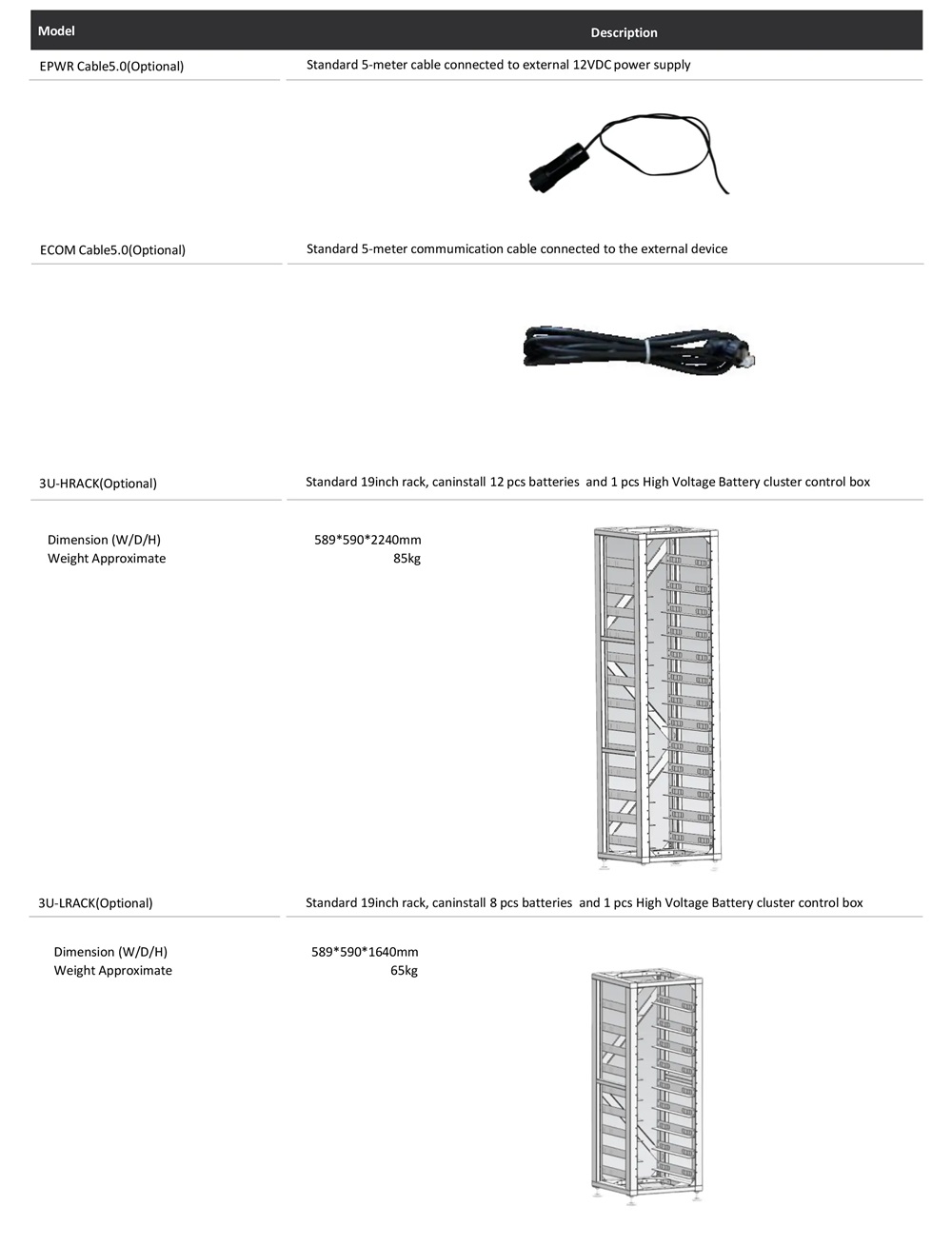

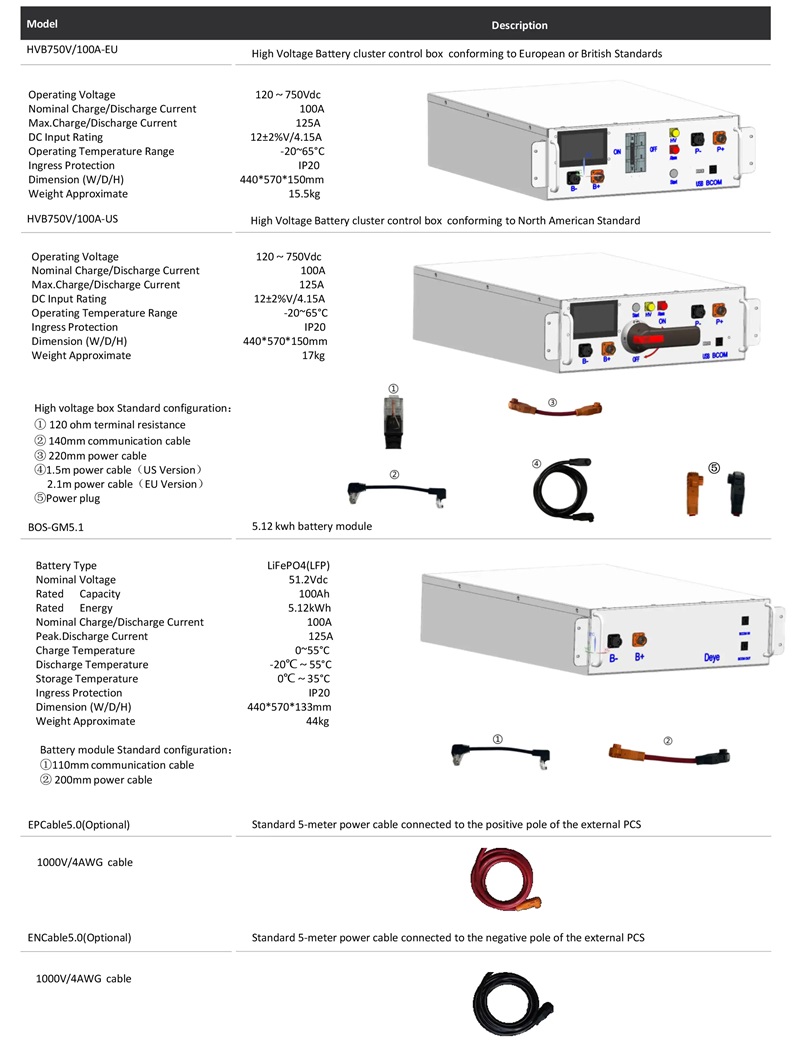

System Components
