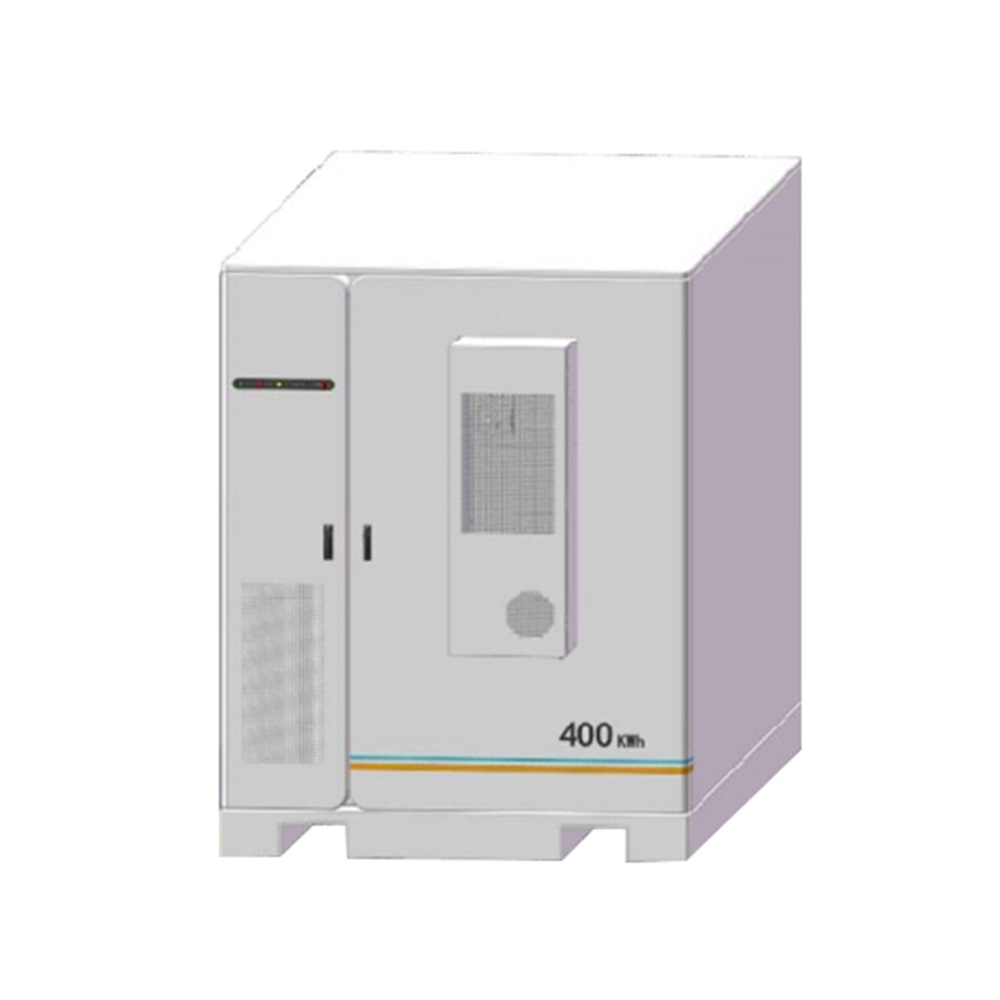

New 550AH/400Kwh Lithium Battery Energy Storage Cabinet for Industrial ESS
Reliable new 550AH/400KWh large capacity water-soluble lithium battery storage cabinet for industrial ess with high safety, long life, modular design
- Category: Energy storage system
- Tag: Energy Storage System
New Industrial Large-capacity Water-based Lithium Battery Energy Storage Cabinet
Product Advantages of Energy Storage Cabinet
High security
· Water-based lithium yttrium battery cell, high-temperature resistance, and no explosion
· IP56 protection for outdoor applications
· C5 anti-corrosion, 20 years of reliability
· Independent fire protection system
· Stand-alone thermal management system
Long life Span
· Low self-discharge rate, long cycle life cell, service life of more than 20 years.
· Integrated thermal management system, effectively controls the temperature difference of the battery cell and improves the service life of the battery
High integration
· Modular design, compatible with 600-1000V systems
· 100~500Kw flexible expandable power module
· Integrated independent EMS on-premise and cloud-based energy management systems
Specifications
Main Parameters | Specifications | Remark |
Battery Type | LYP | Water-based lithium yttrium batteries |
Cabinet Type | 1P40S × 6 | 240pcs of cells |
Nominated Capacity | 550Ah | / |
Nominated Energy | 400Kwh | / |
DC voltage | 768V | 672~876V |
AC Voltage | 400V(-15%～+15%) | 50Hz/60Hz± 2.5Hz |
Charge-discharge Power | 125Kw | Scalable |
Operating Temperature | -25~75℃ | / |
Ingress Protection | IP56 | / |
Cabinet Weight | Around 6 Tons | / |
Cabinet Size | 2000 ×1300× 2550 | L × D × H (mm) |

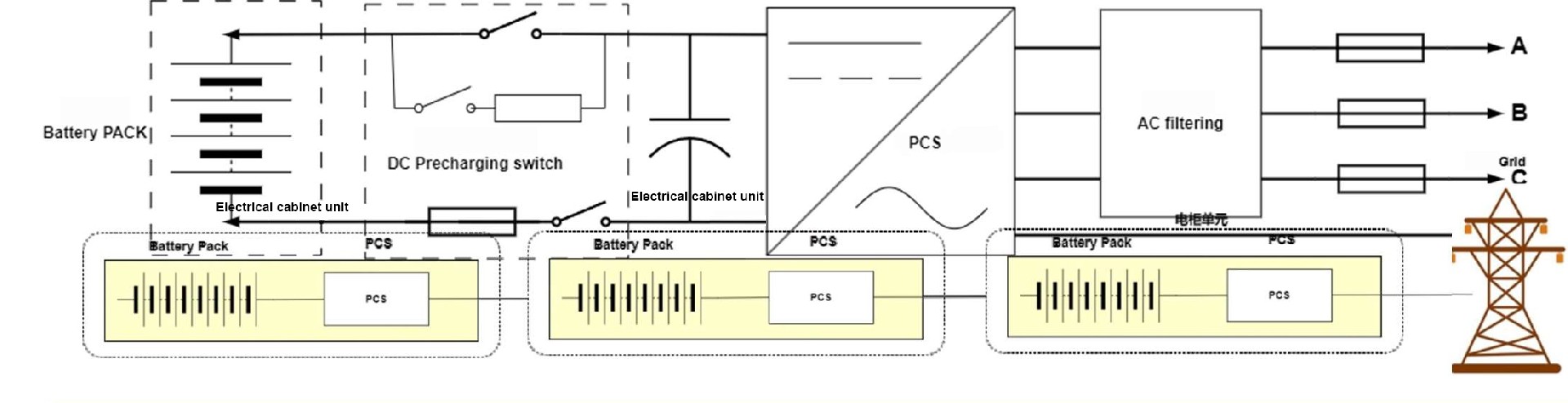

Product Circuit Diagra
