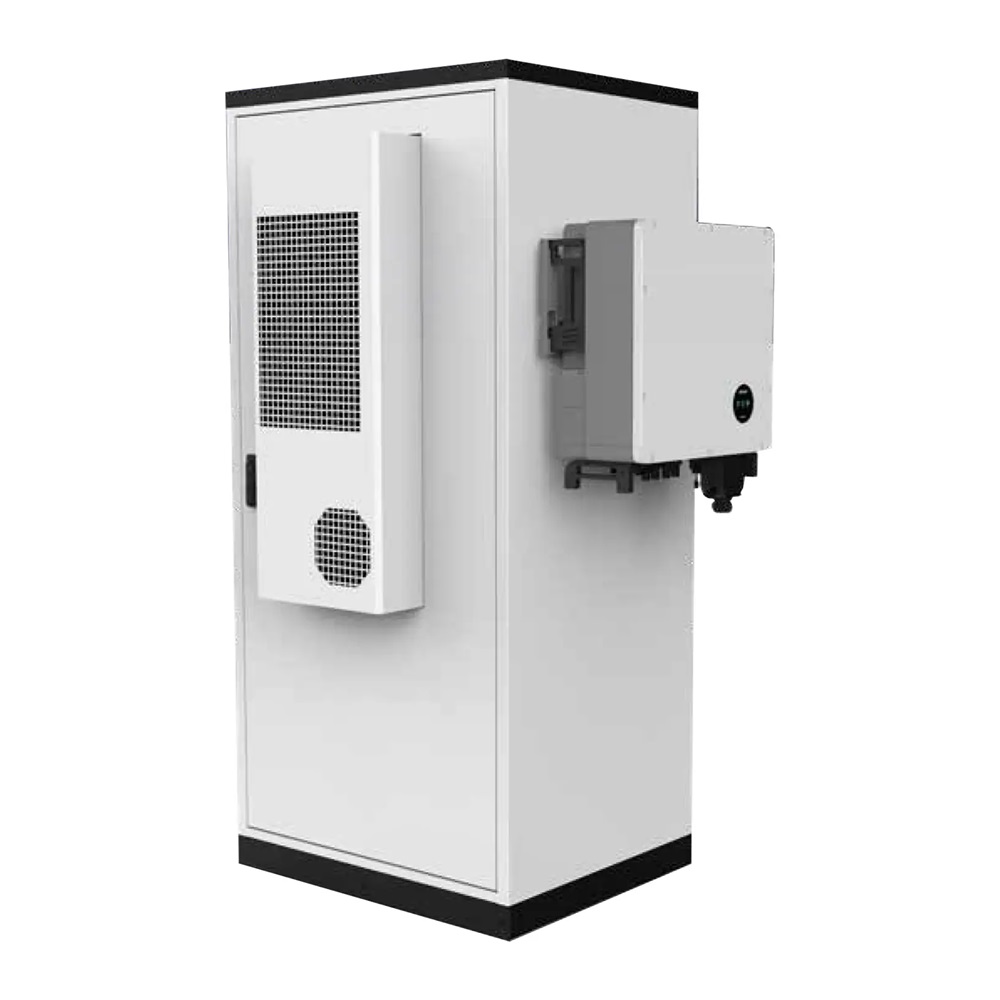

50kW 100kWh outdoor All-in-one Cabinet Energy Storage System
50kW/100kWh outdoor cabinet ESS solution (KAC50DP-BC100DE) is designed for small to medium size of C&I energy storage and microgrid applications.
- Category: Energy storage system
- Tag: 50kw 100kWh All in one ess
Safe&Reliable
CATL LFP battery cell
Double fire suppression system design
1+1 redundancy. The battery cabinet has 2*50KWH(51.2kwh) battery
Simple&User-friendly
Pre-installed in the factory for easy installation on-site
Integrated BMS/EMS, suitable for various applications
Effortless operation, cloud control
Economical&Efficient
Save Capex, expanding as required
Efficient and energy-saving HVAC design
outdoor cabinet ESS solution (KAC50DP-BC100DE) is designed for small to medium-sized C&I energy storage and microgrid applications.
Technical parameters
Technical parameters | |
Battery type | LFP |
Battery module capacity | 5.12kWh |
Number of modules | 10*2 |
Total battery capacity | 102.4kWh |
Nominal voltage | 512V |
Operating voltage range | 448V~565V |
Charge/Discharge rate | Max. 0.5C |
DoD | 90% |
General parameters | |
Dimensions(W*D*H) | 1100*1100*2380 mm |
Weight | <1.5T |
Installation site | Outdoor |
IP protection | IP54 |
Anti-corrosion level | C4 |
Operation humidity | 5%~95% (No condensing) |
Operation temperature | -30°C~+50°C |
Max. operation altitude | 4000m（>3000m derating） |
Communication port | Ethernet; CAN |
Communication protocol | CAN; MODBUS TCP/IP |
Cooling method | Air conditioner |
Standards | IEC62619-2017; UN38.3; IEC61000-6-2/4 |
