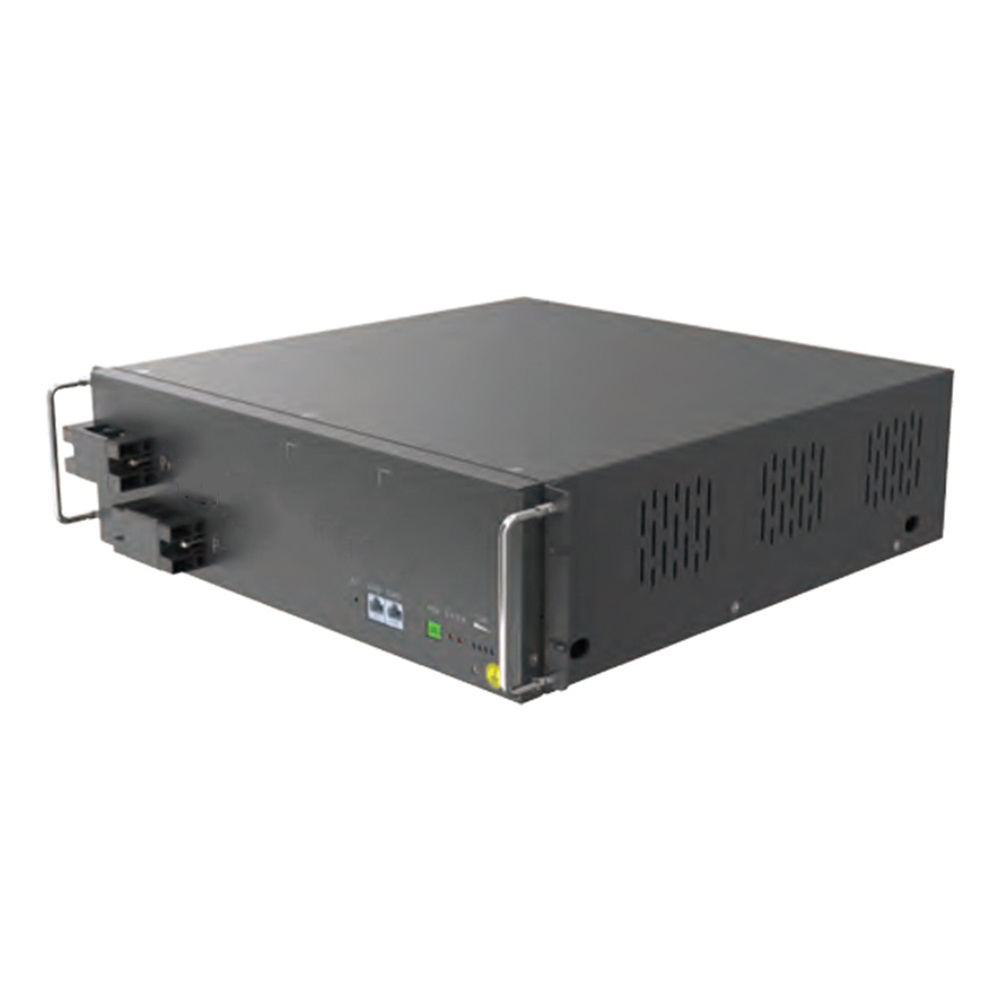

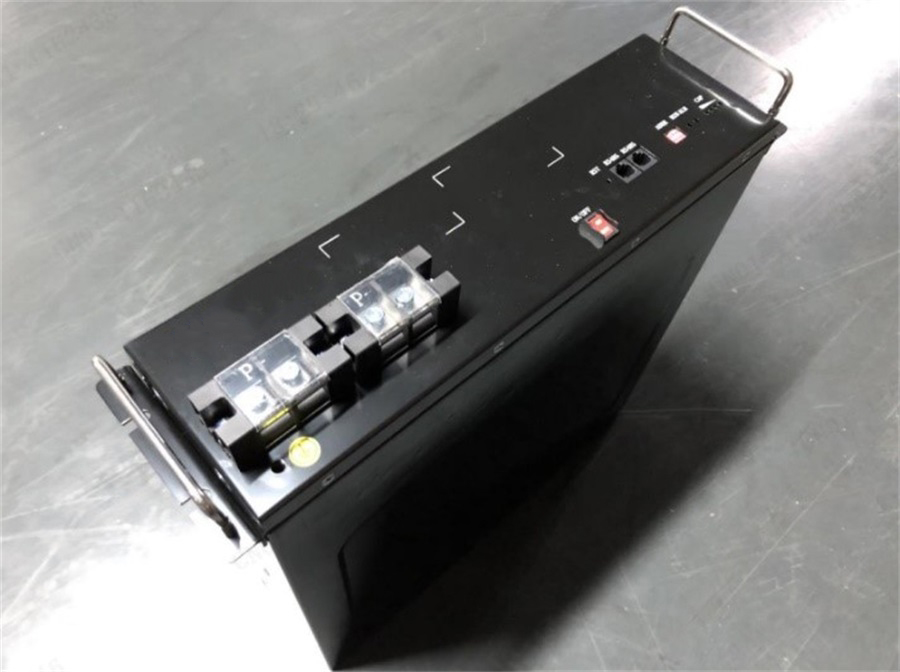

48100 51.2V 100Ah LiFePO4 Battery Module for Telecom

48100 48V 100AH lifepo4 battery module with Integrated design, small size, light weight, unattended mode, easy-to-use cabinet with standardized instal

Telecom Backup Battery Solution



Small size/lightweight

·48100 LFP product: 3U modular design, lightweight and small size to maximize space utilization


High level of safety/long service life

·A system composed of LFP batteries, with high safety and long service life, 0.5C charge and discharge at 25℃, 100% DOD, and a number of cycles ≥3,500


Flexible system configuration

·Configuration of multiple packs in parallel based on the power backup time of the system, with 16 packs in parallel at most, facilitating multiple application scenarios


Basic Parameters

Cell chemistry

LFP

Nominal capacity

100ah

Nominal Voltage

51.2V

Configuration

1P16S

Nominal energy

5.12kwh

Operating voltage range

44.8V~57.6V

Operating temperature range

Charge: 0℃~55℃

Discharge: -20℃~55℃

Weight

Around 50kg

Dimensions (W*H*D)

438*130*450mm



Telecom Backup Battery Solution


Advantages: Integrated design, small size, light weight, unattended mode, easy-to-use cabinet with standardized installation method, energy saving and environmentally friendly design, etc.
