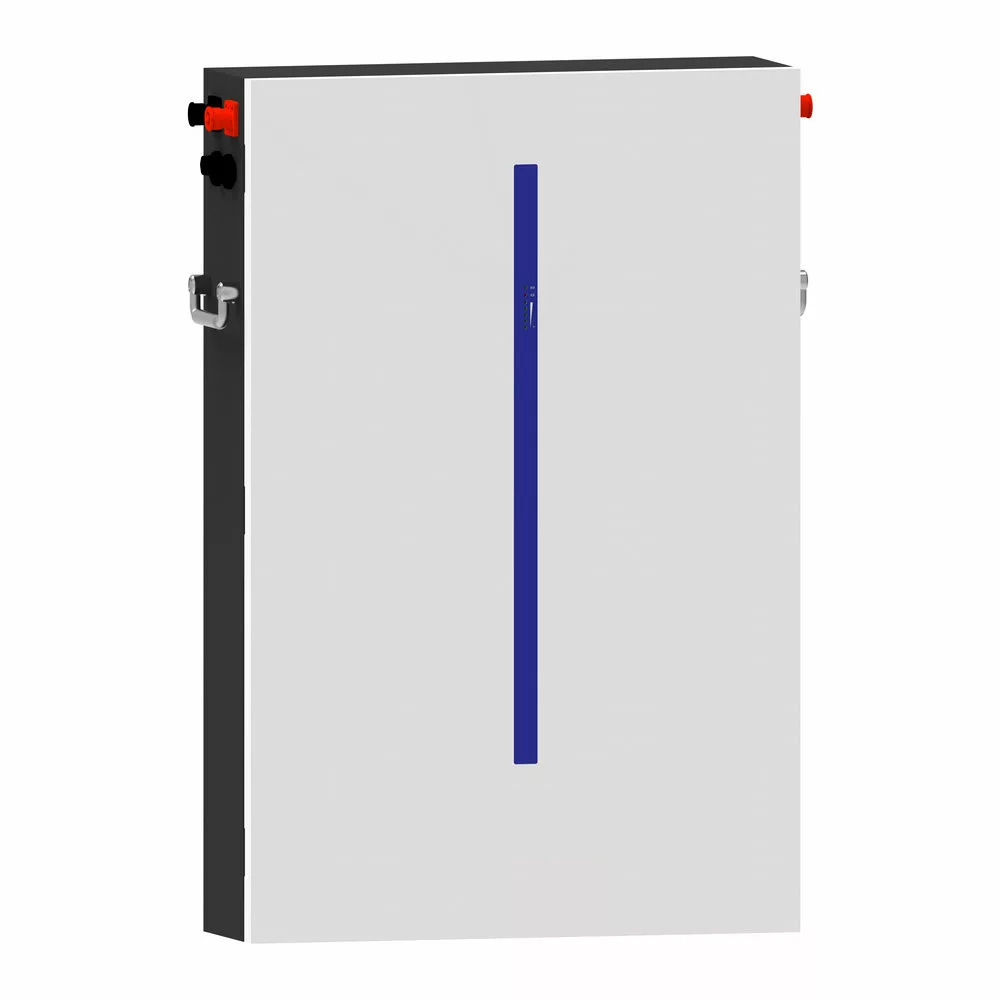

RW-W6.1-B 51.2V 120Ah 6.14KWh LiFePO4 Wall mount Battery Pack For Home Energy Storage System
RW-W6.1-B 51.2V 120Ah 6.14KWh LiFePO4 Wall mount Battery Pack For Home Energy Storage System
- Category: Energy storage system
- Tag: energy storage system
This series lithium iron phosphate battery is one of the new energy storage products developed and produced by Deye, it can be used to support reliable power for various types of equipment and systems.
This series is especially suitable for application scenes of high power, limited installation space, restricted load-bearing, and long cycle life.
This series has a built-in BMS battery management system, which can manage and monitor cell information including voltage, current, and temperature.
What’s more, BMS can balance cells charging and discharging to extend cycle life.
Multiple batteries can connect in parallel to expand capacity and power in parallel for larger capacity and longer power-supporting duration requirements.
Specifications
| Main Parameter | ||
| Battery Chemistry | LiFePO4 | |
| Capacity (Ah) | 120 | |
| Scalability | Max.32 pcs in Parallel(196kWh) | |
| Nominal Voltage (V) | 51.2 | |
| Operating Voltage(V) | 43.2~57.6 | |
| Energy (kWh) | 6.14 | |
| Usable Energy (kWh) [1] | 5.53 | |
| Charge/Discharge Current (A) | Recommend [2] | 60 |
| Max.[2] | 100 | |
| Peak(2mins,25℃) | 150 | |
| Other Parameter | ||
| Recommend Depth of Discharge | 90% | |
| Dimension (W/H/D, mm) | 510*740*145(Without Base, depth of 161mm with Hanging Board) | |
| Weight Approximate(kg) | 58 | |
| Master LED Indicator | 5LED(SOC:20%~SOC100%), 3LED (working, alarming, protecting) | |
| IP Rating of Enclosure | IP65 | |
| Operating Temperature | Charge:0～55℃ / Discharge:-20℃～55℃ | |
| Storage Temperature | 0℃～35℃ | |
| Humidity | 5%~95% | |
| Altitude | ≤2000m | |
| Cycle Life | ≥6000(25℃±2℃,0.5C/0.5C,70%EOL) | |
| Installation | Wall-Mounted, Floor-Mounted | |
| Communication Port | CAN2.0, RS485 | |
| Warranty Period [3] | 10 years | |
| Energy Throughput [3] | 20MWh@70%EOL | |
| Certification | UN38.3, IEC62619, CE, CEI 0-21, VDE2510-50 | |

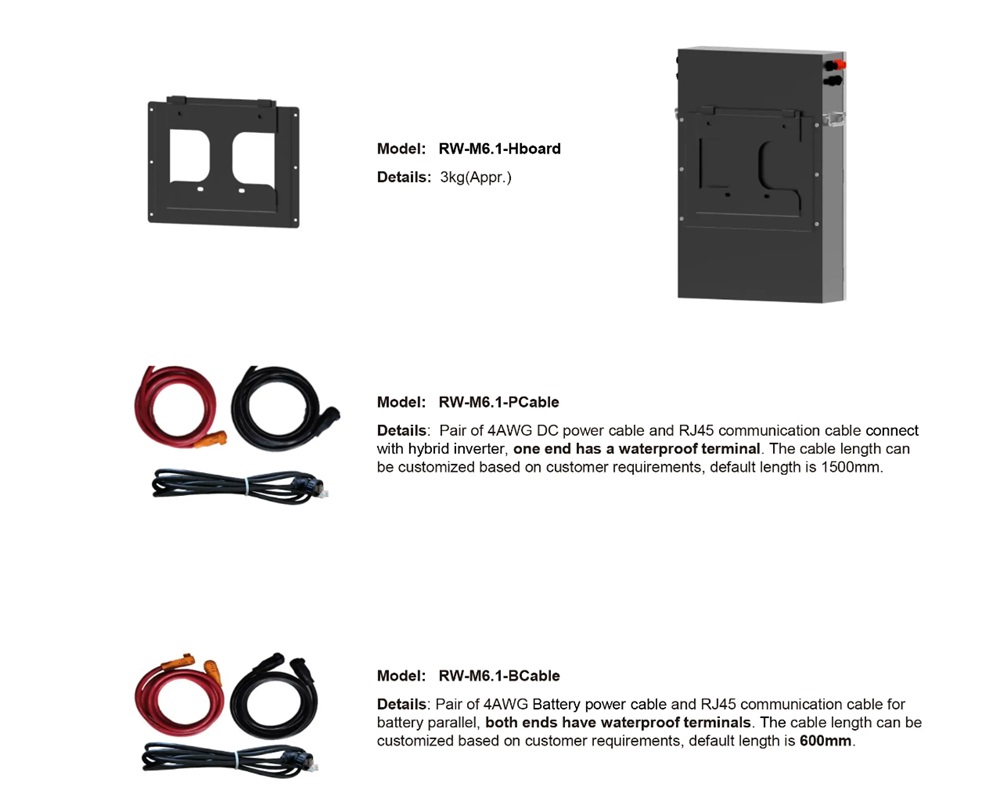

Battery pack accessories
Model | Accessories Parts Description | Remark |

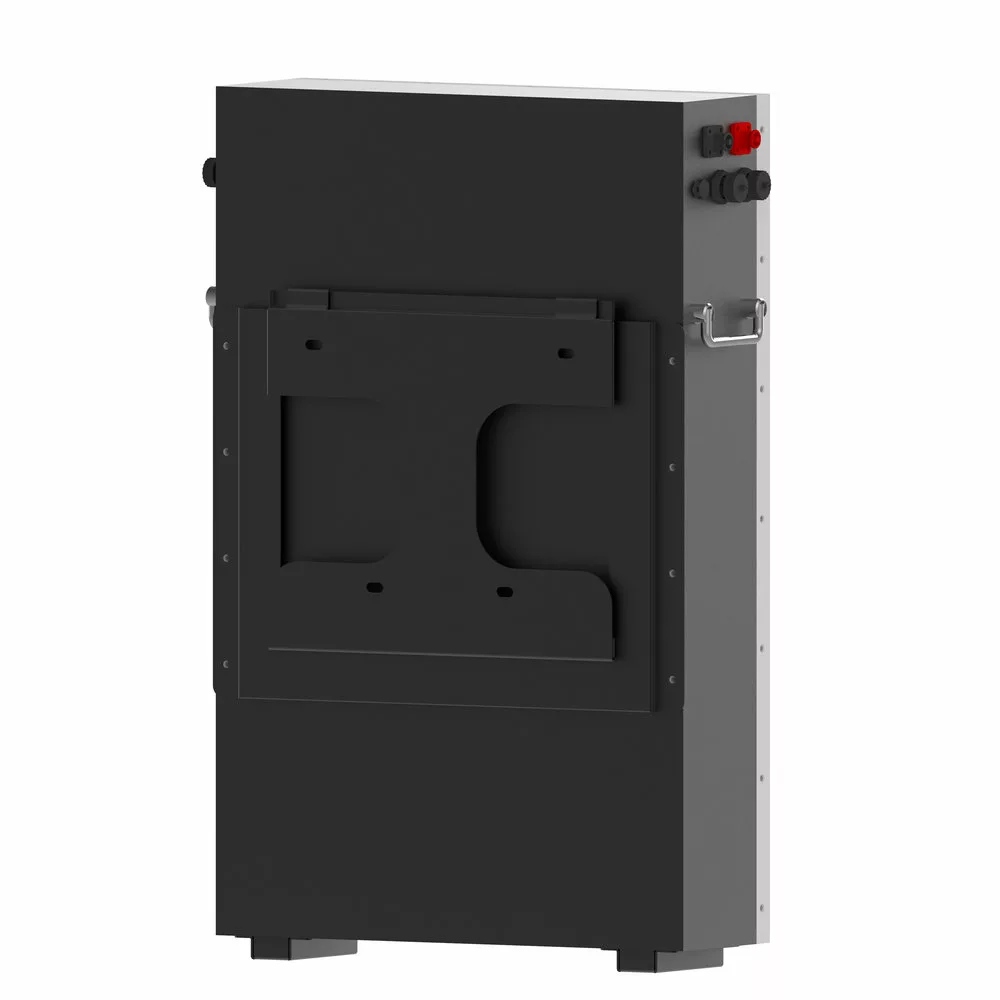

RW-M6.1-Hboard | Battery Hanging Board (Included) | Used for battery fixing on the wall
|
RW-M6.1-PCable | Hybrid inverter Cable (Included) | Battery power and communication cable connect with hybrid inverter |
RW-M6.1-BCable | Battery Parallel Cable (Optional) | Battery power and communication parallel connection cable |
