48V 100Ah Server Rack LiFepO4 Battery Pack For ESS
48V 100Ah 4.8Kwh Server Rack LiFepO4 Battery Pack For Residential ESS
48V 100Ah Server Rack LiFepO4 Battery Pack For ESS
Aim at low-voltage residential storage market, and apply to the new installation and stock market replacement.
Features
· High Safety
· Long Cycle Life
· Easy Installation
· Intelligent Anti-theft
Application Scenarios
Provide safe and reliable backup power for base station primary equipment, capable of integrating with third-party power sources or site monitoring equipment protocols, achieving lithium batterystatus/alert information reporting, intelligent software anti-theft, and other functions.
Parameters
Items | Parameters |
Rated Capacity(Ah) | 100 |
Rated Energy (kWh) | 4.8 |
Rated Voltage (V) | 48 |
Operating Voltage Range (V) | 42~54 |
Max. Continuous Charge Discharge Current (A) | 100 / 100 |
Cycle Life | 3500@80%DOD, 35℃ |
Weight (kg) | 38 |

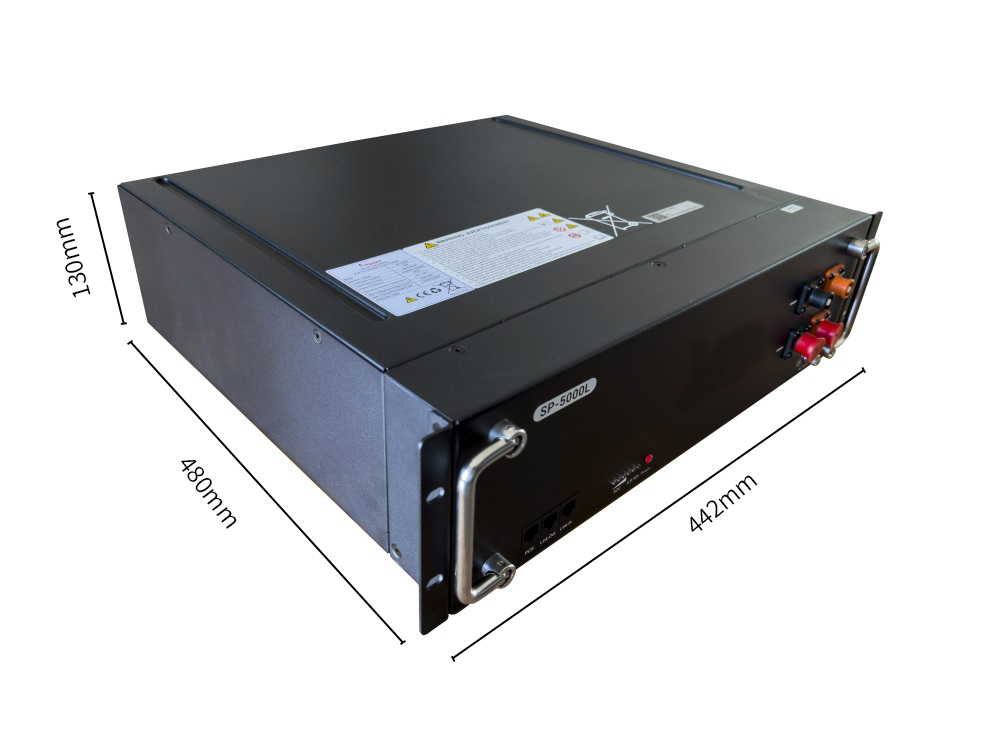

Dimension (W*D*H)(mm) | 442*480*130 (3U, excluding handles and mounting ears) |
Communication Interface | CAN/RS485 and 2 Dry Contact |
Status Indication | SOC / ALM / RUN |
Max. Module Parallel Connect | 16 |
Authenticate | IEC62619, IEC62620, CE, UN38.3 |
Ingress Protection | IP20 |
Operating Temperature (°C) | Charge: 0~55; Discharge: -20~ 55 |
Optional Features | LCD Display, Circuit Breakers, Fuses, Heating, Fire Protection, Gyroscope, GPS |

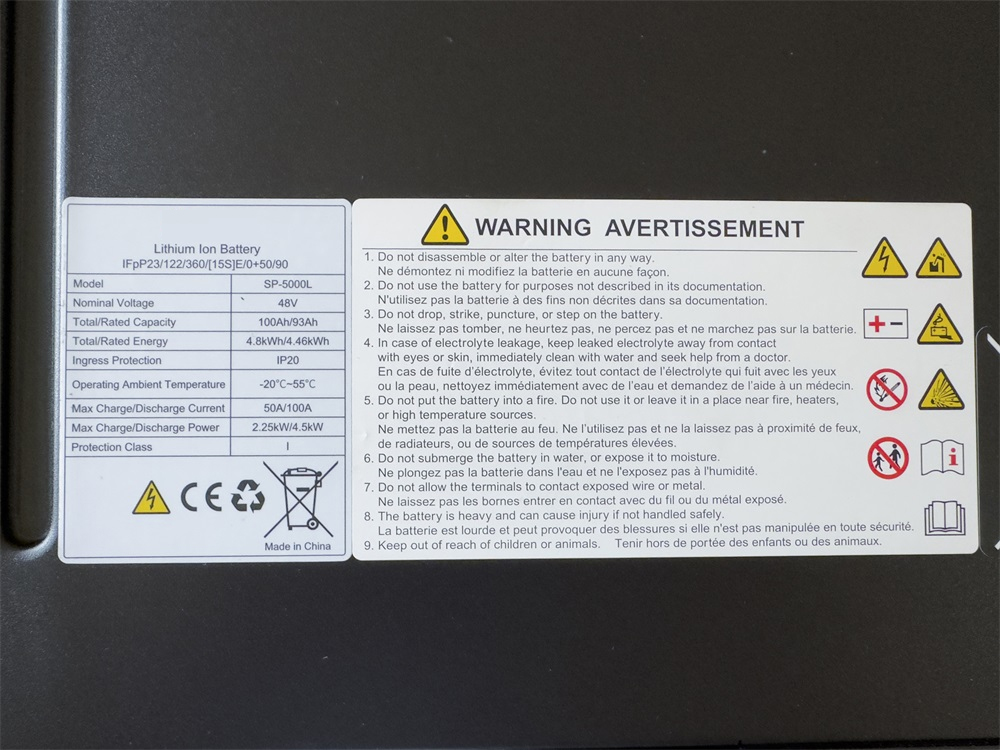

WARNING AVERTISSEMENT
1. Do not disassemble or alter the battery in any way.
2. Do not use the battery for purposes not described in its documentation.
3. Do not drop, strike, puncture, or step on the battery.
4. In case of electrolyte leakage, keep the leaked electrolyte away from contact with the eyes or skin, immediately clean it with water, and seek help from a doctor.
5. Do not put the battery into a fire. Do not use it or leave it in a place near fire, heaters, or high-temperature sources.
6. Do not submerge the battery in water, or expose it to moisture.
7. Do not allow the terminals to contact exposed wire or metal.
8. The battery is heavy and can cause injury if not handled safely.
9. Keep out of reach of children or animals.
