Home 51.2V 100Ah All-In-One Energy Storage System

Home 51.2V 100Ah 5kwh lifepo4 battery All-In-One with 3.2KW Inverter Energy Storage System

Home 51.2V 100Ah 5KWh battery 3.2KW Inverter All-In-One Energy Storage System


All-In-One ess



Feature


· Mobile APP WIFI Control

· Touch LCD Screen

· Battery+Inverter All In One

· LiFePO4 Battery Long Cycle Life

· Solar/AC Input

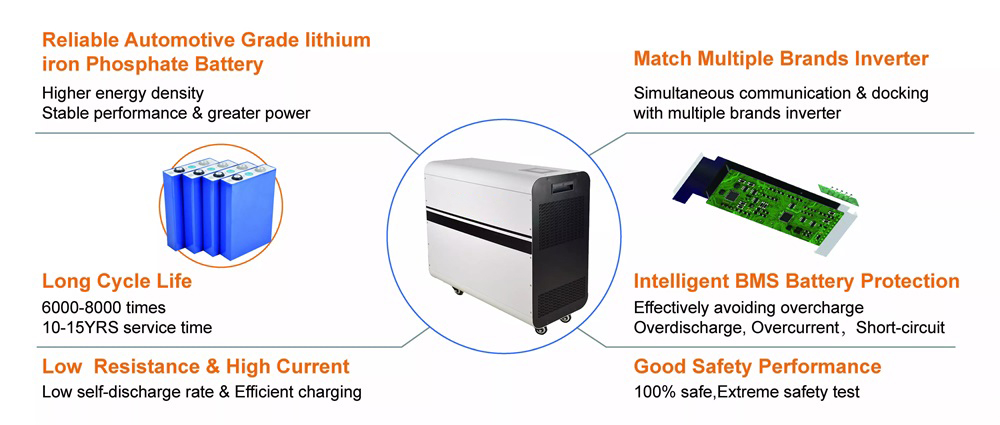

all-in-one ess advantages



All-in-one solar battery ESS inverter supports multiple Ess parallel, It is widely used in household energy storage, solar energy storage systems, wind solar complementary systems, and other fields.


Specifications


Inverter Parameters

Rated Power

3.2KW

Peak Power

5KW

Output Waveform

Pure sine wave

Input/output AC voltage

220VAC

Input/output AC voltage frequency

50Hz/60Hz

Type of inverter

High frequency

Battery Parameters

Nominal voltage

51.2V

Nominal Capacity

100Ah

Electric quantity

5Kwh

Cell type

LiFePO4

Cycle life

≥4000 cycles (80%DOD)

Charge temperature range

0~65℃

Discharge temperature range

-20~65℃

Maximum Continuous

charge current

50A

Maximum Continuous

discharge current

100A

Color

Black/white

Dimension

790*370*870mm

Weight

About 81kg

Installation method

Floor-type with wheels

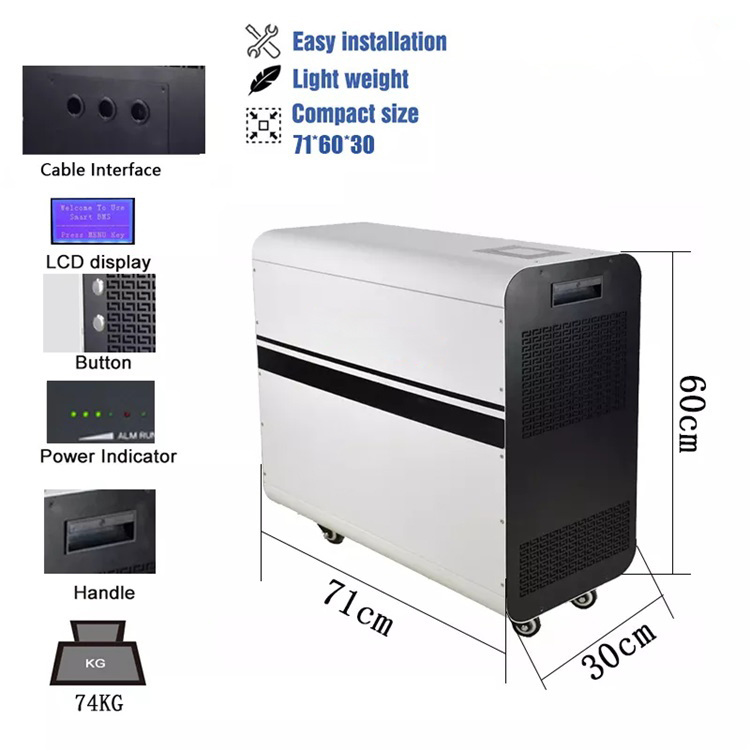

details and dimension


details of all-in-one

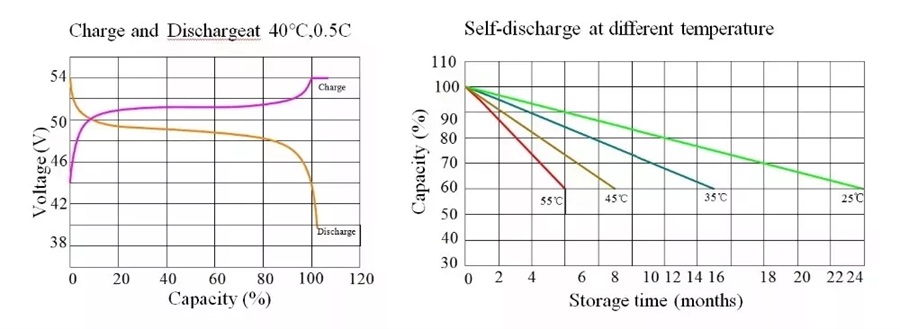

curve of all-in-one
