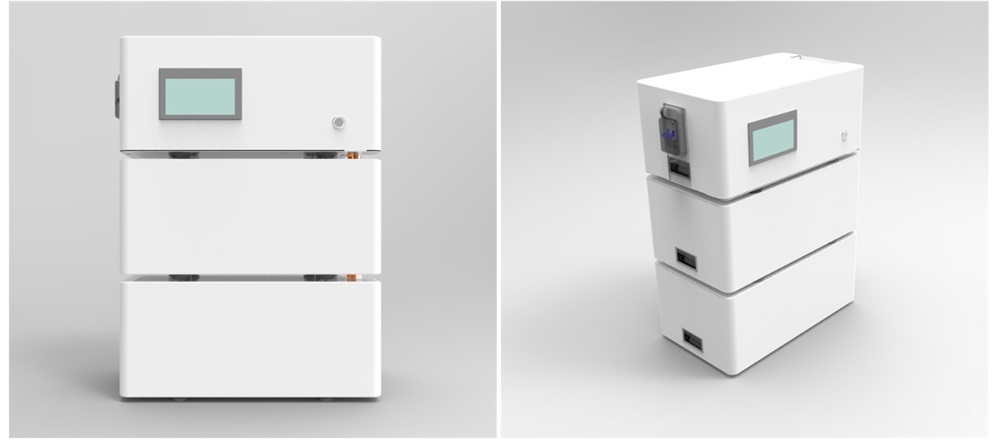

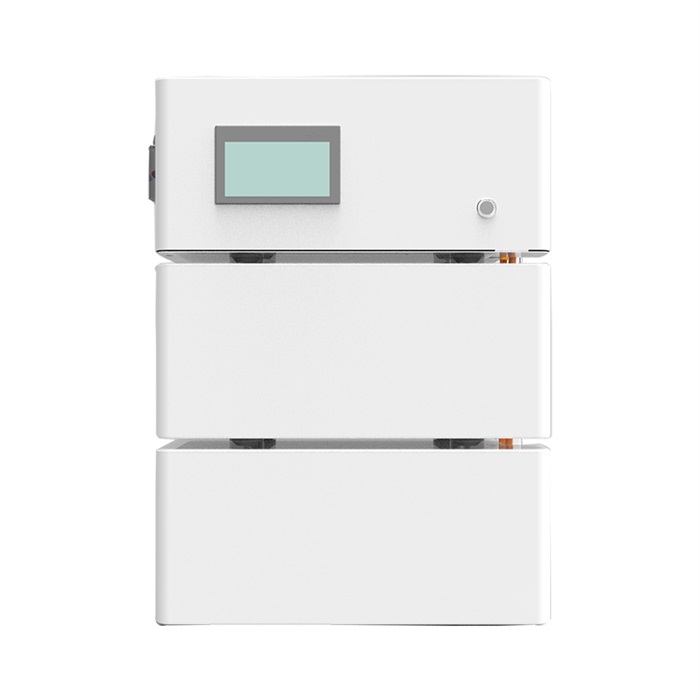

High Voltage Solar ESS: EVL-400 5.6Kwh-16.8Kwh

High Voltage Home Solar Battery Energy Storage System: EVL-400 5.6Kwh-16.8Kwh

High Voltage Home Solar Battery Energy Storage System: EVL-400 5.6Kwh-16.8Kwh


EVL-400 5.6Kwh-16.8Kwh Ess



EVL Developed a series of Ground Eco Solar battery systems applied with the most advanced LiFePo4 technology. We provide complete solutions for home energy storage solar systems.



Features


· Floor mounted

· High voltage system

· Modular design, convenient maintenance, and expansion

· 5.6Kwh - 16.8Kwh

· Battery cell Type: Prismatic LiFePo4 cell

· Maximum 6 battery packs can be parallelly communicated

· Communication: CAN, RS232, RS485

· Low temp is available. Real-time monitor battery




Solar Energy Storage System

High voltage

Capacity Energy

5632Wh (2 Packs)

Capacity

55Ah

Suggested SOC

5%~95%

Nominal Voltage

102.4V

Operation Voltage

86.4V~113.6V

Maximum Charging/

Discharging Current

35A/35A

Operation Temperature

Charge: 0~45℃ Discharge: -20~45℃

Storage Temperature

-20~45℃

Weight

75kg

Dimension

480*220*660mm(Per Pack)

Certification

MSDS, UN38.3, RoHS, CE

IP Grade

IP54

Cycle Life

6000 cycles @ 25℃ 80%DOD

Communication

RS232, RS485, CAN

Module Capacity Energy

3PACKS-153.6V-8448wh

4PACKS-204/8V-11264Wh

5PACKS-256V-14080Wh

6PACKS—308.2V-16896Wh

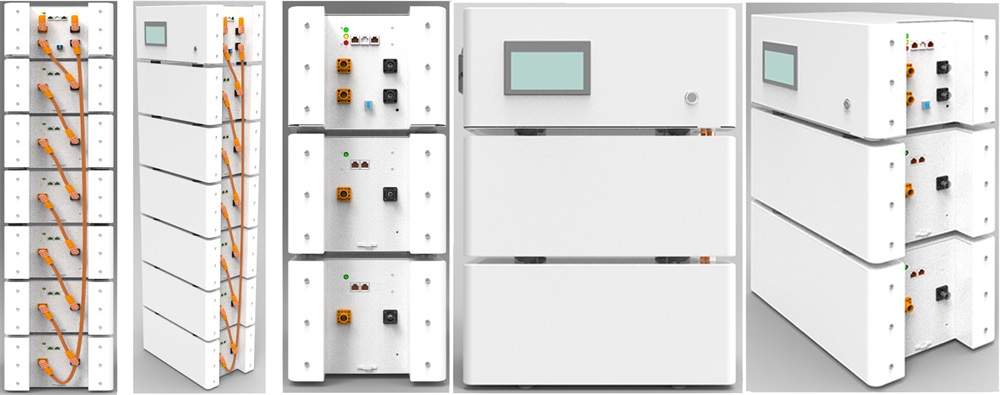

The maximum 6 battery packs

can be parallelly communicated




This Solar Lithium battery Ground Ecosystem design allows you to add more battery packs to increase the capacity.   Each battery pack is in a parallel connection.



 EVL-400 5.6Kwh-16.8Kwh Ess
