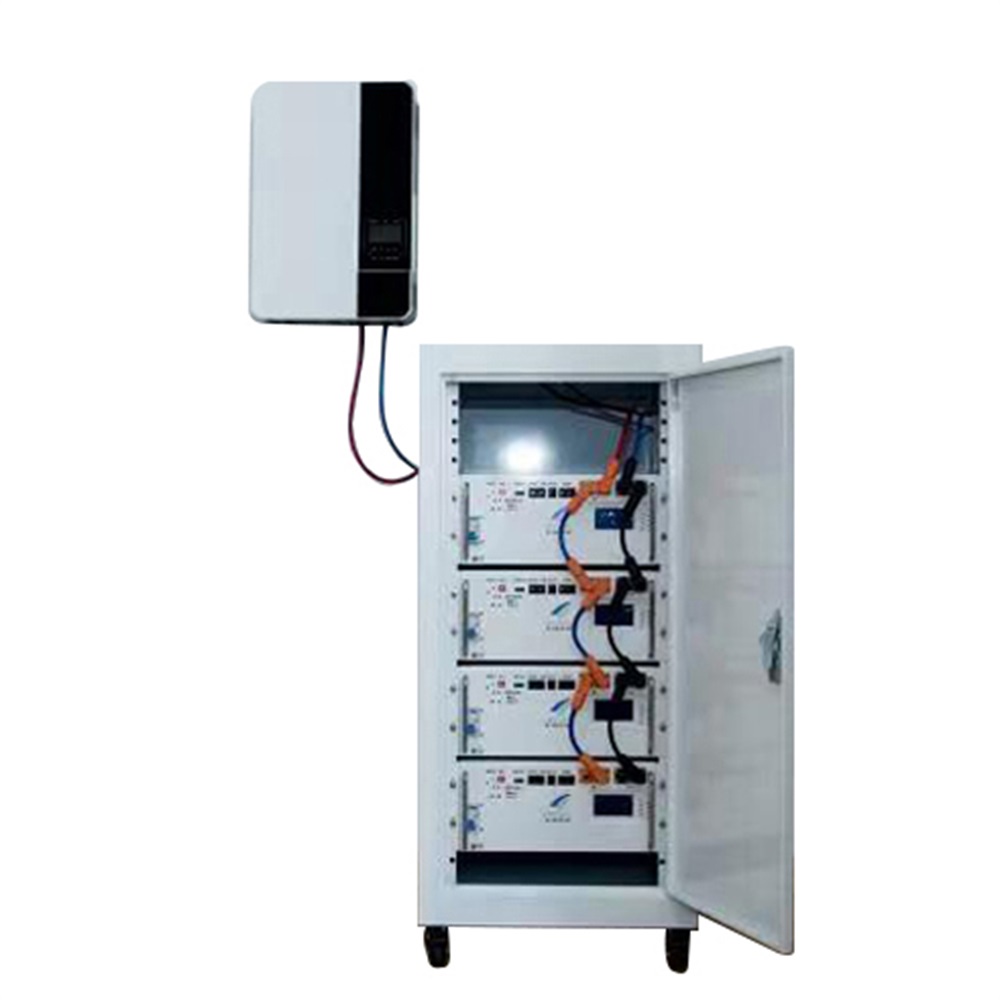

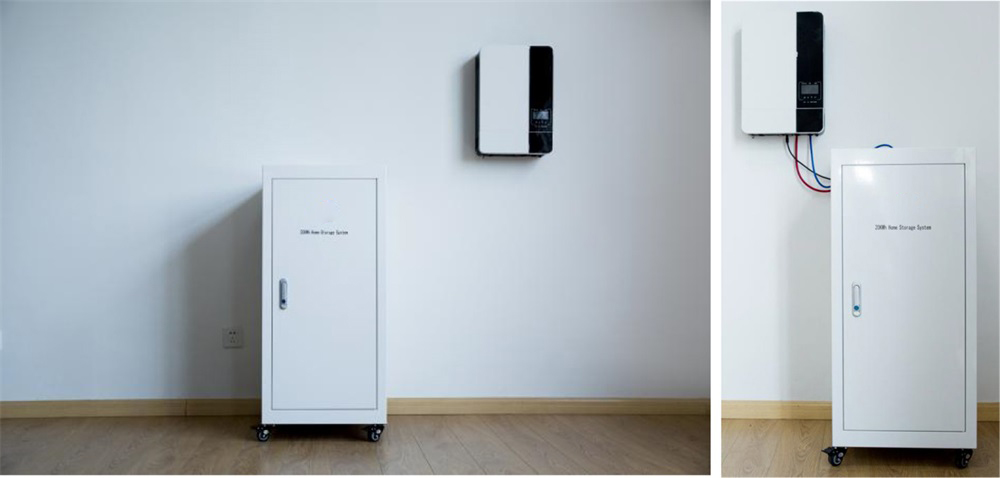

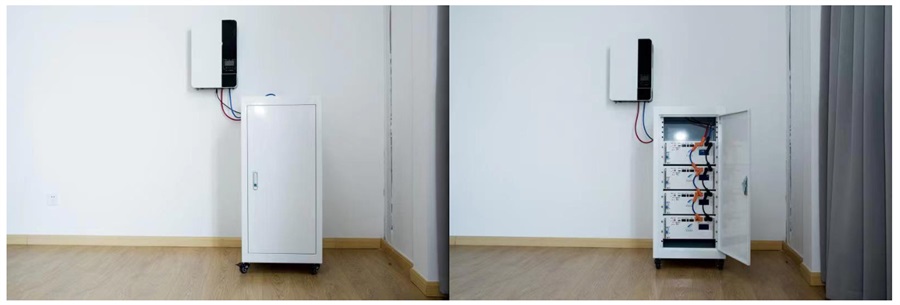

5Kwh to 20Kwh Home ESS Cabinet Battery
Quality Server Rack lifepo4 solar battery pack for home battery storage, and solar energy storage.
- Category: Home Battery Energy Storage System Solution
- Tag: household ess

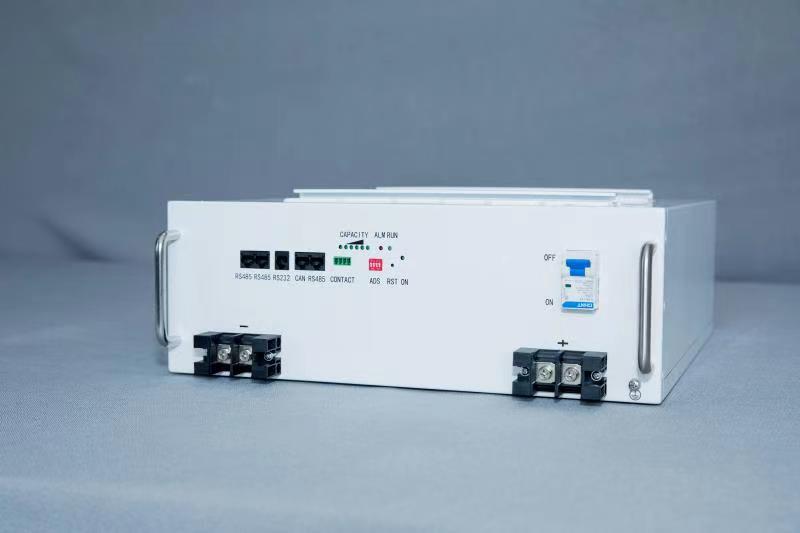

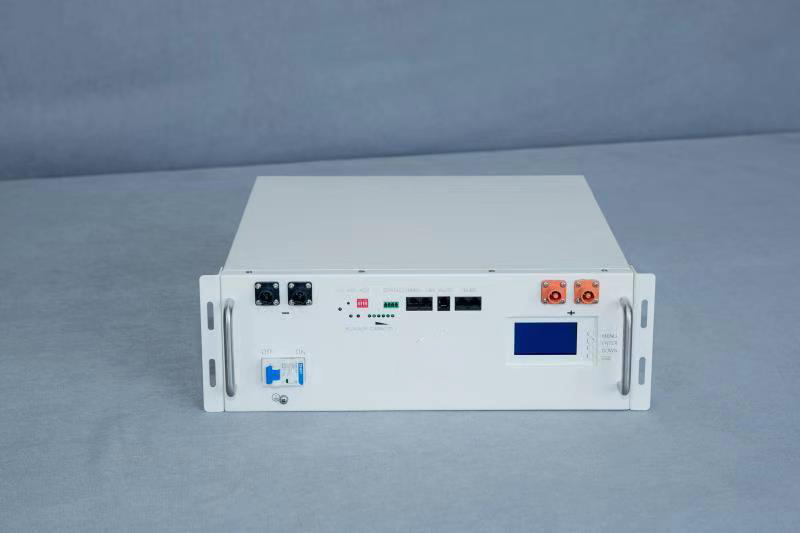

EVL Home U series is a lithium iron phosphate battery-based system designed for household applications with excellent performance, high safety, and reliability.
(*The picture is slightly different from the real object, please take the real object as the standard.)
Features of the home storage battery
1. Intelligent LED & LCD display;
2. RS232 & RS485 & CANBUS communication;
3. With WIFI communication cloud platform.
4. The datasheet of the single battery module: Click Here

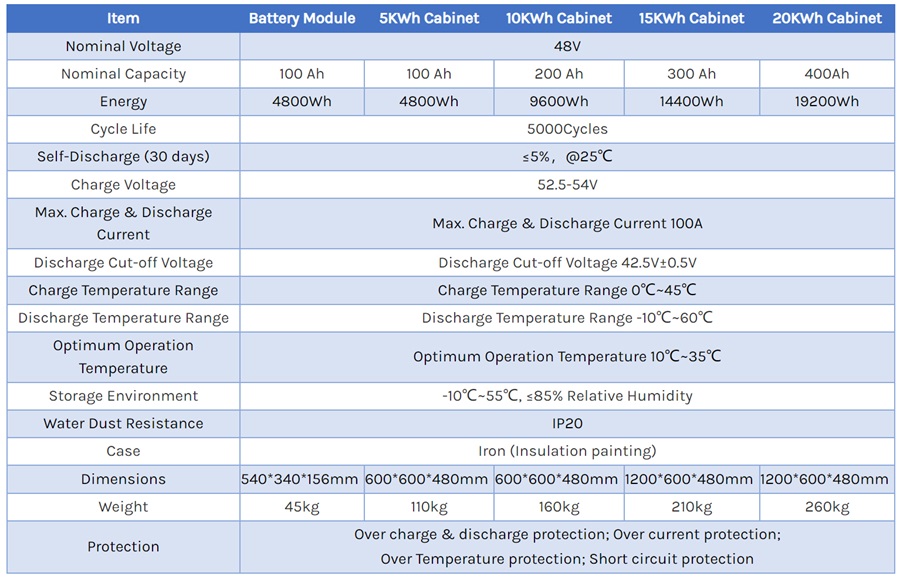

Battery data sheet
Inverter data sheet
Model | 3000ES (5KW/10KW Cabinet) | 5000 ES (15KW/20KW Cabinet) |
Battery Voltage | 48V DC | |
Battery Type | LiFePO4 Battery | |
Inverter Output | ||
Rated power | 3000W | 5000W |
AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @50/60HZ | |
Surge Power | 4500W | 7500W |
Efficiency | 92% | 92% |
Waveform | Pure sine wave | |
Transfer Time | 10ms typical, 20ms Max | |
Solar charger | ||
Maximum PV Array Power | 4200W | |
MPPT Range @ Operating Voltage | 60VDC-115VDC | |
Maximum PV Array Open Circuit Voltage | 145VDC | |
Maximum Solar Charge Current | 60A | 80A |
AC Charger | ||
Charge Current | 0-60A | |
AC Input Voltage | 230VAC | |
Selectable Voltage Range | 90-280 VAC | |
Frequency Range | 50Hz/60Hz (Auto sensing) | |
Physical | ||
Protection Degree | IP20 | |
Net Weight | 12kg | |
Humidity | 5%-95% Relative Humidity (Non-condensing) | |
Altitude | <2000m | |
Operating Temperature | -10°C - 55°C | |
Storage Temperature | -15~60°C | |
