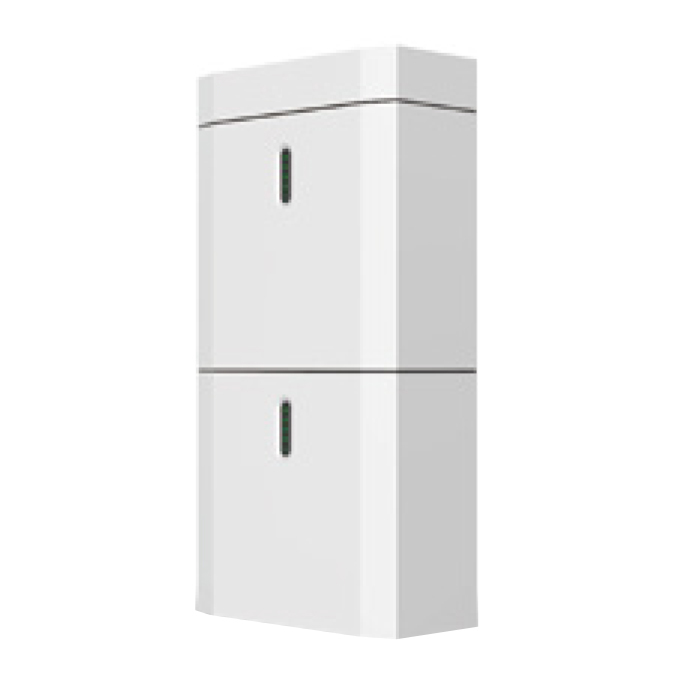

5KWH/10KWH All-In-One Household Lifepo4 Battery Energy Storage System

5KWH/10KWH ALL-In-One HOUSEHOLD LiFePO4 Battery ENERGY STORAGE SYSTEM

5KWH/10KWH ALL-In-One HOUSEHOLD LiFePO4 Battery ENERGY STORAGE SYSTEM


househohold energy storage systemhousehold energy system



Product features


· LFP Battery inside

· All-in-one design

· High efficiency up to 97.6%

· IP65 protection

· String monitoring optional

· Easy installation

· Digital controller

· Modular design


Specifications


Battery Specifications

BluE-Pack 5.1

BluE-Pack 10.2

Electrical

Energy Capacity

5.12KWh

10.24KWh

Battery type

LFP(LiFePO4)

Depth of Discharge (DOD)

90%

Rated voltage

51.2V

Operating Voltage Range

44.8~57.6V

Internal Resistance

≤20mΩ

Number of cycles

10000cycles

Operation

Max. Charging current

50A (0.5C)

100A (0.5C)

Max. Discharging current

80A (0.8C)

100A (0.5C)

Operating temperature range

0~55℃ (Charging) /

-20~55℃(Discharging)

Storage temperature range

-30~60℃

Humidity

0~90%

BMS

Modules Connection

Max 4 batteries in parallel

Power Consumption

<2W

Monitoring Parameters

System voltage, current, cell voltage,

cell temperature,

PCBA temperature measurement

Communication

CAN and RS-485 compatible

Ventilation type

Passive and Active cooling

Physical

Weight

60kg

120kg

Dimension(W*H*D)

540*490*240mm

540*940*240mm

IP protection

IP65

Warranty

5 years product warranty,

10years performance warranty

Certificate

Safety (Cell)

IEC 62619\ UL1973\UN38.3
