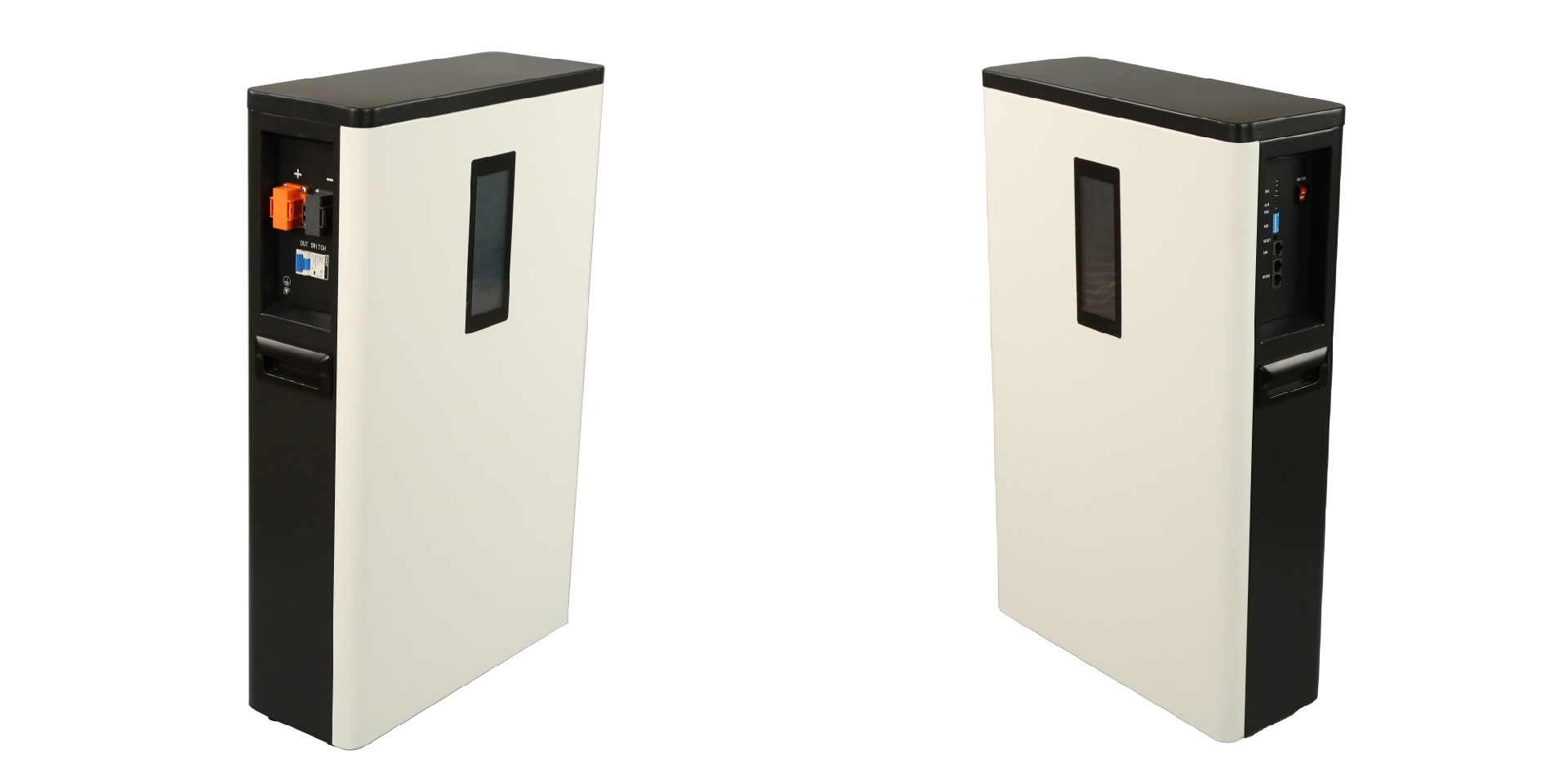

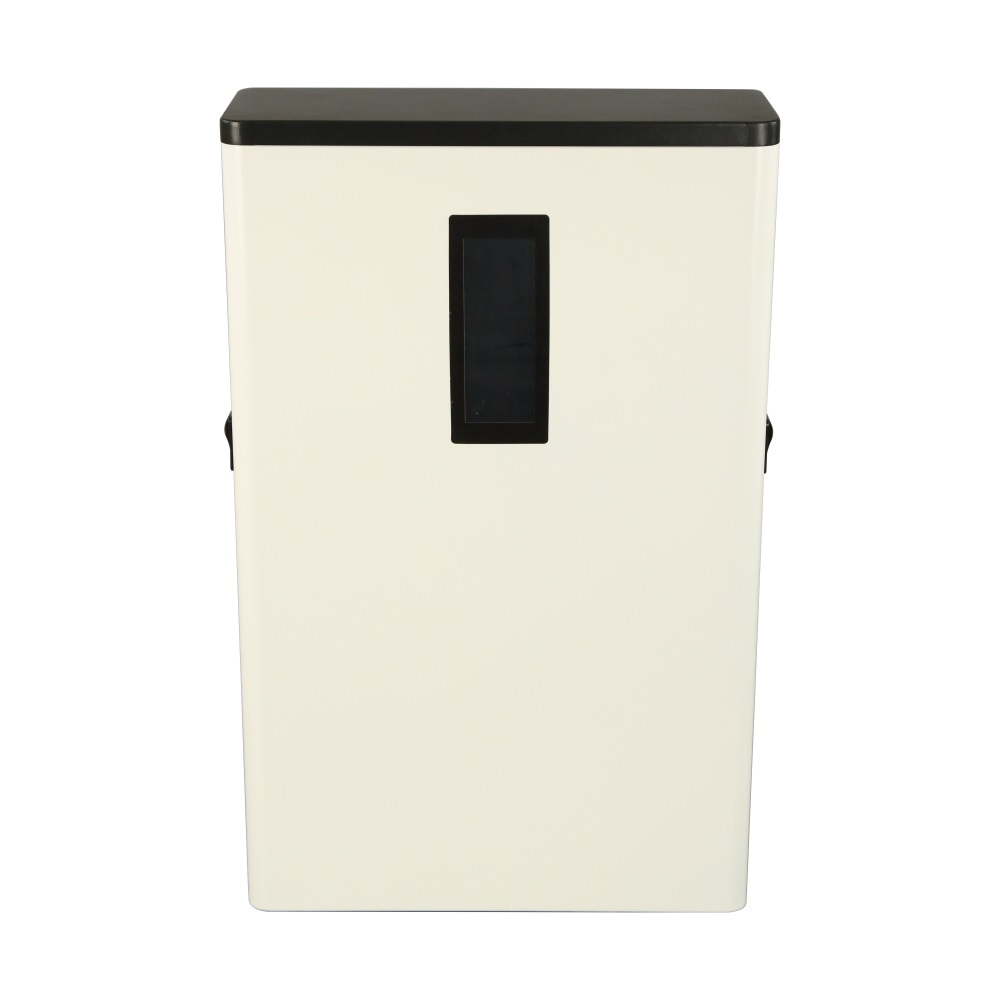

51.2V 100Ah 5.12kwh lifepo4 household battery

51.2V 100Ah 5.12kwh lifepo4 household battery pack(include display screen) for home energy storage system

51.2V 100Ah 5.12kwh lifepo4 household battery pack(include display screen) for home energy storage system



household lifepo4 battery


*It can match almost all of the inverters in the market



Safe and reliable household battery pack solution


It includes 16 LiFePO4 battery cells and BMS. Capacity can be increased by parallel connection.Support ground-mounted and wall-mounted installation way.

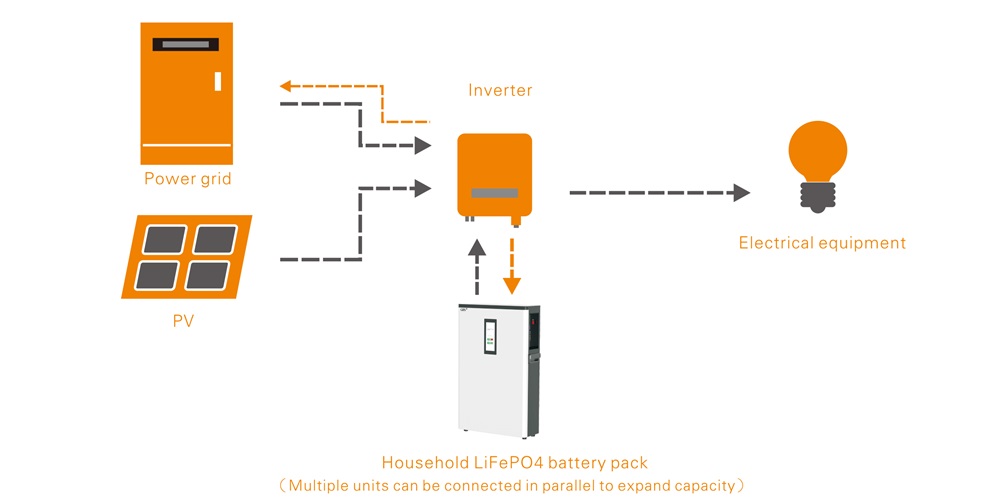

Charge: grid or solar energy

Discharge: grid or solar energy



Model

GBSFP51100LV-1

Rated voltage

51.2V

Nominal capacity

100Ah

Energy

5.12KWh

Discharge Current

0~100A

Discharging protection voltage

43.2V

Charge Current

0~100A

Balancing charging voltage

56.8V

Float charging voltage

54.4V

Size W*D*H

460*170*740mm

Weight

52Kg

Charging temperature

0~65℃

Discharging temperature

-20~65℃

Relative humidity

5%~95%

Protection function

overcharge, over-discharge, short circuit,

overload, high tempt, low tempt, etc.

Self discharge@25℃

<5% after 90-day storage

Matching inverter power

≤5KW

Installation

Wall-mounted type, ground type

Display

yes



house lifepo4 battery pack
