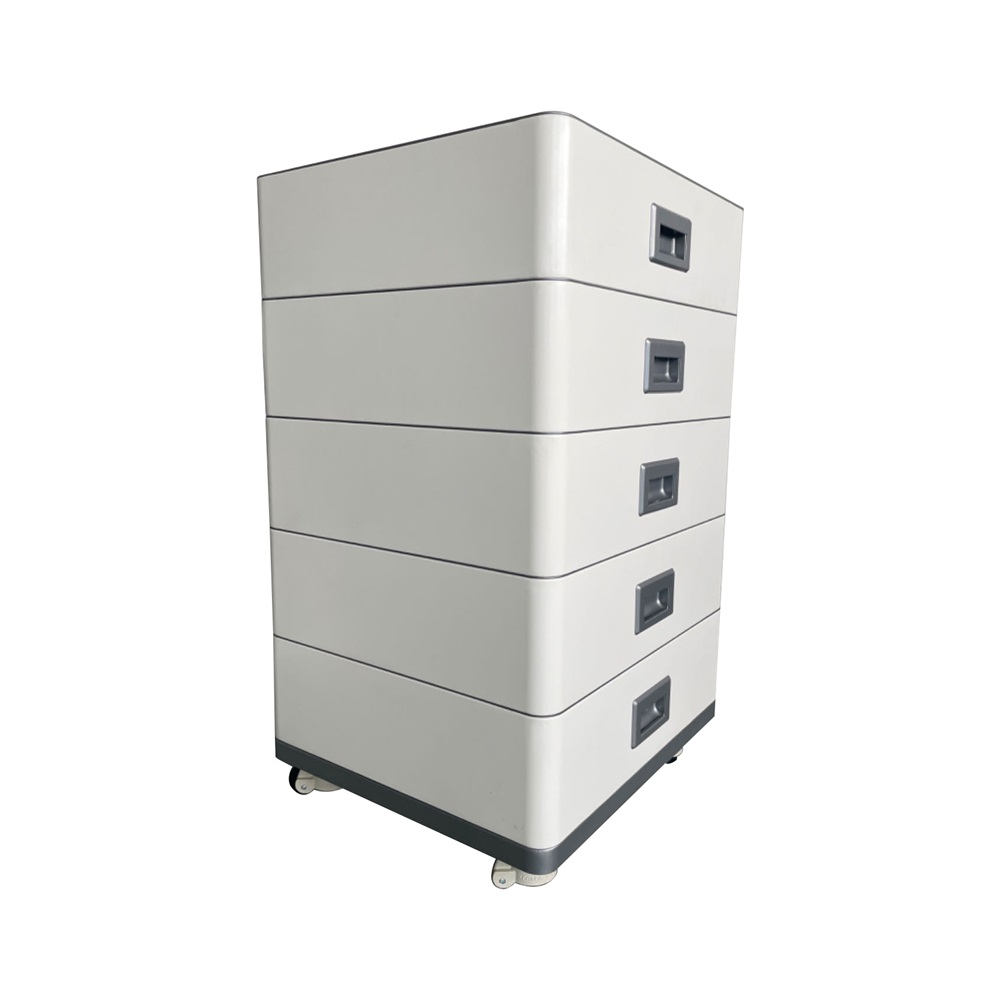

48V/51.2V LiFePO4 Battery Energy Storage System

48V/51.2V LiFePO4 Battery Energy Storage System with inverter

48V/51.2V LiFePO4 Battery Energy Storage System With Inverters


48V/51.2V LiFePO4 Bess


NPHP48S 51.2V 100Ah LiFePO4 Battery Module For ESS


NPHP48S 51.2V 100Ah LiFePO4NPHP48S 51.2V 100Ah LiFePO4

NPHP48S 51.2V 100Ah LiFePO4



Safety

Multi-protection from BMS


Compact Size & Easy Installation

Module design helps for quick installation

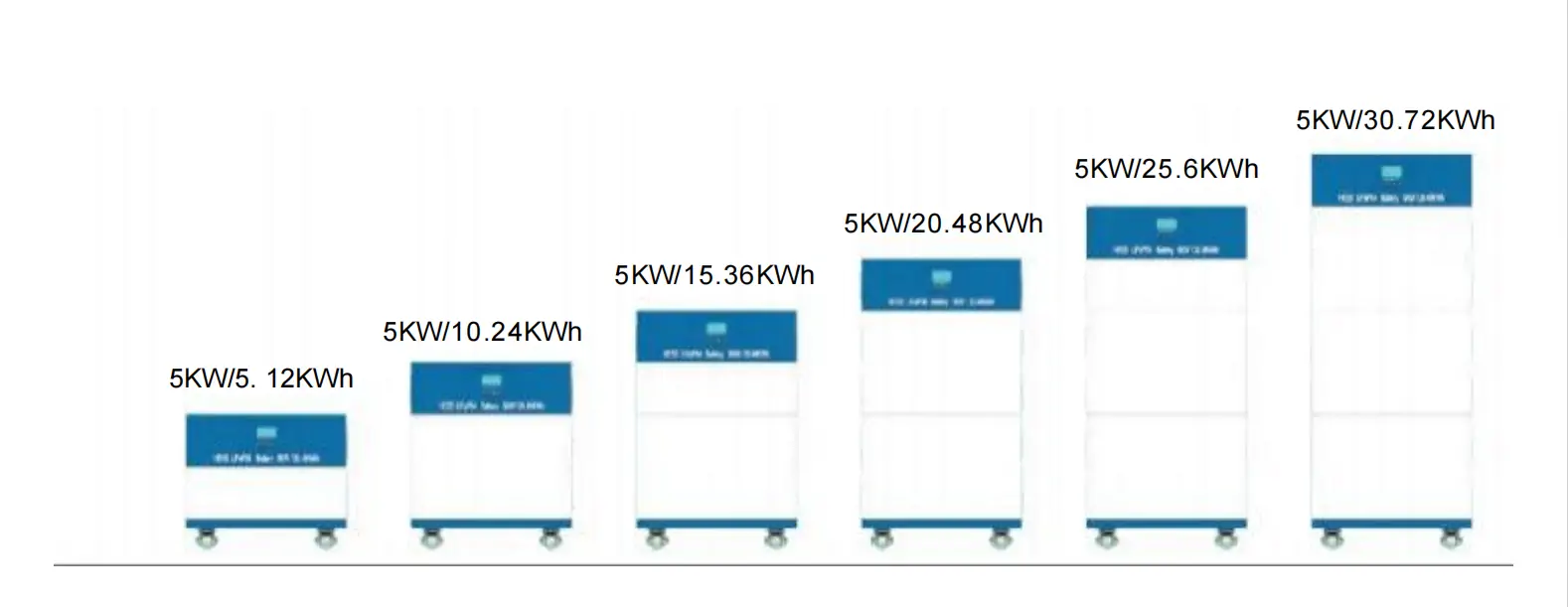

Easy to Scale Up

Be workable to be parallel based on 48V


Compatibility

Compatible with Multiple inverter brands


Optimal Electricity Cost

Long cycle life and superior performance



Specifications of 48V100Ah NPHP 48100A Battey module



Items

Parameters

Nominal Voltage (V dc)

51.2

Nominal Capacity(Wh)

5120

Usable Capacity(Wh)

5068

Dimension(mm)

560*500*160

Weight(kg)

40

Parallel Connection

Max. 16units



Charge/Discharge Current(A)

(Recommend) 50

(Max. Continuous) 50

(Peak 1) 100

(Peak 2) 100

Communication Port

RS485,CAN

Parallel Connection

Max. 16units

Working Temperature/ ℃ Charge

0-50

Working Temperature/ ℃ Discharge

-20-50

Shelf Temperature/ ℃

-20-60

Short current/duration time

<4000A/2ms

The IP rating of the enclosure

IP20

Cooling type

Natural

Humidity

5% ~ 95%(RH) No Condensation

Altitude(M )

<4000

Design life

10+ Years (25℃/77℉)

Cycle Life

>5,000 25℃



The recommended and max. continuous operation current is for a battery cell temperature within 10~40。C to consider, out of such temp. the range will cause a derating on operation current.

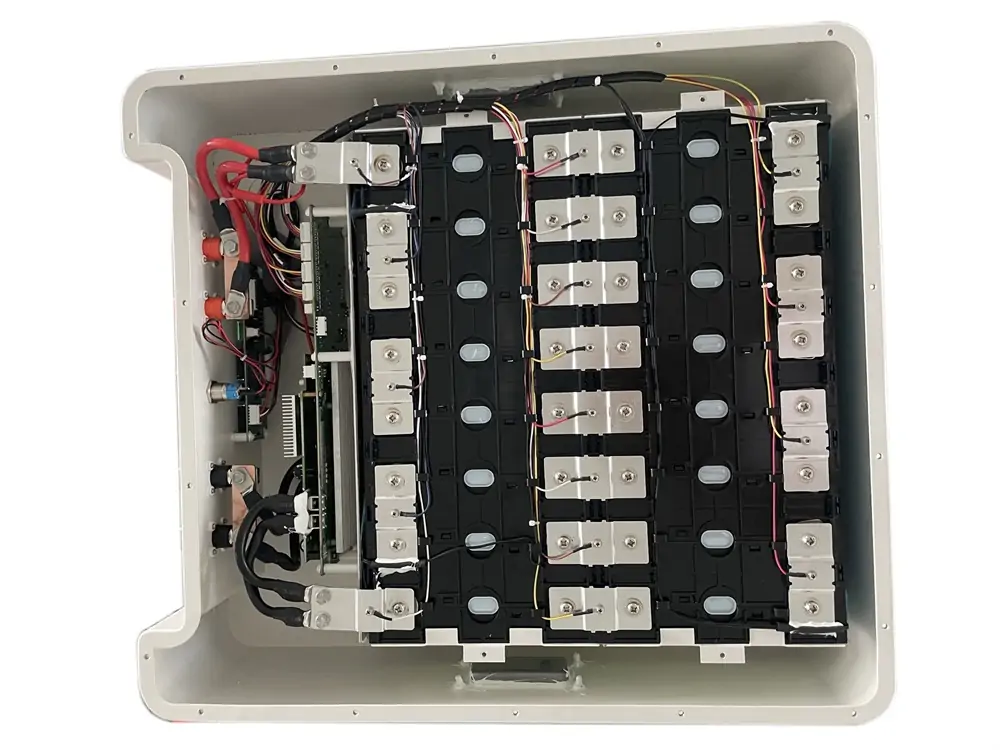

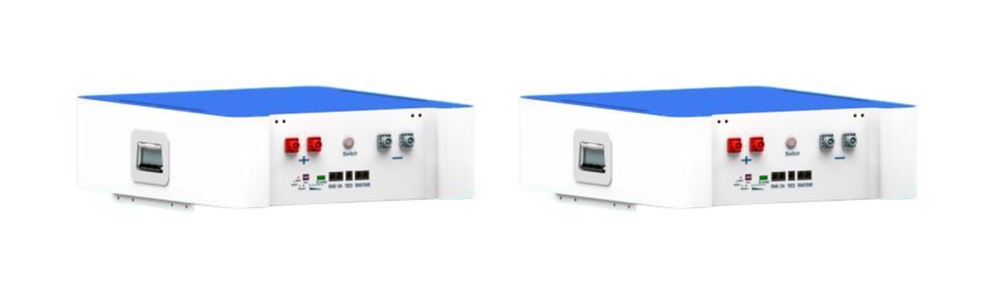

Details of 48V/51.2V LiFePO4 Battery modules

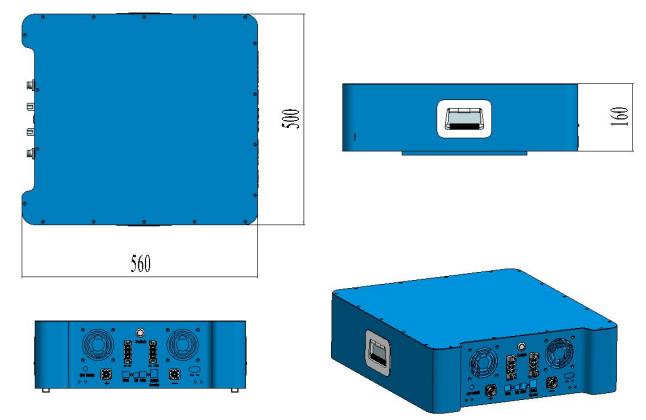

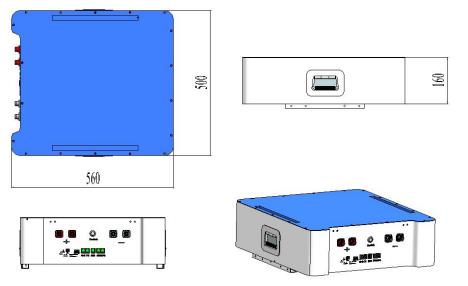

dimensiondimension

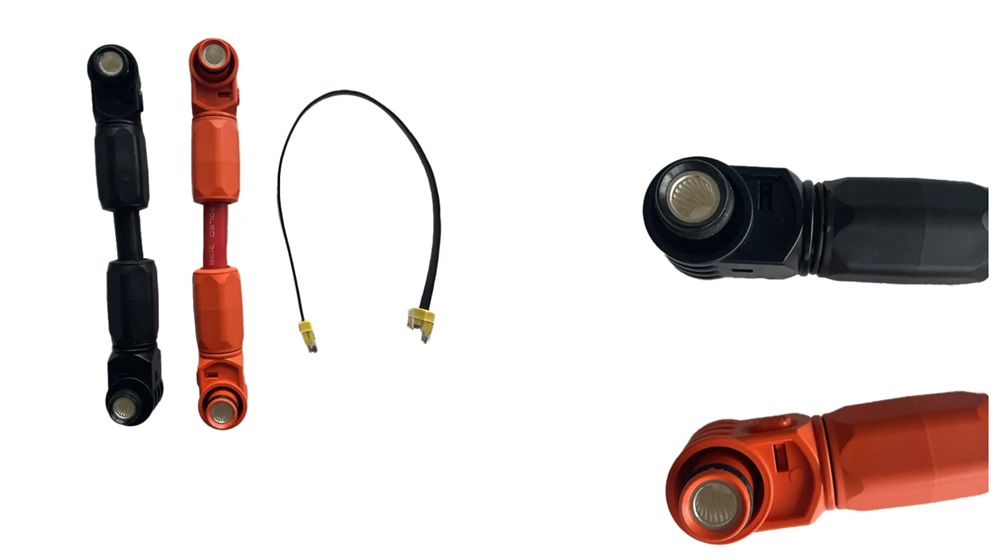

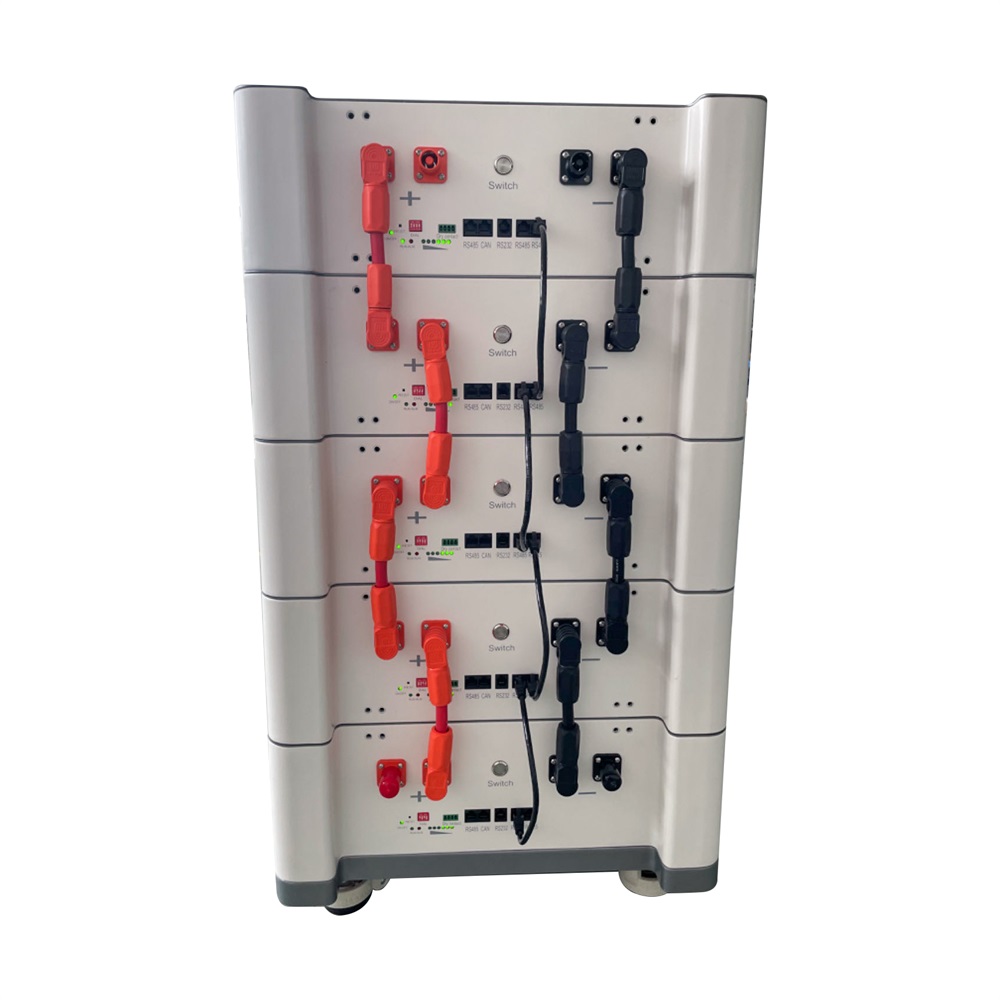

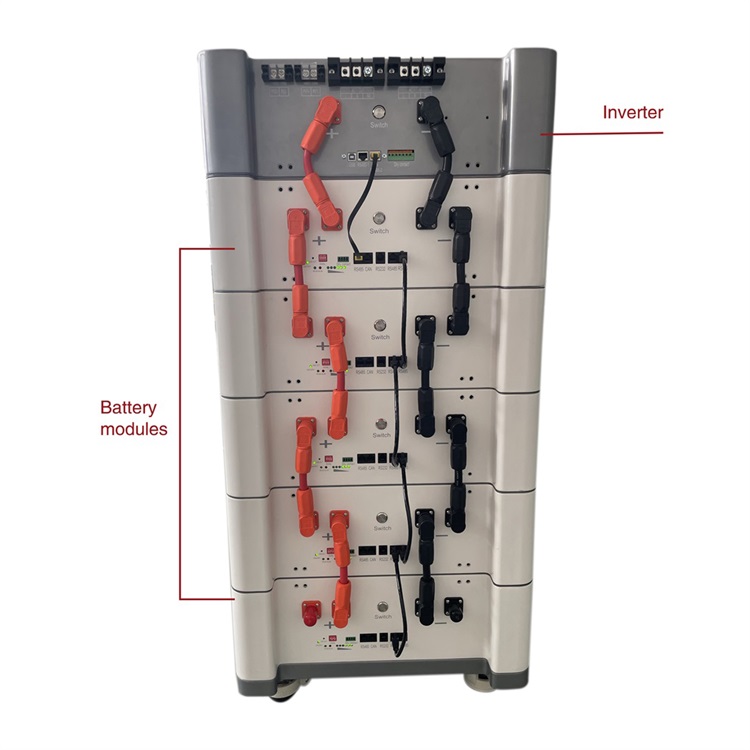

cables

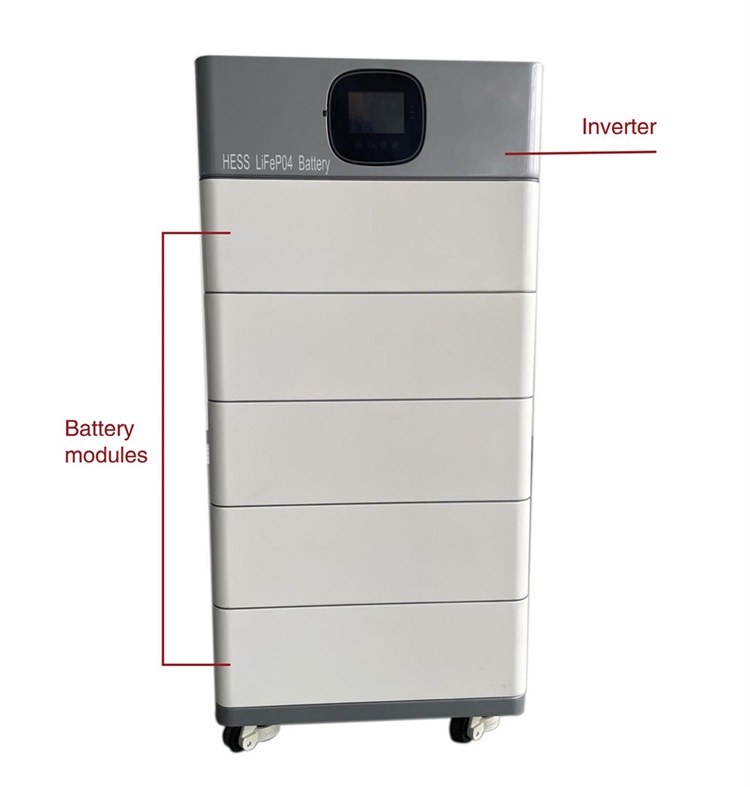

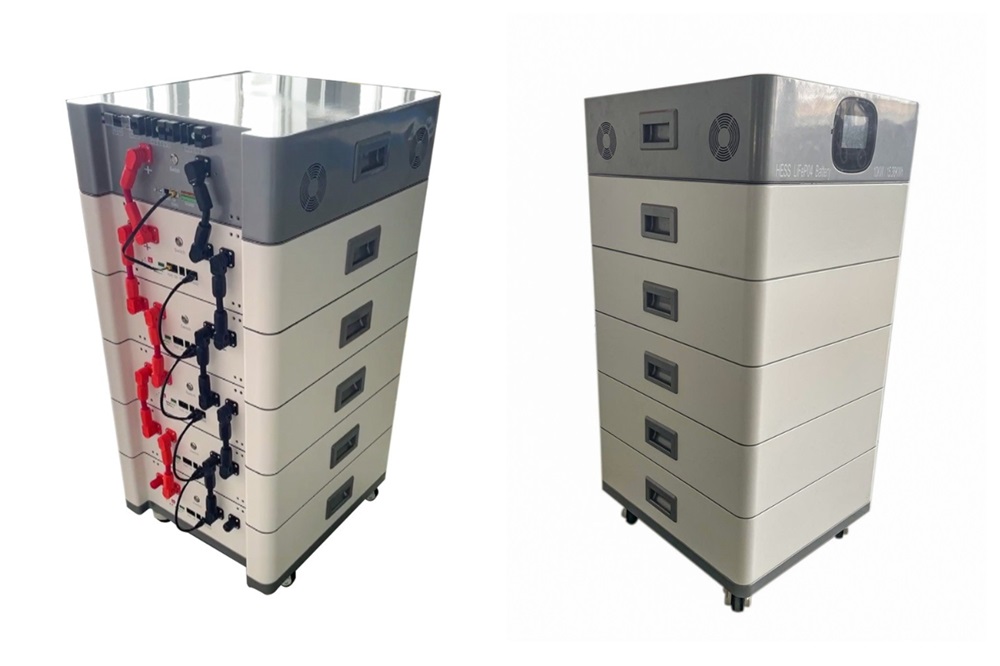

25kwh lifepo4 battery module with inverters


25kwh lifepo4 battery module25kwh lifepo4 battery module


Inverter product model:


Parameter/Model

SPI-5KS

SPI-10KS

INVERTER OUTPUT

Rated Output Power

5,000W

10,000W

Max.Peak Power

10,000W

20,000W

Rated Output Voltage

230Vac (Single phase or three phase) /

110Vac(Single phase or split phase)

Load Capacity of Motors

4HP

6HP

Rated AC Frequency

50/60Hz

Waveform

Pure Sine Wave

Switch Time

10ms  (typical)

Parallel capacity

Max. 6 PCS

/

BATTERY

Battery Type

LiFePO4

Rated Battery Voltage

51.2Vdc

Voltage Range

40-60Vdc

Max.MPPT Charging

Current

100A

200A

Max.Mains/Generat

Charging Current

60A

120A

Max.Hybrid Charging Current

100A

200A

PV INPUT

Num. of MPP Trackers

1

2

Max.PV array power

5,500W

11,000W+11,000W

Max. Input current

22A

22A+22A

Max.Voltage of OpenCircuit

500Vdc

500Vdc+500Vdc

PPT Voltage Range

125-425Vdc

125-425Vdc

MAINS GENERATOR INPUT

Input Voltage Range

90-275Vac(170-275Vac)

90-275Vac

Frequency Range

50/60Hz

50/60Hz

Bypass Overload Current

40A

63A

EFFICIENCY

MPPT Tracking Efficiency

99.90%

Max. Battery Inverter

Efficiency

92%

GENERAL

Dimensions

556*345*182mm

620*445*130mm

Weight

19.2Kg

27kg

Protection Degree

IP20,  Indoor Only

Operating Temperature Range

-10~55℃, >45℃ derated  ( 14~131℉ ,

  >113℉ derated)

Noise

<60dB

Cooling Method

Internal Fan

COMMUNICATION

Embedded Interfaces

RS485 / CAN / USB /  Dry contact

External Modules   ( Optional)

Wi-Fi / GPRS




Inverter Dimensions: mm


dimension


Installation Types:


Installation Types
