Home Battery Storage: 48V 100Ah 5Kwh LiFePO4 household batteries for solar
High specific energy
Easy to install
Long cycle life
Support parallel operation
Environmental protection and no pollution
Support deep customization
Parameters | |
Product model | EVL-BOX3 |
Product specification | 51.2V 100Ah |
Nominal voltage | 51.2V |
Nominal capacity | 100Ah |
Cell type | LFP |
Standard charge voltage | 58.4V |
Max charge current | 100A |
Discharge cut-off voltage | 40V |
Max discharge current | 100A |
Display | LCD |

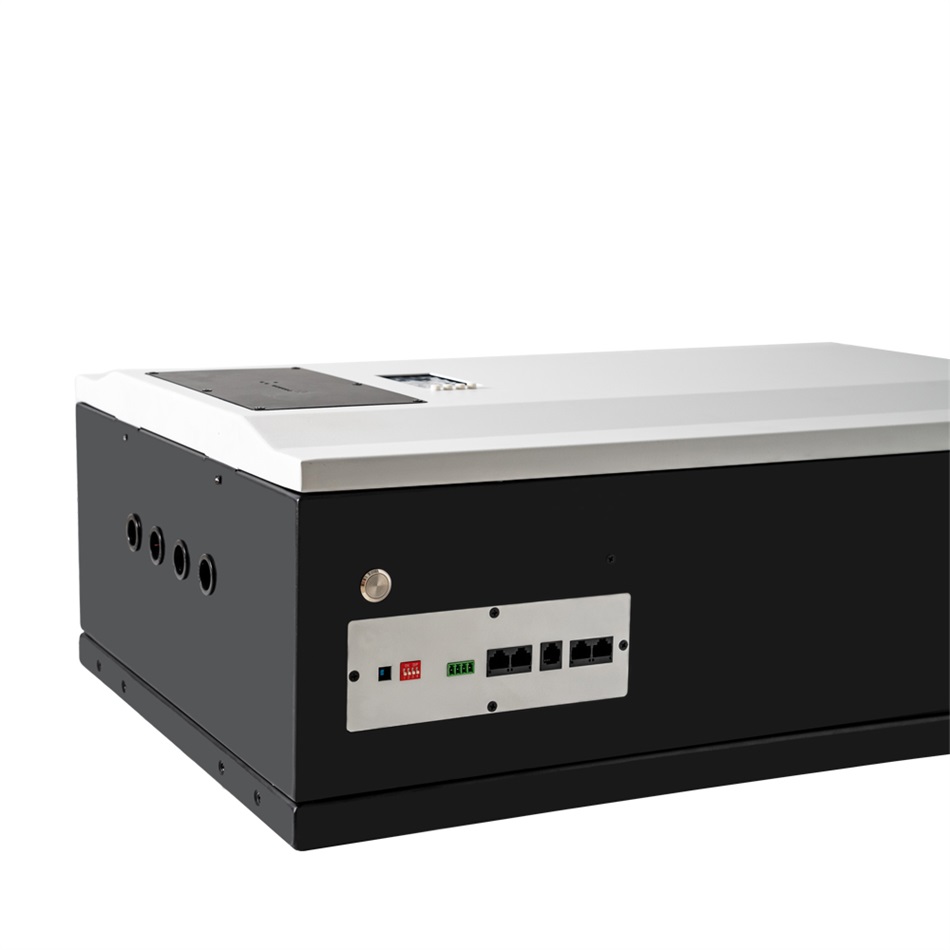

Communication interface | RS485, RS232, CAN (Optional) |
Cycle life | ≥4000Cycles(80%DOD) |
Charge temperature range | 0~65℃ |
Discharge temperature range | -20~65℃ |
Color | Black and white |

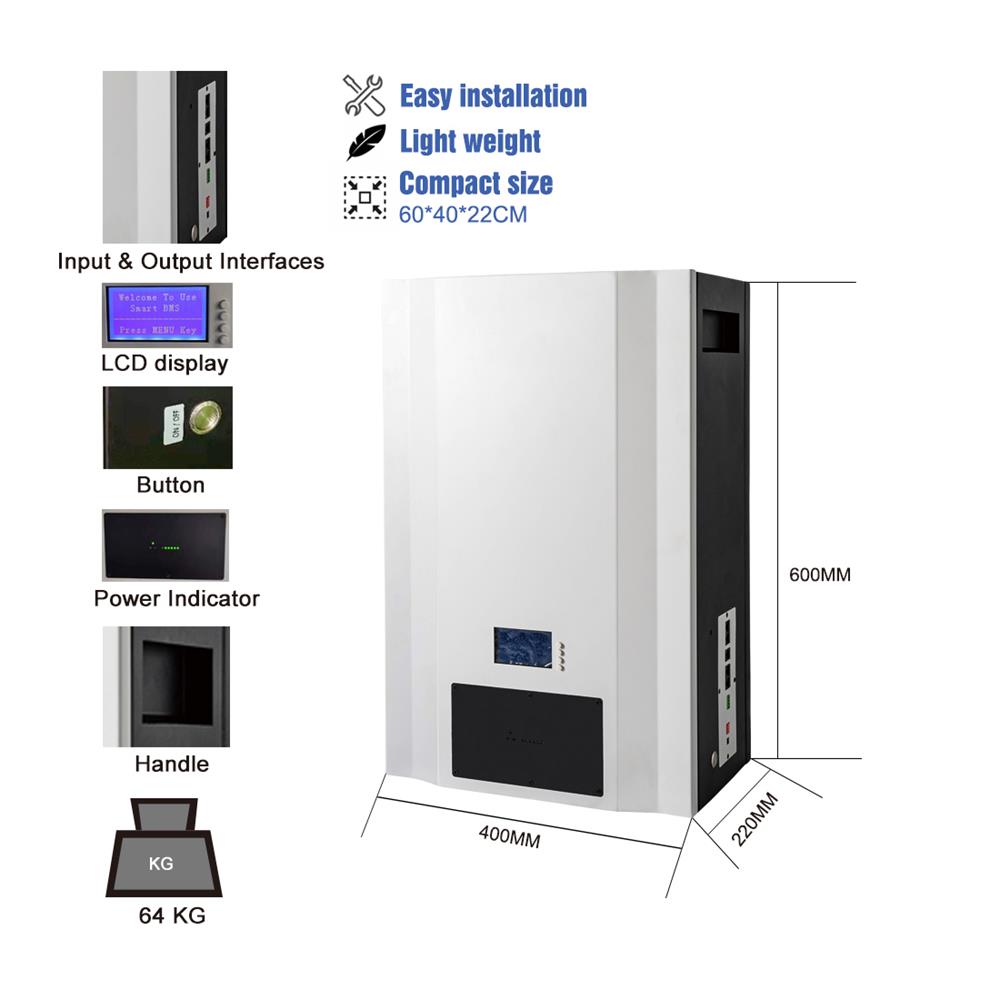

Dimensions | 600x400x220MM |
Weight | ±64Kg |
Installation method | Wall mounted |
Reliable Automotive Grade LiFePO4 Battery Cell
Higher energy density
Stable performance & greater power
Long Cycle Life
6000-8000times
10-15 years service time
Low Resistance & High Current
Low self-discharge rate & Efficient Charging

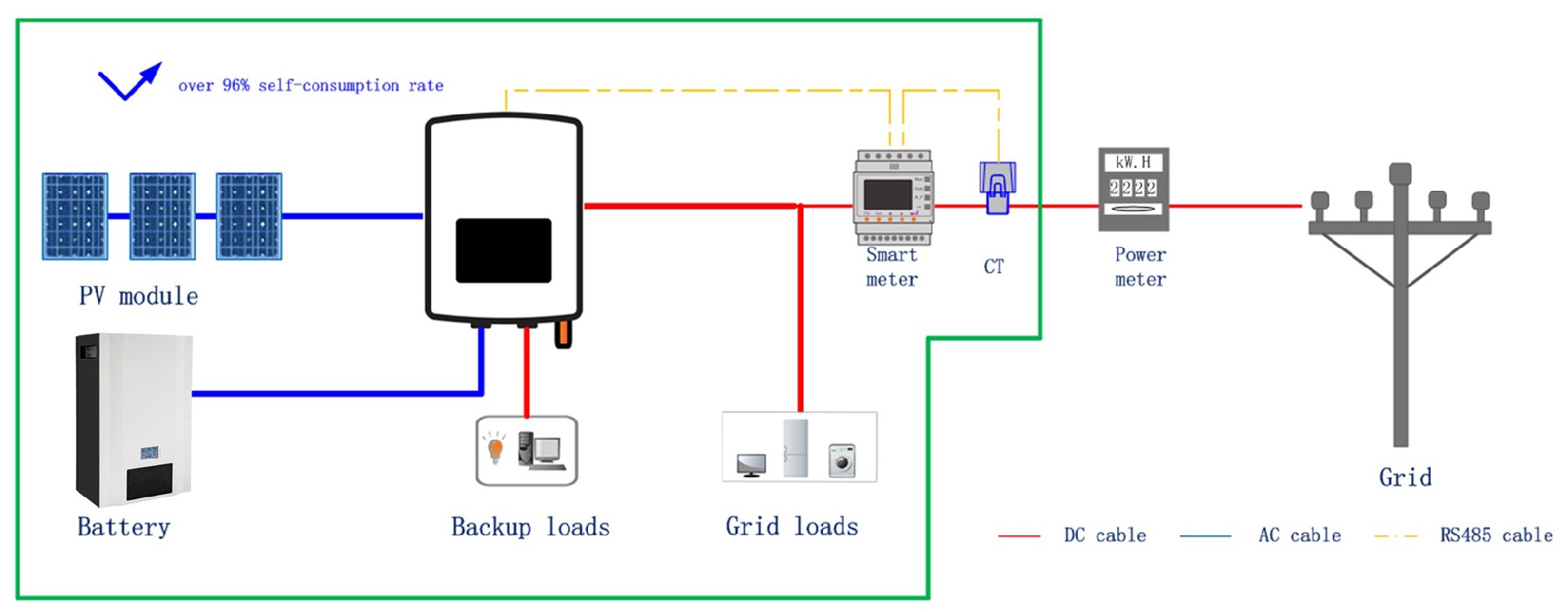

Match Multiple Brands Inverter
Simultaneous communication & docking with multiple brands of inverter
Intelligent BMS Battery Protection
Effectively avoiding overcharge, over-discharge, overcurrent, short-circuit
Good Safety Performance
100% safe, Extreme safety test
