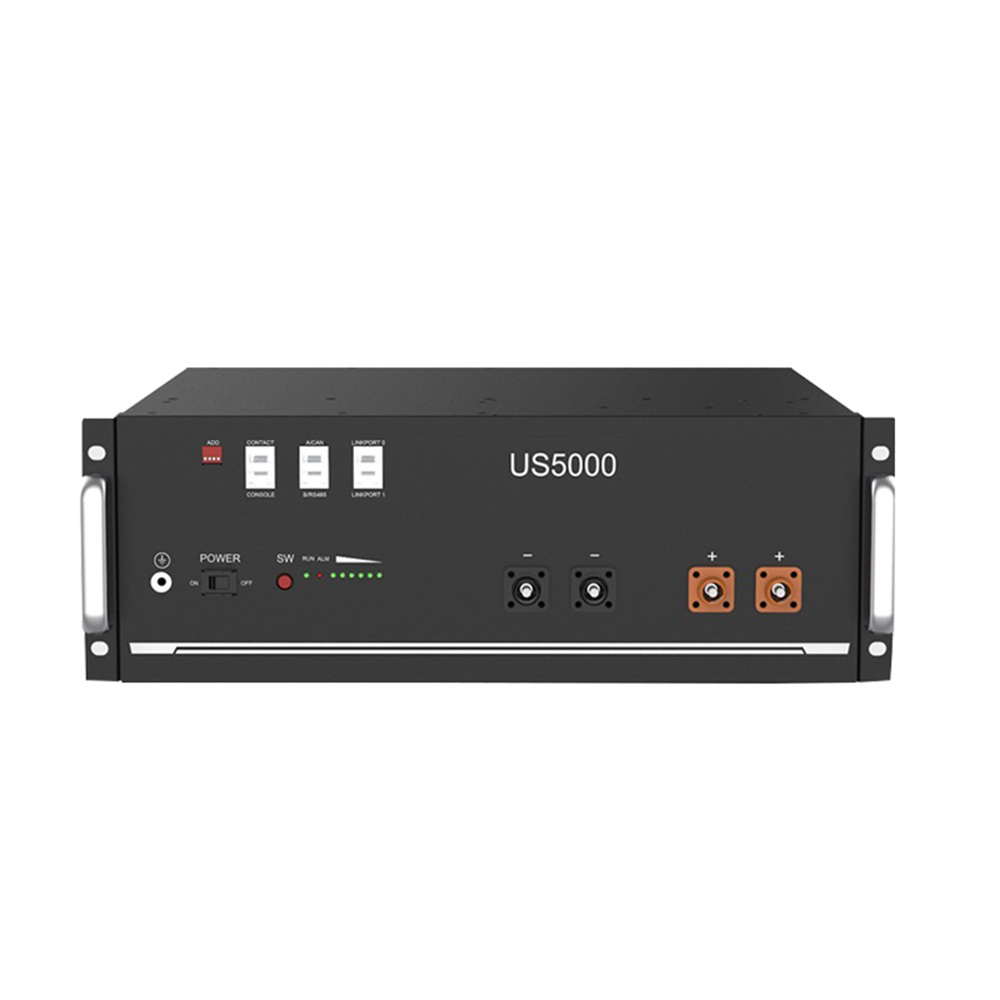

Pylontech US5000 5KWH 48V 100Ah Server Rack LiFePO4 Battery For Bess

US5000 is the latest Pylontech 48V 100Ah LFP LiFePO4 Server rack battery with a bigger capacity at 4.8kWh modular and stronger functions for Home ESS

Pylontech US5000 5KWH 48V 100Ah Server Rack LiFePO4 Battery For Home Bess Solution


48V 100Ah Server Rack LiFePO4 Battery48V 100Ah Server Rack LiFePO4 Battery

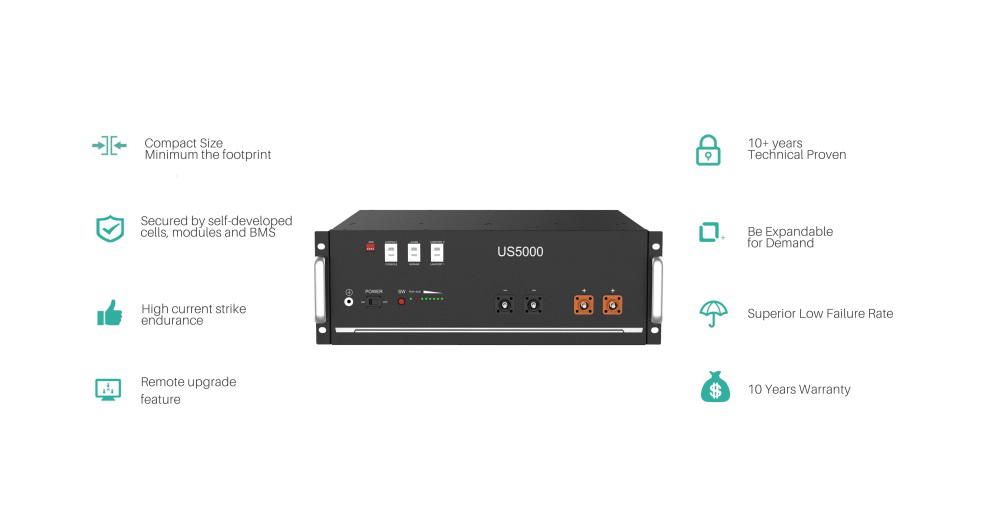

US5000 is the latest Pylontech 48V 100Ah LFP Server rack battery with a bigger capacity at 4.8kWh modular and stronger functions for:


(1) High current strike endurance ;

(2) Dual active protection;

(3) Remote upgrade feature;

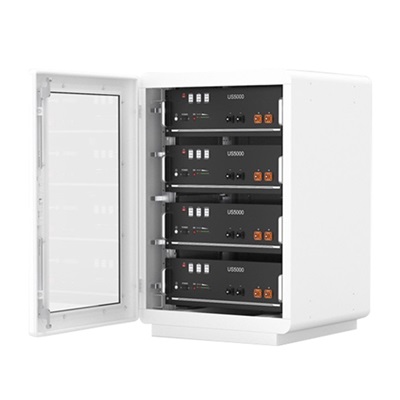

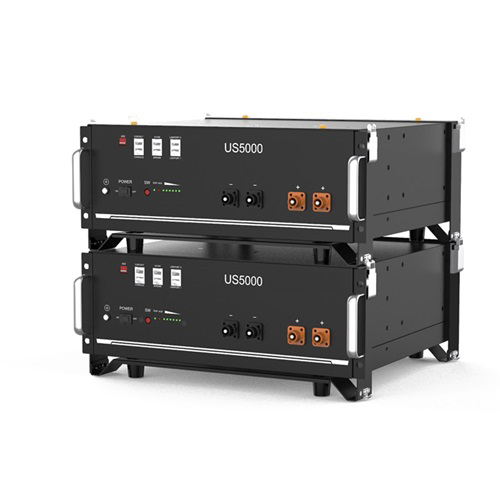

(4) Widely internal compatibility up to 16 modules per single string;


Performance characteristic


Specification



Item

Parameters

Nominal Voltage

48V

Nominal Capacity

100Ah

Usable Capacity (Wh)

4560

Dimension

442*420*161mm

Weight

39.7kg

Charge/ Discharge Current

Recommended: 80A

Max. Continuous: 100A

Peak 101~120A@15min, 121~200A@15sec

Communication Port

RS485, CAN

Single string quantity

16S

Working Temperature

Charge: 0~50℃, Discharge: -10~50℃

Shelf Temperature

-20~60℃

Short current/duration time

<2000A/1ms

The IP rating of the enclosure

IP20

Cooling type

Natural

Humidity

5% ~ 95%(RH) No Condensation

Altitude

<4000m

Design life

15+ Years (25℃/77℉)

Cycle Life

>6,000 25℃

Authentication Level

UL1973/UL9540A/IEC62619

IEC63056/ICE61000-6-2/3/UN38.3



How to save bill from Residential ESS?


1. Self-Consumption Optimization

High energy demand in the morning and evening but sol ar general action I mos t sufficient during the Mid-Day. Battery Storage system balance the feeding and demands. Realize your grid independence.


2. Benefits from Peak Shaving

House: Load Shifting

Store the power during low peak and use the energy at peak time. Save the money which

happens to arise from the peak rate.

Transmission&Distribution: peak Shaving

Save on electricity bills by reducing peak demand


3. VPP Revenue

VPP creates a network of renewable energy sources and battery storage systems, connected through a cloud-based technology that manages the stability of clean electricity to maximize your revenue.

Enabling a cost reduction, as well as boosting the system’s efficiency
