5kw All-In-One Residential Energy Storage
5.1Kwh/5kw LiFePO4 All-In-One Residential Energy Storage System is the optimal choice for hybrid systems,which is designed with CATL Battery Solution + KST.

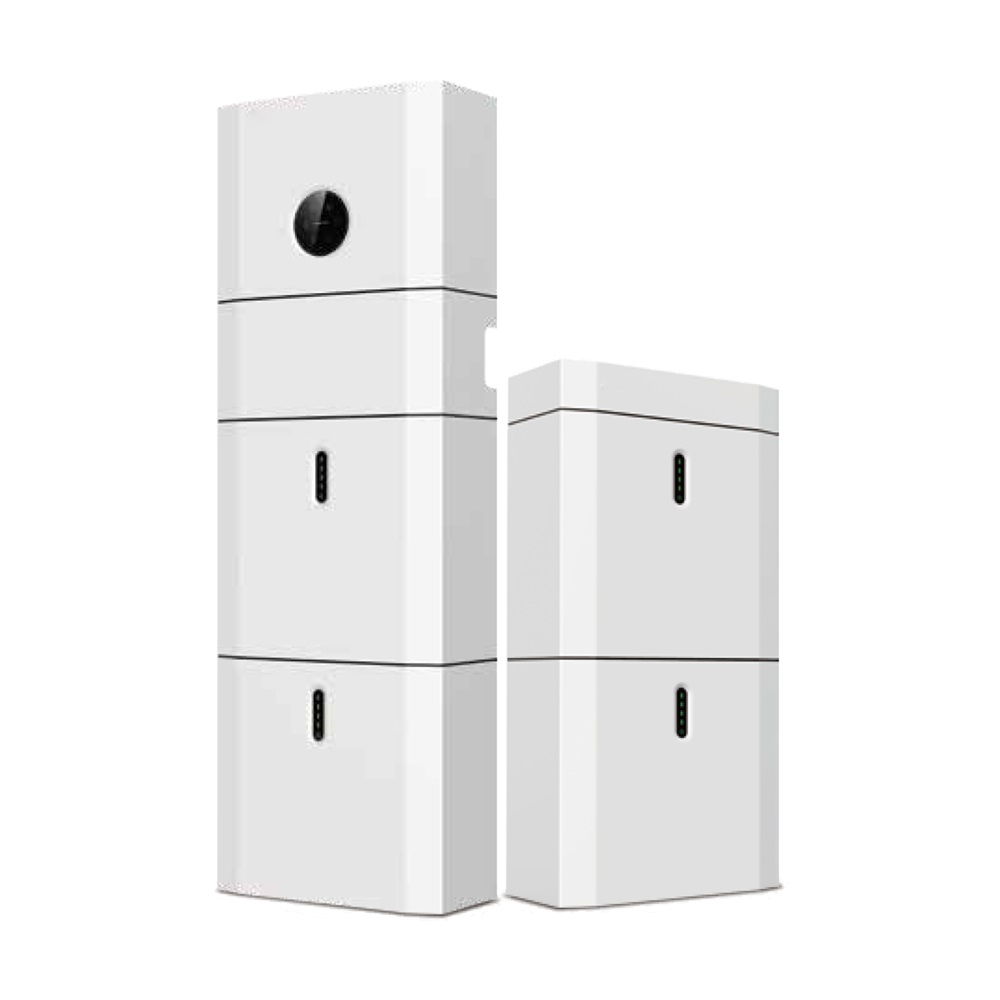

5.1Kwh/5kw LiFePO4 All-In-One Residential Energy Storage System
5.1Kwh/5kw LiFePO4 All-In-One Residential Energy Storage System is the optimal choice for hybrid systems, which is designed with CATL Battery Solution + KSTAR Inverter Solution. The all-in-one single-phase storage solution is safe, reliable, and has higher yields.
Features
· All-in-one design
· High efficiency up to 97.6%
· IP65 protection
· String monitoring optional
· Easy installation
· Digital controller
· DC/AC Surge protection
· Reactive power controller
All-In-One Energy Storage System CATL Battery Solutions

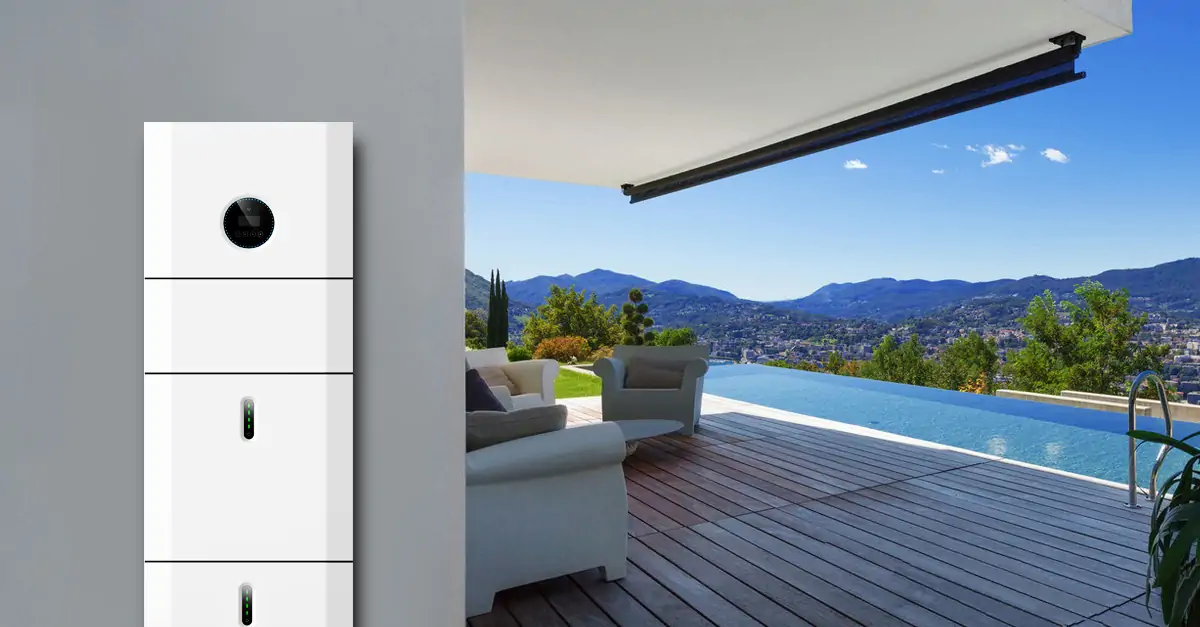

Safety: CATL LFP Battery， stable and safe Module, pack, system, triple protection IP65, outdoor installation, away from living room
Simple: Modular design, a single person can carry and install it. Plug and play, 30 min quick installation, Space saving;
Interconnection: Global cloud platform & Mobile APP, anytime and anywhere, Open API, support power internet applications
Battery Model | |
Physical | |
Battery Type | LFP (LiFePO4) |
Weight | 54KG |
Dimension (W x H x D) | 540*490*240mm |
IP Protection | IP65 |
Warranty | 5 Year Product Warranty, 10-Year Performance Warranty |
Electrical | |
Energy Capacity | 5.12kwh |
Usable Capacity | 4.6kwh |
Depth of Discharge (DoD) | 90% |
Nominal Voltage | 51.2V |
DC Circuit Breaker | 125A |
Operating Voltage Range | 44.8-56.5V |
Internal Resistance | <20mΩ |
Cycle Life | 10000cycle |
Operation | |
Max. Charge/Discharge Current | 50A/80A |
Rated DC power | 4096W |
Max. Charge/Discharge Power | 2825W/4096W |
Operating Temperature Range | 0 to 50℃ charging, -10 to 50℃ discharging |
Humidity | 0~95% (No condensation) |
BMS | |
Modules Connection | Max.8 |
Capacity | 200/400/600/800Ah |
Power Consumption | <2W |
Communication | CAN & RS485 |
Monitoring Parameters | System voltage, current, cell voltage, cell temperature, PCBA temperature measurement |
Certificate | |
Safety (Cell) | Pack: IEC/EN 62619; UN38.3 Cell: IEC/EN 62619; UN38.3; UL1973 |
Hybrid Inverter Model | E10KT |
PV String Input | |
Max. Continuous PV Input Power | 20kW |
Max. DC Voltage | 1100V |
Nominal Voltage | 720V |
MPPT Voltage Range | 140V-1000V |
MPPT Voltage Range (Full Load) | 420V-850V |
Start Voltage | 200V |
Number of MPPT | 2 |
Strings Per MPPT | 1 |
Max. Input Current Per MPPT | 15A |
Max. Short-circuit Current Per MPPT | 20A |
AC Output (Grid) | |
Nominal AC Output Power | 10kW |
Max. AC Apparent Power | 11kVA |
Nominal AC Voltage | 400Vac |
AC Grid Frequency Range | 50 / 60Hz±5Hz |
Nominal Output Current | 14.5A |
Max. Output Current | 16A |
Power Factor (cosΦ) | 0.8Leading-0.8Lagging * |
THDi | ＜3% |
Battery Input | |
Battery Type | LFP (LiFePO4) |
Nominal Battery Voltage | 51.2V |
Charging Voltage Range | 44-58V |
Max. Charging Current | 160A |
Max. Discharging Current | 200A |
Battery Capacity | 200/400/600/800Ah |
AC Output (Backup) | |
Nominal AC Output Power | 9.2kW |
Max. AC Output Power | 10kVA |
Nominal Output Current | 13.3A |
Max. Output Current | 14.5A |
Nominal Output Voltage | 400V |
Nominal Output Frequency | 50/60Hz |
Output THDv (@Linear Load) | <2%（Linear Load） |
Efficiency | |
Max. PV Efficiency | 97.60% |
Euro. PV Efficiency | 97.00% |
Protection | |
Anti-islanding Protection | Yes |
Output Over Current Protection | Yes |
DC Reverse Polarity Protection | Yes |
String Fault Detection | Yes |
DC/AC Surge Protection | DC Type II; AC Type III |
Insulation Detection | Yes |
AC Short Circuit Protection | Yes |
General Specifications | |
Dimensions W x H x D | 540*980*240mm |
Weight | 49kg |
Operating Temperature Range | -25℃~+60℃ |
Cooling Type | Natural Convection |
Max. Operation Altitude | 2000m |
Operation Humidity | 0~95% (No Condensation) |
IP Class | IP65 |
Topology | Battery Isolation |
Communication | RS485/CAN2.0/WIFI/4G |
Display | LCD/APP |
