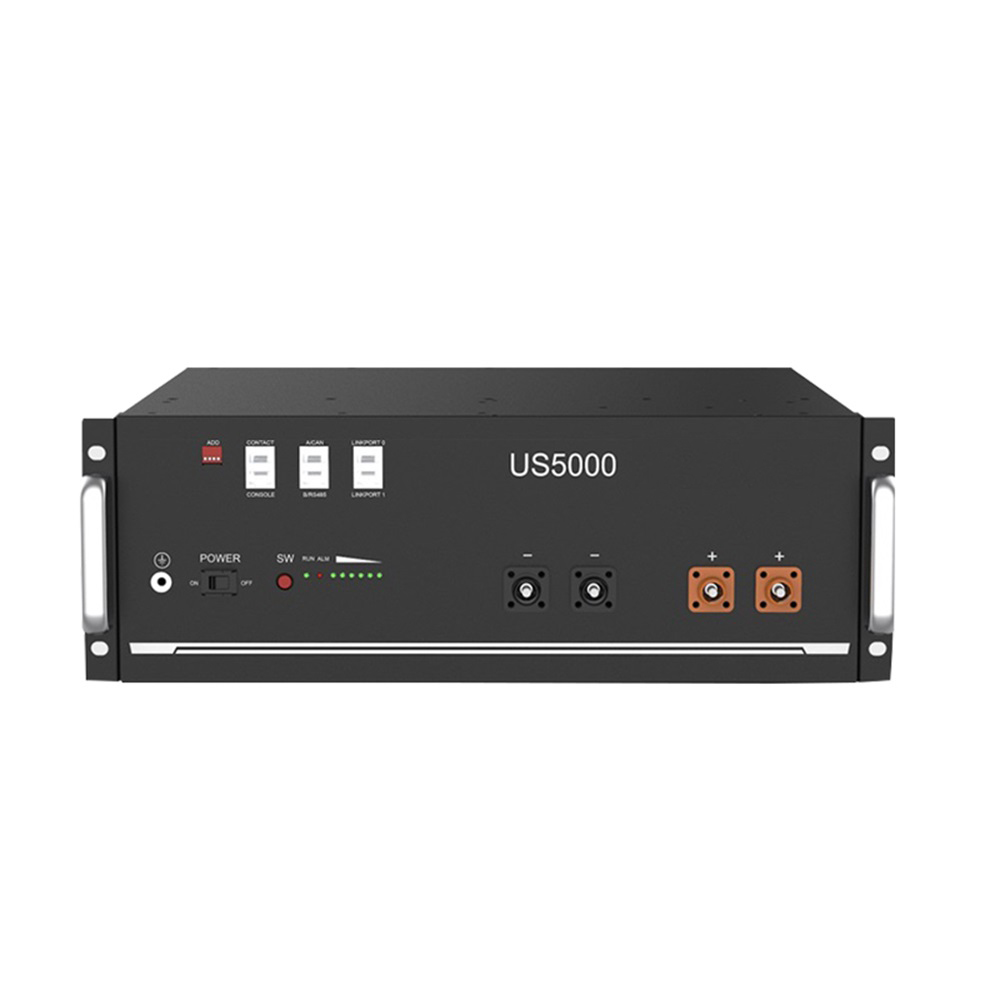

US5000 is the latest 48V 100Ah LFP LiFePO4 Server rack battery with a bigger capacity at 4.8kWh modular and stronger functions for Residential Battery Energy System

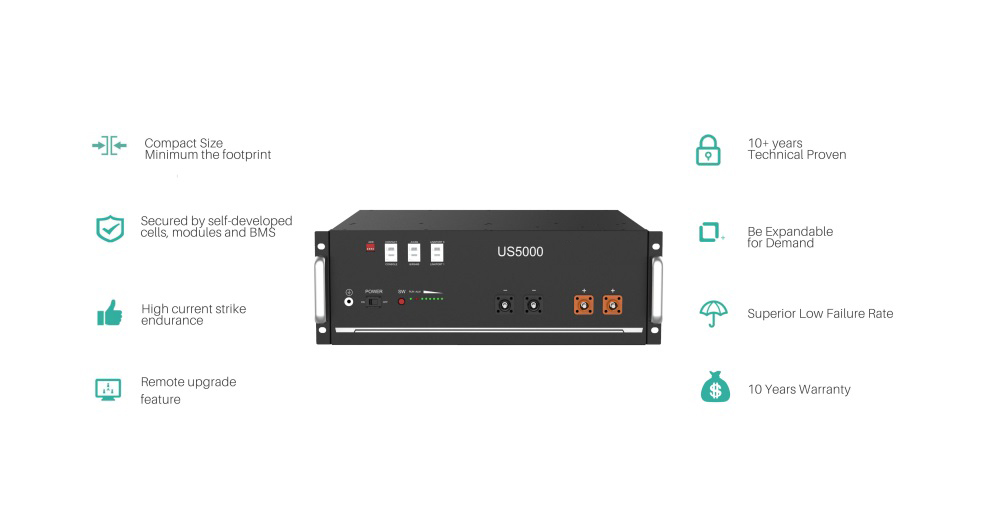

US5000 is the latest 48V 100Ah LFP Server rack battery with a bigger capacity at 4.8kWh modular and stronger functions for:
(1) High current strike endurance ;
(2) Dual active protection;
(3) Remote upgrade feature;
(4) Widely internal compatibility up to 16 modules per single string;
Item | Parameters |
Nominal Voltage | 48V |
Nominal Capacity | 100Ah |
Usable Capacity (Wh) | 4560 |
Dimension | 442*420*161mm |
Weight | 39.7kg |
Charge/ Discharge Current | Recommended: 80A |
Max. Continuous: 100A | |
Peak 101~120A@15min, 121~200A@15sec | |
Communication Port | RS485, CAN |
Single string quantity | 16S |
Working Temperature | Charge: 0~50℃, Discharge: -10~50℃ |
Shelf Temperature | -20~60℃ |
Short current/duration time | <2000A/1ms |
IP rating of the enclosure | IP20 |
Cooling type | Natural |
Humidity | 5% ~ 95%(RH) No Condensation |
Altitude | <4000m |
Design life | 15+ Years (25℃/77℉) |
Cycle Life | >6,000 25℃ |
Authentication Level | UL1973/UL9540A/IEC62619/IEC63056/ICE61000-6-2/3/UN38.3 |
1. Self-Consumption Optimization
High energy demand in the morning and evening but sol ar general action I mos t sufficient during the Mid-Day. Battery Storage system balance the feeding and demands. Realize your grid independence.
2. Benefits from Peak Shaving
House: Load Shifting
Store the power during low peak and use the energy at peak time. Save the money which
happens to arise from the peak rate.
Transmission&Distribution: peak Shaving
Save on electricity bills by reducing peak demand
3. VPP Revenue
VPP creates a network of renewable energy sources and battery storage systems, connected through a cloud-based technology that manages the stability of clean electricity to maximize your revenue.
Enabling a cost reduction, as well as boosting the system’s efficiency
