48V 100Ah Wall mounted LiFePO4 Battery For Home Energy Storage Sytem

EVL Home U series is a lithium iron phosphate battery-based system designed for household applications with excellent performance, high safety, and reliability.

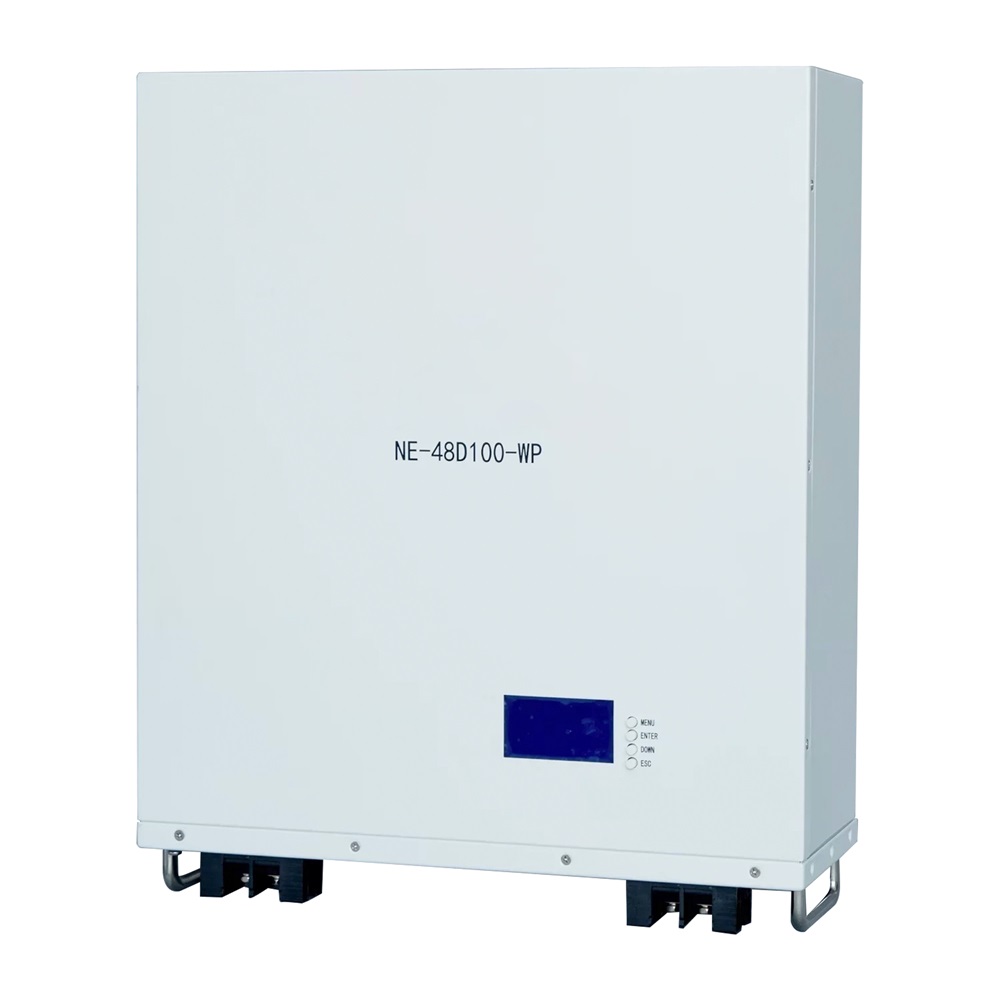

Wall mounted battery 48v 100ah




Features of 48V 100ah LiFePO4 Battery Pack


● Longer Cycle Life: Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery. Helping to minimize replacement costs and reduce the total cost of ownership.

● Lighter Weight: About 40% of the weight of a comparable lead acid battery. A ” drop-in” replacement for lead acid battery.

● Higher Power: Delivers twice the power of the lead acid battery, even high discharge rate, while maintaining high energy capacity.

● Wider Temperature Range: -20℃~60℃

● Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuit situations.

● No Memory Effect: Support unstable partial state of charge (UPSOC) (charge/discharge) utilization.


Specification



Model

NE-48D100-WP

Electrical

Characteristics

Nominal Capacity

48V

Nominal Capacity

100Ah

Energy

4800Wh

Internal Resistance

≤100mΩ (without BMS)

Cycle Life

≥5000 cycles(25℃ 80%DOD)

Design Life

≥10 years @25℃

Self-Discharge (90 days)

≤5%,@25℃

Efficiency of Charge

≥98%

Efficiency of Discharge

≥100% @ 0.2C

≥96% @ 0.5C

Charge

Charge Voltage

54.0V±0.5V

Charge Mode

0.2C to 54.0V, then 54.0V charge

current to 0.02C (CC/CV)

Max. Charge Current

100A

Charge Cut-off Voltage

56.25V±0.2V

Discharge

Max. Continuous

Discharge Current

100A

Discharge Cut-off Voltage

42V±0.2V

Environmental

Charge Temperature

Range

0℃~60℃

Discharge Temperature

Range

-20℃~60℃

Optimum Operation

Temperature

5℃~45℃

Storage Temperature

0℃~45℃, ≤85%

relative Humidity

Water Dust Resistance

IP20

Mechanical

Case

Iron (Insulation painting)

Dimensions

(including the handles)

442*450*156mm

Weight

45kg

Gravimetric Specific energy

107Wh/kg

Others

Method

15S Cylindrical cells

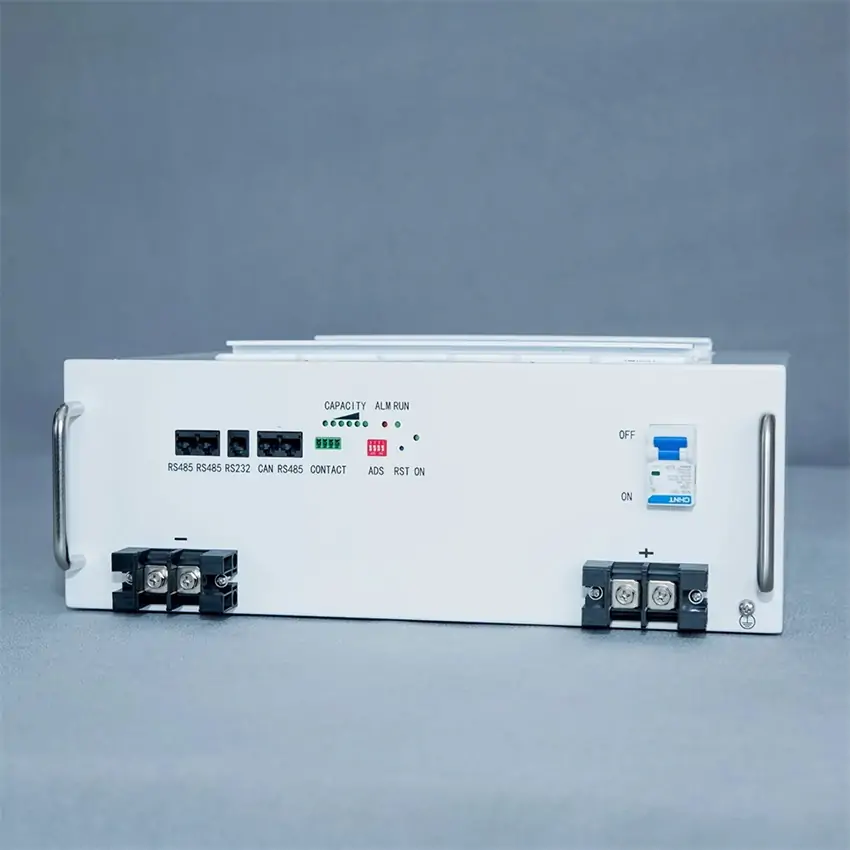

Protocol

RS485 (3 Nos) / RS232/CAN

SOC Light

4 * LED

LCD Screen

Optional, the default

 the setting is no screen

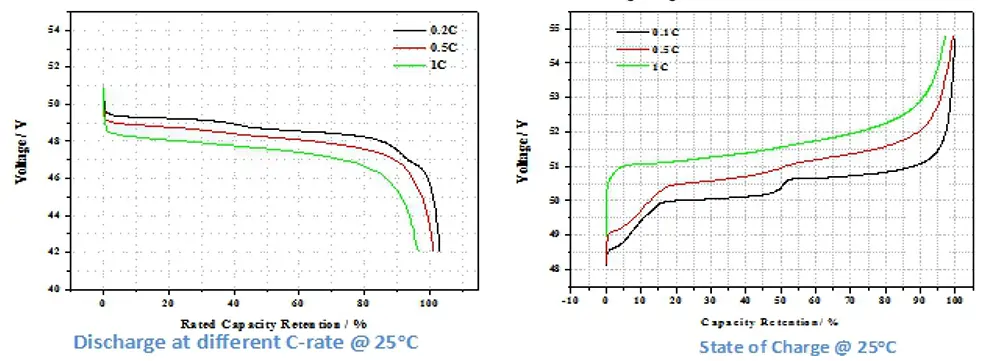

curve

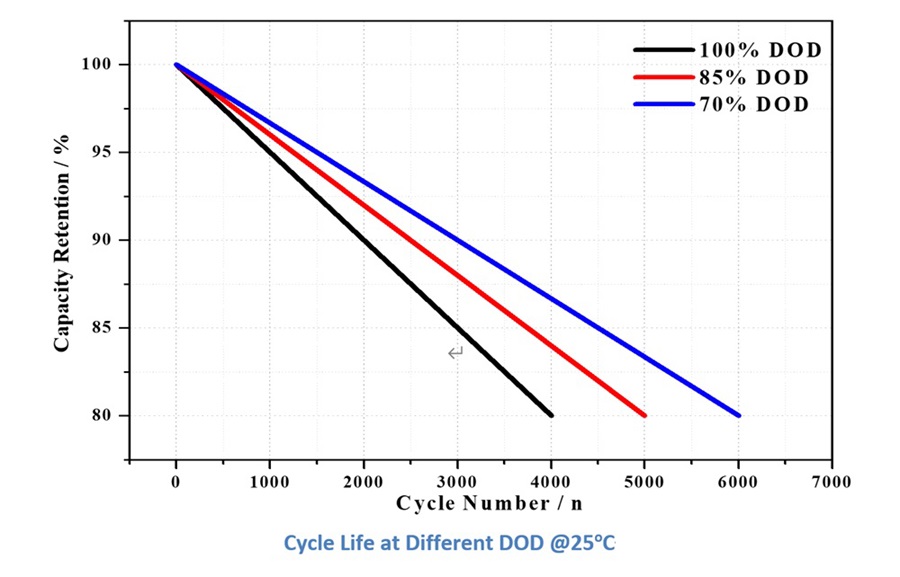

cycle life curve




Functions of BMS


● Overcharge detection function

● Over discharge detection function

● Over current detection function

● Temperature protection function

● Short circuit detection function

● Balance function


Applications

Electrical vehicles, Solar/wind energy storage systems, UPS, backup power, Telecommunication, Medical equipment, Lighting, etc.

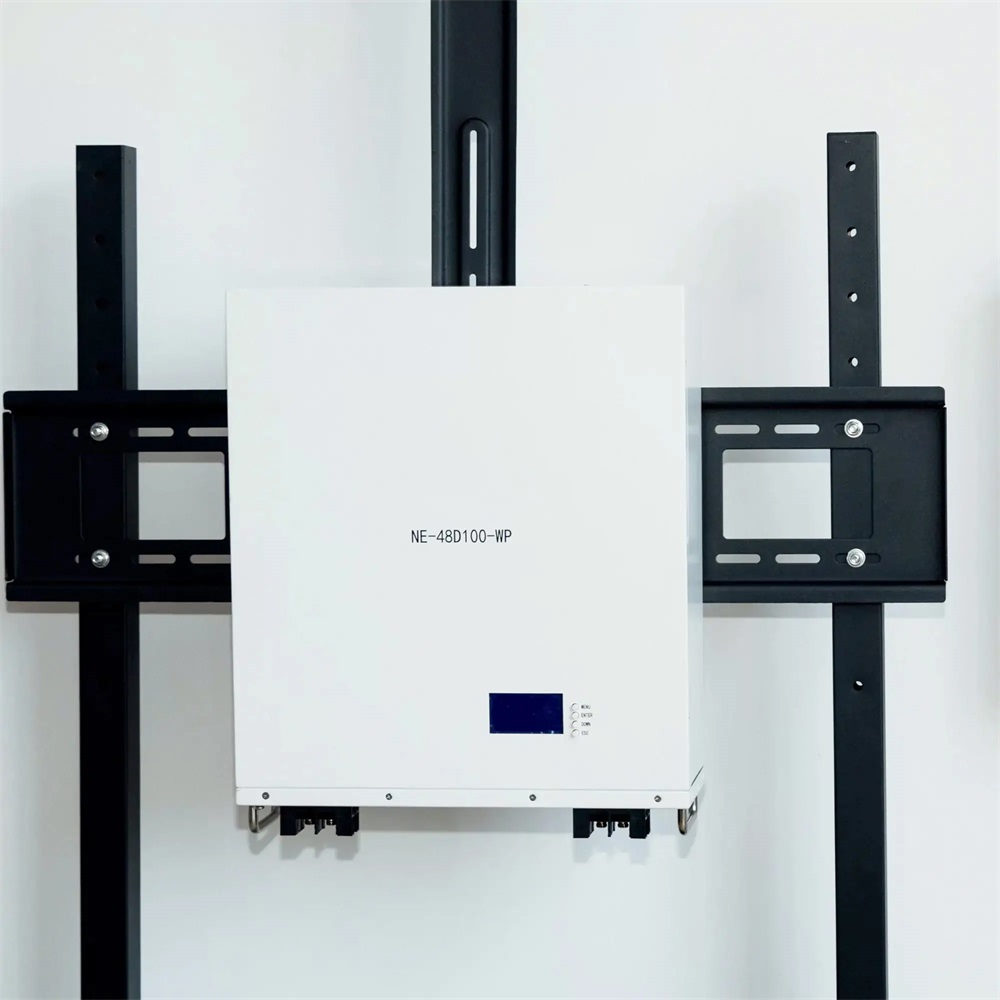

Wall mounted battery
