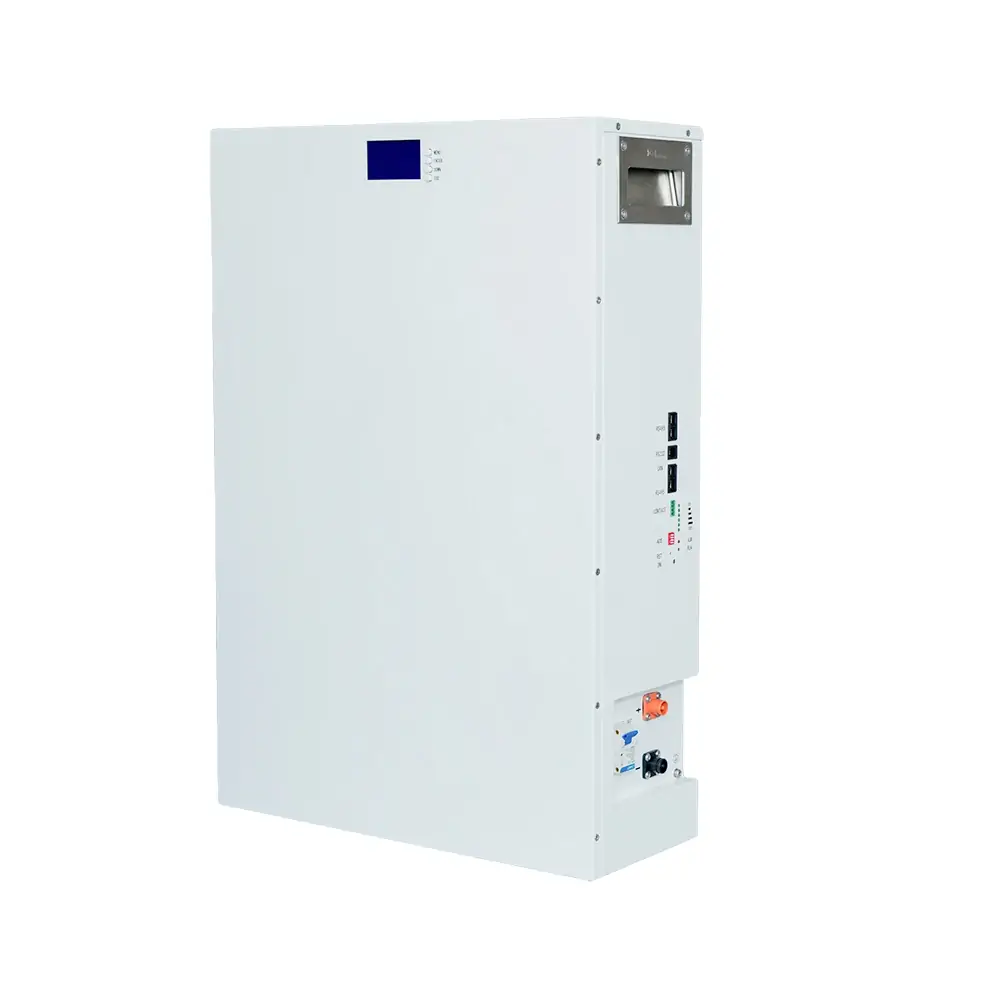

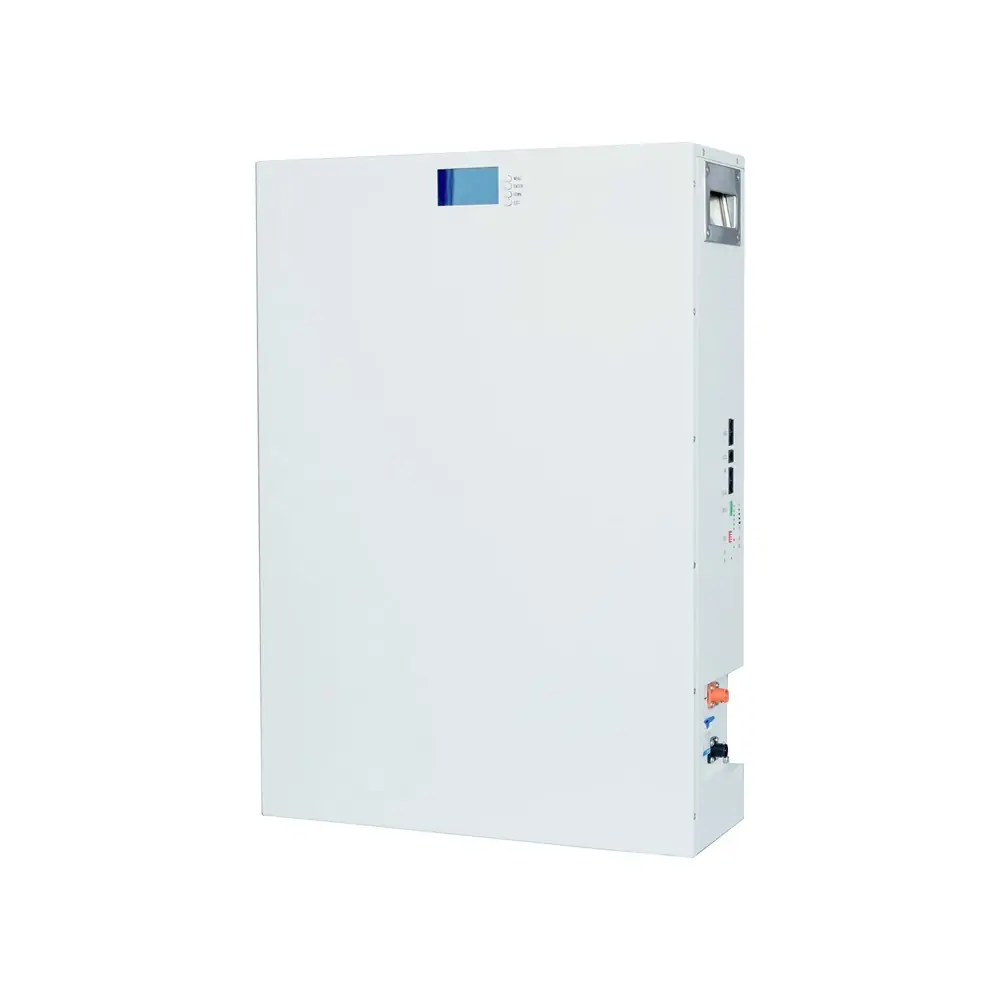

48V 200Ah 10KWh Wall-mounted LiFePO4 Battery For Home ESS

NE-48D200-NP 48V 200Ah 10KWh Wall-mounted LiFePO4 Battery For Home ESS

Features of 48V 200ah LiFePO4 Battery Pack


· Longer Cycle Life  Offers up to 10 times longer cycle life and 5 times longer float/calendar life than lead acid battery. Helping to minimize replacement costs and reduce the total cost of ownership.

· Lighter Weight  About 40% of the weight of a comparable lead acid battery. A ” drop-in” replacement for lead acid battery.

· Higher Power  Delivers twice the power of the lead acid battery, even high discharge rate, while maintaining high energy capacity.

· Wider Temperature Range  -10℃~60℃

· Superior Safety  Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact, overcharging, or short circuit situations.

· No Memory Effect  Support unstable partial state of charge (UPSOC) (charge/discharge) utilization.


Functions of BMS


· Overcharge detection function

· Over-discharge detection function

· Over-current detection function

· Temperature protection function

· Short circuit detection function

· Balance function


Specification


Item

NE-48D100-NP

Nominal Voltage

48V

Nominal Capacity

200Ah

Energy

9600Wh

Internal Resistance

≤100mΩ (without BMS)

Cycle Life

≥5000 cycles(25℃ 80%DOD)

Design Life

≥10 years @25℃

Self-Discharge (90 days)

≤5%,@25℃

Efficiency of Charge

≥98%

Efficiency of Discharge

≥100% @ 0.2C

≥96% @ 0.5C

Charge Voltage

52.5-54.0V

Charge Mode

0.2C to 54.0V, then 54.0V charge

current to 0.02C (CC/CV)

Max. Charge Current

100A

Charge Cut-off Voltage

56.25V±0.2V

Max. Continuous Discharge Current

100A

Discharge Cut-off Voltage

42.5V±0.5V

Charge Temperature Range

0℃~45℃

Discharge Temperature Range

-10℃~60℃

Optimum Operation Temperature

10℃~35℃

Storage Temperature

-10℃~45℃, ≤85% relative Humidity

Water Dust Resistance

IP20

Case

Iron (Insulation painting)

Dimensions (including the handles)

740*510*185mm

Weight

95kg

Gravimetric Specific energy

101Wh/kg

Parallel in maximum

15pcs

Protocol

RS485 (3 Nos) / RS232/CAN

SOC Light

6* LED

LCD Screen

Optional, the default setting is no screen



Applications


Household back up power, Solar/wind energy storage system, UPS, backup power, Telecommunication, Medical equipment, Lighting, etc.

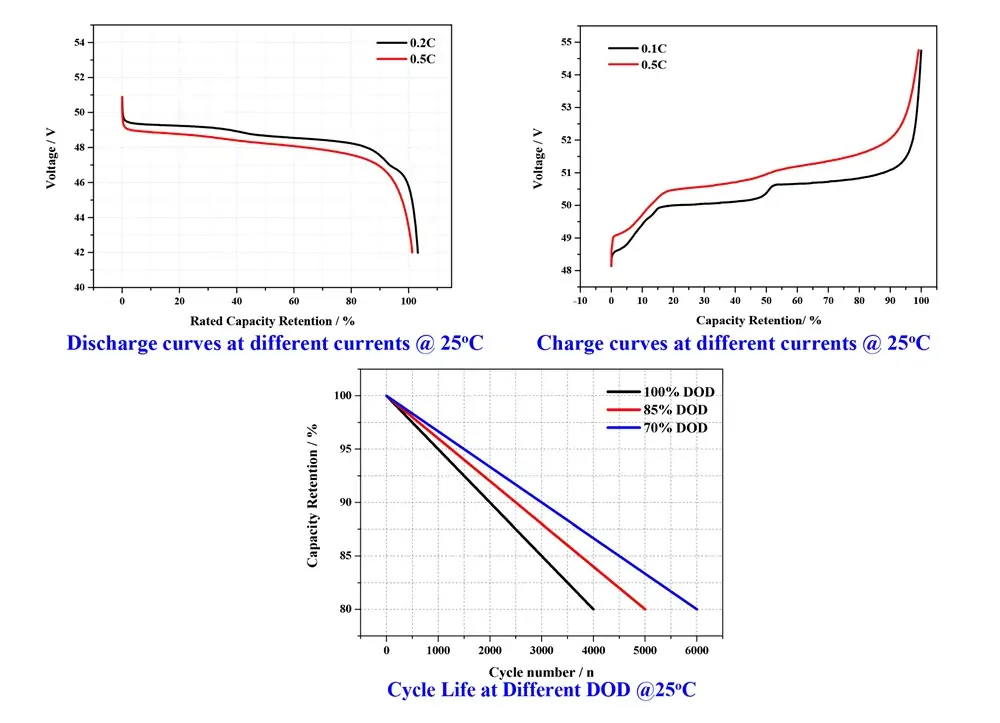

graph



details
