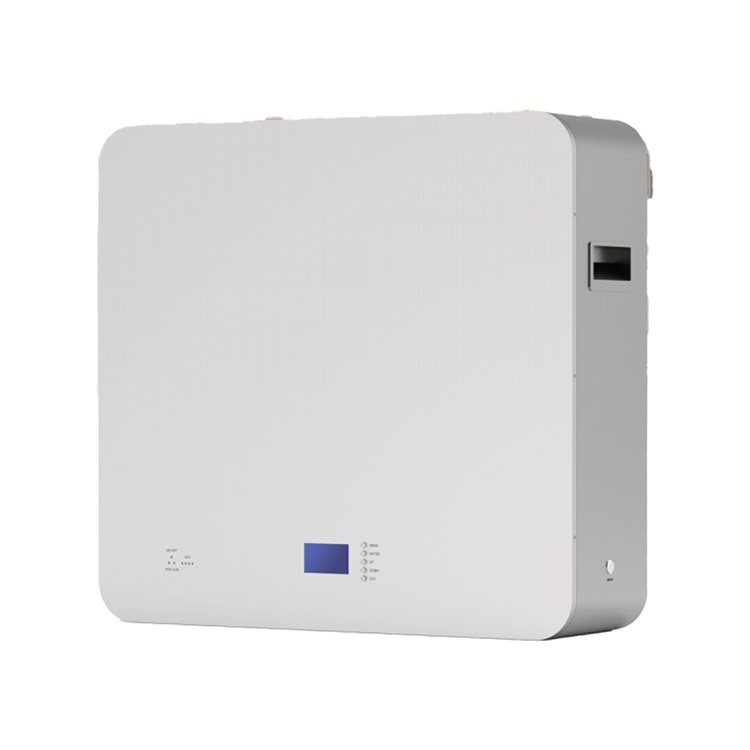

10 kwh wall mounted LiFePO4 solar battery for home energy storage

10kw wall mounted solar battery for home energy storage

wall mounted lifepo4 solar batterywall mounted lifepo4 solar battery



LiFePO4 10kwh Battery Product Description


Lithium battery systems are widely used in residential energy storage systems, such as solar energy storage systems and UPS. The power wall LiFeP04 battery pack adopts the international advanced lifepo4 battery application technology and BMS control technology.


Smart

Each module is equipped with an independent BMS


Easy Installation

Just Plug & Play


Safe

Safe lithium iron phosphate battery cell


Certifications

CE/EC/UN38.3/MSDS.


Modular

Modular expansion


Longer Lifetime

6000 cycles, 15 years of design life



support brand



Specifications


Items

Parameters

Battery Type

LiFePO4(LFP)

Nominal Voltage

51.2V

Nominal Energy

10KWH

Design Capacity

200AH

Design Years

15 Years

Size

673*618*193mm

Weight

89kg

Cycle Life

≥6000@80% DOD

Operating Voltage Range

40V-58.4V

Charging Voltage

DC 58.4V

Charge/Discharge Current(A)

Same Port 100A

Internal Resistance

≤30mΩ

Self-Consumption

≤2W

Rated Voltage

51.2V

Balance Current

30-65(MA)

Communication Method

CAN/RS485/RS232

Information Storage

500 Strip

Limiting

10/20A(Optional)

Operating Temperature

-10℃~50℃

Storage Temperature

10℃~50℃

Humidity

15%~75%

Warranty

5 years

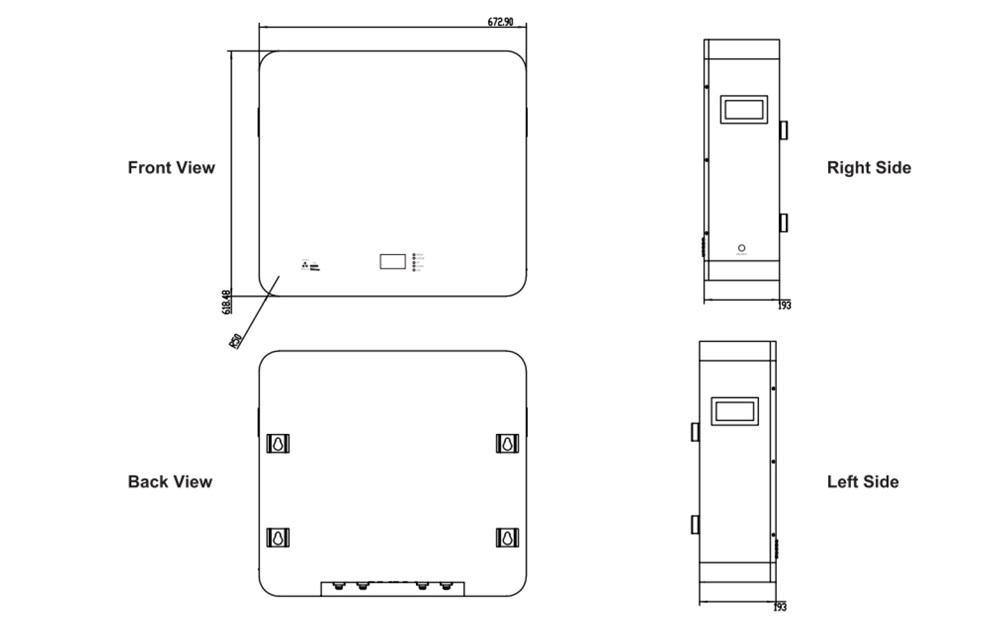

Product Size


Product Size

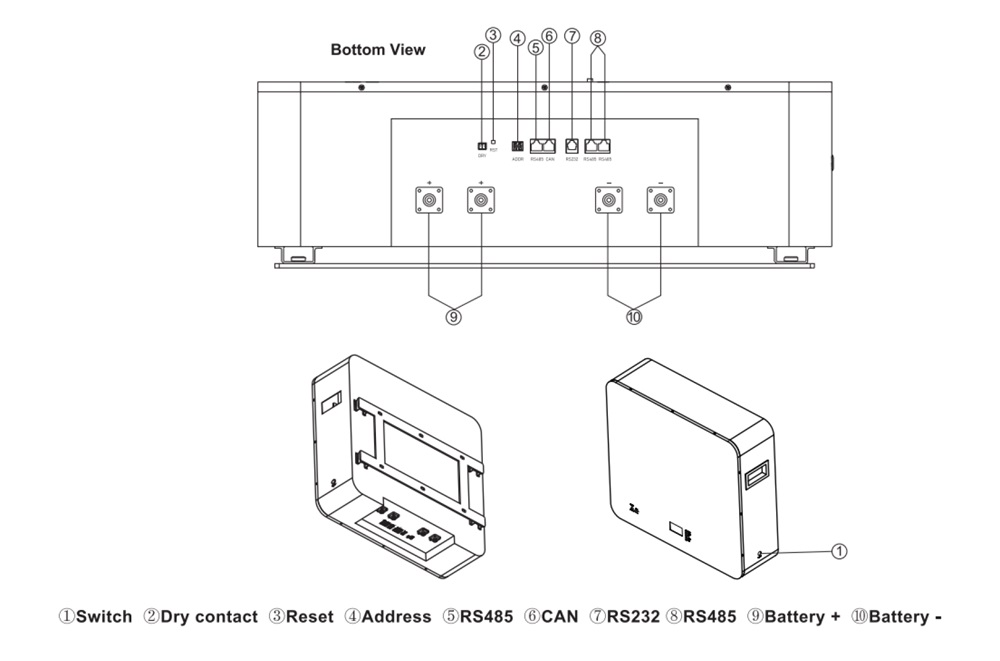

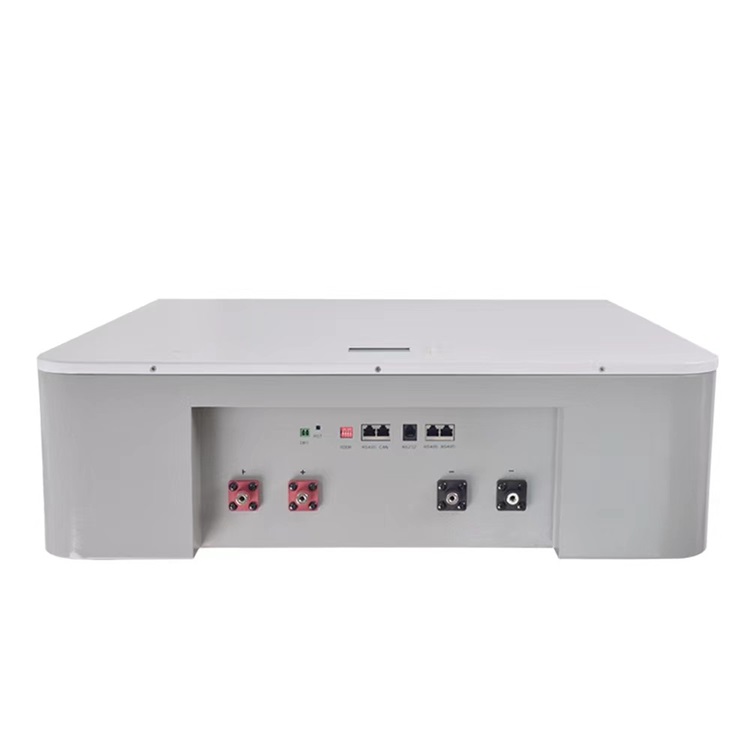

Product Interface


Product Interface

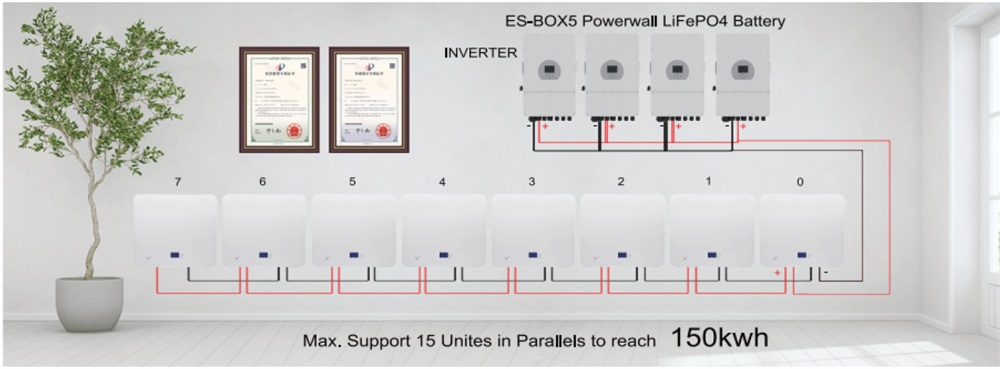

Parallel Connection Of Batteries


Connect the positive pole and positive pole in parallel, and the negative pole and negative pole in parallel, as shown in the figure below


Parallel Connection Of Batteries

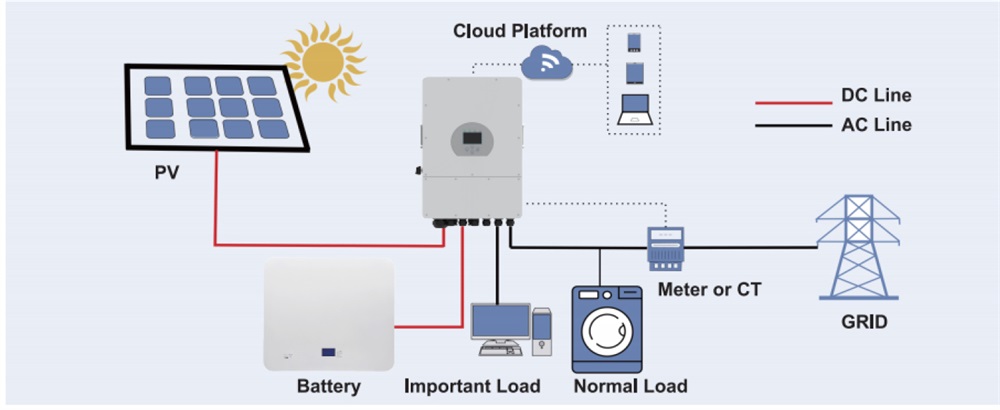

Solution Diagram


Solution Diagram


Battery Operation Instruction


•Charging


Charging current: Cannot surpass the biggest charging current which in this specification book stipulated.

Charging voltage: This does not have to surpass the highest amount which in this specification book stipulated to decide the voltage.

Charge temperature: The battery must carry on the charge in the ambient temperature scope which this specification book stipulated.

Uses the constant electric current and the constant voltage way charge, the prohibition reverse charges. If the battery-positive electrode and the cathode meet instead, can damage the battery.


•Discharging current


The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the oversized electric current electric discharge can cause the battery capacity to reduce and to cause the battery heat.


•Electric discharge temperature


The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.


•Over-discharges


After a short time excessively discharged charges immediately cannot affect the use, but the long time excessive discharges can cause the battery the performance, and battery function to be lost.

The battery long-term has not been used, has the possibility to be able to be at because of its automatic flash over characteristic certain excessively discharges the condition, for prevented excessively discharges the occurrence, the battery should maintain a certain electric quantity.


• Battery storage


The battery should store in the product specification book stipulation temperature range. If has surpassed above for six months the long time storage, suggests you should carry an additional charge to the battery.


•Warranty


The period of warranty is 5 years from the date of shipment. GENIXGREEN guarantees to give a replacement in case of cells with defects proven due to the manufacturing process instead of the customer's abuse and misuse.
