12/16KW Single Phase Hybrid Solar Inverter

12/16KW Single Phase Hybrid Solar Inverter Introduction

Hybrid Solar Inverter | SUN-12/14/16K-SG01LP1 | 12-16kW | Single Phase | 3 MPPT

Hybrid Solar Inverter / Higher yields / Safe & Reliable / Smart / User-friendly

SUN 3.6/5/6K-SG， a hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/5/6K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication

Remotely shutdown function

Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remote shutdown immediately when accident occurs. Setting parameters and FW updates remotely makes PV plant O&M easier.

Features

· Colorful touch LCD, IP65 protection degree

· AC couple to retrofit existing solar system

· Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

· Max. charging/discharging current of 135A

· 6 time periods for battery charging/discharging

· Support storing energy from diesel generator

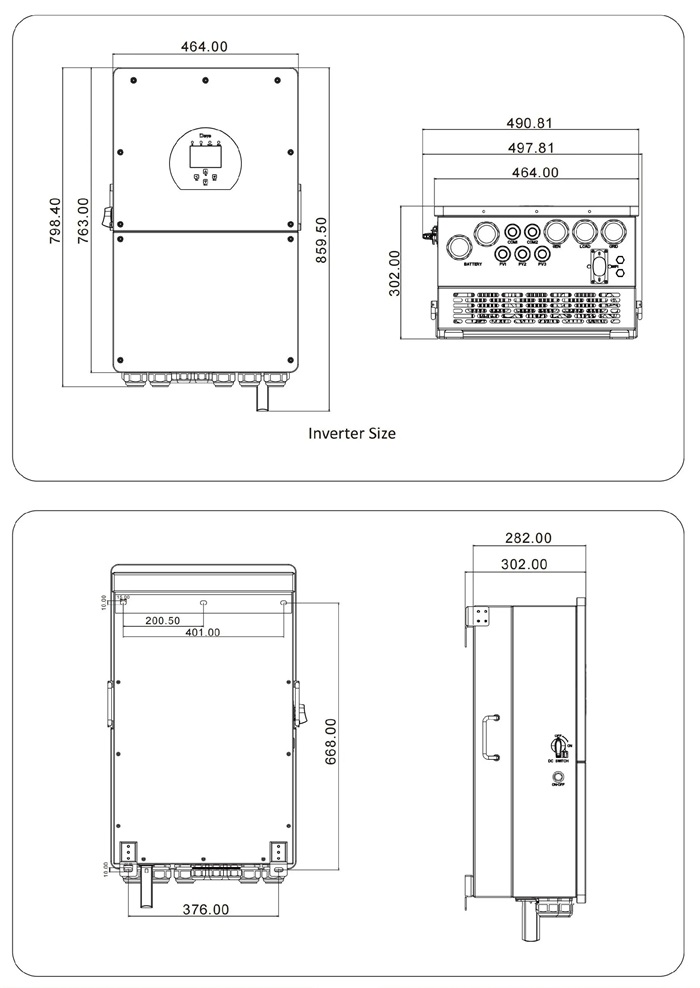

Dimensions

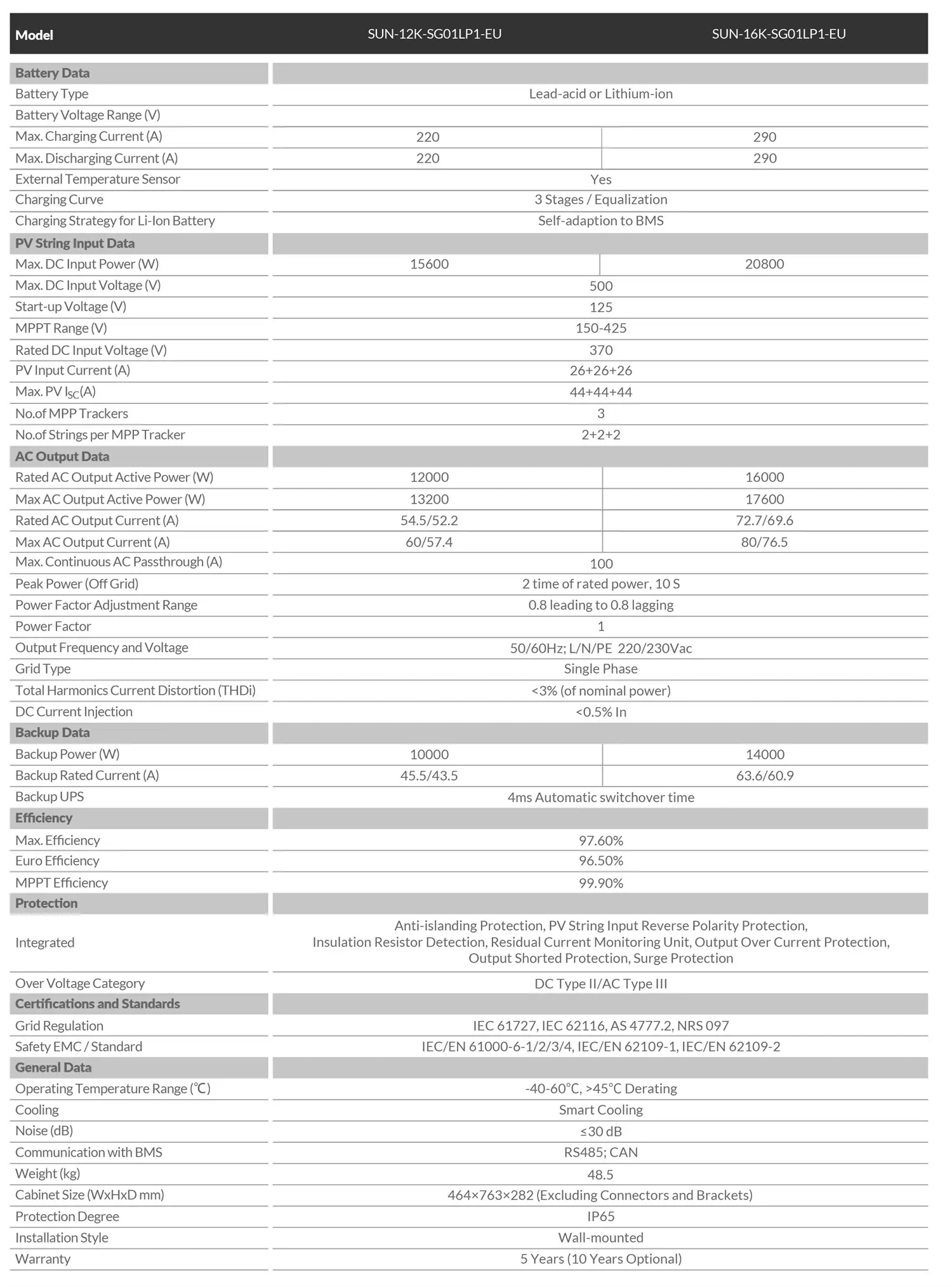

Specifications
