29.9/30/35/40/50kw SG01HP3-EU-BM2/3/4 3 Phase Hybrid Battery Inverter

SUN-29.9/30/35/40/50K-SG01HP3-EU-BM2/3/4 | 29.9-50kW | Three Phase | 2/3/4 MPPT | Hybrid Battery Inverter | High Voltage Battery

SUN-29.9/30/35K-SG01HP3-EU-BM2/3/4

29.9/30/35/40/50kw3 Phase Hybrid Battery Inverter



SUN-29.9/30/35/40/50K-SG01HP3-EU-BM2/3/4 | 29.9-50kW | Three Phase | 2/3/4 MPPT | Hybrid Battery Inverter | High Voltage Battery

Higher yields / Safe & Reliable / Smart / User-friendly

SUN-29.9/30/35/40/50K-SG01HP3-EU-BM2/3/4 is brand new 3 phase hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.


Features

· 100% unbalanced output;each phase

· AC couple to retrofifit existing solar system

· *Max. 10 pcs parallel for on-grid and off-grid

· operation; Support multiple batteries parallel

· Max. charging/discharging current of 100A

· High voltage battery, higher efficiency

· 6 time periods for battery charging/discharging

· Support storing energy from diesel generator


Specifications and Details

details

※ Remotely shutdown function——Smart Monitoring Platform

(Thanks to the smart monitoring platform, full-series inverter products support remote shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.)

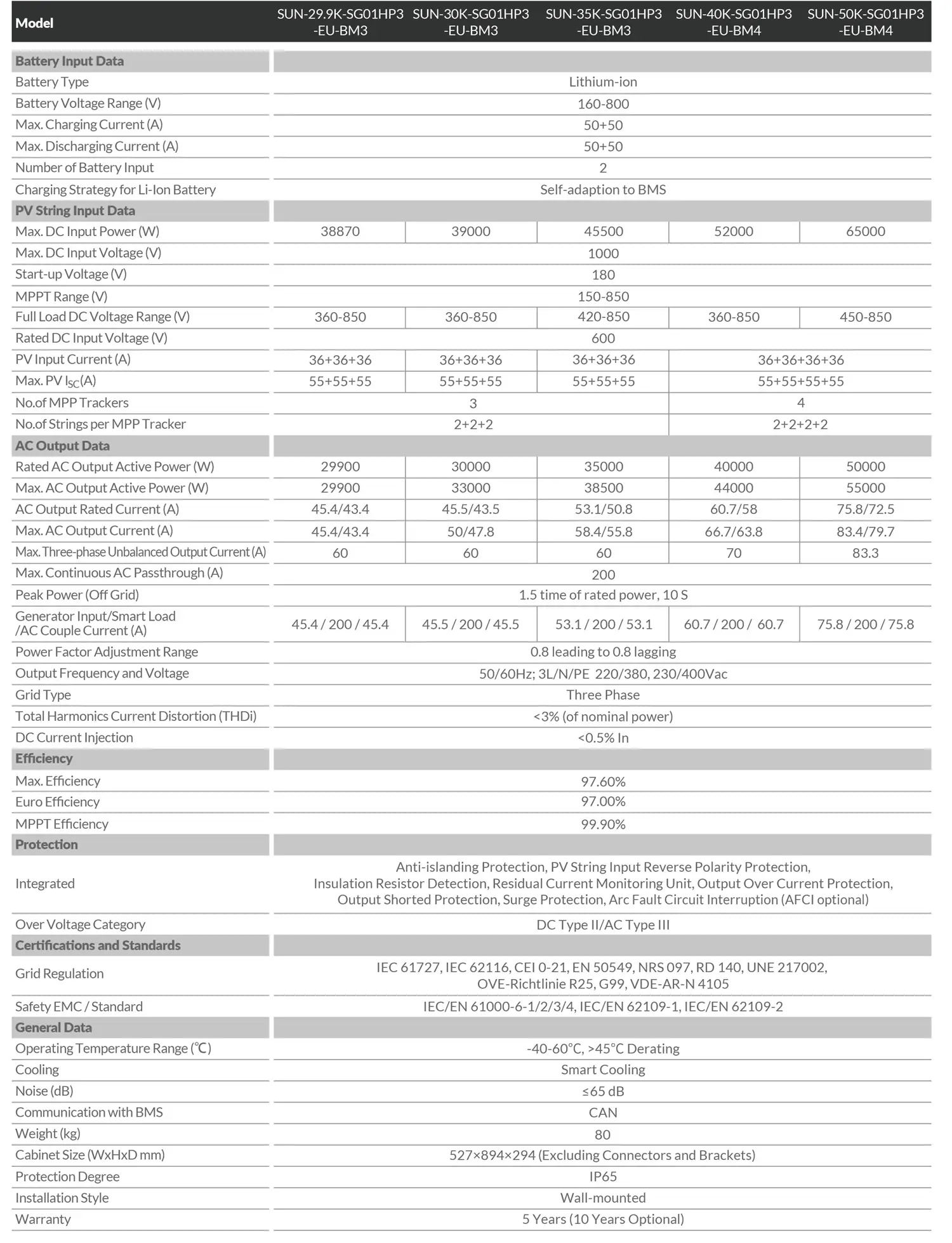

specifications

* Note: 5 sets can be connected in parallel, currently up to 10 sets can be connected in parallel, the premise is to use the same power of the company's high voltage inverter and high voltage battery.

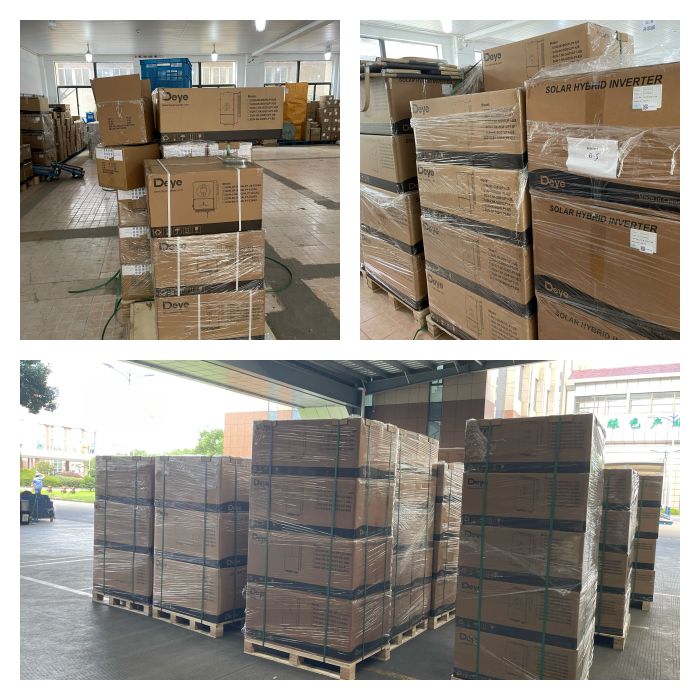

Shipments of Hybrid Inverter


10kw single phrase inverter & 50kw Deye Hybrid Inverter
