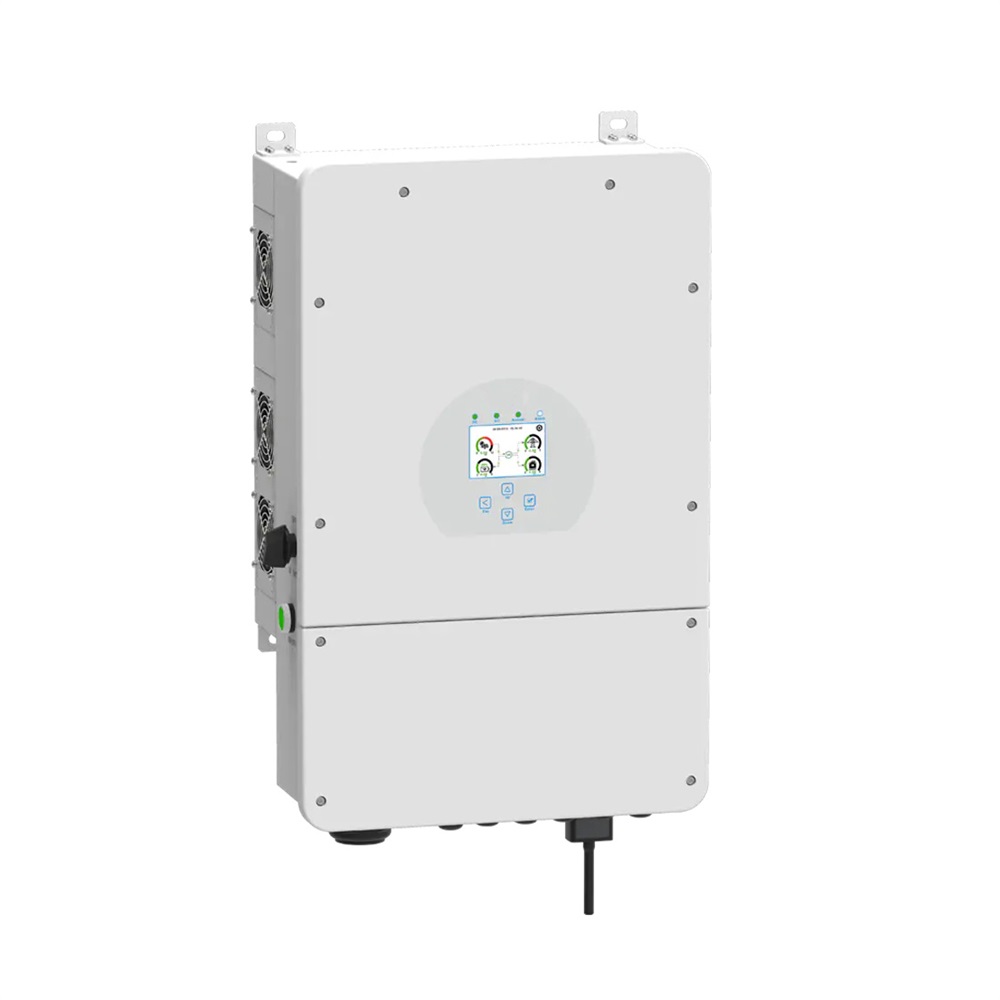

48V 8KW SUN-8K-SG01LP1-EU Single Phase Hybrid Inverter

SUN-8K-SG01LP1-EU | 8kW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

48V 8KW SUN-8K-SG01LP1-EU Single Phase Hybrid Inverter

sun-8k-sg01lp1-eusun-7.6_8k-sg01lp1-eu

※ Higher yields / Safe & Reliable / Smart / User-friendly

SUN-8K-SG01LP1-EU | 8kW | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

SUN-8K-SG01LP1-EU single-phase low voltage (48V) hybrid inverter is an advanced single-phase hybrid inverter designed to meet the demands of modern solar power systems. With a strong emphasis on versatility, efficiency, and reliability, this inverter supports both on-grid and off-grid operations, making it an ideal choice for residential and commercial applications.


Remotely shutdown function——Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye's full series of inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely makes PV plant O&M easier.


Specifications


Model

SUN-8K-SG01LP1-EU

Battery Input Data

Battery Type

Lead-acid or Lithium-ion

Battery Voltage Range (V)

40-60

Max. Charging Current (A)

190

Max. Discharging Current (A)

190

External Temperature Sensor

Yes

Charging Curve

3 Stages / Equalization

Charging Strategy

 for Li-Ion Battery

Self-adaption to BMS

PV String Input Data

Max. DC Input Power (W)

10400

Rated PV Input Voltage (V)

370 (125-500)

Start-up Voltage (V)

125

MPPT Voltage Range (V)

150-425

Full Load DC Voltage Range (V)

200-425

PV Input Current (A)

26+26

Max. PV I (A)

44+44

No.of MPP Trackers

2

No.of Strings per MPP Tracker

2+2

AC Output Data

Rated AC Output

Active Power (W)

8000

Max AC Output

Active Power (W)

8800

AC Output Rated Current (A)

36.4/34.8

Max. AC Output Current (A)

40/38.3

Max. Continuous AC

 Pass through (A)

50

Peak Power (off grid)

2 time of rated power, 10 S

Power Factor Adjustment Range

0.8 leading to 0.8 lagging

Power Factor

1

Output Frequency and Voltage

50 / 60Hz; L1/L2/N(PE) 120/

240Vac (split phase), 208Vac (2/3 phase),

L/N/PE 220/230Vac (single phase)

Grid Type

Split Phase; 2/3 phase; Single Phase

Total Harmonics Current

Distortion (THDi)

<3% (of nominal power)

DC Current Injection

<0.5% In

Efficiency

Max. Efficiency

97.60%

Euro Efficiency

97.00%

MPPT Efficiency

99.90%

Integrated

Anti-islanding Protection,

PV String Input Reverse Polarity Protection,

Insulation Resistor Detection,

Residual Current Monitoring Unit,

Output Over Current Protection,

Output Shorted Protection, Surge Protection

Over Voltage Category

DC Type II/AC Type III

Certifications and Standards

Grid Regulation

EN 50549, UNE 217002,

NRS 097, IEEE 1547.1, SRD V2.0

Safety EMC / Standard

IEC/EN 61000-6-1/2/3/4,

 IEC/EN 62109-1, IEC/EN 62109-2, UL 1741

General Data

Operating Temperature Range (℃)

-40-60℃, >45℃ Derating

Cooling

Smart Cooling

Noise (dB)

≤30 dB

Communication with BMS

RS485; CAN

Weight (kg)

32

Cabinet Size (W*H*D mm)

420×670×233

(Excluding Connectors and Brackets)

Protection Degree

IP65

Installation Style

Wall-mounted

Warranty

5 Years (10 Years Optional)

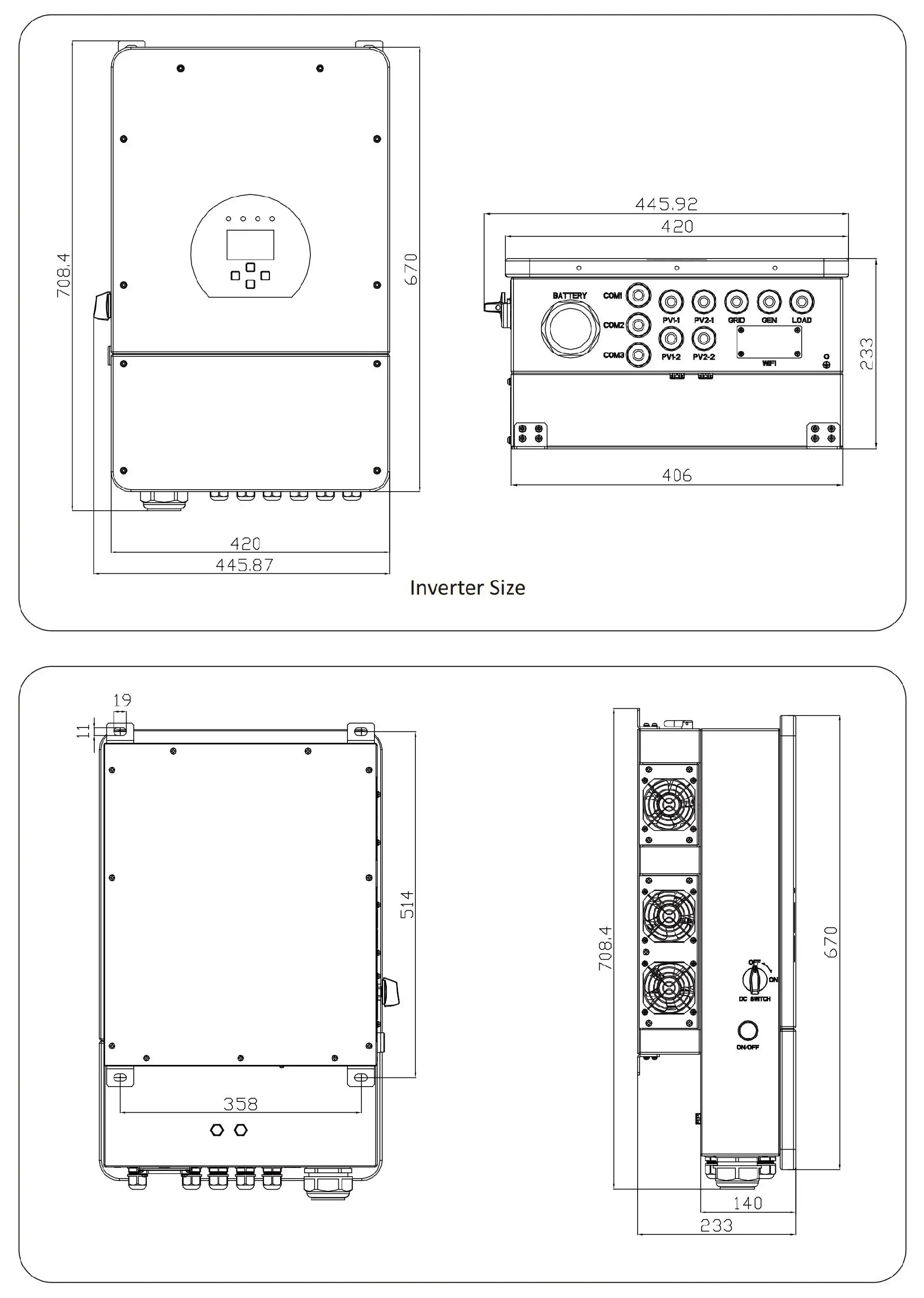

Dimension


dimension


Key Features and Benefits

· High charge and discharge capacity: The inverter can handle up to 190A charge and discharge current.

· Scalability: It is capable of connecting up to 16 units in parallel. This feature is suitable for both on-grid and off-grid operation, making it highly scalable and adaptable to growing energy demands.

· Diverse battery compatibility: Inverters are compatible with lead-acid and lithium-ion batteries. It automatically ADAPTS to the battery management system (BMS) to optimize charging strategies to improve battery performance and service life.

· Ac coupling: The inverter supports AC coupling, making it easy to retrofit existing solar power generation systems.

· Powerful protection and security features: Comprehensive protection mechanism design. Including DC polarity reverse protection, AC output overcurrent protection, thermal protection, ground fault current monitoring and so on.

· High efficiency: The maximum efficiency of the inverter is 97.6%, the European efficiency is 96.5%, and the MPPT (maximum power point tracking) efficiency is greater than 99%, which makes maximum use of the available solar energy.

· Environmental compatibility: Inverters withstand harsh environmental conditions and operate at temperatures ranging from -40 to +60°C, with reduced power over 45°C. The rated working altitude can reach 2000 meters.

· Communication and monitoring: Support GPRS, WIFI, Bluetooth, 4G, LAN (optional) and other monitoring methods, communication interface including RS485, RS232, CAN, for remote monitoring and smart home system integration to provide a variety of options.

· Compact and durable design: A compact design with a size of 420 x 670 x 233 mm (excluding connectors and brackets) and a weight of 30 kg. IP65-rated dust and water-resistant for increased durability and outdoor installation.

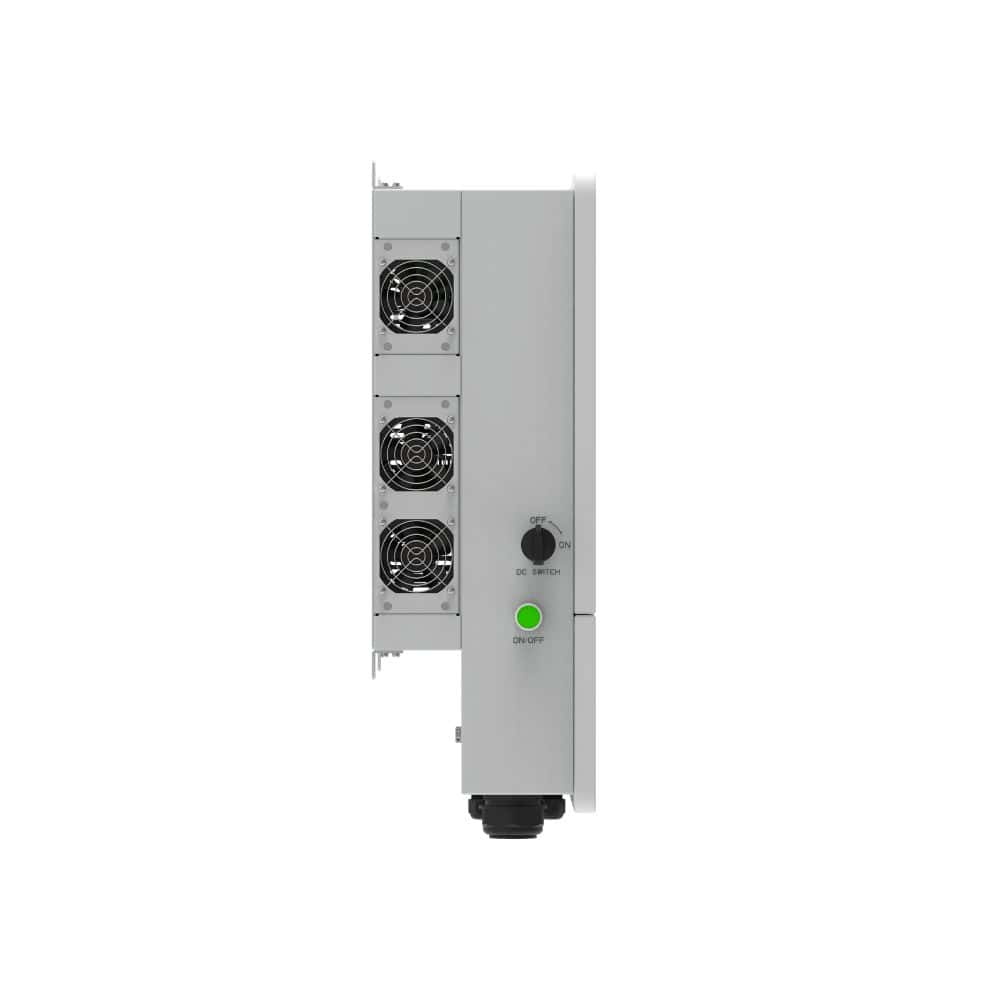

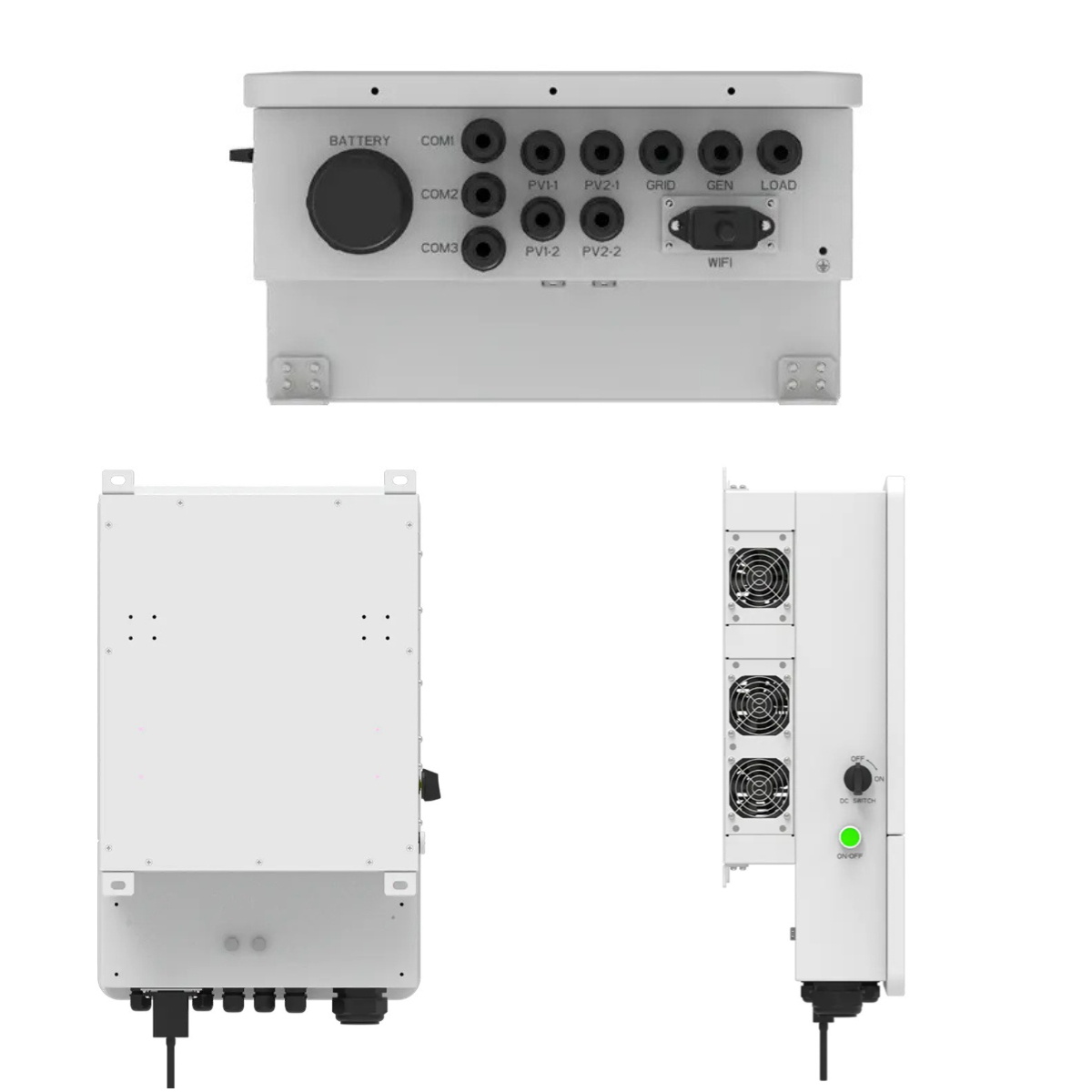

Inverter Details

details


Safety Standards and Certifications: The inverter complies with various international standards, including IEC 61727, IEC 62116, CEI 0-21, EN 50549, and more, ensuring that it meets stringent safety and performance criteria
