New 5KW 6KW 8KW 10KW 12KW Three Phase Power Hybrid Inverter

SUN-5/6/8/10/12K-SG04LP3 | 5-12kW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

New 5KW 6KW 8KW 10KW 12KW Three Phase Power Hybrid Inverter

Higher yields / Safe & Reliable / Smart / User-friendly

Higher yields / Safe & Reliable / Smart / User-friendly

SUN-5/6/8/10/12K-SG04LP3 | 5-12kW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

SUN 5/6/8/10/12K-SG is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.


Features

1. 100% unbalanced output, each phase; Max. output up to 50% rated power

2. AC couple to retrofifit existing solar system

3. Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

4. Max. charging/discharging current of 240A

5. 6 time periods for battery charging/discharging

6. Support storing energy from diesel generator

7. 48V low voltage battery, transformer isolation design

8. 6 time periods for battery charging/discharging



Remotely shutdown function-Smart Monitoring Platform

Thanks to the smart monitoring platform, full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

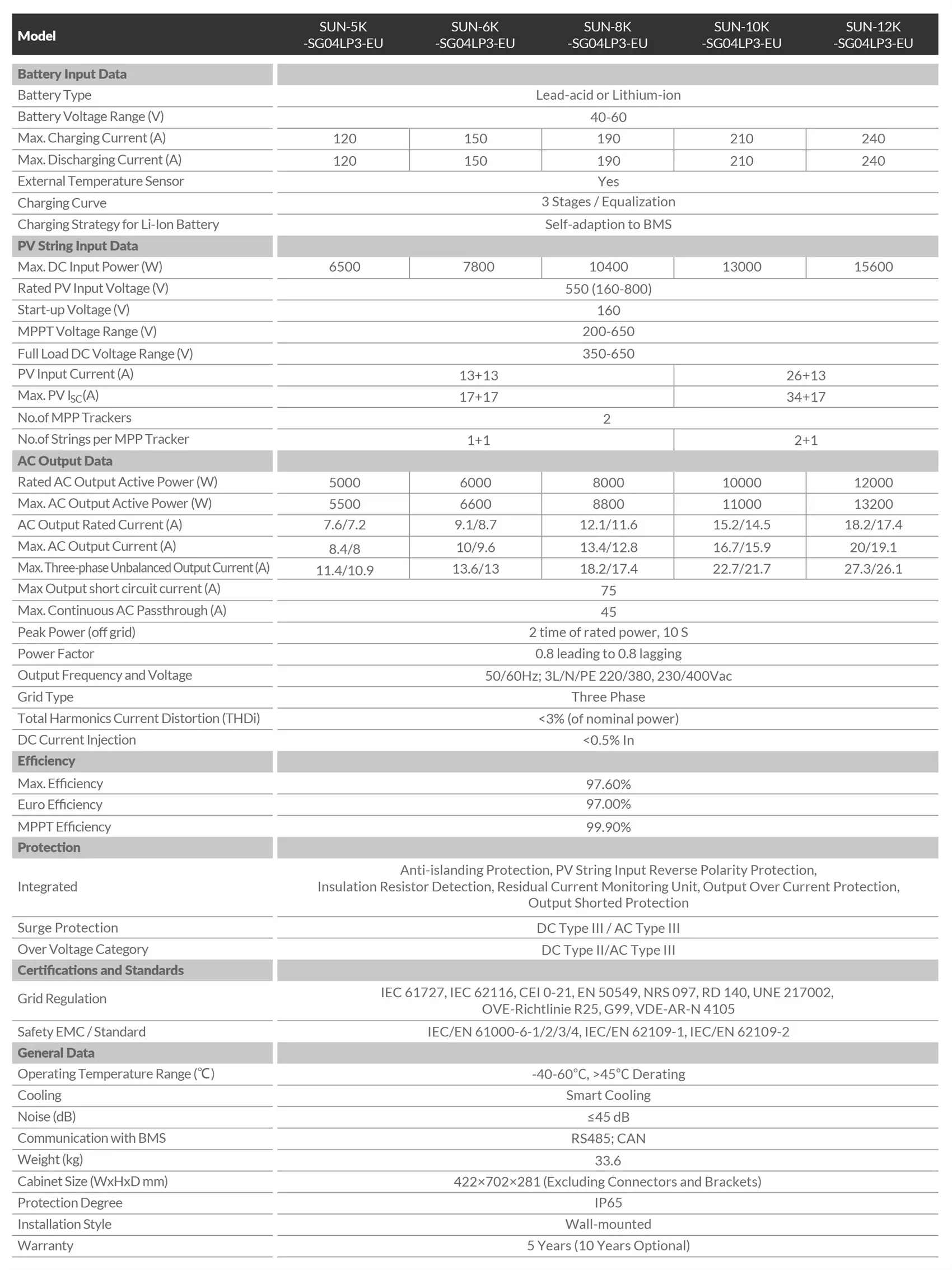

Technical Specifications

SPECIFICATIONS
