SUN-3.6/5/6K-SG03LP1-EU Single Phase 3KW Hybrid Inverter

SUN-3.6/5/6K-SG03LP1-EU | 3.6-6kW 3000W-6000W | Single Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery


SUN-3.6/5/6K-SG03LP1-EU Single Phase 3KW Hybrid Inverter

Higher yields / Safe & Reliable / Smart / User-friendly

Features

· Colorful touch LCD, IP65 protection degree

· AC couple to retrofit existing solar system

· Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel

· Max. charging/discharging current of 135A

· 6 time periods for battery charging/discharging

· Support storing energy from diesel generator




SUN 3.6/5/6K-SG,hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy impendence. During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 3.6/5/6K-SG. Finally, the stored energy can be released when the loads require it. The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It equipped with RS485/CAN port for battery communication.

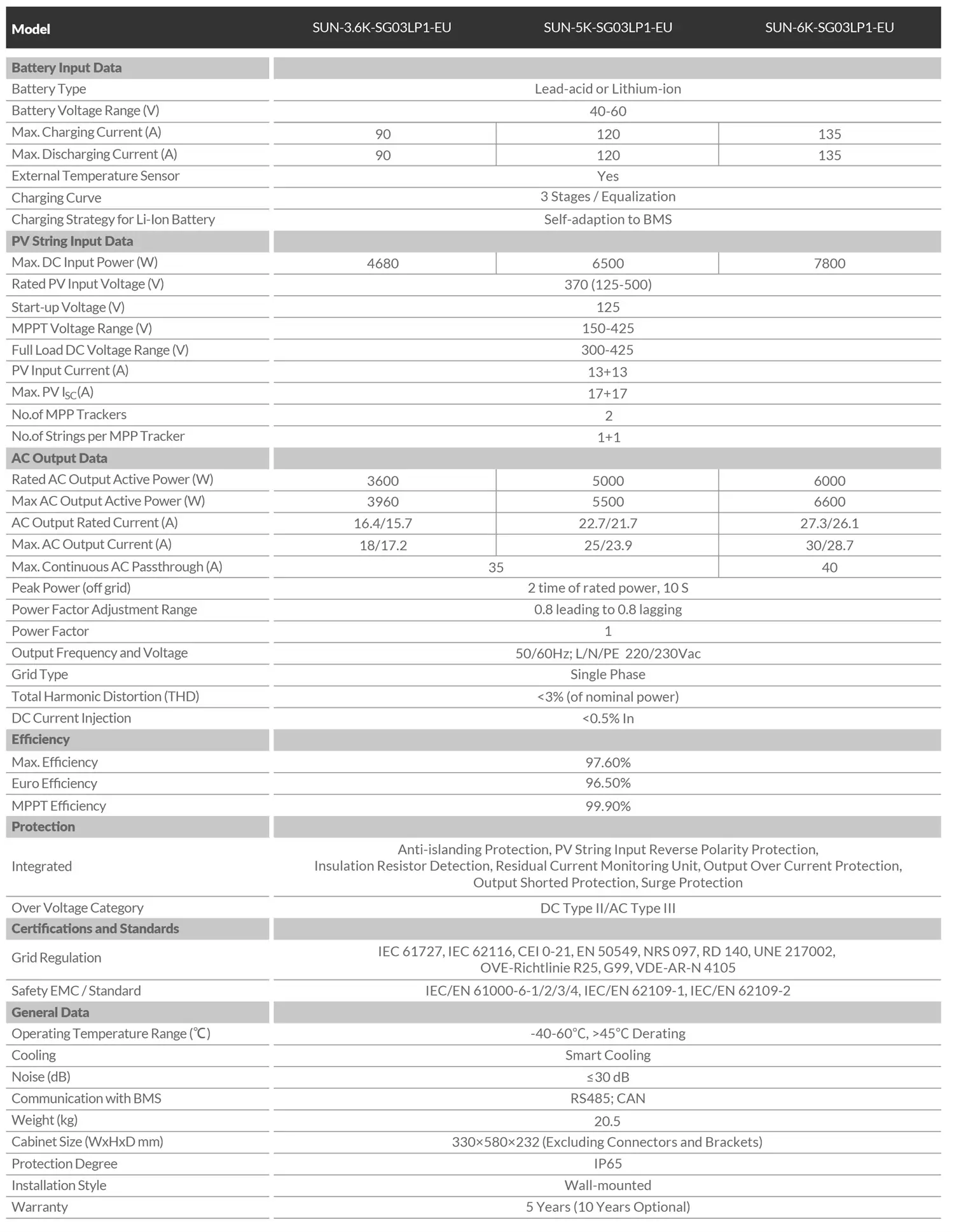

Specifications

specification

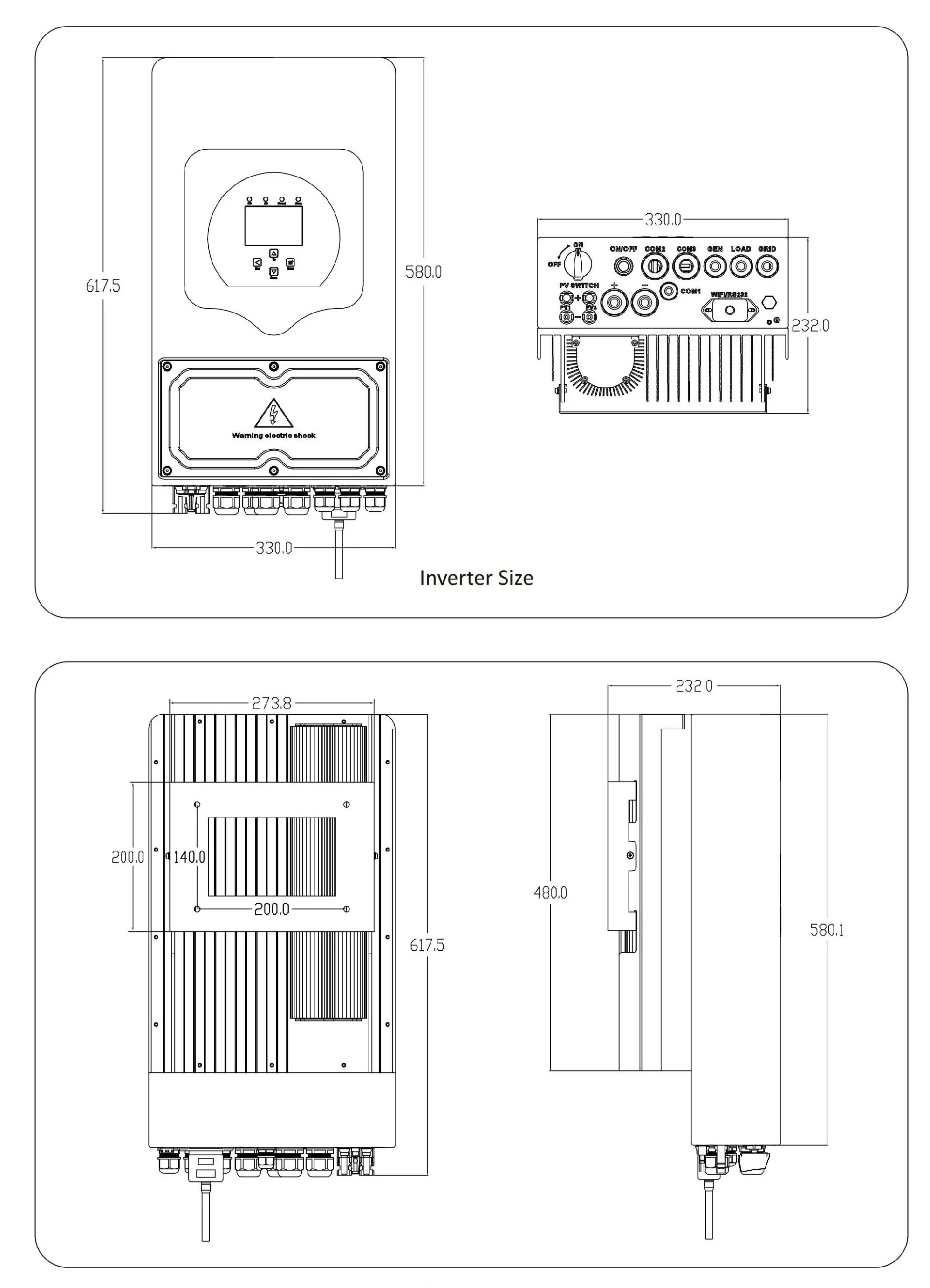

Dimension

dimension

Remotely shutdown function——Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

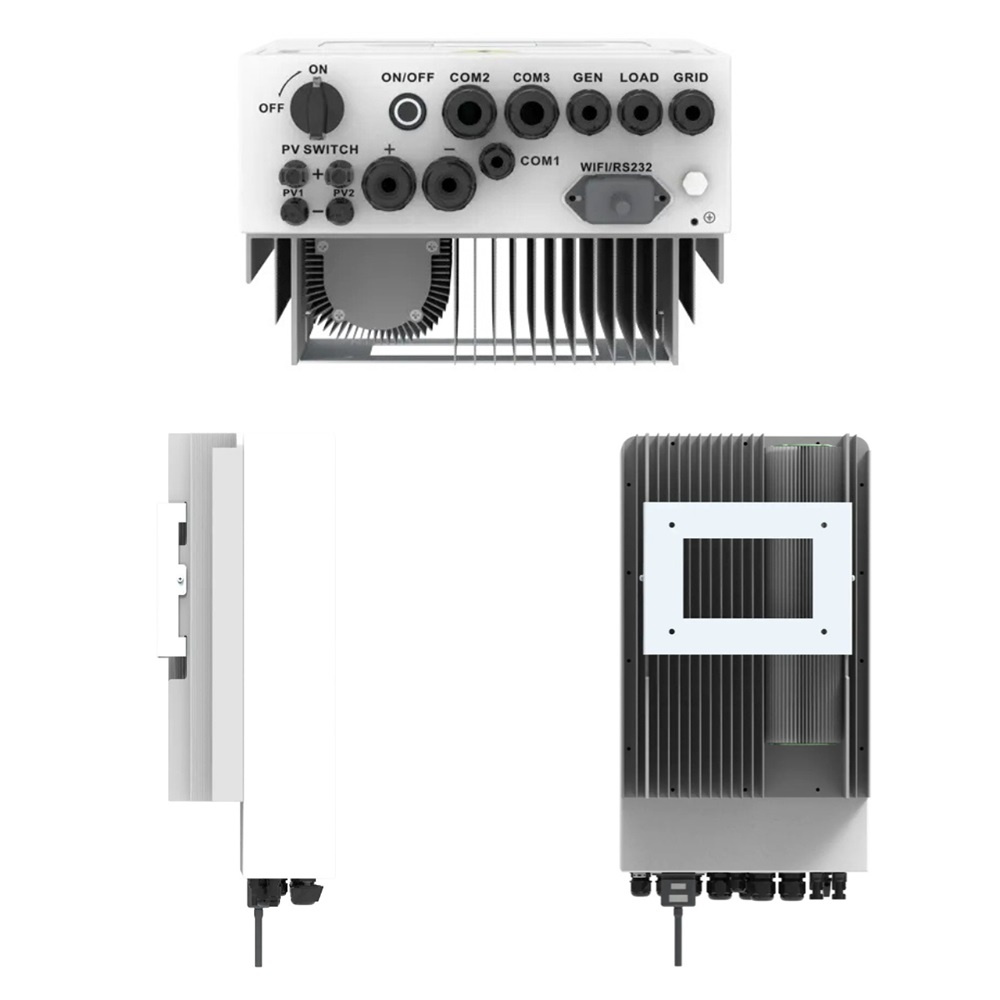

Details

details


Protection and Standards

The SUN-(3.6-6)K-SG03LP1 series is equipped with a comprehensive suite of protection mechanisms including DC polarity reverse connection protection, overcurrent protection, overvoltage protection, short circuit protection, and thermal protection. It meets international standards such as IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, and VDE-AR-N 4105.

Design and Installation: With an operational temperature range of -40 to +60°C (with derating above 45°C), an IP65 rating, and intelligent air cooling, this inverter is built for durability. Its compact and lightweight design (330×580×232 mm, 25 kg) simplifies installation and maximizes flexibility.

Communication: Monitoring options include GPRS, WIFI, Bluetooth, 4G, and LAN (optional), and the communication interfaces supported are RS485, RS232, and CAN.

Warranty and Support: The inverters come with a standard 5-year warranty, extendable to 10 years depending on the installation site and detailed warranty policy.

This powerful and adaptable hybrid inverter is ideal for modern energy systems, offering high performance, efficiency, and reliability for sustainable energy solutions.
