SUN-5KW-25KW-SG01HP3-EU-AM2 Three Phase Hybrid Best Solar Inverter

SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 | 5-25kW | Three Phase | 2 MPPT | Hybrid Inverter | High Voltage Battery

SUN-5KW-25KW-SG01HP3-EU-AM2 Three Phase Hybrid Best Solar Inverter

SUN-5KW-25KW-SG01HP3-EU-AM2 Three Phase Hybrid Best Solar Invertersun-5-25k-sg01hp3-eu2

※ Higher yields / Safe & Reliable / Smart / User-friendly

SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 | 5-25kW | Three Phase | 2 MPPT | Hybrid Inverter | High Voltage Battery

Deye 5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 is brand new three phase hybrid inverter with High voltage battery 160-800V, ensuring system efficiency and less heat dissipation. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios.

Features

· 100% unbalanced output;each phase

· AC couple to retrofifit existing solar system

· *Max. 10 pcs parallel for on-grid and off-grid

· operation; Support multiple batteries parallel

· Max. charging/discharging current of 50A

· High voltage battery, higher efficiency

· 6 time periods for battery charging/discharging

· Support storing energy from diesel generator

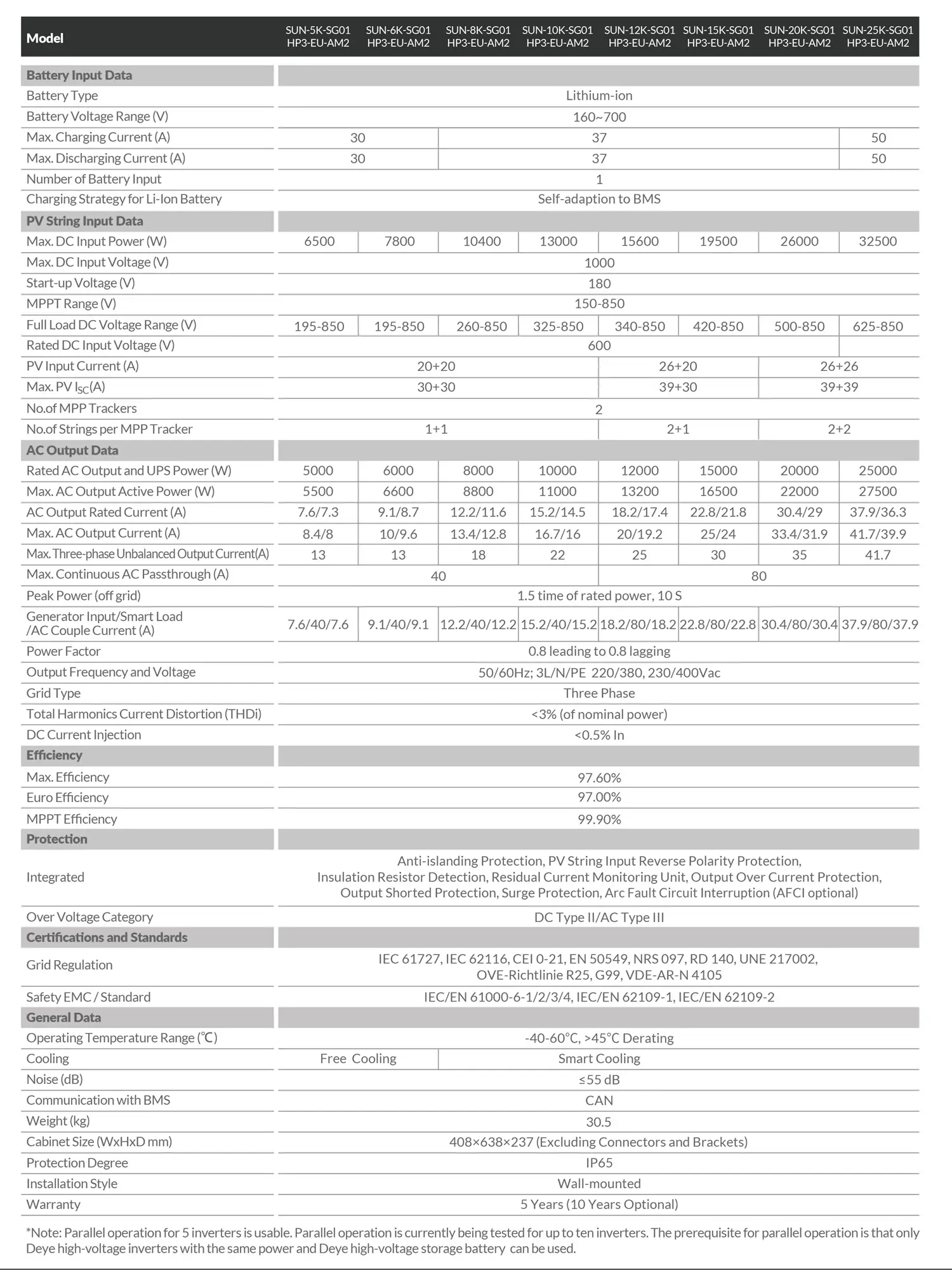

Specification

specifications

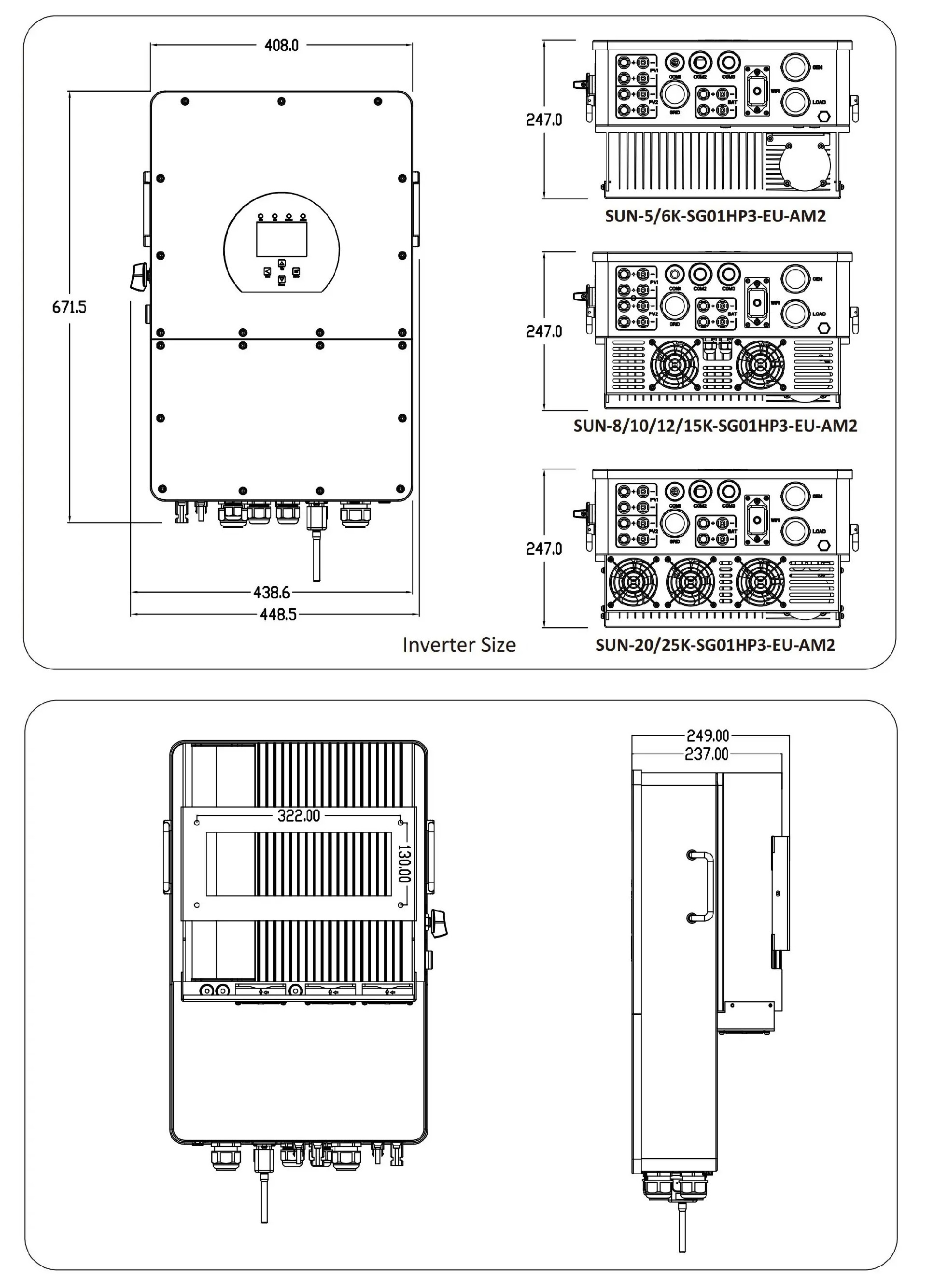

Dimension and Details

details

※ Remotely shutdown function——Smart Monitoring Platform

Thanks to the smart monitoring platform, Deye full series inverter products support remotely shutdown immediately when accident occurs.Setting parameters and FW update remotely, which makes PV plant O&M easier.

dimension


Protection Features

· Includes integrated protections such as DC polarity reverse connection, AC overcurrent, AC overvoltage, short circuit, thermal, and more.

Environmental and Safety Standards

· Temperature Range: -40 to +60°C

· Ingress Protection Rating: IP65

· Altitude: 0-2000m

Compliance

· Meets IEC/EN standards including 61000-6-1/2/3/4 and 62109-1/2.

Monitoring and Communication

· Optional Monitoring: GPRS, WIFI, Bluetooth, 4G, LAN

· Interfaces: RS485, RS232, CAN

General Data

· Dimensions: 408x638x237mm (excluding connectors and brackets)

· Weight: 30.5kg

· Cooling: Natural cooling/Intelligent air cooling

· Warranty: 5 Years Standard, 10 Years optional based on installation site

The SUN-(5-25)K-SG01HP3-EU three-phase hybrid inverters are a robust, efficient, and versatile solution designed to meet the evolving demands of modern solar power systems.

The combination of advanced features, high efficiency, and scalability makes them an exceptional choice for maximizing solar energy utilization and enhancing overall system performance.
