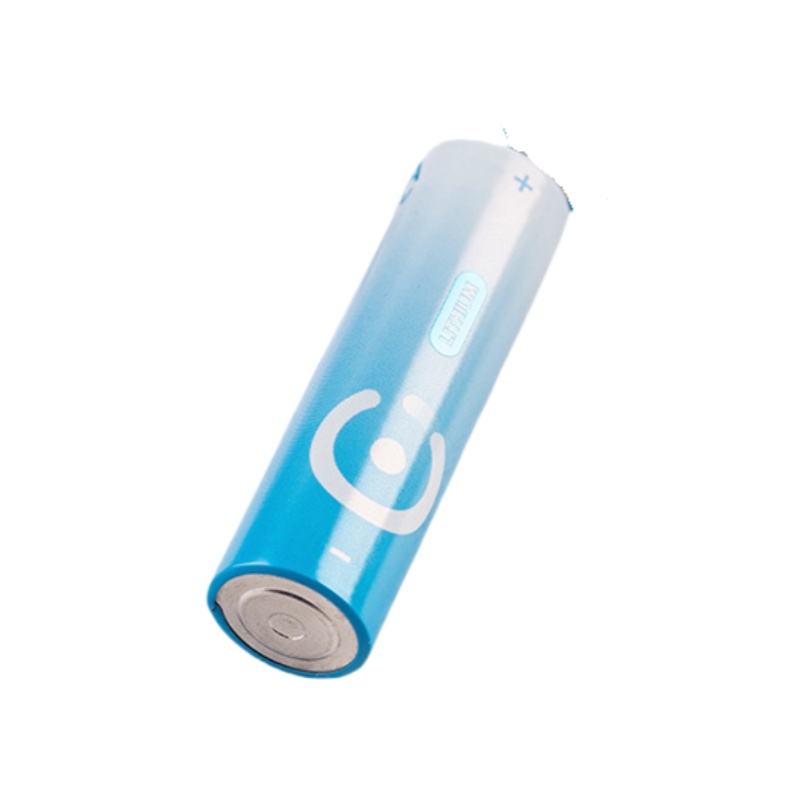

1.5V 3000mAh/1100mAh Li Fes2 AA5/AAA7 Battery

1.5V AA Li Fes2 Battery No.5/7 Replace Energizer L91 FR6AA Primary Lithium Battery 3000/1100mAh

The 1.5V 3000mAh/1100mAh Li Fes2 AA5/AAA7 battery voltage is 1.5V, the battery energy density is high, which is equivalent to 7 times the discharge capacity of the alkaline battery, and has a wide use environment, which can meet the discharge needs of -40℃~60℃. Suitable for high current discharge, storage performance up to 10 years. Low self-discharge rate, annual self-discharge rate is less than 2%, green raw materials, environmental protection and pollution-free.


Feature

1. Fully charged: The battery is charged one to one hundred percent without power outages and other operations

2. Lightweight

3. Wide operating temperature range

4. The discharge voltage platform is high and stable

5. Good sealing performance

6. Green pollution-free


Specifications


Parameter

Specification

Product

Disposable dry battery

Disposable dry battery

Model

AA5

AAA7

Voltage

1.5V

1.5V

Capacity

3000mAh

1100mAh

Weight

15g

7.5g

Operating temperature

-40℃-60℃

-40℃-60℃

Product certification

Comply with UL certification, UN certification..

Comply with UL certification, UN certification..

Dimension

14.5*50.5mm

10*44mm

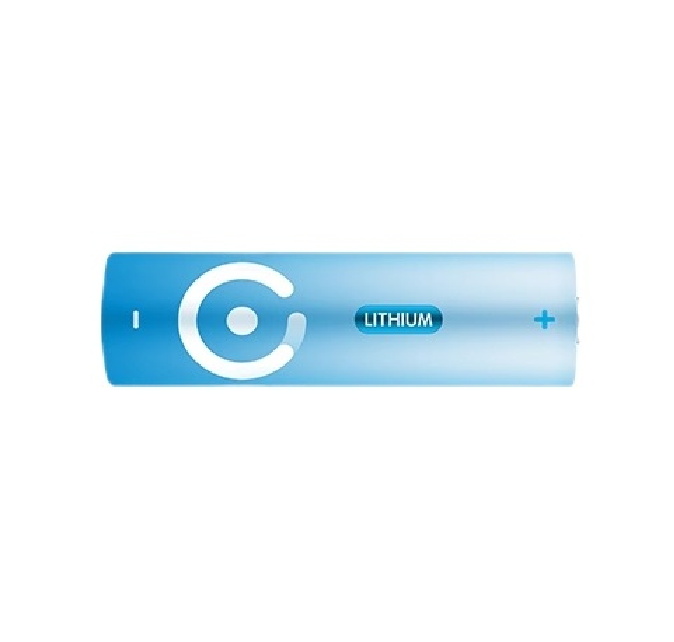

 Li Fes2 AA5/AAA7 Battery

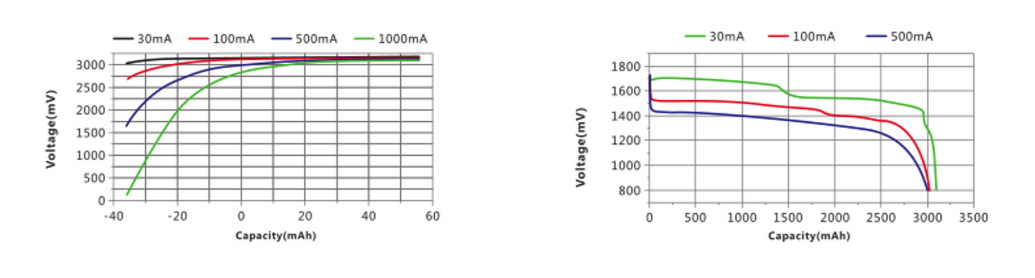

Li Fes2 Battery Discharge Performance


discharger curve

Comparison of different temperature discharge curves of AA models and different current discharge curves of AA models


1.5V Li Fes2 Battery Series


Model

Voltage

Dimension

Capacity

Operating temperature

Weight

Model

IEC

Domestic abbreviation

LFB-AA

FR6

No.5

1.5v

14.5*50.5mm

3000mAh

-40℃~60℃

15g

LFB-AA(HP)

FR6

No.5

1.5v

14.5*50.5mm

3400mAh

-40℃~60℃

15g

LFB-AAA

FR03

No.7

1.5v

10*44mm

1100mAh

-40℃~60℃

7g

LFB-AAA(HP)

FR03

No.7

1.5v

10*44mm

1200mAh

-40℃~60℃

7g


Applications of 1.5V  Li Fes2 Battery


APPLICATIONS


Household devices such as smart door locks, weight scales, electric toothbrushes, mice, children's toys, remote controls, razors and other devices. Stable discharge, long storage life, excellent safety performance, especially suitable for heavy load applications such as digital cameras, medical equipment, electronic dictionaries, global positioning system (GPS), measuring instruments, computing tools, sensors, radio transceivers, infrared equipment, etc.

1.5V 3000mAh Li Fes2 AA5 Battery

1. Smart door locks

2. Weight scales

3. Electric toothbrushes

4. Mice

5. Children's toys

6. Remote controls

7. Razors other equipment

1.5V 1100mAh Li Fes2 AAA7 Battery

1. Digital camera

2. Medical equipment

3. Electronic dictionary

4. GPS

5. Measuring instrument

6. Calculating instrument

7. Sensor

8. Radio transceiver
