1.5V 3000mAh lithium iron disulfide li fes2 AA non-rechargeable battery, substitute energizer L91.
1.5V 3000mAh lithium iron disulfide battery, with voltage stability, high energy density, long shelf life, wide operating temperature range, good environmental discharge performance, high safety, can be widely adapted to a variety of equipment. It is a quality energy solution that can replace the Energizer Ultimate lithium L91 AA 5 battery.
· Voltage stability: can provide relatively stable 1.5V voltage output
· High energy density: Lithium-ferrous disulfide batteries have a high energy density
· The self-discharge rate is low, and the power can be maintained for a long time without loss in the unused state
· Wide operating temperature range: wide temperature range, adapt to a certain degree of high temperature and low temperature environment.
· Good environmental performance: less pollution to the environment, easy to dispose and recycle after waste
· Good discharge performance: During the discharge process, it can provide stable current output and continue to supply power to the equipment
· High safety: not easy to explode, fire and other dangerous situations
Parameter | Specification |
Battery system | Lithium and Iron Disulfide Battery(Li/FeS2) |
Type of battery | Primary battery |
Nominal voltage | 1.5 V |
Rated capacity | 3000 mA |
Working voltage | 1.30V @ 200mA discharge rate |
Maximum pulse discharge current | 4000mA (2 sec on / 8 sec off) |
Maximum continuous discharge current | 2500mA |
Discharge cut-off voltage | 0.80V |
Volume | 8.0 cubic centimeters |
Weight | Approx. 15 g |
Lithium content | Less than 1 gram per cell |

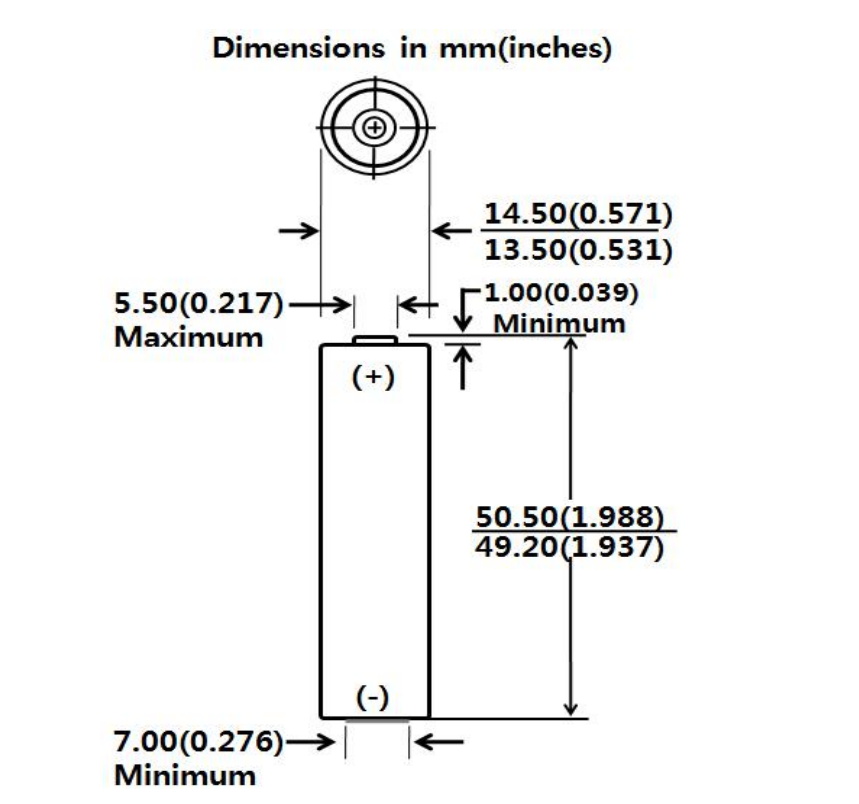

Dimensions | (14.0±0.5)×(49.85±0.65)mm |
Operating temp. | -40 ℃ to 60 ℃ |
Storage/Shipping humidity | ≤75 % |
Storage life | 10 Years |

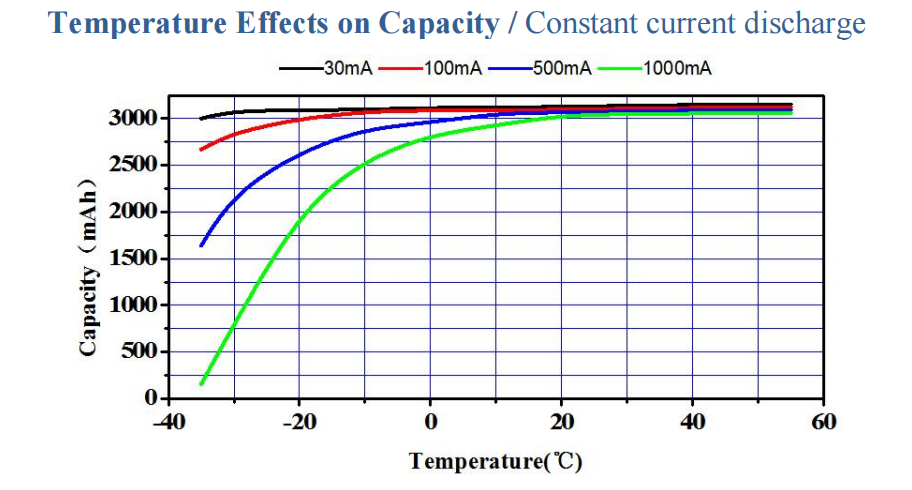

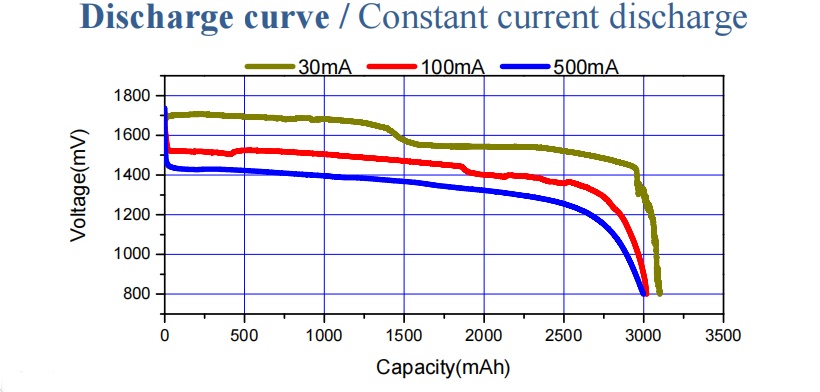

Constant discharge curve with different currents
· Do not expose to, dispose of the battery in fire.
· Do not put the battery in a charger or equipment with wrong terminals connected. Avoid shorting the battery
· Avoid excessive physical shock or vibration.
· Do not disassemble or deform the battery.
· Do not immerse in water.
· Do not use the battery mixed with used or other different make, type, model batteries.
· Keep out of the reach of children
· Store the battery in a cool, dry and well-ventilated area.
· Disposal Regulations vary for different countries.
· Dispose of in accordance with local regulations.
