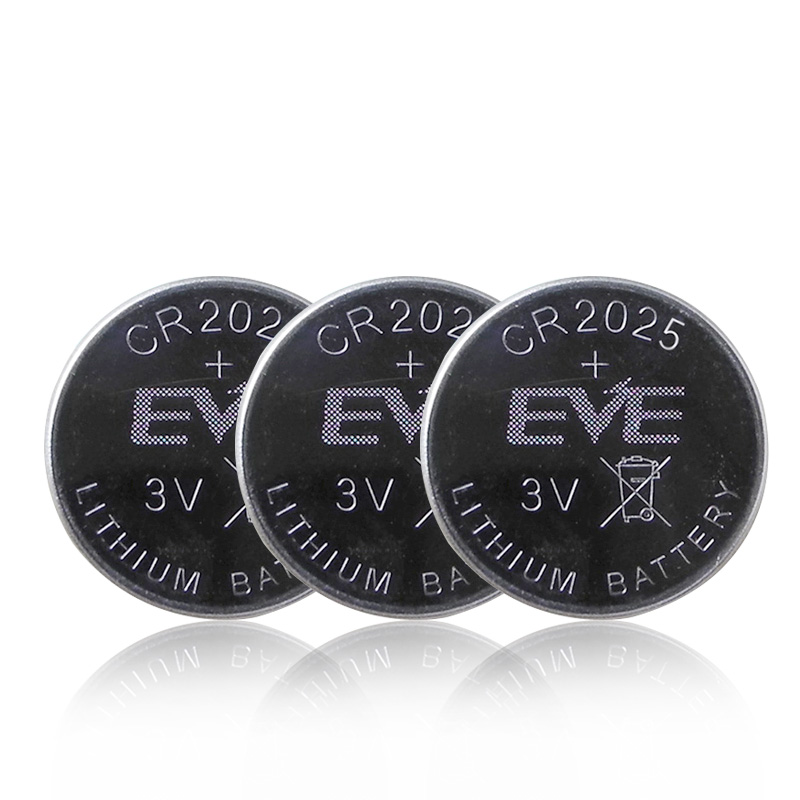

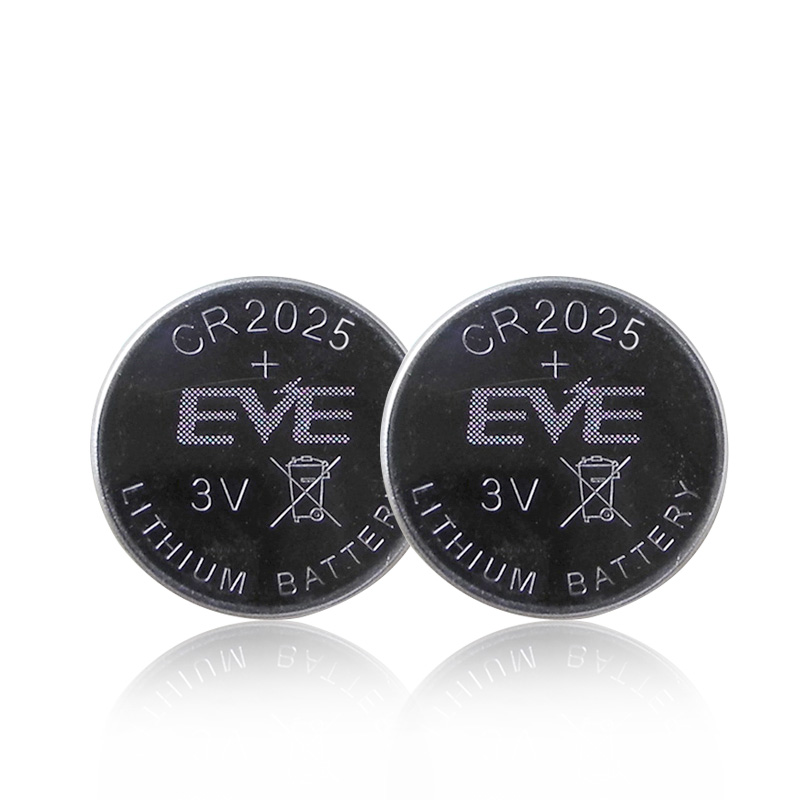

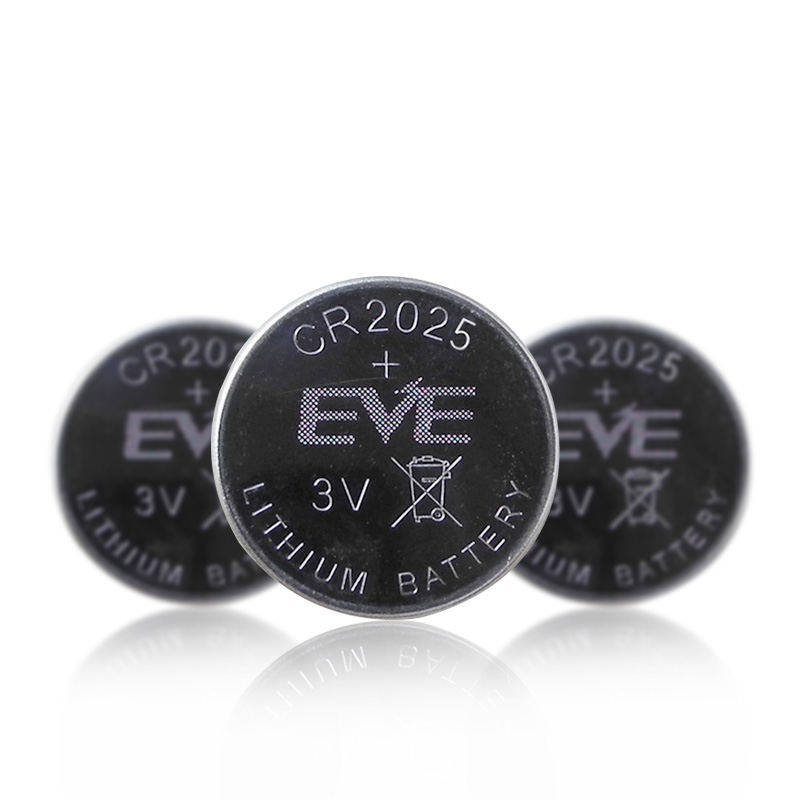

3v coin battery cr2025 165mAh LiMnO2 lithium primary battery for car key computer motherboard electronic weighing

Product Characteristics

1. Low self-discharge rate: annual self-discharge is less than 1%

2. Long cycle life: to meet long-term needs

3. High security: technical leak proof, safe and durable

4. Ultra-wide temperature application: -40℃-70℃, suitable for various extreme environments

Comprehensive customized solutions-Power solutions for smart security/smart life/smart healthcare


Specifications


Parameter

Specification

model

CR2025

Nominal Voltage

3V

Nominal Capacity

160mAh

Max Discharge Current

3mA

Max Pulse Current

5mA

Standard Discharge Current

0.2mA

Maximum pulse Current (mA)

15

Operating Temperature

-20 ~+70°C

Approx Weight

2.5g

Standard Charge Current

1550mA (1.55A)

Dimension (mm)

20.0×2.5

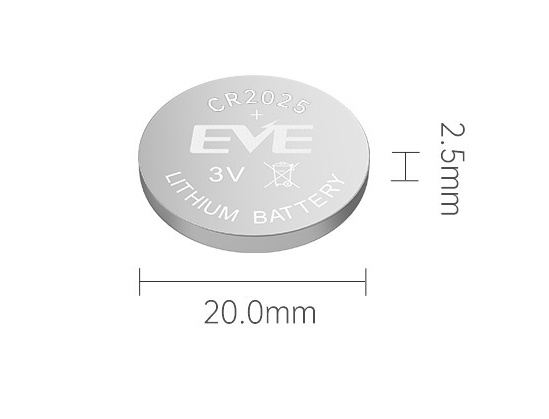

Dimension and Details

EVE CR2025 Limno2 batterycr2025

Customized Application Solutions

Reliable power solutions for health care devices, such as blood glucose meters, thermometers, insulin pumps, AEDs, etc.

Comprehensive and reliable power solutions to satisfy the needs of smart life in various fields such as municipal services, retail services, and home services.

Comprehensive and reliable power solutions for security to realize functions such as intelligent management and early warning.




Product Certification


Meet the UL1642, UN38.3, ATEX and other certificates


Product Certification

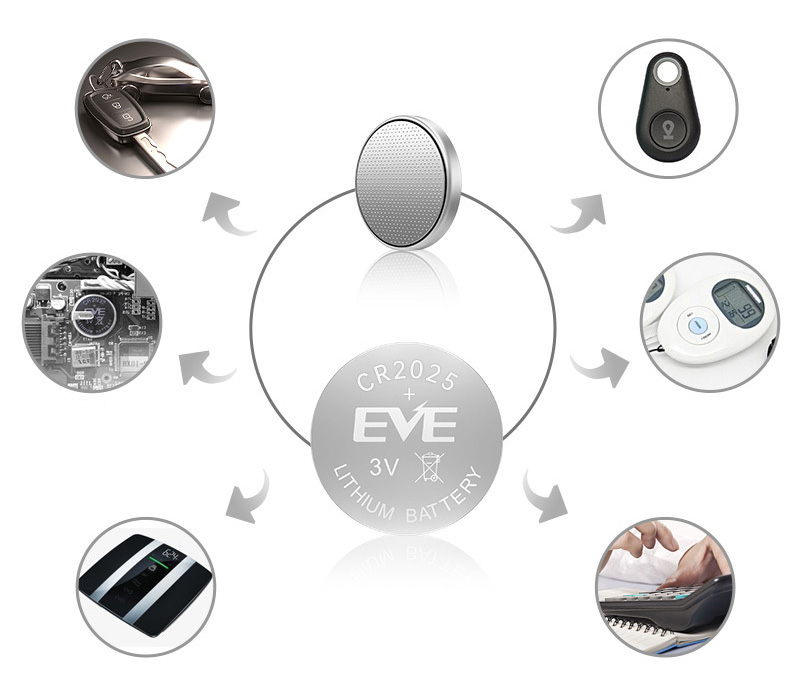

Applications

EVE Lithium CR2025 3V Battery Wide application range. Widely used in smoke detector, smart meters, water meters, heat meters, gas meters, memory backup, clock power, data backup electricity, Source, smoke alarm, temperature monitor, positioning device, Marine telemetry system, tire pressure monitoring system, ETC (Toll collection System without stopping), automatic, instrumentation equipment, oil Wells, mines, medical equipment, Burglar alarm, wireless communication, Marine life saving, etc


CR2025


Battery Safety Specification

During the use of batteries, the following requirements must be observed

1) Do not remove the battery from its original packaging before use.

2) Do not place the battery scattered together to avoid accidental short circuit.

3) Do not heat the battery above 100C or burn it.

4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.

5) Do not mix new and used batteries, or batteries from different places of origin.

6) Disassembling and dissecting the battery is strictly prohibited.

7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
