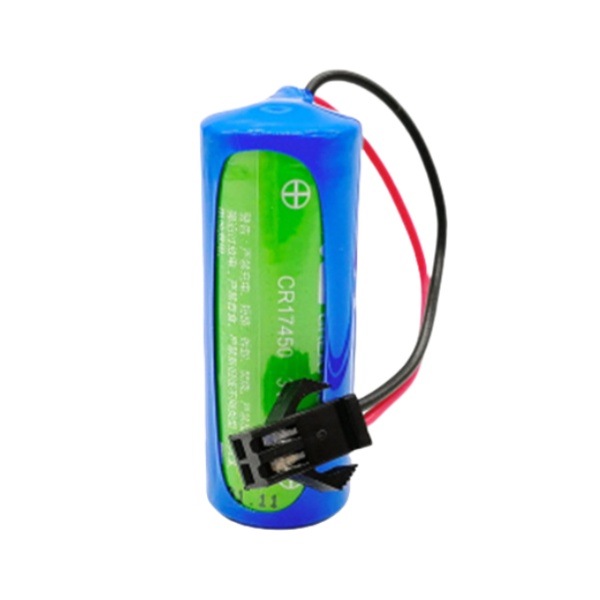

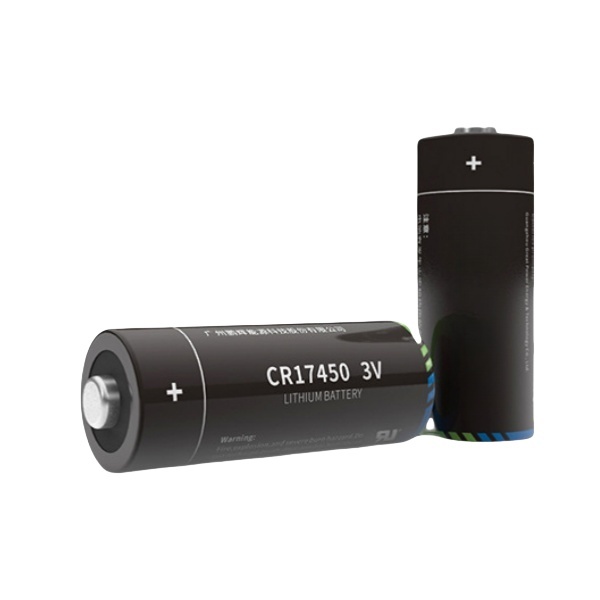

CR17450 3V 2200/2500mAh High Capacity Li-MnO2 Battery

A type of battery with lithium as the negative electrode and manganese dioxide as the positive electrode. LiMnO2 battery low rate and medium rate discharge performance is good, cheap, and good safety performance, the battery shape can be designed and produced into coin shape, cylindrical shape and square, to meet the requirements of different sizes and current electrical appliances. Compared with other lithium batteries, its material and manufacturing costs are relatively low, and the safety is very good.

Features

The voltage is about 3.0V

1. High energy density, equivalent to 5 times alkaline and 10 times carbon-zinc 9V batteries

2.10 years of storag

3. High voltage and horizontal discharge

4. Annual capacity attenuation is less than 2%

5. Super good over-current safety protection performance

6. Wider temperature application range

Specifications

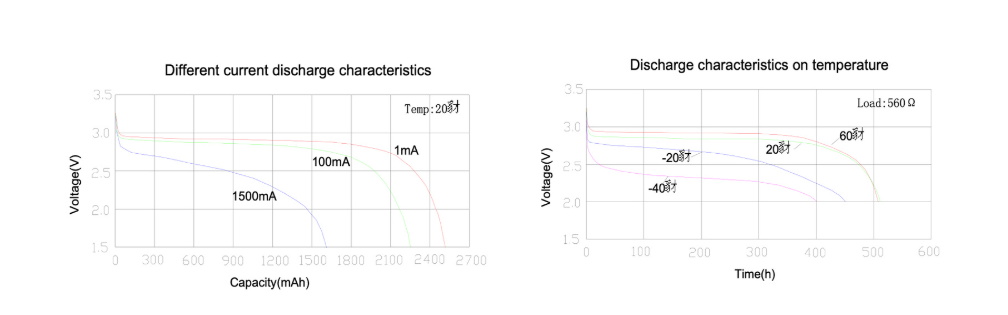

Discharge Performance of LiMnO2 Battery

CR17450 Discharge curves of different currents at 20C and 560Ω constant resistance discharge curve at different temperatures

LiMnO2 Cylindrical LiMnO2 Battery

Semi-sealed power type: Advantages: High security, (Built-in PTC overcurrent protection; Explosion-proof assembly)

Full sealed power type: Advantages: Wide temperature range (40 ~ + 85 ℃)

Full sealed capacity type:Advantages: High capacity

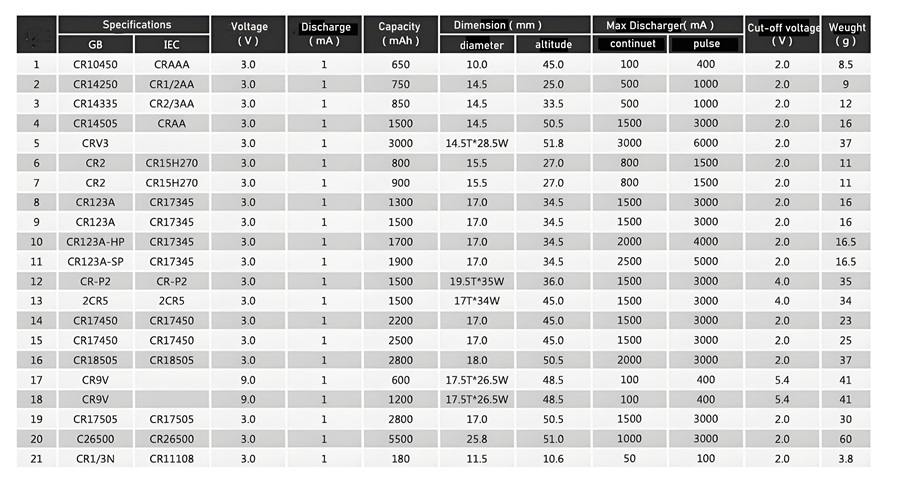

Cylindrical LiMnO2 Battery Main Model

※ Different from 3V LiMnO2 batteries, the 9V series are prismatic batteries

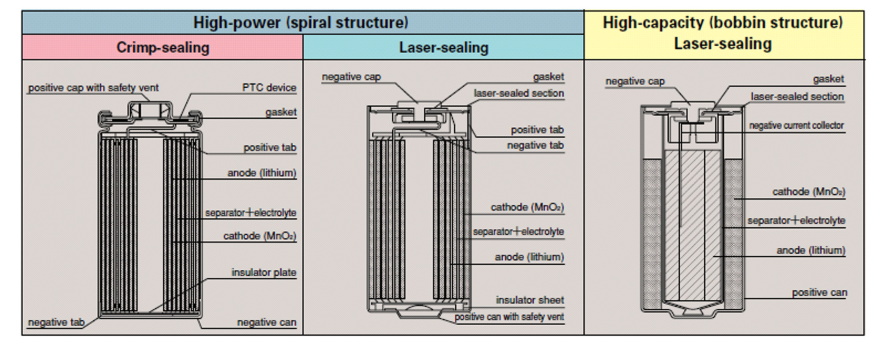

LiMnO2 Battery Classification

Most lithium-manganese dioxide batteries used today are coin-shaped and cylindrical/prismatic, and cylindrical batteries are mostly wound electrode core structures, and flexible packaging thin batteries are new products.

Cylindrical/prismatic and Soft pack battery and Button

Cylindrical LiMnO2 Battery

Structure:Winding inner core, semi-sealed，Rate cell (can provide high current discharge)

Safety: High safety, explosion-proof assembly cap, PTC overcurrent protection

Life: annual self-discharge rate <2%, storage life >10 years

Temperature range: The operating temperature range can reach -40℃~70℃

Application

1. Medical: Medical equipment, human body detector, etc

2. Electronic: FRID communication, electronic tag, remote control, etc

3. Security: alarm, safe, electronic access control, etc

4. Tracking: trackers, buoys, life jackets, etc

5. Automobile: tire pressure test, alarm system

6. Meter: gas, heat, water, electricity, etc

7. Consumer: toys, shoe lights, glow-in-the-dark float, flashlight, etc
