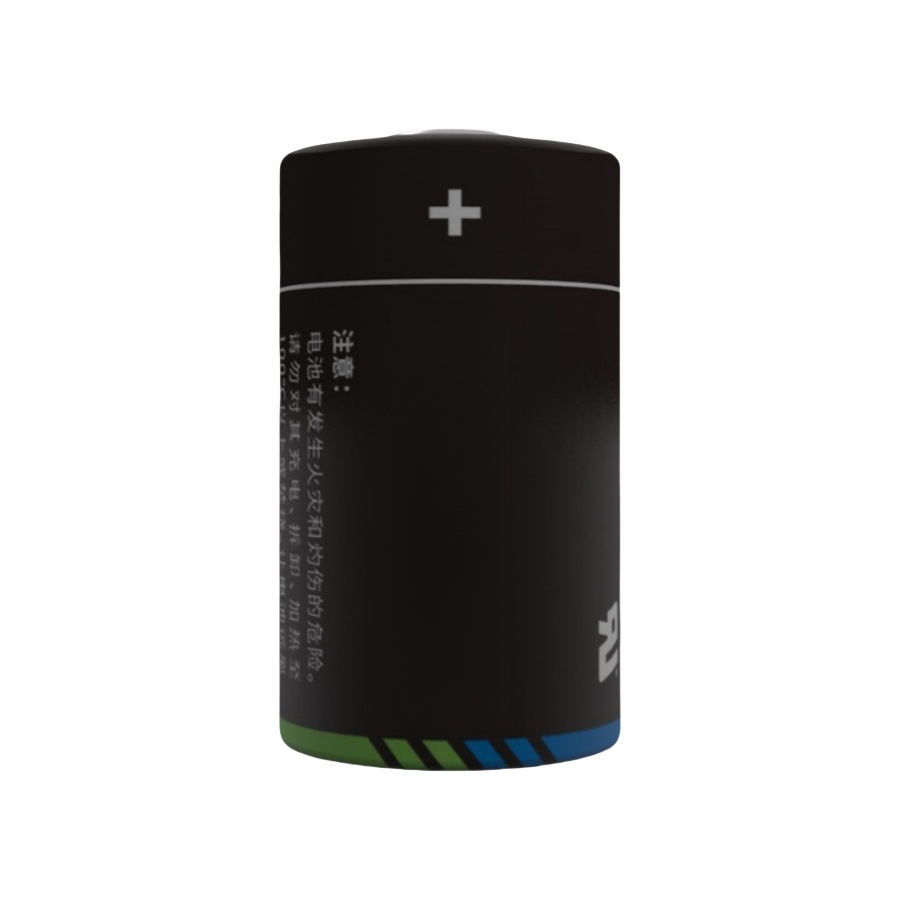

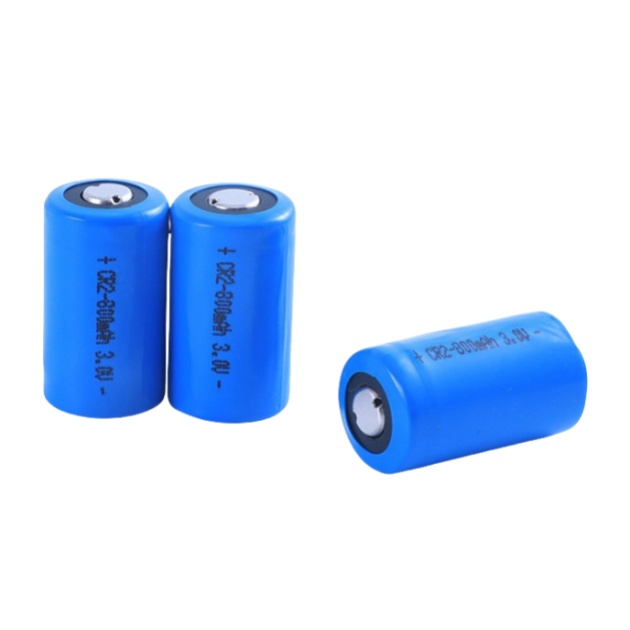

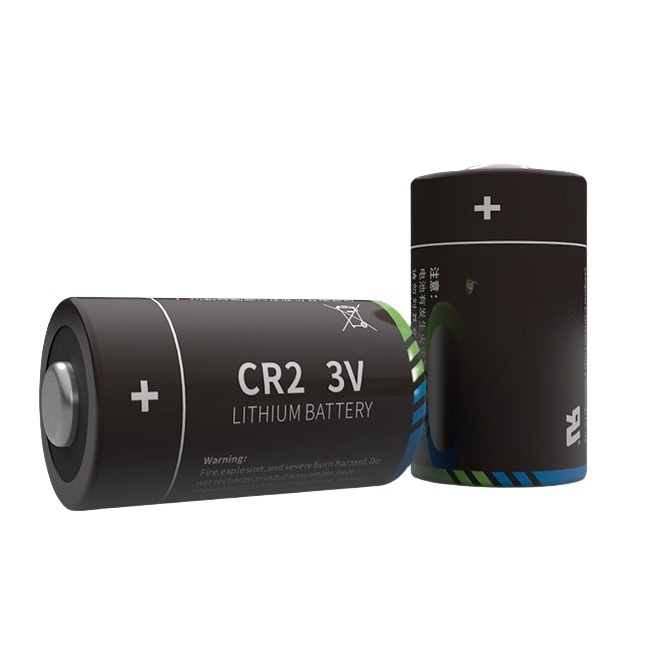

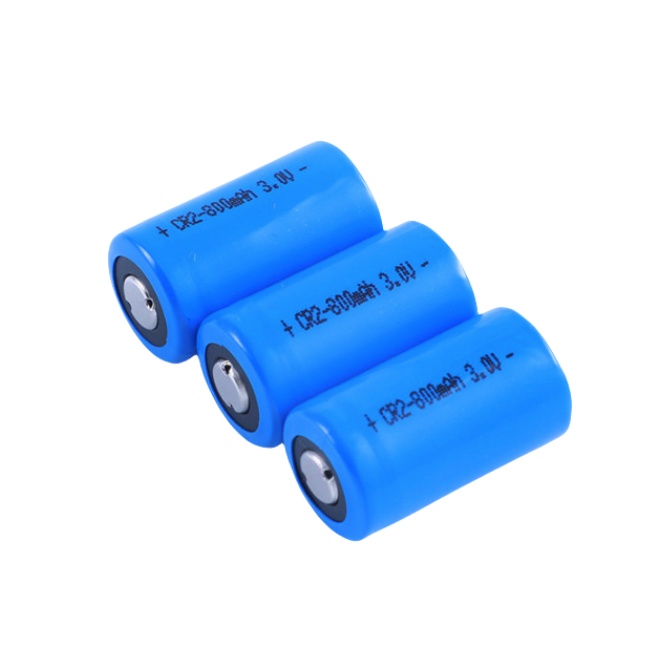

CR2 3V 800/900mAh CR15H270 High Quality A Li MnO2 Battery Cell

Features

The voltage is about 3.0V

1. High energy density, equivalent to 5 times alkaline and 10 times carbon-zinc 9V batteries

2.10 years of storag

3. High voltage and horizontal discharge

4. Annual capacity attenuation is less than 2%

5. Super good over-current safety protection performance

6. Wider temperature application range

Specifications

Cylindrical LiMnO2 Battery

Structure: Winding inner core, semi-sealed，Rate cell (can provide high current discharge)

Safety: High safety, explosion-proof assembly cap, PTC overcurrent protection

Life: annual self-discharge rate <2%, storage life >10 years

Temperature range: The operating temperature range can reach -40℃~70℃

Cylindrical LiMnO2 Battery Main Model

※ Different from 3V LiMnO2 batteries, the 9V series are prismatic batteries

LiMnO2 Battery Classification

Most lithium-manganese dioxide batteries used today are coin-shaped and cylindrical/prismatic, and cylindrical batteries are mostly wound electrode core structures, and flexible packaging thin batteries are new products.

Cylindrica/prismaticl and Soft pack battery and Button

Professional Production Line

Applications

1. Medical: Medical equipment, human body detector, etc

2. Electronic: FRID communication, electronic tag, remote control, etc

3. Security: alarm, safe, electronic access control, etc

4. Tracking: trackers, buoys, life jackets, etc

5. Automobile: tire pressure test, alarm system

6. Meter: gas, heat, water, electricity, etc

7. Consumer: toys, shoe lights, glow-in-the-dark float, flashlight, etc
