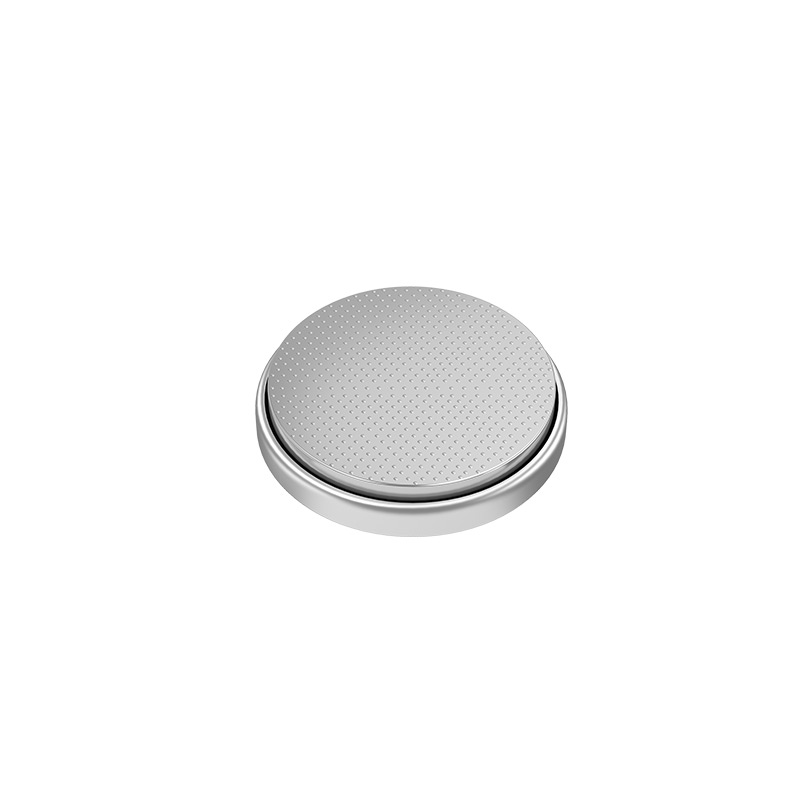

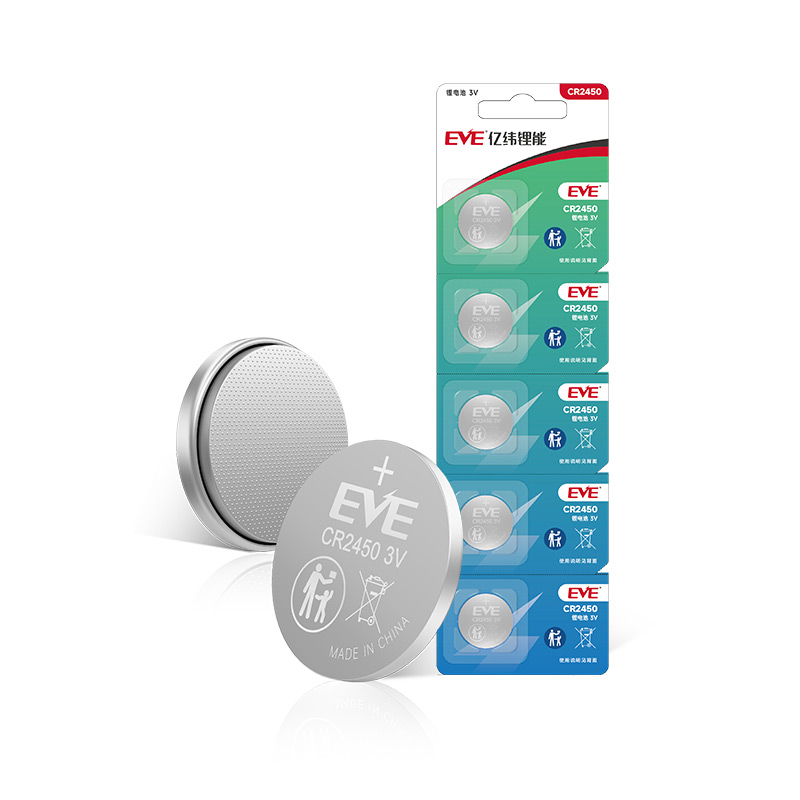

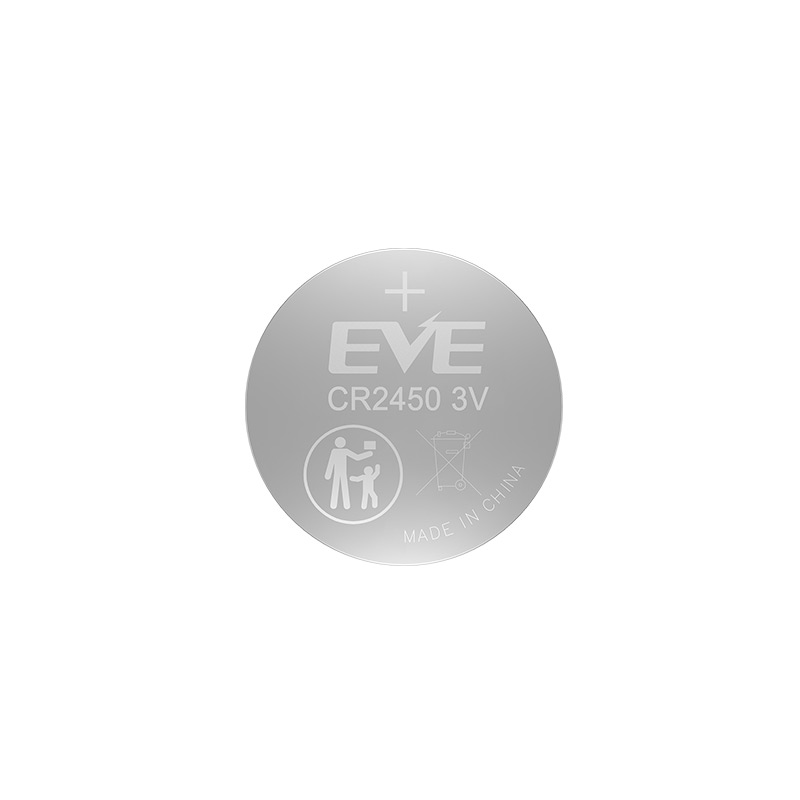

CR2450 Li-MnO2 600mAh 3 Volt Lithium Button Cell Battery

CR2450 Li-MnO2 600mAh 3 Volt Lithium Button Cell Battery Lithium Primary Battery Remote Control Thermometer Car Key Electronic

Product Characteristics

1. Low self-discharge rate: annual self-discharge is less than 1%

2. Long cycle life: to meet long-term needs

3. High security: technical leak proof, safe and durable

4. Ultra-wide temperature application: -40℃-70℃, suitable for various extreme environments

Comprehensive customized solutions-Power solutions for smart security/smart life/smart healthcare


Specifications



Parameter

Specification

Model

CR2450

Nominal Voltage

3V

Nominal Capacity

600mAh

Max Discharge Current

6mA

Max Pulse Current

25mA

Standard Discharge Current

0.2mA

Operating Temperature

-20 ~+70°C

Approx Weight

6.5g

Max Pulse Current

25mA

Dimension

24.5×5.0



Customized Application Solutions

Reliable power solutions for health care devices, such as blood glucose meters, thermometers, insulin pumps, AEDs, etc.

Comprehensive and reliable power solutions to satisfy the needs of smart life in various fields such as municipal services, retail services, and home services.

Comprehensive and reliable power solutions for security to realize functions such as intelligent management and early warning.

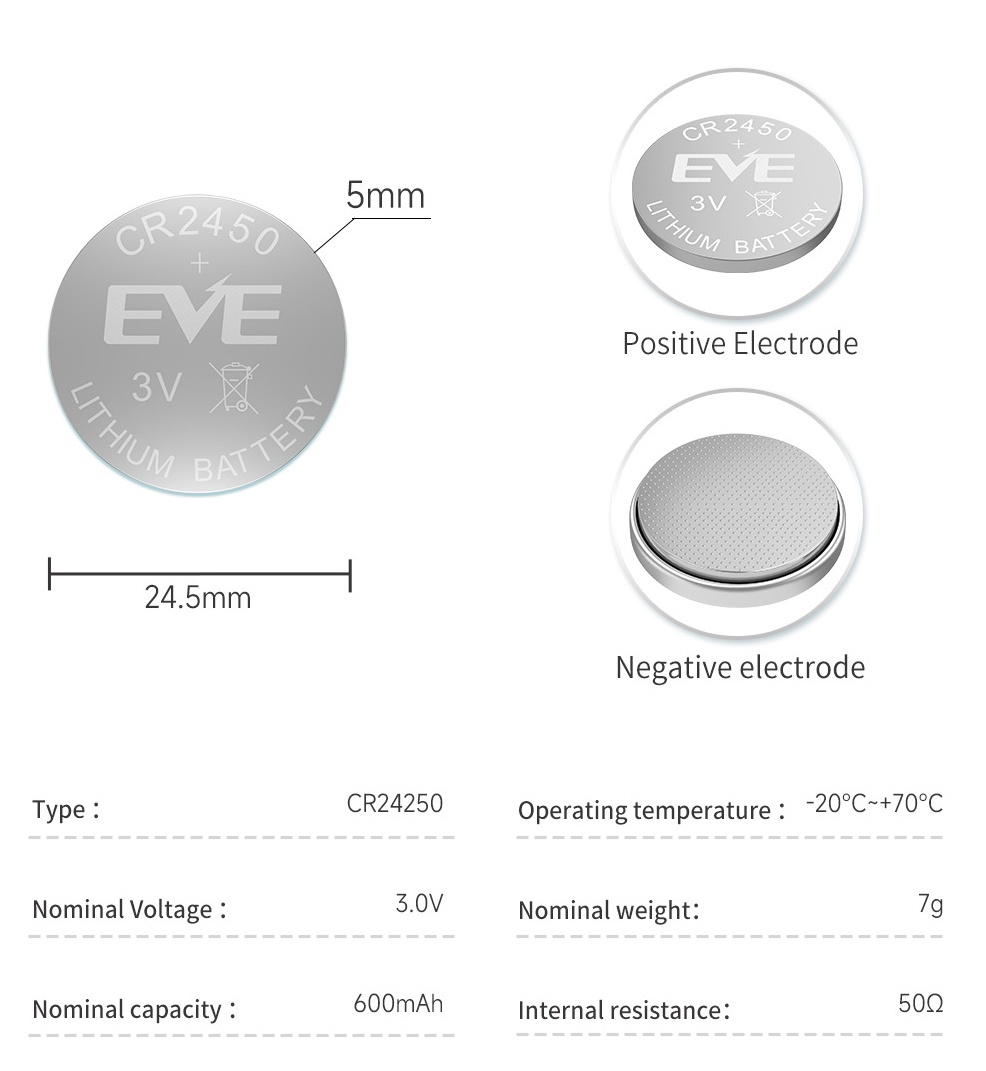

Dimension and Details


Dimension and detailsCR2450


Certification


Authoritative certification testing, quality assured


Certification Authoritative certification testing, quality assured


Applications


EVE' CR2450 Li-MnO2 600mAh 3 Volt Lithium Button Cell Batteries are widelyused inthefield of smartmotion sensor, smart fire extinguisher, smart door lock and so on.


applications

Applications


Battery Safety Specification

During the use of batteries, the following requirements must be observed

1) Do not remove the battery from its original packaging before use.

2) Do not place the battery scattered together to avoid accidental short circuit.

3) Do not heat the battery above 100C or burn it.

4) Do not weld directly on the surface of the battery, use a battery pre-equipped with welding feet or leads.

5) Do not mix new and used batteries, or batteries from different places of origin.

6) Disassembling and dissecting the battery is strictly prohibited.

7) Short circuit and reverse connection between the positive and negative electrodes of the battery are prohibited.
