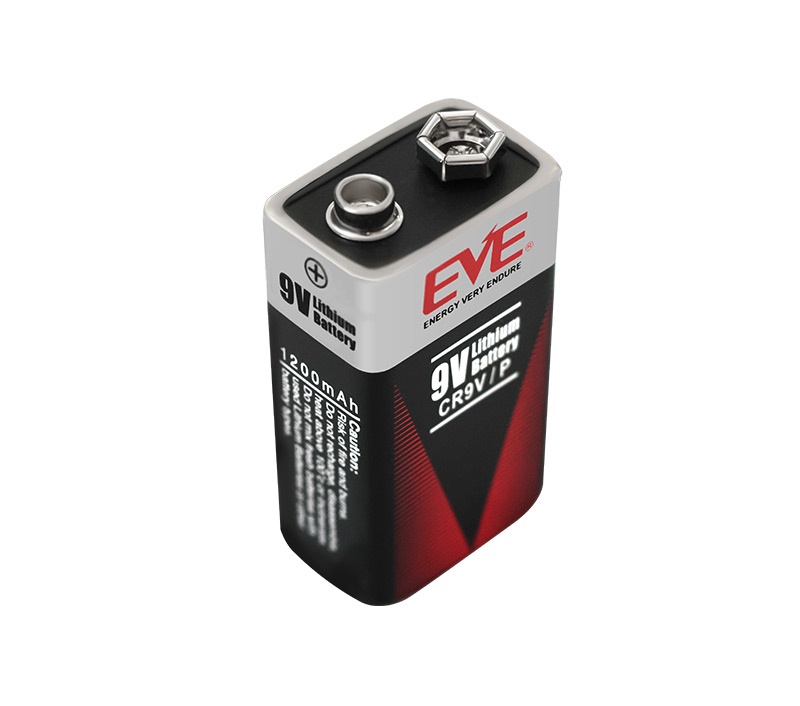

CR9V P 1200mAh Li MnO2 Lithium Polymer Battery 9V Smoke Detector Battery

CR9V P 1200mAh Li MnO2 Lithium Polymer Battery 9V Smoke Detector Battery and Wireless Doorbell Patrol Sensor, etc.

Product Characteristics

1. Low self-discharge rate: annual self-discharge is less than 1%

2. Long cycle life: to meet long-term needs

3. High security: technical leak proof, safe and durable

4. Ultra-wide temperature application: -40℃-70℃, suitable for various extreme environments

Comprehensive customized solutions-Power solutions for smart security/smart life/smart healthcare


Specifications


Parameter

Specification

Model

CR9V-P

Nominal Voltage

9V

Nominal Capacity

1200mAh

Max Discharge Current

120mA

Max Pulse Current

400mA

Standard Discharge Current

7.5mA

Operating Temperature

-40 ~+85°C

Approx Weight

43g

Dimension

17.5*49.2*26.5mm

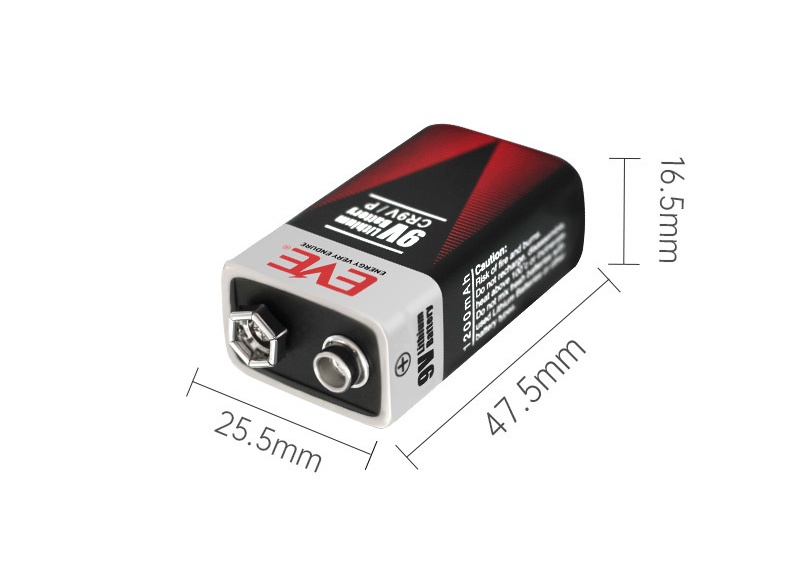

Dimension and Details


eve cr9v/peve cr9v/p


Customized Application Solutions

Reliable power solutions for health care devices, such as blood glucose meters, thermometers, insulin pumps, AEDs, etc.

Comprehensive and reliable power solutions to satisfy the needs of smart life in various fields such as municipal services, retail services, and home services.

Comprehensive and reliable power solutions for security to realize functions such as intelligent management and early warning.



Product Certification


Meet the UL1642, UN38.3, ATEX and other certificates


Product Certification

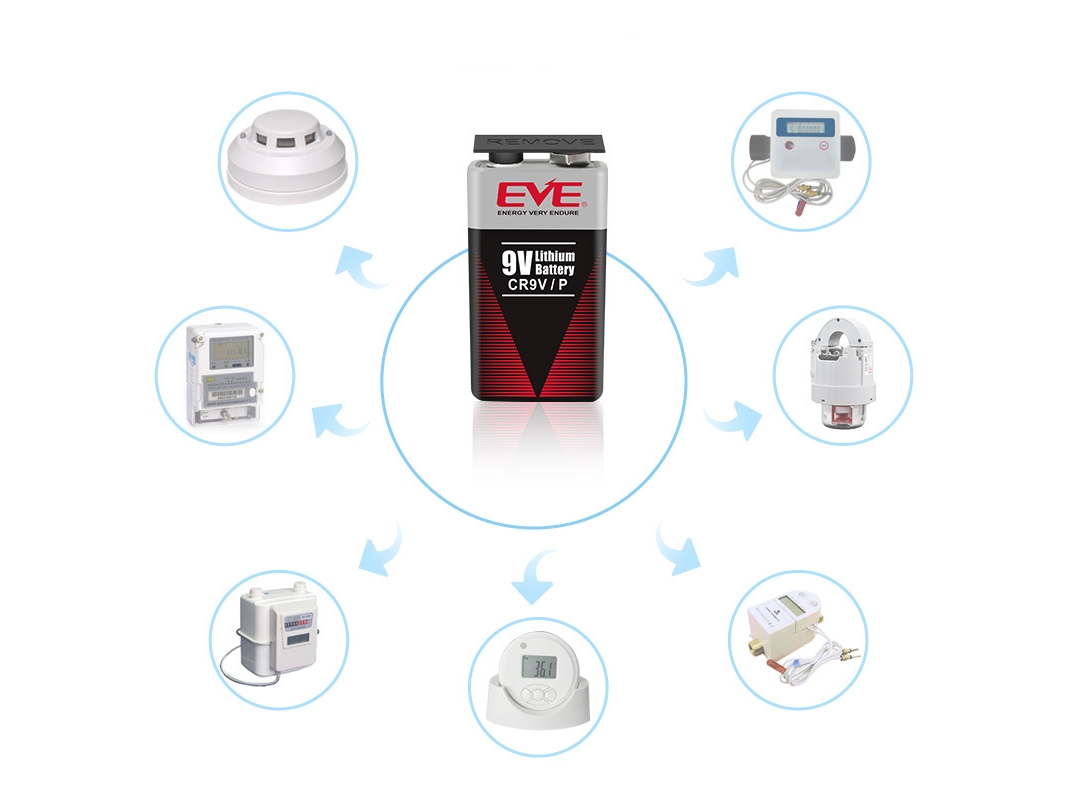

Applications

EVE 9V Lithium Battery CR9V P Wide application range. Widely used in smoke detector, smart meters, water meters, heat meters, gas meters, memory backup, clock power, data backup electricity, Source, smoke alarm, temperature monitor, positioning device, Marine telemetry system, tire pressure monitoring system, ETC (Toll collection System without stopping), automatic, instrumentation equipment, oil Wells, mines, medical equipment, Burglar alarm, wireless communication, Marine life saving, etc

APPLICATION
