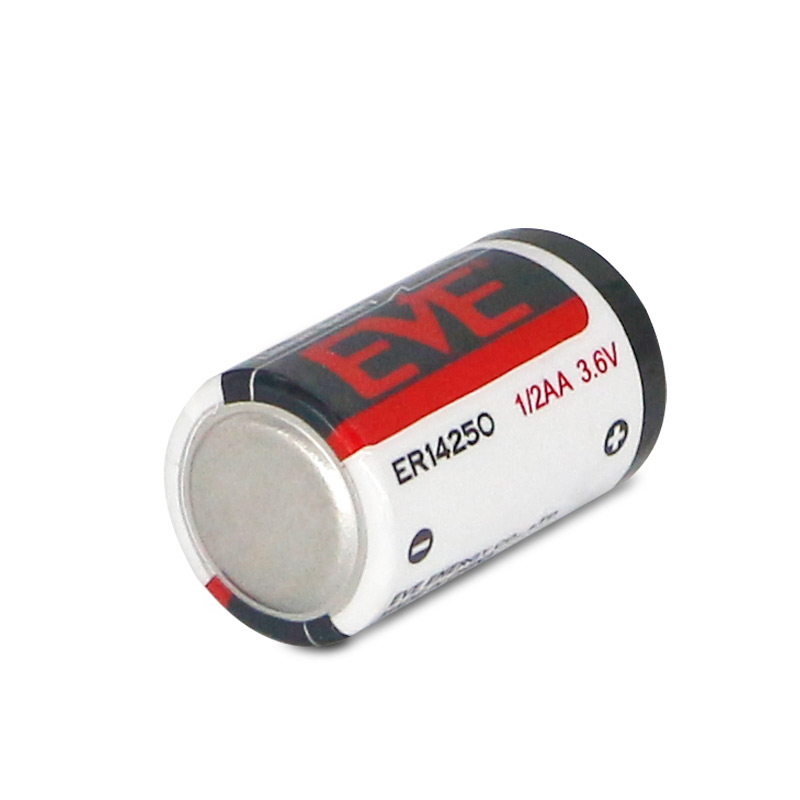

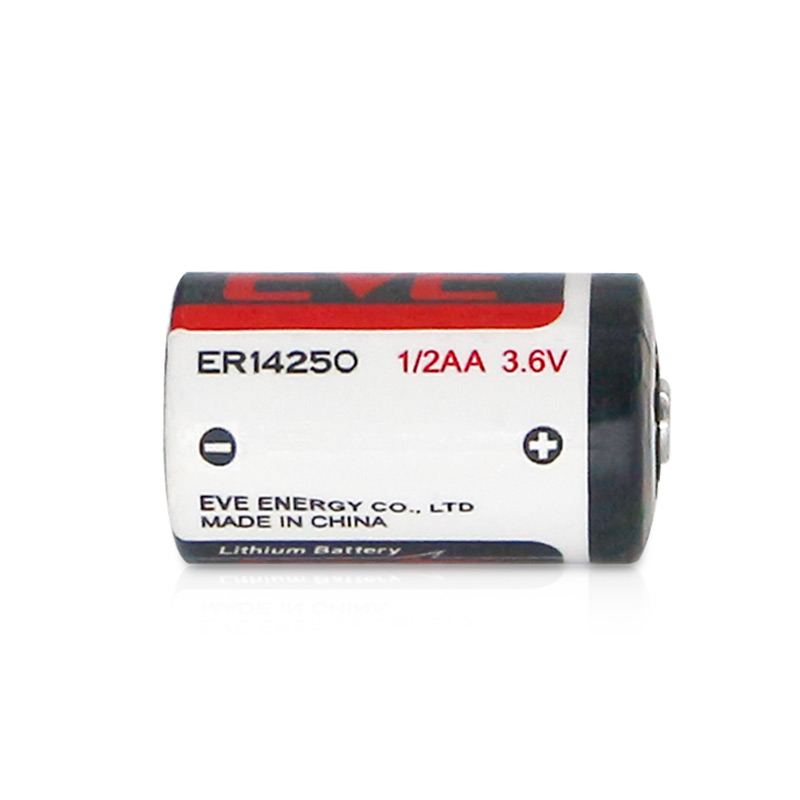

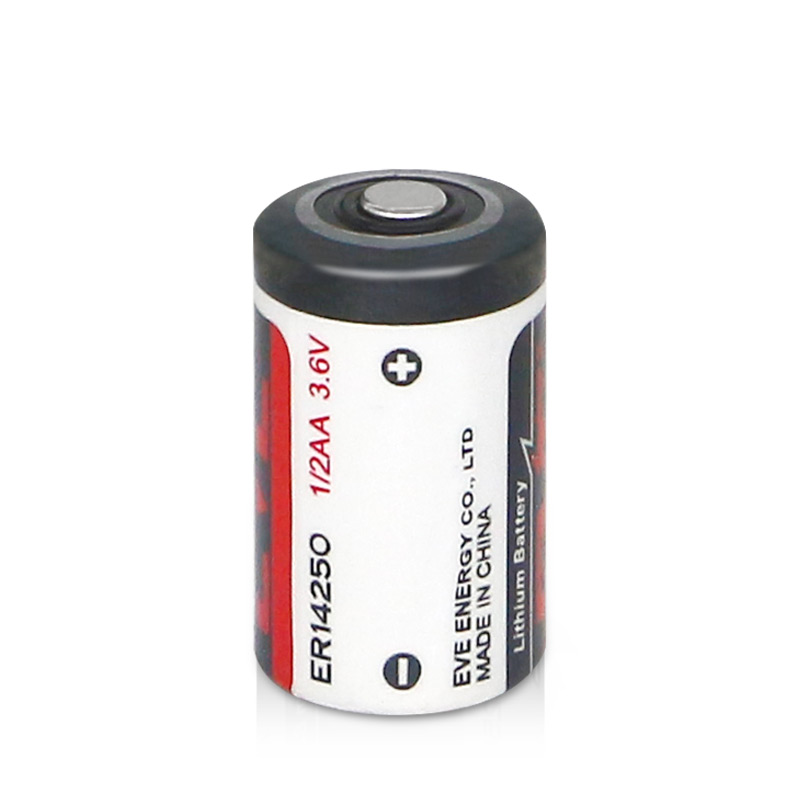

3.6V 1200mAh ER14250 Li SOCl2 Lithium Primary Battery
ER14250 Li SOCl2 3.6V lithium primary battery 1200mAh for electric meter PLC industrial control equipment with Long life, high pulse, and low self-discharge rate.
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag: Li SOCl2 battery
ER14250 Li SOCl2 3.6V Lithium Primary Battery 1200mAh Electric Meter PLC Industrial Control Equipment
The ER14250 battery is a disposable lithium thionyl chloride(Li SOCl2) battery with many excellent properties, such as low self-discharge rate, high energy density, long life and wide operating temperature range, which can work stably and reliably under a variety of environmental conditions to provide lasting energy support for various types of equipment.
Feature of ER14250 Li SOCl2
· High and Stable Operating Voltage
· High Energy Density
· Wide Operating Temperature Range
· Long Storage Life and High Reliability
· Good Safety and No Pollution
· Compatibility with Multiple Applications
Specifications
Parameter | Specification |
Model | ER14250 |
Nominal voltage | 3.6V |
Nominal capacity | 1200mAh |
Maximum continuous discharge current | 35mA |
Sustained discharge ratio | 0.0291C; Service time: 34h |
Maximum pulse discharge current | 50mA |
Pulse discharge rate | 0.042C; Service time: 24h |
Lithium Weight | 10g |
Energy density | 620wh/kg |
Self-discharge rate | ≤2% |
Natural storage life | 10 years |
Storage temperature | - 20℃~ + 25℃ |
Operating temperature | -55℃~ + 85℃ |

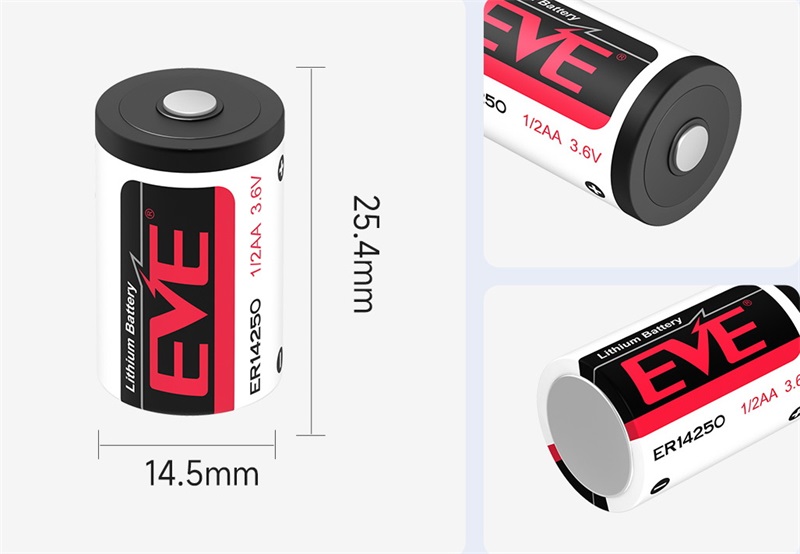

Product details and dimension
3.6V Li SOCl2 battery series
Model | Nominal voltage （V） | Nominal capacity (mAh) | Maximum continuous current(mA)
| Maximum pulse current(mA) | Weight (g) | Operating temperature(℃) | Dimension(mm) |
ER14250 | 3.6 | 1200 | 35 | 50 | 10 | -55~+85℃ | 14.5x25.4 |
3.6 | 1650 | 35 | 75 | 12 | -55~+85℃ | 14.5x33.5 | |
3.6 | 2700 | 60 | 150 | 19 | -55~+85℃ | 14.5x50.5 | |
3.6 | 3600 | 100 | 180 | 26 | -55~+85℃ | 17.5x51.0 | |
3.6 | 4000 | 130 | 180 | 28 | -55~+85℃ | 18.7x50.5 | |
3.6 | 8500 | 150 | 200 | 52 | -55~+85℃ | 26.2x50.0 | |
3.6 | 19000 | 230 | 300 | 100 | -55~+85℃ | 33.1x61.5 | |
3.6 | 400 | 5 | 20 | 5 | -55~+85℃ | 16.85x15.8x7.0 | |
3.6 | 750 | 10 | 30 | 8 | -55~+85℃ | 16.85x25.8x7.0 | |
3.6 | 1600 | 20 | 50 | 16 | -55~+85℃ | 23.3x38.3x7.5 | |
3.6 | 550 | 5 | 20 | 9 | -55~+125℃ | 24.3x6.2 | |
ER32L65 | 3.6 | 1000 | 10 | 50 | 19 | -55~+85℃ | 32.9x7.1 |
3.6 | 1700 | 10 | 50 | 24 | -60~+85℃ | 32.9x10 |

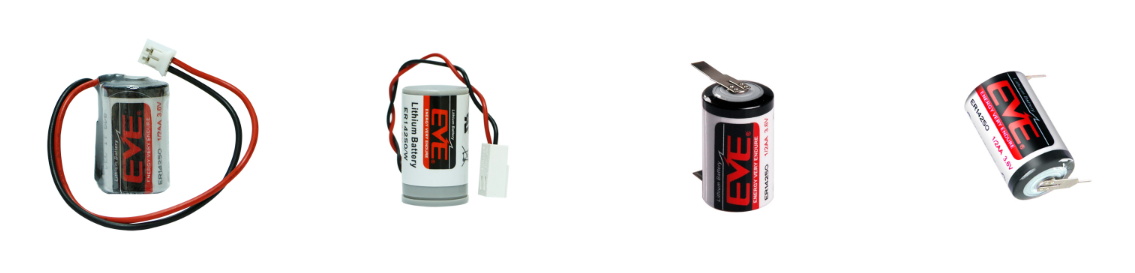

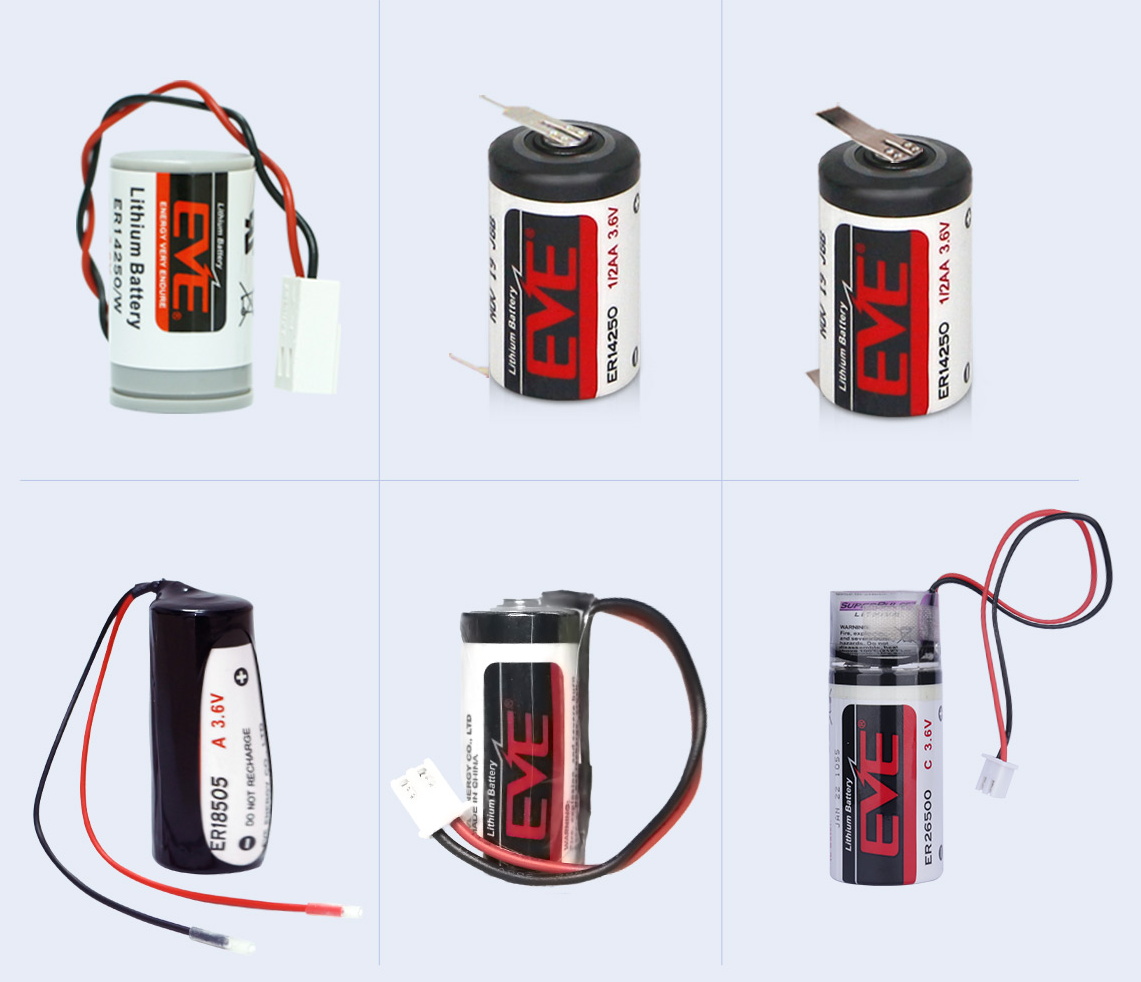

Customized Product
ER14250+Plug leads/Waterproof case/Flat foot/sharp-footed
If your battery needs to be processed in series/parallel or to add wire leads, pins or splices, please contact us.

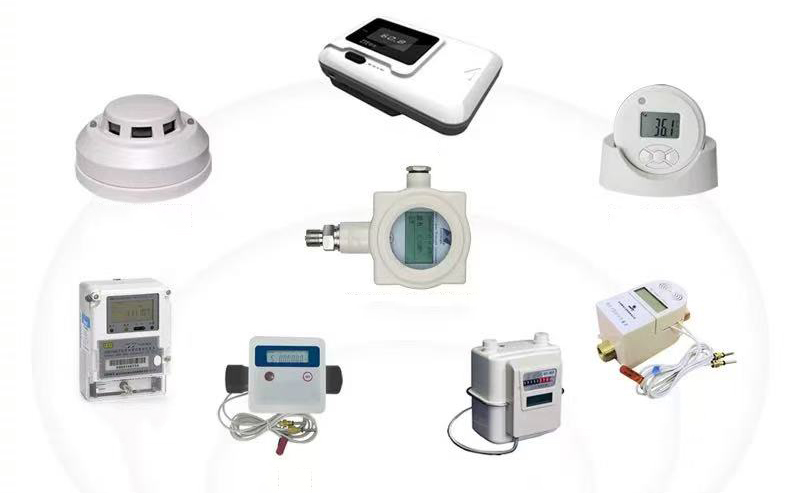

Applications
· Civil field: common instrument AMR and CMOS circuit board.
· Smart meters: such as smart meters, water meters, heat meters, gas meters, etc. Smart meter power solution
· Memory and backup power: memory backup, clock power, data backup power.
· Alarm and sensor: radio alarm, smoke alarm, temperature monitor, etc.
· Remote monitoring system: positioning tracking device, Marine telemetry system, etc. Tracking and locating power solutions
· Automotive electronics: Tire pressure monitoring system.
· Industrial field: automatic instrumentation and equipment, oil Wells, mines, medical equipment, anti-theft alarm, wireless communication, Marine life saving, etc.
· National defense and military fields: aviation, aerospace, Marine electronics, armaments, and air weapons.
