EF651615 Li/SOCl2 3.6V LTC-3PN Li Thionyl Chloride Battery
EF651615 Li/SOCl2 3.6V ltc-3pn li thionyl chloride battery for meter Iot DevicesAutomatic Smart Meters.
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag: Li SOCl2 battery
EF651615 Li/SOCl2 3.6V ltc-3pn li thionyl chloride battery stable voltage output, good durability and stability, low self-discharge rate, can be stored for a long time, a wide range of applications, suitable for all kinds of small terminal equipment in the smart Internet of things.
Feature of EF651615
· Excellent performance: voltage stable self-discharge rate is low
· Good safety: high safety, fully sealed structure, compact structure
· Wide temperature range: the operating temperature range is between -40 ℃ and 85℃
· Environmental protection and no pollution: the battery does not contain cadmium, lead, mercury, and other heavy metal elements
Specification
Parameter | Specification |
Model | EF651615 |
Nominal voltage | 3.6V |
Nominal capacity | 400mAH |
Maximum continuous discharge current | 5mA |
Maximum pulse discharge current | 20mA |
Lithium Weight | 5g |
Self-discharge rate | ≤1% |
Natural storage life | 10 years |
Storage temperature | - 20℃~ + 25℃ |
Operating temperature | -55℃~ + 85℃ |
Dimension | 16.85x15.8x7.0(mm) |

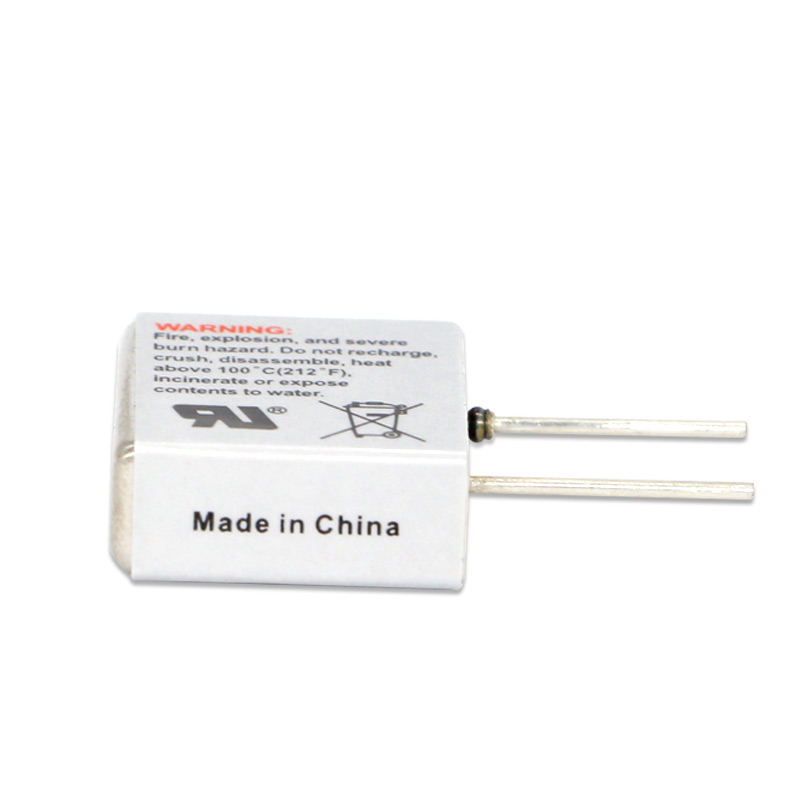

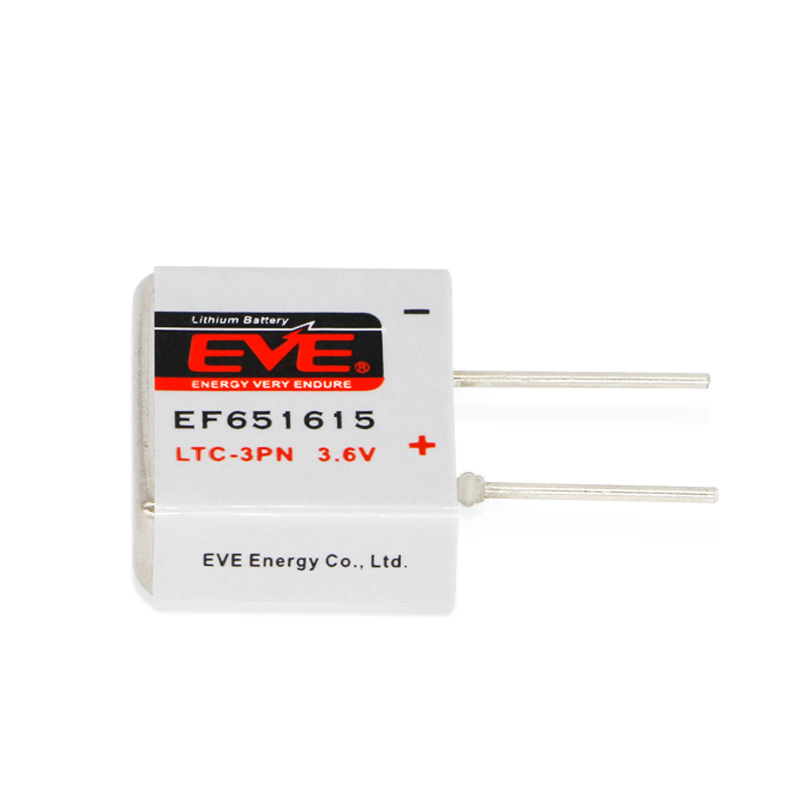

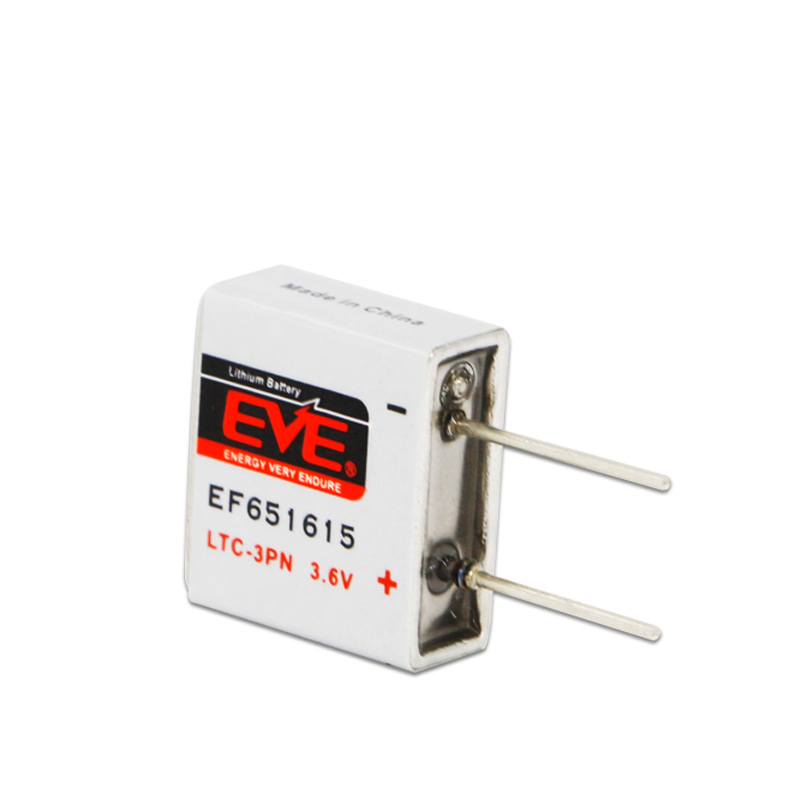

Product Details
3.6V Li SOC2 Battery Series
Model | Nominal voltage （V） | Nominal capacity (mAh) | Maximum continuous current(mA)
| Maximum pulse current(mA) | Weight (g) | Operating temperature(℃) | Dimension(mm) |
3.6 | 1200 | 35 | 50 | 10 | -55~+85℃ | 14.5x25.4 | |
3.6 | 1650 | 35 | 75 | 12 | -55~+85℃ | 14.5x33.5 | |
3.6 | 2700 | 60 | 150 | 19 | -55~+85℃ | 14.5x50.5 | |
3.6 | 3600 | 100 | 180 | 26 | -55~+85℃ | 17.5x51.0 | |
3.6 | 4000 | 130 | 180 | 28 | -55~+85℃ | 18.7x50.5 | |
3.6 | 8500 | 150 | 200 | 52 | -55~+85℃ | 26.2x50.0 | |
3.6 | 19000 | 230 | 300 | 100 | -55~+85℃ | 33.1x61.5 | |
EF651615 | 3.6 | 400 | 5 | 20 | 5 | -55~+85℃ | 16.85x15.8x7.0 |
3.6 | 750 | 10 | 30 | 8 | -55~+85℃ | 16.85x25.8x7.0 | |
3.6 | 1600 | 20 | 50 | 16 | -55~+85℃ | 23.3x38.3x7.5 | |
3.6 | 550 | 5 | 20 | 9 | -55~+125℃ | 24.3x6.2 | |
ER32L65 | 3.6 | 1000 | 10 | 50 | 19 | -55~+85℃ | 32.9x7.1 |
3.6 | 1700 | 10 | 50 | 24 | -60~+85℃ | 32.9x10 |
Product Certification
Application Aspect
· Suitable for small devices: 400mAh capacity is suitable for Bluetooth headphones, smart bracelets, mini fans, and other small electronic devices power supply, to meet the daily use needs of these devices.
· Applicable to various industries: can be used in all kinds of industrial, civil, and special company products, communications, automotive, petroleum, chemical, transportation, machinery, electronics, electrical, instruments, meters, security, medical, home appliances, and other industries in the small equipment, a wide range of uses.
