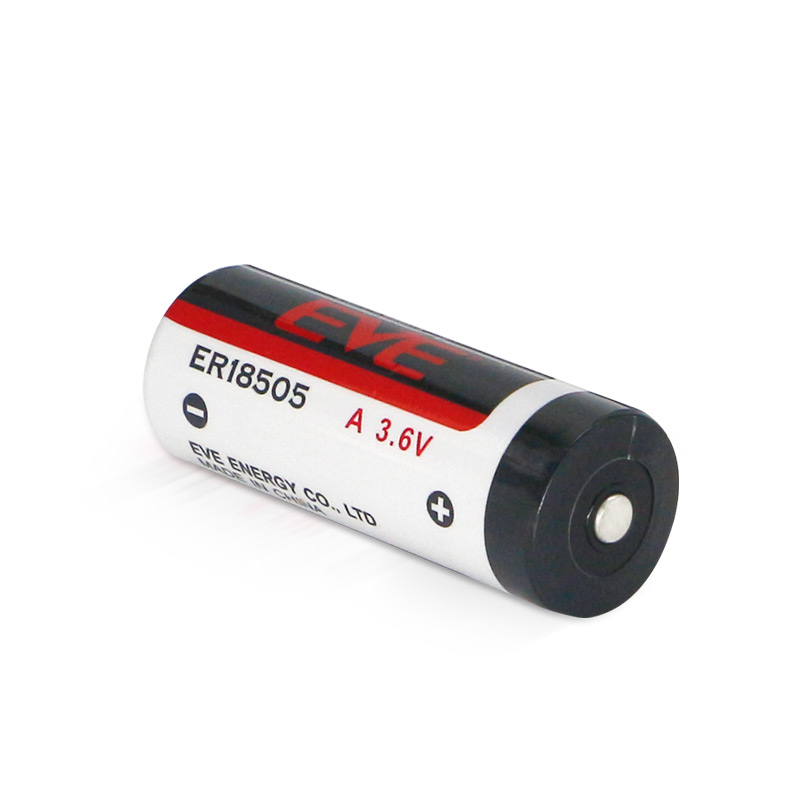

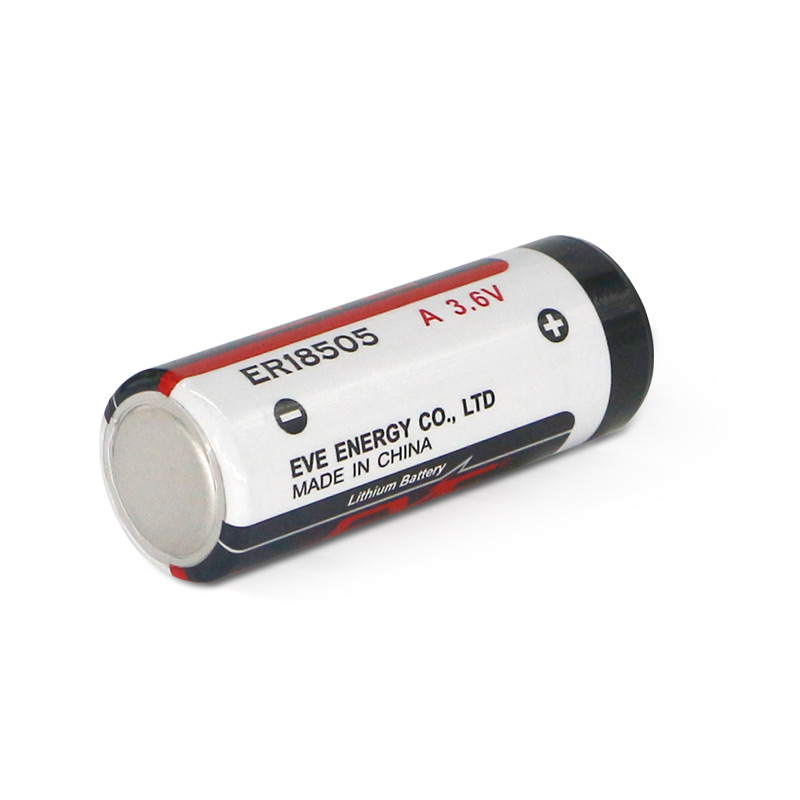

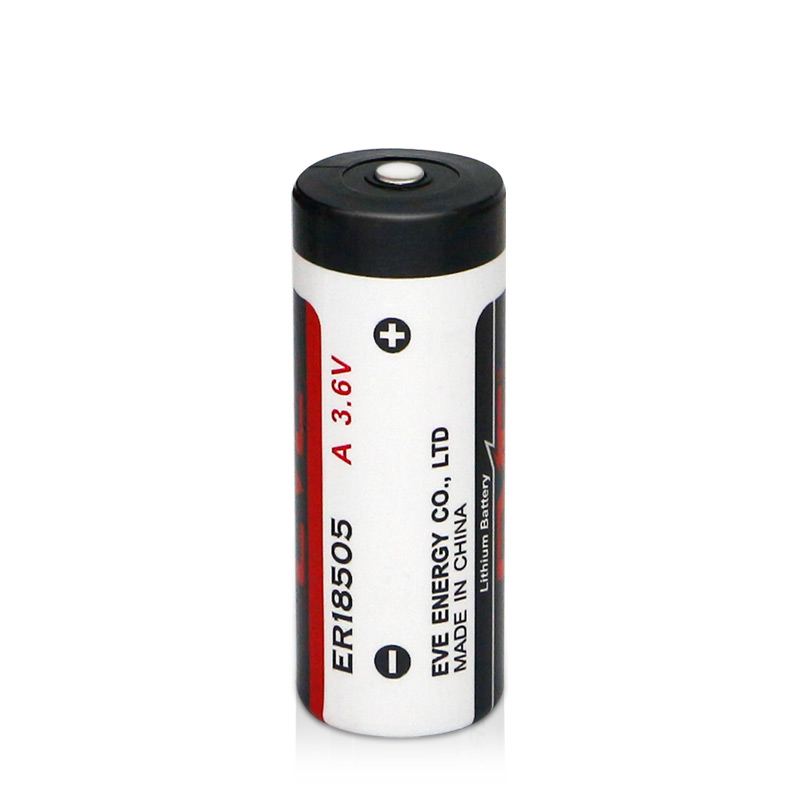

ER 18505 Battery 3.6V 4000mAh LSP Battery for Gas Meter Wireless Communication
ER 18505 battery 3.6V 4000mAh lithium battery has excellent performance, a low self-discharge rate, and is easy to use.
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag: Li SOCl2 battery
The ER 18505 battery 3.6V 4000mAh LSP battery is designed for wireless gas meter communication. Suitable for various types of gas meters, with high energy density, release sufficient power in a limited space, ensure wireless communication is always online, so that gas use data is transmitted to the management terminal in real time and accurately, greatly improving the intelligent level and efficiency of gas management. If you need to contact us!
Feature of ER 18505 Battery 3.6V 4000mAh
· Operating voltage stabilization
· Wide range of temperature adaptation
· High energy density
· Long storage life
· Good safety and no pollution
Specification
Parameter | Specification |
Model | ER18505 |
Nominal voltage | 3.6V |
Nominal capacity | 4000mAH |
Maximum continuous discharge current | 130mA |
Maximum pulse discharge current | 180mA |
Lithium Weight | 28g |
Self-discharge rate | ≤1% |
Natural storage life | 10 years |
Storage temperature | - 20℃~ + 25℃ |
Operating temperature | -55℃~ + 85℃ |
Dimension | 18.7x50.5(mm) |
Dimension and Details
3.6V Li-SOCL2 Series Battery
Model | Nominal voltage （V） | Nominal capacity (mAh) | Maximum continuous current(mA)
| Maximum pulse current(mA) | Weight (g) | Operating temperature(℃) | Dimension(mm) |
3.6 | 1200 | 35 | 50 | 10 | -55~+85℃ | 14.5x25.4 | |
3.6 | 1650 | 35 | 75 | 12 | -55~+85℃ | 14.5x33.5 | |
3.6 | 2700 | 60 | 150 | 19 | -55~+85℃ | 14.5x50.5 | |
3.6 | 3600 | 100 | 180 | 26 | -55~+85℃ | 17.5x51.0 | |
ER18505 | 3.6 | 4000 | 130 | 180 | 28 | -55~+85℃ | 18.7x50.5 |

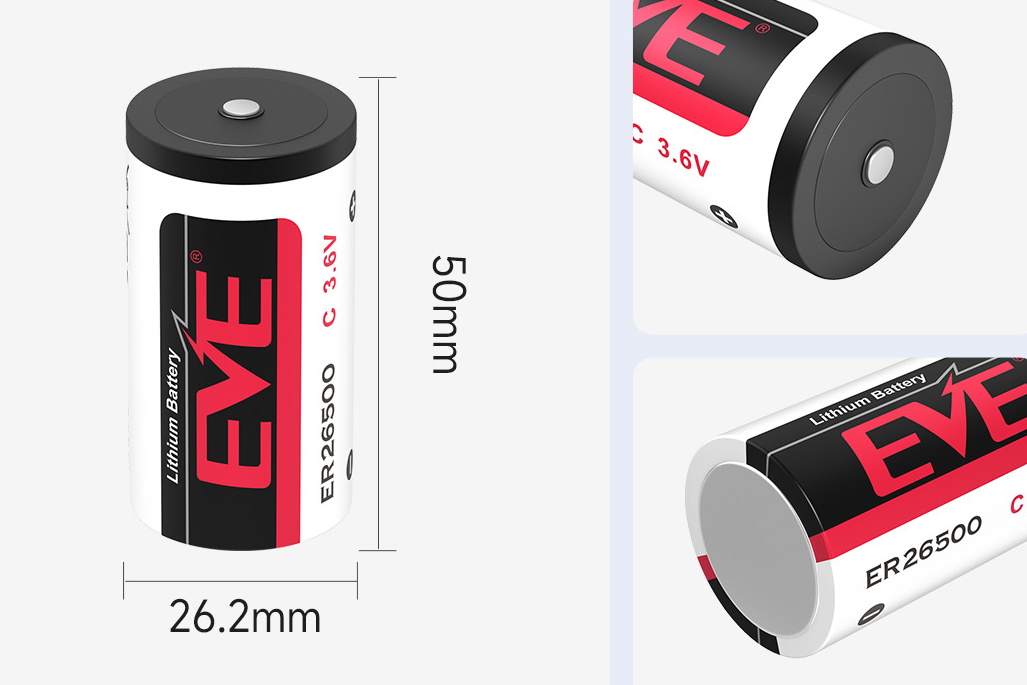

3.6 | 8500 | 150 | 200 | 52 | -55~+85℃ | 26.2x50.0 | |
3.6 | 19000 | 230 | 300 | 100 | -55~+85℃ | 33.1x61.5 | |
3.6 | 400 | 5 | 20 | 5 | -55~+85℃ | 16.85x15.8x7.0 | |
3.6 | 750 | 10 | 30 | 8 | -55~+85℃ | 16.85x25.8x7.0 | |
3.6 | 1600 | 20 | 50 | 16 | -55~+85℃ | 23.3x38.3x7.5 | |
3.6 | 550 | 5 | 20 | 9 | -55~+125℃ | 24.3x6.2 | |
ER32L65 | 3.6 | 1000 | 10 | 50 | 19 | -55~+85℃ | 32.9x7.1 |
3.6 | 1700 | 10 | 50 | 24 | -60~+85℃ | 32.9x10 |

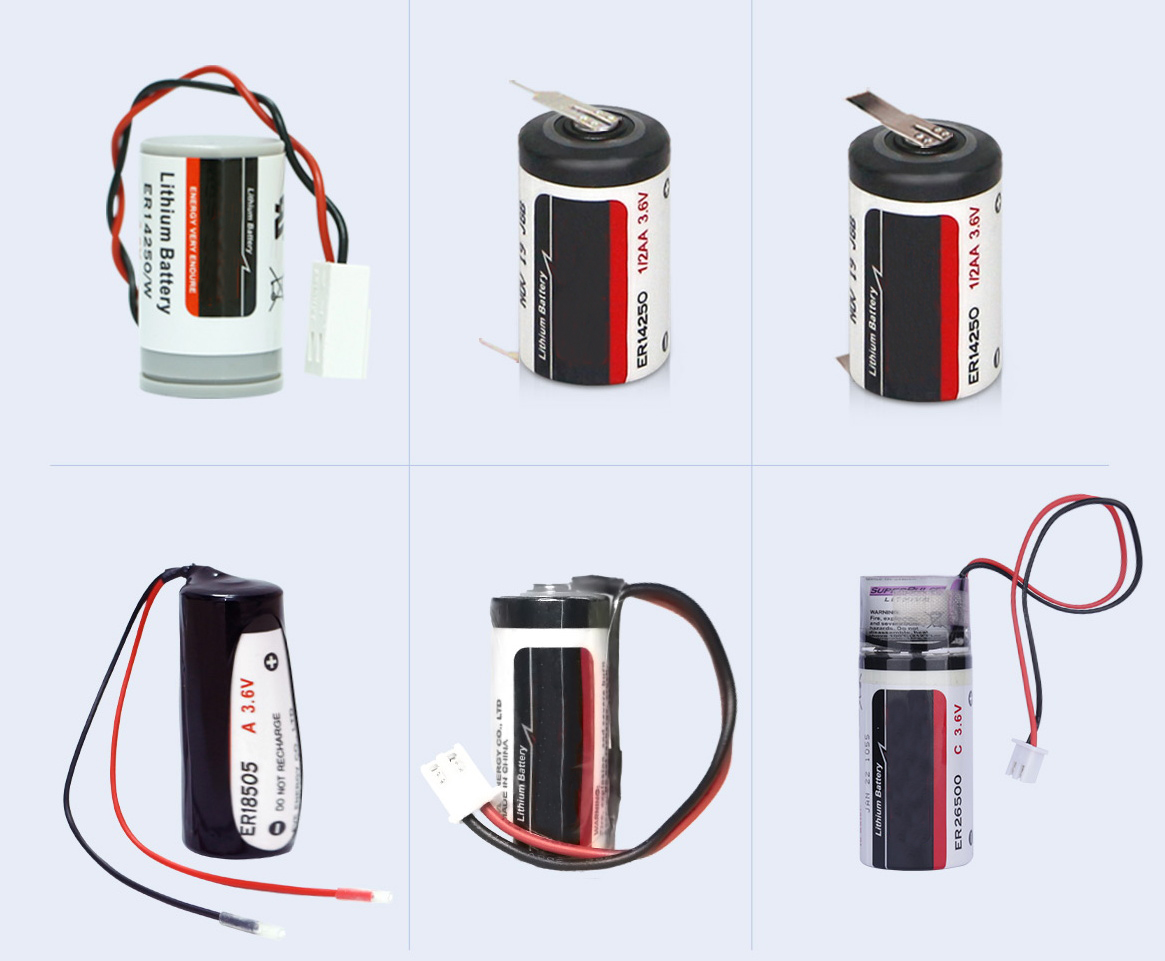

Customized Product

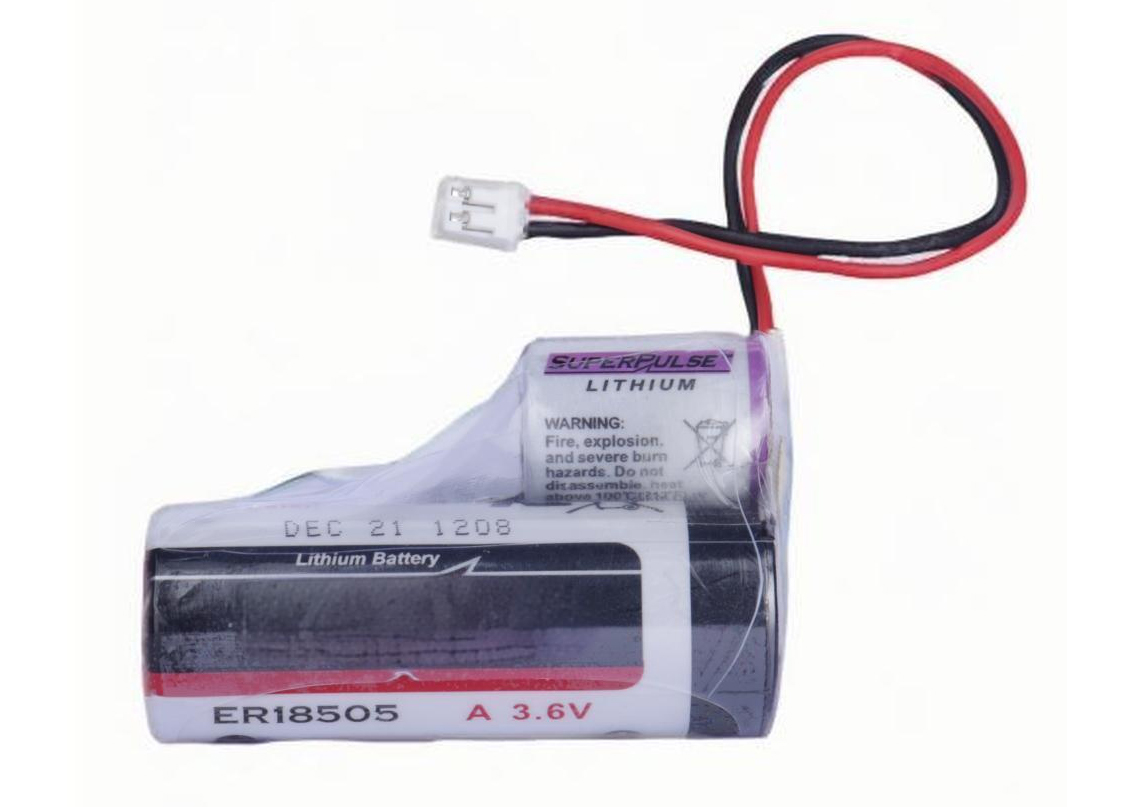

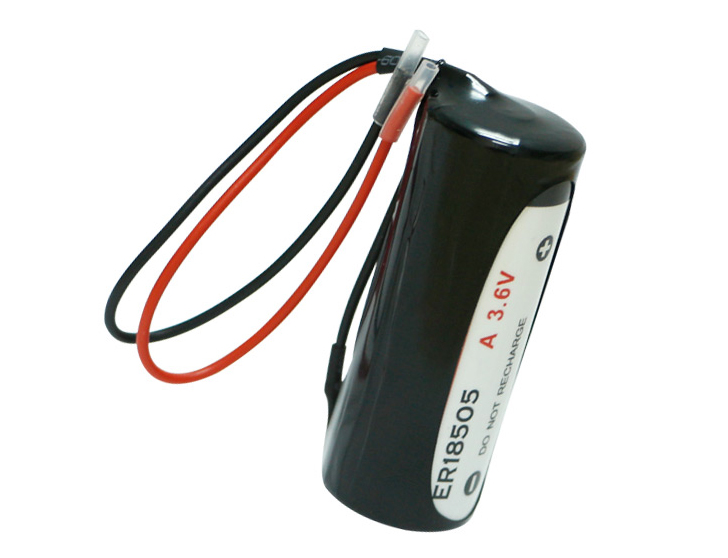

ER18505+Plug leads/leads
If your battery needs to be processed in series/parallel or to add wire leads, pins or splices, please contact us
Product Certification
Applications
The application field covers all kinds of industrial, civil, and special company products, communications, automotive, petroleum, chemical, transportation, machinery, electronics, electrical, instruments, meters, security, medical, home appliances, and other industries. It is especially suitable for some scenarios that require high battery performance, long-term stable power supply,y and inconvenient battery replacement, such as smart meters, water meters, gas meter,s and other metering equipment, as well as some outdoor monitoring equipment and backup power in industrial automation control systems.
