ER14505 3.6V 2700mAh Lithium Thionyl Chloride AA Lithium Batteries
ER14505 3.6v 2700mAh Lithium Thionyl Chloride AA lithium batteries are on sale!
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag: Li SOCl2 battery
3.6V ER14505 AA lithium batteries have the advantage of high energy density and, small size but contain a large amount of energy, can provide a continuous and stable power supply for your equipment, so that you do not need to change the battery frequently, saving worry and effort. As a leading lithium battery supplier, we offer high-quality and various models of Lea batteries to suit a wide range of application scenarios.
Feature of AA lithium batteries ER14505
· High and stable working voltage
· Wide operating temperature range
· High energy density
· Good storage life and reliability
· Good sealing performance
· Environmental protection
Specification
Parameter | Specification |
Model | ER14505 |
Nominal voltage | 3.6V |
Nominal capacity | 2700mAH |
Maximum continuous discharge current | 60mA |
Maximum pulse discharge current | 150mA |
Lithium Weight | 19g |
Self-discharge rate | ≤1% |
Natural storage life | 10 years |
Storage temperature | - 20℃~ + 25℃ |
Operating temperature | -55℃~ + 85℃ |
Dimension | 14.5×50.5(mm) |

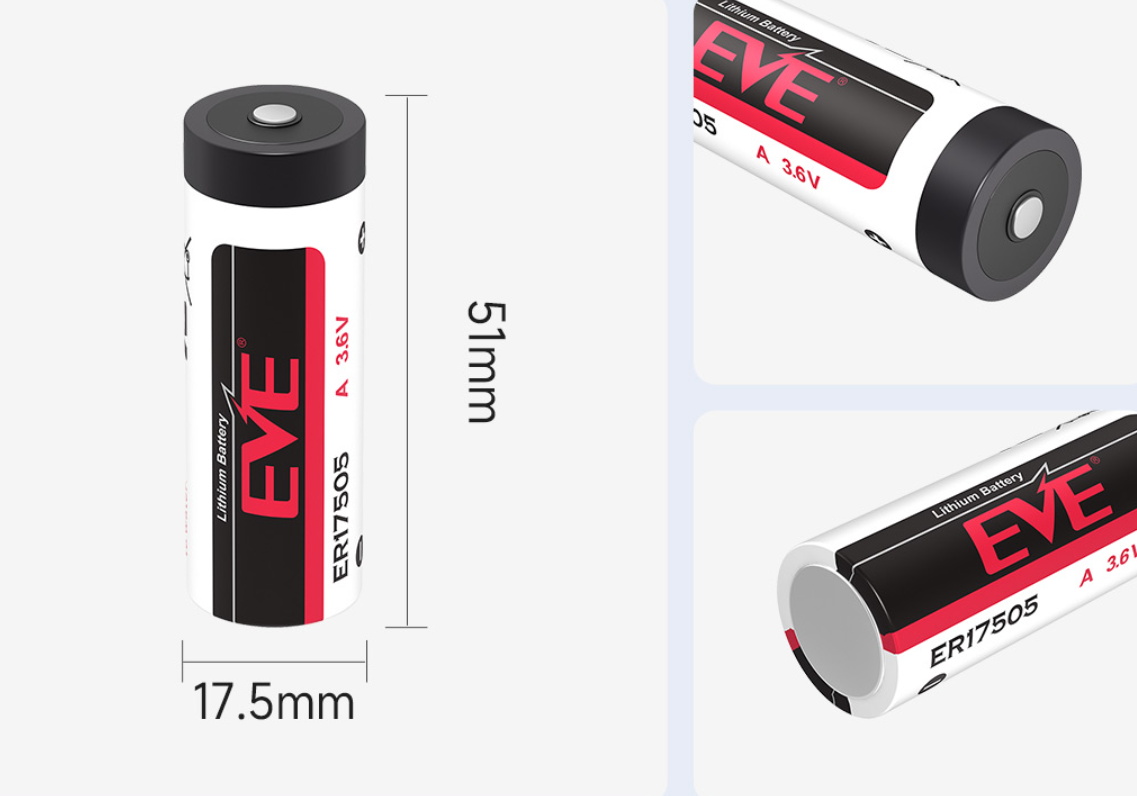

Dimension and Details
3.6V Li SOCl2 Battery Series
Model | Nominal voltage （V） | Nominal capacity (mAh) | Maximum continuous current(mA)
| Maximum pulse current(mA) | Weight (g) | Operating temperature(℃) | Dimension(mm) |
3.6 | 1200 | 35 | 50 | 10 | -55~+85℃ | 14.5x25.4 | |
3.6 | 1650 | 35 | 75 | 12 | -55~+85℃ | 14.5x33.5 | |
ER14505 | 3.6 | 2700 | 60 | 150 | 19 | -55~+85℃ | 14.5x50.5 |
3.6 | 3600 | 100 | 180 | 26 | -55~+85℃ | 17.5x51.0 | |
3.6 | 4000 | 130 | 180 | 28 | -55~+85℃ | 18.7x50.5 | |
3.6 | 8500 | 150 | 200 | 52 | -55~+85℃ | 26.2x50.0 | |
3.6 | 19000 | 230 | 300 | 100 | -55~+85℃ | 33.1x61.5 | |
3.6 | 400 | 5 | 20 | 5 | -55~+85℃ | 16.85x15.8x7.0 | |
3.6 | 750 | 10 | 30 | 8 | -55~+85℃ | 16.85x25.8x7.0 | |
3.6 | 1600 | 20 | 50 | 16 | -55~+85℃ | 23.3x38.3x7.5 | |
3.6 | 550 | 5 | 20 | 9 | -55~+125℃ | 24.3x6.2 | |
ER32L65 | 3.6 | 1000 | 10 | 50 | 19 | -55~+85℃ | 32.9x7.1 |
3.6 | 1700 | 10 | 50 | 24 | -60~+85℃ | 32.9x10 |
Product Certification
UN38.3UL1642ATEX Explosion-proof certification
Applications
· Smart meter field: widely used in smart meters, water meters, gas meters and other smart meters, as a data backup and real-time clock power supply, to provide stable and reliable power support for accurate metering and data transmission of the meter, to ensure the stable operation of the meter for a long time, reduce the data loss or system failure caused by insufficient battery power.
· Industrial control field: It is often used in PLC systems, alarm systems and other industrial control equipment to provide lasting power guarantee for the control circuit, data storage and communication module of the equipment to ensure the stable operation of the equipment in the industrial environment and improve the reliability and safety of the production process.
· Medical equipment field: It is also used in some small medical equipment, such as external equipment such as blood glucose meter, defibrillator, ventilator and internal equipment such as capsule endoscope, cardiac pacemaker, brain nerve stimulator, etc. With its characteristics of high energy, high life and high reliability, it provides guarantee for the normal operation of medical equipment and better guards people's health.
· The field of Internet of Things devices: With the development of the Internet of Things, many Internet of Things devices have put forward higher requirements for battery performance. ER14505 battery can meet the long-term stable power supply needs of Internet of Things devices in different environments, such as smart sensors, remote monitoring equipment, wireless positioning equipment, etc., to ensure the continuous operation of Internet of Things devices, to achieve stable data collection and transmission.
· Other fields: It can also be applied to some control modules in automotive electronic equipment, special detection electronic equipment and various small electronic equipment that require long-term stable power supply, etc., to provide reliable power support for these devices to ensure their normal work.
