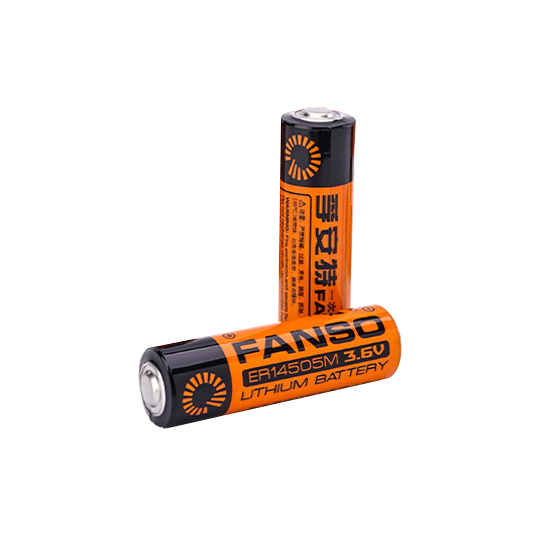

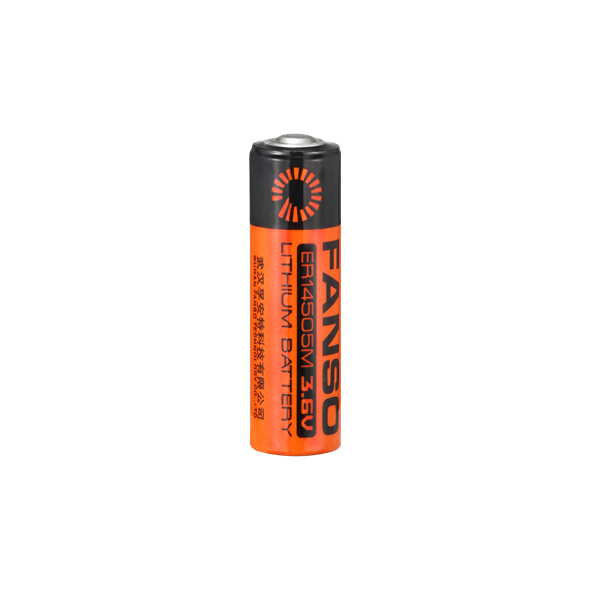

ER14505M 3.6v AA Size 2100mAh Long Lifespans li socl2 lithium battery

ER14505M 3.6v 2100mAh long lifespans li socl2 lithium battery used in a variety of meters, monitoring, and other scenarios, is an excellent choice in disposable batteries

Product characteristics

· Low self-discharge: Store at room temperature 25℃, Annual release rate ≤2%

· Ultra-wide temperature applications:- 55 ℃ ~ + 80 ℃

· High energy density: Up to 700Wh/kg

· long-life: Very long reliable life expectancy

· High stable voltage: The nominal voltage is 3.6V and the operating voltage has good stability

· High security and reliability: UL1642, IEC60086-4, UN3803


Specifications



Item

Specifications

Model

ER14505M

Rated voltage

3.6V

Termination voltage

2.0 V

Nominal capacity

2100 mAh

Nominal current

3.0 mA

Maximum Continuous

discharge current

400 mA

Energy density

700wh/kg

Operating temperature

-55℃ ~ +80℃

Maximum overall dimension

14.5mm × 50.5mm

Weight

19g

Storage temperature

It should be placed under clean, dry, and cool conditions

(preferably at +20 ° C or lower temperature

environment, maximum not exceeding +30 ° C)

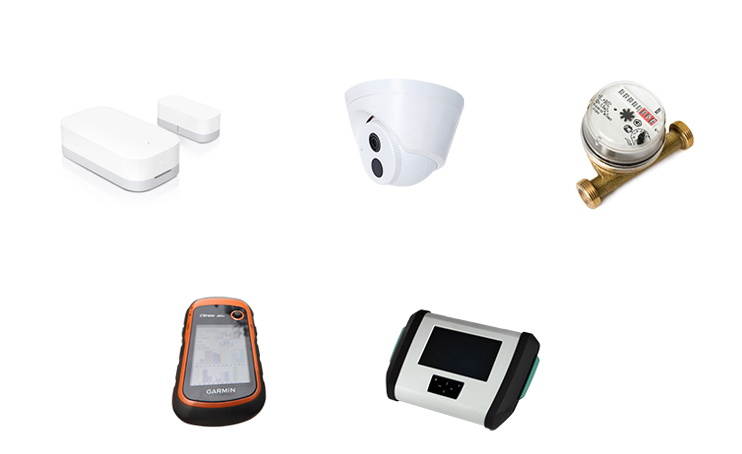

Applications

application


GPS; Automotive electronics; ETC system; Professional electronic equipment; Industrial automation; Intelligent instrument; Military electronic equipment; Alarm/security equipment; Medical device field; Aerospace navigation; Wireless communication
