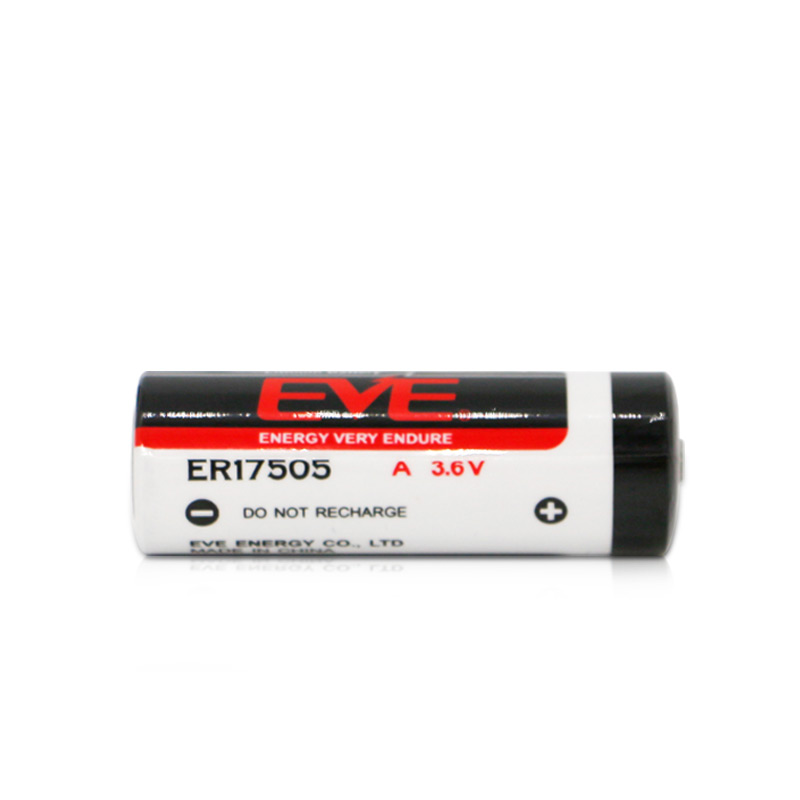

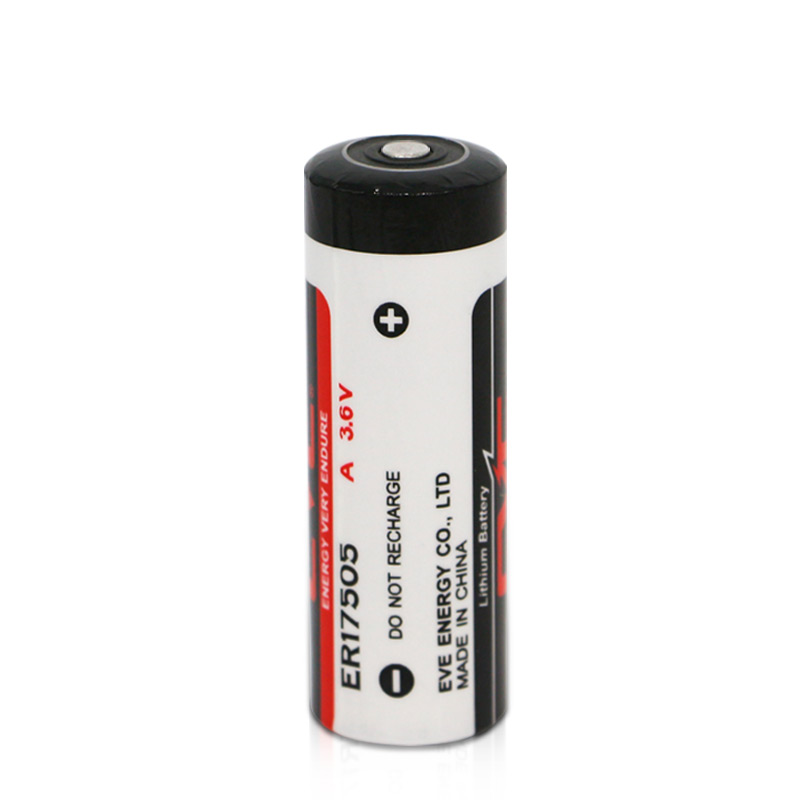

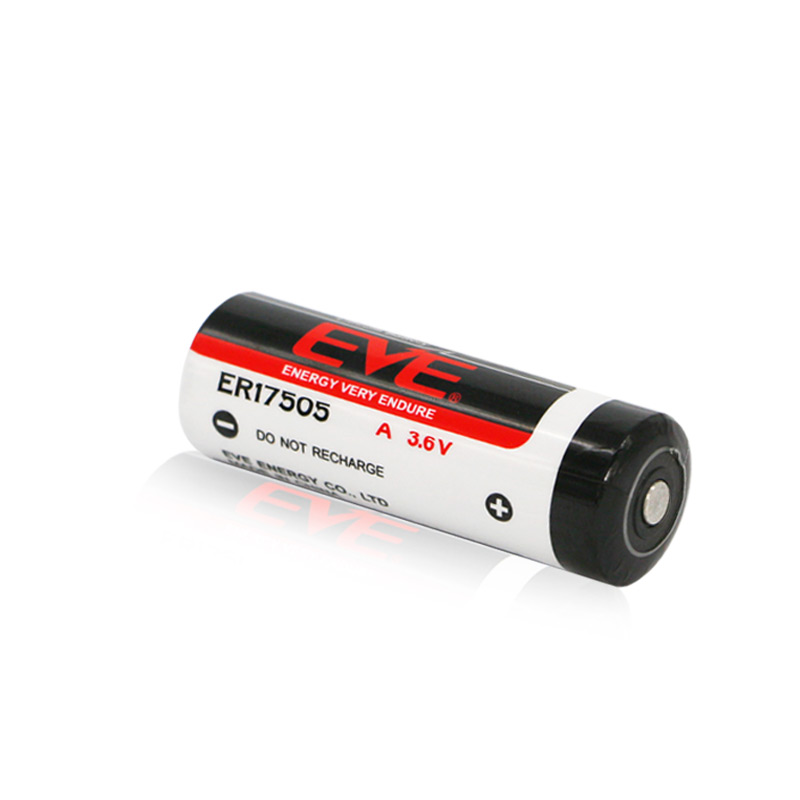

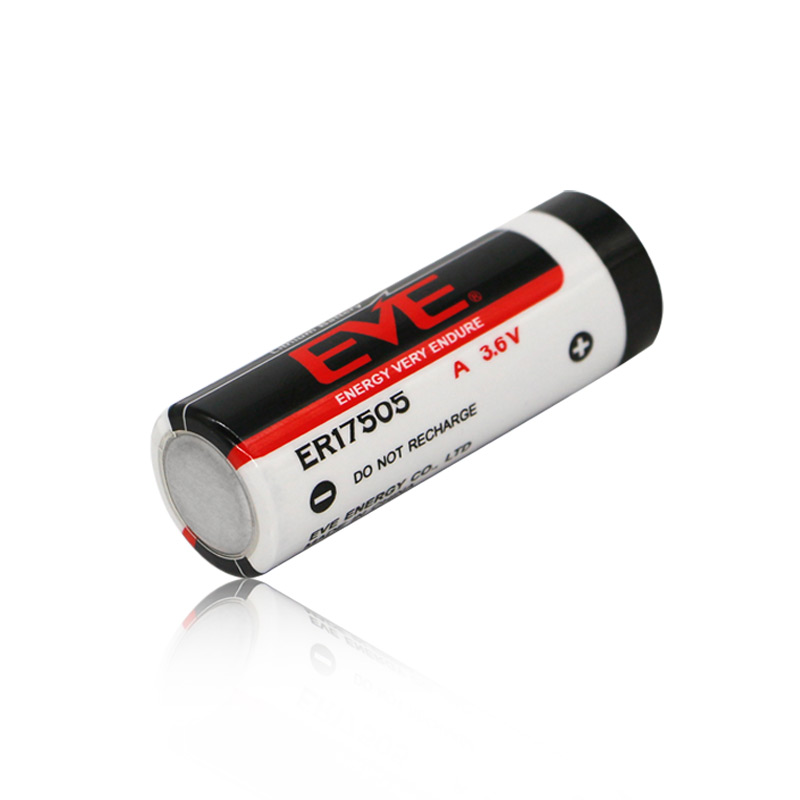

ER17505 Smart Meter Special Disposable 3600mAh 3.6 V Lithium Thionyl Chloride Battery
ER17505 3600mAh 3.6V disposable lithium thionyl chloride battery for smart meters, excellent performance, to meet your stable power needs, contact us for a free quote!
- Category: Lithium Thionyl Chloride Li SOCl2 Battery
- Tag: Li SOCl2 battery
ER17505 disposable battery takes into account convenience and safety, no complicated charging operation, can be used after installation, replaced after use,is simple and convenient, and avoids the charging process such as overcharging, overheating, and other safety hazards, for the safe and stable operation of the smart meter added a guarantee. Widely used in smart meters, water meters, gas meters, and other fields, with its excellent performance,and reliable quality, has become the ideal power partner in the field of smart meters.
Feature
· Voltage characteristics: High and stable operating voltage
· Energy characteristics: High energy density
· Self-discharge characteristics: The self-discharge rate is very low
· Temperature characteristics: Wide operating temperature range
· Sealing characteristics: Good sealing performance
· Environmental protection: no heavy metal harm
· Safety: Internal protection mechanism - protective passivation film
Specification
Parameter | Specification |
Model | ER17505 |
Nominal voltage | 3.6V |
Nominal capacity | 3600mAH |
Maximum continuous discharge current | 100mA |
Maximum pulse discharge current | 180mA |
Lithium Weight | 26g |
Self-discharge rate | ≤1% |
Natural storage life | 10 years |
Storage temperature | - 20℃~ + 25℃ |
Operating temperature | -55℃~ + 85℃ |
Dimension | 17.5x51.0(mm) |

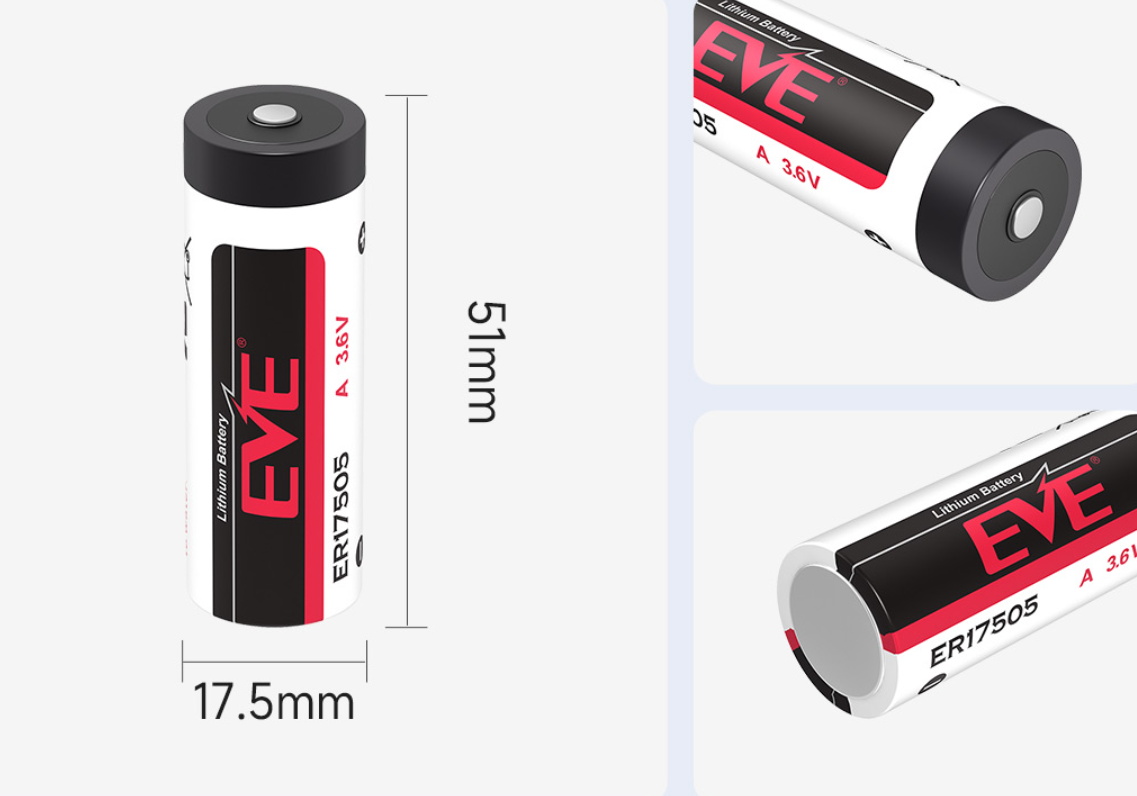

Dimension and Details
3.6 V Lithium Thionyl Chloride Battery Series
Model | Nominal voltage （V） | Nominal capacity (mAh) | Maximum continuous current(mA)
| Maximum pulse current(mA) | Weight (g) | Operating temperature(℃) | Dimension(mm) |
3.6 | 1200 | 35 | 50 | 10 | -55~+85℃ | 14.5x25.4 | |
3.6 | 1650 | 35 | 75 | 12 | -55~+85℃ | 14.5x33.5 | |
3.6 | 2700 | 60 | 150 | 19 | -55~+85℃ | 14.5x50.5 | |
ER17505 | 3.6 | 3600 | 100 | 180 | 26 | -55~+85℃ | 17.5x51.0 |
3.6 | 4000 | 130 | 180 | 28 | -55~+85℃ | 18.7x50.5 | |
3.6 | 8500 | 150 | 200 | 52 | -55~+85℃ | 26.2x50.0 | |
3.6 | 19000 | 230 | 300 | 100 | -55~+85℃ | 33.1x61.5 | |
3.6 | 400 | 5 | 20 | 5 | -55~+85℃ | 16.85x15.8x7.0 | |
3.6 | 750 | 10 | 30 | 8 | -55~+85℃ | 16.85x25.8x7.0 | |
3.6 | 1600 | 20 | 50 | 16 | -55~+85℃ | 23.3x38.3x7.5 | |
3.6 | 550 | 5 | 20 | 9 | -55~+125℃ | 24.3x6.2 | |
ER32L65 | 3.6 | 1000 | 10 | 50 | 19 | -55~+85℃ | 32.9x7.1 |
3.6 | 1700 | 10 | 50 | 24 | -60~+85℃ | 32.9x10 |
Product Certification
Applications
ER17505 smart meter dedicated 3.6V 3600mAh thionyl chloride disposable battery is widely used, the following are some of the main application areas:
· Smart meter
Provide a stable power supply for the meter to ensure that the meter accurately measures energy consumption over a long period of time. Its high energy density and low self-discharge rate make the meter do not need to replace the battery frequently, reduce maintenance costs, but also ensure the stability of data collection and transmission, and help realize the efficient operation of the smart grid.
· Smart water meter
It can adapt to a variety of complex installation environments, whether indoor or outdoor, cold or hot conditions, to provide reliable power support for water meters. It can meet the needs of long-term stable operation of the water meter, accurately record the water consumption, and transmit the data to the management department through wireless communication and other ways to achieve remote meter reading and effective management of water resources.
· Smart gas meter
With its good temperature adaptability and high safety, the gas meter can work normally in different seasons and environments. The stable voltage output ensures the accuracy of gas metering, the low self-discharge rate extends the service life of the battery, reduces the inconvenience and safety risks caused by battery replacement, and provides a strong guarantee for the intelligent management of gas supply.
· Industrial instrument
It is widely used in various industrial production processes, such as flow meters, pressure meters, temperature meters and other equipment in petrochemical, metallurgy, pharmaceutical and other industries. To provide a stable power supply for these instruments, to ensure their long-term stable operation in harsh industrial environments, to ensure the accuracy of data monitoring and control in the production process, thereby improving production efficiency and product quality.
· Data acquisition and transmission equipment
It is used in some remote data acquisition systems, wireless sensor nodes and other devices to provide reliable energy support for data acquisition, processing and transmission. Its characteristics of long life and high energy density can meet the needs of these devices to work continuously for a long time, ensure the timely and accurate transmission of data, and provide basic support for applications in industrial automation, the Internet of Things and other fields.
· Security monitoring equipment
In some security monitoring system sensors, alarms and other equipment used, such as smoke alarms, infrared detectors. As a backup power supply or main power supply, to ensure that these devices can work normally at critical times, timely alarm signals, improve the reliability and stability of the security monitoring system, and ensure the safety of personnel and property.
· Medical instrument
It can be used in some small and portable medical equipment, such as blood glucose meter, blood pressure meter, electronic thermometer, etc., to provide a stable power supply to ensure the normal operation of the instrument and the accuracy of the measurement data. In addition, in some medical monitoring equipment, such as sensors in remote patient monitoring systems, the battery can also be used as a power source to achieve long-term and stable monitoring of patient physiological data.
